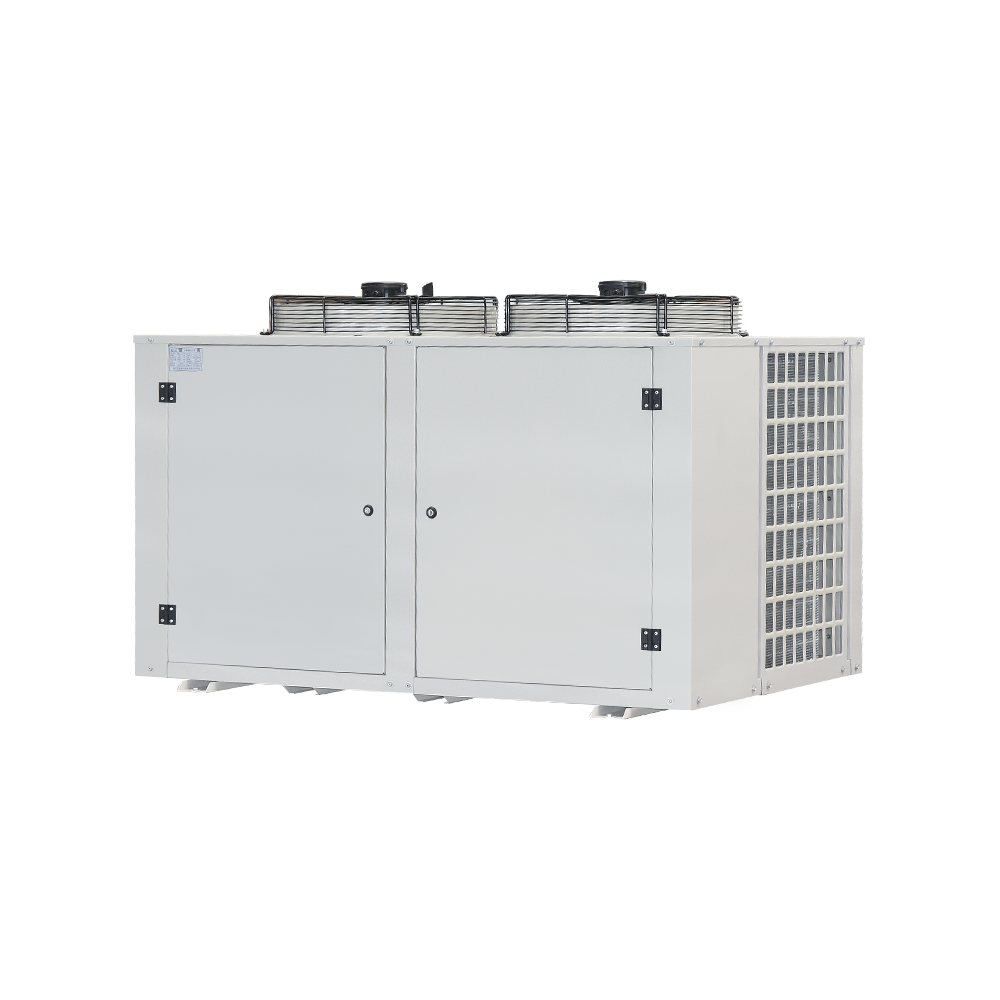

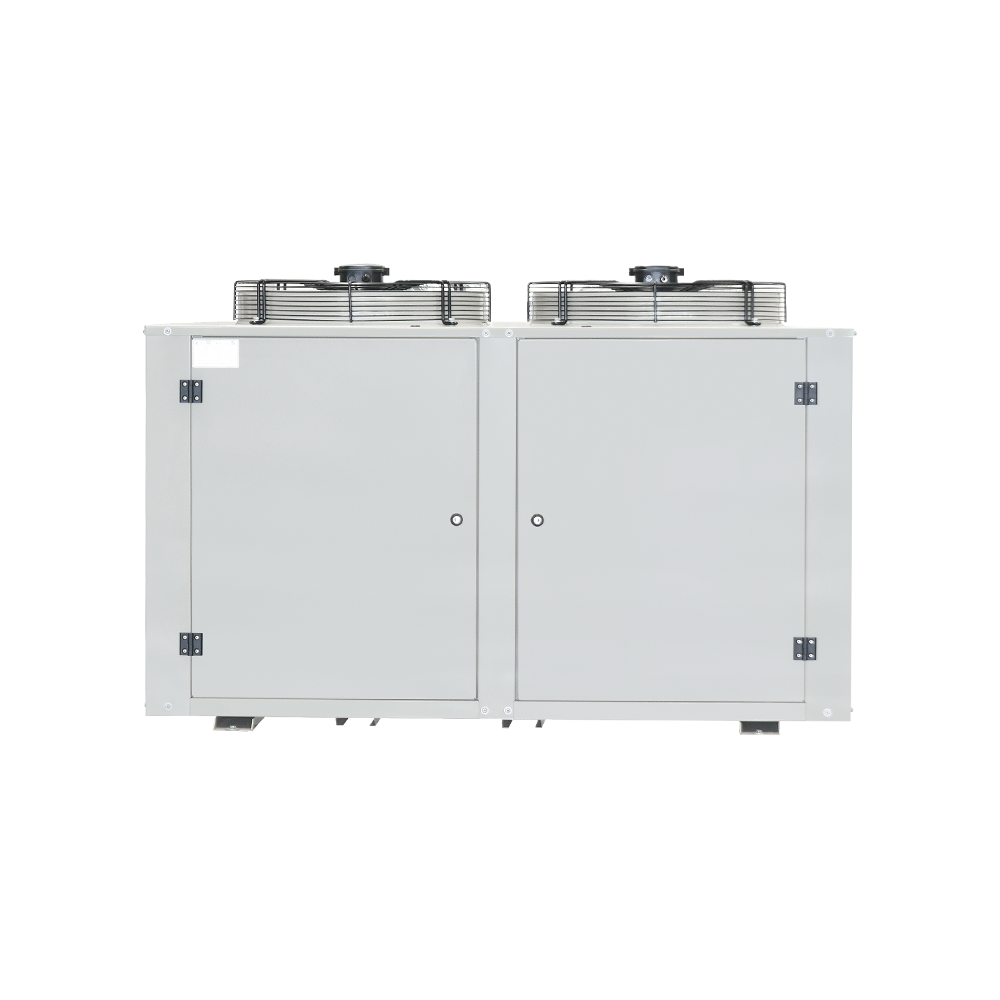

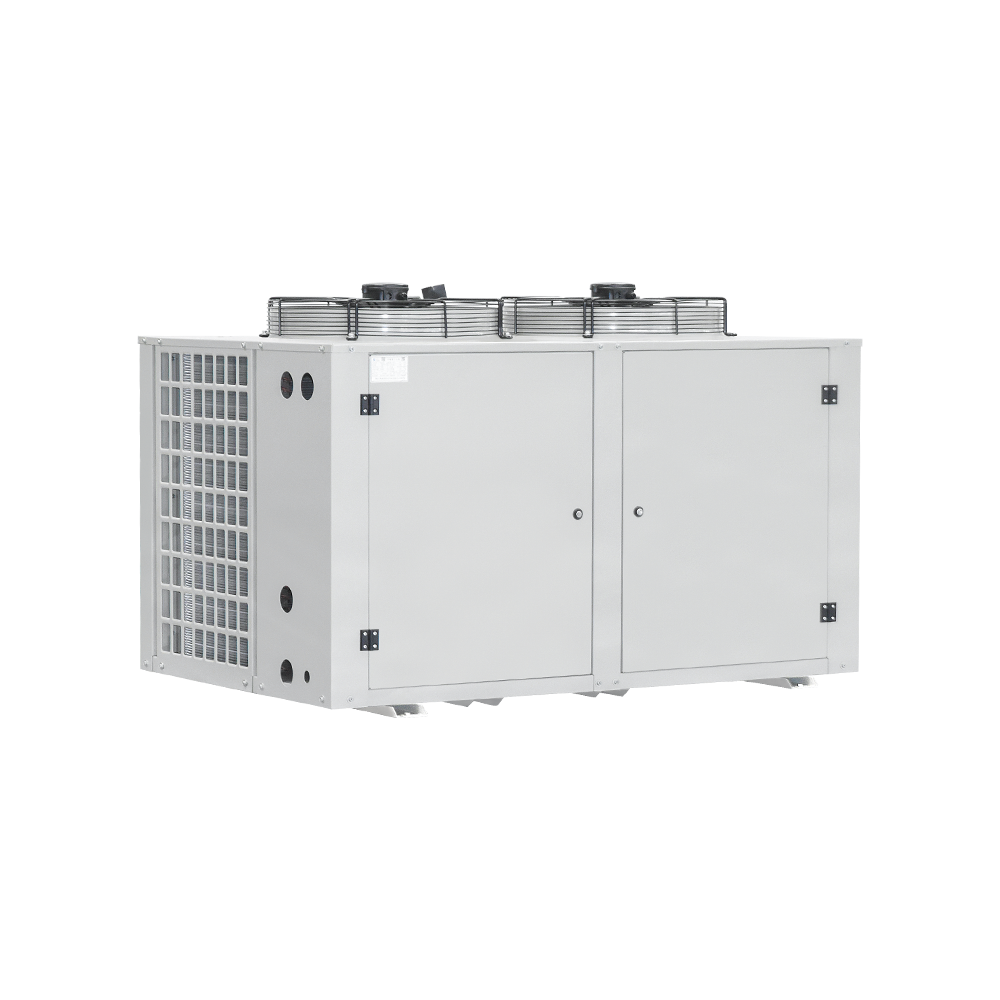

BB Series Box Type Condensing Unit

BB series Box type Condensing unit adopts the original Ecoline series semi-enclosed piston compressor of Bitzer, Germany, and is a high-reliability refrigeration solution designed for commercial and industrial cold storage. This series of products integrates German precision manufacturing technology and modular box design, and achieves excellent space utilization and maintenance convenience through innovative horizontal compact structure. The core of the unit adopts Bitzer's new generation Ecoline series compressor, with a temperature coverage range from +15℃ to -35℃, which can perfectly adapt to various cold chain needs such as fruit and vegetable preservation, meat freezing, and pharmaceutical warehousing.

The product adopts industrial-grade protection design, 1.8mm thickened galvanized steel plate with RAL9006 silver-gray spray treatment, and passes 2000 hours of salt spray test to ensure long-term stable operation in harsh outdoor environments. The patented U-shaped condenser with dual fan system has an 18% increase in heat exchange efficiency compared to traditional designs, and the operating noise is controlled below 65 decibels. The innovative electrical integrated design increases installation efficiency by 40%, making it an ideal choice for modern cold storage construction.

PREV：BF Series Box Type Condensing Unit NEXT：No next product

01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

Product core features:

1. German Bitzer power system
- Ecoline series semi-enclosed piston compressor (3-30HP)
- Three-stage temperature zone configuration: high temperature type/medium temperature type/low temperature type
- Patented valve plate design, energy efficiency is 12% higher than ordinary piston machine
- Standard high-efficiency oil separator (separation efficiency 99.6%)

2. Three-zone precise control
- High temperature type (+8～+15℃): Special for fruit and vegetable preservation
- Medium temperature type (-5～+5℃): Best choice for food refrigeration
- Low temperature type (-15～-35℃): Professional solution for meat freezing
- Optional intelligent controller to achieve multi-level energy regulation

3. Compact protection structure
- Horizontal box design, saving 30% installation space
- 1.8mm galvanized steel plate + triple electrostatic spraying process
- Quick-opening inspection door, opening angle up to 135°
- Protection level IP55

4. High-efficiency heat exchange system
- U-shaped countercurrent condenser, φ9.52mm internal thread copper tube
- Dual EC fans, air volume range 4000-10000m³/h adjustable
- Overall stretching guide wind ring, wind field uniformity increased by 25%

5. Silent intelligent design
- Three-dimensional honeycomb sound-absorbing cotton, noise reduction of 12dB
- Secondary shock absorption device for compressor
- Integrated electrical terminal block, wiring efficiency increased by 40%

6. Fully compatible refrigeration platform
- Refrigerant compatibility: R404A/R507A/R448A/R449A/R22
- Ambient temperature adaptation range: -25℃～+55℃
- Voltage selection: 380V/415V 50Hz

The BB series is becoming a benchmark product in the field of commercial cold storage with its German quality, compact design and intelligent integration, providing users with efficient and reliable refrigeration guarantee.

BB	15	M	Y

				Refrigeration oil code, Y: POE oil (R404A/R507A), no code: mineral oil (R22);
				Applicable temperature code, H: high temperature, M: medium temperature, L: low temperature;
				Compressor nominal power (HP);
				Product series (using Bitzer compressor);

High temperature unit (refrigerant R22)Standard design: ambient temperature 32°C, suction superheat 10K.

Unit model			BB05H	BB06H	BB07H	BB09H	BB12H	BB15H	BB20H
power supply			3PH/380V/50Hz
Applicable temperature			8℃~15℃
compressor	model		4FES-5	4EES-6	4DES-7	4CES-9	4TES-12	4PES-15	4NES-20
compressor	Maximum current (A)		10.8	13.6	16.5	20.2	25.2	28.2	33.2
Cooling Capacity/ Power (kW)	Evaporation temperature	10℃	18.1/4.5	22.9/5.8	26.4/6.6	33.3/8.5	44.3/10.6	51.2/12.1	60.0/14.2
		5℃	15.4/4.2	19.5/5.4	22.6/6.2	28.5/8.0	37.7/9.9	43.4/11.3	51.0/13.2
		0℃	13.0/4.0	16.5/5.1	19.1/5.8	24.2/7.4	31.8/9.2	36.5/10.5	43.0/12.3
fan	Voltage (V)		3PH/380V/50HZ
	Current (A)		1.02	1.02	1.7	1.9	3.2	3.2	3.2
	Power (W)		2×205	2×205	2×414	2×500	2×800	2×800	2×800
	Speed (r/min)		1380	1380	1300	1380	1320	1320	1320
Suction port (mm)			φ22	φ28	φ28	φ28	φ35	φ42	φ42
Liquid supply port (mm)			φ12.7	φ16	φ16	φ16	φ16	φ22	φ22
Weight (kg)			218	222	270	275	390	398	410
Overall dimensions (LWH)			12906551050		15908051190		18909051340
Installation dimensions (a*b)			557*625		850*775		1000*875

High temperature unit (refrigerant R404A/R507A)Standard design: ambient temperature 32°C, suction superheat 10K.

Unit model			BB05HY	BB06HY	BB07HY	BB09HY	BB12HY	BB15HY	BB20HY
power supply			3PH/380V/50Hz
Applicable temperature			8℃~15℃
compressor	model		4FES-5Y	4EES-6Y	4DES-7Y	4CES-9Y	4TES-12Y	4PES-15Y	4NES-20Y
compressor	Maximum current (A)		10.8	13.6	16.5	20.2	25.2	28.2	33.2
Cooling Capacity/ Power (kW)	Evaporation temperature	10℃	17.1/5.0	21.6/6.4	25.2/7.4	31.7/9.4	40.4/11.7	46.6/13.3	55.2/15.7
		5℃	15.8/4.8	19.9/6.2	23.3/7.1	29.3/9.1	37.3/11.2	42.9/12.8	50.8/15.2
		0℃	13.5/4.5	16.9/5.8	19.8/6.6	24.8/8.5	31.5/10.3	36.1/11.8	42.9/14.0
fan	Voltage (V)		3PH/380V/50HZ
	Current (A)		1.02	1.02	1.7	1.9	3.2	3.2	3.2
	Power (W)		2×205	2×205	2×414	2×500	2×800	2×800	2×800
	Speed (r/min)		1380	1380	1300	1380	1320	1320	1320
Suction port (mm)			φ22	φ28	φ28	φ28	φ35	φ42	φ42
Liquid supply port (mm)			φ12.7	φ16	φ16	φ16	φ16	φ22	φ22
Weight (kg)			218	222	270	275	390	398	410
Overall dimensions (LWH)			12906551050		15908051190		18909051340
Installation dimensions (a*b)			557*625		850*775		1000*875

Medium temperature unit (refrigerant R22)Standard design: ambient temperature 32°C, suction superheat 10K.

Unit model

BB05M

BB06M

BB07M

BB09M

BB12M

BB15M

BB20M

BB25M

BB30M

BB35M

power supply

3PH/380V/50Hz

Applicable temperature

-5℃~5℃

compressor

model

4FES-5

4EES-6

4DES-7

4CES-9

4TES-12

4PES-15

4NES-20

4HE-25

4GE-30

4FE-35

Maximum current (A)

10.8

13.6

16.5

20.2

25.2

28.2

33.2

51.2

62.1

Cooling Capacity/
Power
(kW)

Evaporation temperature

-5℃

10.2/3.9

12.9/5.0

15.0/5.7

19.0/7.3

24.8/8.9

28.4/10.2

33.5/11.9

44.7/16.1

51.9/18.5

61.9/22.3

-8℃

9.1/3.7

11.5/4.7

13.4/5.4

17.0/6.9

22.1/8.4

25.2/9.6

29.8/11.3

39.8/15.2

46.3/17.5

55.2/21.0

-10℃

8.4/3.5

10.7/4.5

12.4/5.2

15.8/6.6

20.5/8.1

23.3/9.2

27.6/10.8

37.0/14.5

43.0/16.8

51.2/20.1

fan

Voltage (V)

3PH/380V/50HZ

Current (A)

1.02

1.7

1.9

3.2

Power (W)

2×205

2×414

2×500

2×800

Speed (r/min)

1380

1300

1380

1320

Suction port (mm)

φ22

φ28

φ35

φ42

φ54

Liquid supply port (mm)

φ12.7

φ16

φ22

Weight (kg)

212

218

223

315

330

343

460

473

480

Overall dimensions (L*W*H)

1290*655*1050

1590*805*1190

1890*905*1340

Installation dimensions (a*b)

557*625

850*775

1000*875

Medium temperature unit (refrigerant R404A/R507A)Standard design: ambient temperature 32°C, suction superheat 10K.

Unit model

BB05MY

BB06MY

BB07MY

BB09MY

BB12MY

BB15MY

BB20MY

BB25MY

BB30MY

BB35MY

power supply

3PH/380V/50Hz

Applicable temperature

-5℃~5℃

compressor

model

4FES-3Y

4EES-4Y

4DES-7Y

4CES-9Y

4TES-9Y

4PES-12Y

4NES-14Y

4HE-18Y

4GE-23Y

4FE-28Y

Maximum current (A)

9.5

12.2

16.5

20.2

19.9

22.7

26.6

36.7

43.9

52.8

Cooling Capacity/
Power
(kW)

Evaporation temperature

-5℃

10.2/4.5

12.9/5.8

15.0/6.5

18.7/8.2

23.6/10.3

27.0/11.4

32.2/13.8

43.2/18.6

48.8/20.5

58.4/25.6

-8℃

9.1/4.3

11.6/5.5

13.4/6.2

16.7/7.8

21.1/9.6

24.0/10.7

28.7/13.0

38.7/17.5

43.7/19.4

52.5/24.2

-10℃

8.5/4.1

10.8/5.3

12.5/5.9

15.6/7.4

19.6/9.2

22.3/10.2

26.7/12.4

36.2/16.7

42.0/19.9

49.7/23.7

fan

Voltage (V)

3PH/380V/50HZ

Current (A)

1.02

1.7

1.9

3.2

Power (W)

2×205

2×414

2×500

2×800

Speed (r/min)

1380

1300

1380

1320

Suction port (mm)

φ22

φ28

φ35

φ42

φ54

Liquid supply port (mm)

φ12.7

φ16

φ22

Weight (kg)

207

216

223

313

322

332

444

460

480

Overall dimensions (L*W*H)

1290*655*1050

1590*805*1190

1890*905*1340

Installation dimensions (a*b)

557*625

850*775

1000*875

Low temperature unit (refrigerant R404A/R507A)Standard design: ambient temperature 32°C, suction superheat 10K.

Unit model

BB05LY

BB06LY

BB09LY

BB12LY

BB14LY

BB18LY

BB23LY

BB28LY

BB34LY

BB44LY

power supply

3PH/380V/50Hz

Applicable temperature

-15℃~-35℃

compressor

model

4DES-5Y

4CES-6Y

4TES-9Y

4PES-12Y

4NES-14Y

4HE-18Y

4GE-23Y

4FES-28Y

6GE-34Y

6FE-44Y

Maximum current (A)

14.5

17.7

16.5

22.7

26.6

36.7

43.9

52.8

65.5

83.2

Cooling Capacity/
Power
(kW)

Evaporation temperature

-20℃

7.1/5.1

8.8/6.2

10.8/7.4

12.1/8.1

14.7/10.0

20.7/13.8

24.2/16.4

29.0/19.7

36.4/25.0

43.4/29.9

-25℃

5.7/4.4

7.0/5.4

8.6/6.4

9.5/6.9

11.7/8.6

16.7/12.0

19.7/14.3

23.5/17.1

29.7/21.8

35.3/26.2

-30℃

4.5/3.8

5.6/4.6

6.7/5.4

7.3/5.8

9.1/7.2

13.2/10.3

15.7/12.2

18.8/14.7

23.8/18.8

28.2/22.6

-35℃

3.5/3.2

4.3/3.9

5.1/4.4

5.5/4.7

7.0/6.0

10.2/8.7

12.3/10.4

14.7/12.4

18.8/16.0

22.0/19.3

-40℃

2.6/2.7

3.1/3.2

3.7/3.6

3.8/3.8

5.0/4.9

7.4/7.3

9.1/8.7

10.8/10.3

14.0/13.5

16.2/16.2

fan

Voltage (V)

3PH/380V/50HZ

Current (A)

1.02

1.7

1.9

3.2

Power (W)

2×205

2×414

2×500

2×800

Speed (r/min)

1380

1300

1380

1320

Suction port (mm)

φ28

φ35

φ42

φ54

Liquid supply port (mm)

φ12.7

φ16

φ22

Weight (kg)

212

217

270

272

273

370

382

402

485

512

Overall dimensions (L*W*H)

1290*655*1050

1590*805*1190

1890*905*1340

Installation dimensions (a*b)

557*625

850*775

1000*875

Medium and high temperature units

Note: ● indicates standard configuration, ○ indicates optional accessories, and / indicates no such option.

Unit Accessories	Unit model BB
	05H	06H	07H	09H	12H	15H	20H
	05M	06M	07M	09M	12M	15M	20M	25M	30M	35M
Semi-hermetic compressor	●	●	●	●	●	●	●	●	●	●
Oil heater	●	●	●	●	●	●	●	●	●	●
Exhaust shock absorber pipe	○	○	○	○	●	●	●	●	●	●
Oil separator	○	○	○	○	●	●	●	●	●	●
Condenser (hydrophilic aluminum foil)	●	●	●	●	●	●	●	●	●	●
External rotor fan	●	●	●	●	●	●	●	●	●	●
Reservoir	●	●	●	●	●	●	●	●	●	●
Receiver outlet shut-off valve	●	●	●	●	●	●	●	●	●	●
filter drier	●	●	●	●	●	●	●	●	●	●
sight glass	●	●	●	●	●	●	●	●	●	●
High/low pressure protection (diaphragm type)	●	●	●	●	●	●	●	●	●	●
Electronic oil pressure (oil level) protection	○	○	○	○	○	○	○	●	●	●
High/low pressure gauge	●	●	●	●	●	●	●	●	●	●
Liquid supply solenoid valve	○	○	○	○	○	○	○	○	○	○
High pressure control (fan control)	○	○	○	○	○	○	○	○	○	○
Low pressure control (pump down)	○	○	○	○	○	○	○	○	○	○

Low temperature unit

Note: ● indicates standard configuration, ○ indicates optional accessories, and / indicates no such option.

Unit accessories	Unit model BB
	05LY	06LY	09LY	12LY	14LY	18LY	23LY	28LY	34LY	44LY
Semi-hermetic compressor	●	●	●	●	●	●	●	●	●	●
Oil heating belt	●	●	●	●	●	●	●	●	●	●
Exhaust shock absorber pipe	○	○	●	●	●	●	●	●	●	●
Oil separator	○	○	●	●	●	●	●	●	●	●
Condenser (hydrophilic aluminum foil)	●	●	●	●	●	●	●	●	●	●
External rotor fan	●	●	●	●	●	●	●	●	●	●
Reservoir	●	●	●	●	●	●	●	●	●	●
Receiver outlet shut-off valve	●	●	●	●	●	●	●	●	●	●
filter drier	●	●	●	●	●	●	●	●	●	●
sight glass	●	●	●	●	●	●	●	●	●	●
High/low pressure protection (diaphragm type)	●	●	●	●	●	●	●	●	●	●
Electronic oil pressure (oil level) protection	○	○	○	○	○	●	●	●	●	●
High/low pressure gauge	●	●	●	●	●	●	●	●	●	●
Liquid supply solenoid valve	○	○	○	○	○	○	○	○	○	○
High pressure control (fan control)	○	○	○	○	○	○	○	○	○	○
Low pressure control (pump down)	○	○	○	○	○	○	○	○	○	○

01 Advantages

Product core features:

02Specifications

BB	15	M	Y

				Refrigeration oil code, Y: POE oil (R404A/R507A), no code: mineral oil (R22);
				Applicable temperature code, H: high temperature, M: medium temperature, L: low temperature;
				Compressor nominal power (HP);
				Product series (using Bitzer compressor);

High temperature unit (refrigerant R22)Standard design: ambient temperature 32°C, suction superheat 10K.

Unit model			BB05H	BB06H	BB07H	BB09H	BB12H	BB15H	BB20H
power supply			3PH/380V/50Hz
Applicable temperature			8℃~15℃
compressor	model		4FES-5	4EES-6	4DES-7	4CES-9	4TES-12	4PES-15	4NES-20
compressor	Maximum current (A)		10.8	13.6	16.5	20.2	25.2	28.2	33.2
Cooling Capacity/ Power (kW)	Evaporation temperature	10℃	18.1/4.5	22.9/5.8	26.4/6.6	33.3/8.5	44.3/10.6	51.2/12.1	60.0/14.2
		5℃	15.4/4.2	19.5/5.4	22.6/6.2	28.5/8.0	37.7/9.9	43.4/11.3	51.0/13.2
		0℃	13.0/4.0	16.5/5.1	19.1/5.8	24.2/7.4	31.8/9.2	36.5/10.5	43.0/12.3
fan	Voltage (V)		3PH/380V/50HZ
	Current (A)		1.02	1.02	1.7	1.9	3.2	3.2	3.2
	Power (W)		2×205	2×205	2×414	2×500	2×800	2×800	2×800
	Speed (r/min)		1380	1380	1300	1380	1320	1320	1320
Suction port (mm)			φ22	φ28	φ28	φ28	φ35	φ42	φ42
Liquid supply port (mm)			φ12.7	φ16	φ16	φ16	φ16	φ22	φ22
Weight (kg)			218	222	270	275	390	398	410
Overall dimensions (LWH)			12906551050		15908051190		18909051340
Installation dimensions (a*b)			557*625		850*775		1000*875

High temperature unit (refrigerant R404A/R507A)Standard design: ambient temperature 32°C, suction superheat 10K.

Unit model			BB05HY	BB06HY	BB07HY	BB09HY	BB12HY	BB15HY	BB20HY
power supply			3PH/380V/50Hz
Applicable temperature			8℃~15℃
compressor	model		4FES-5Y	4EES-6Y	4DES-7Y	4CES-9Y	4TES-12Y	4PES-15Y	4NES-20Y
compressor	Maximum current (A)		10.8	13.6	16.5	20.2	25.2	28.2	33.2
Cooling Capacity/ Power (kW)	Evaporation temperature	10℃	17.1/5.0	21.6/6.4	25.2/7.4	31.7/9.4	40.4/11.7	46.6/13.3	55.2/15.7
		5℃	15.8/4.8	19.9/6.2	23.3/7.1	29.3/9.1	37.3/11.2	42.9/12.8	50.8/15.2
		0℃	13.5/4.5	16.9/5.8	19.8/6.6	24.8/8.5	31.5/10.3	36.1/11.8	42.9/14.0
fan	Voltage (V)		3PH/380V/50HZ
	Current (A)		1.02	1.02	1.7	1.9	3.2	3.2	3.2
	Power (W)		2×205	2×205	2×414	2×500	2×800	2×800	2×800
	Speed (r/min)		1380	1380	1300	1380	1320	1320	1320
Suction port (mm)			φ22	φ28	φ28	φ28	φ35	φ42	φ42
Liquid supply port (mm)			φ12.7	φ16	φ16	φ16	φ16	φ22	φ22
Weight (kg)			218	222	270	275	390	398	410
Overall dimensions (LWH)			12906551050		15908051190		18909051340
Installation dimensions (a*b)			557*625		850*775		1000*875

Medium temperature unit (refrigerant R22)Standard design: ambient temperature 32°C, suction superheat 10K.

Unit model

BB05M

BB06M

BB07M

BB09M

BB12M

BB15M

BB20M

BB25M

BB30M

BB35M

power supply

3PH/380V/50Hz

Applicable temperature

-5℃~5℃

compressor

model

4FES-5

4EES-6

4DES-7

4CES-9

4TES-12

4PES-15

4NES-20

4HE-25

4GE-30

4FE-35

Maximum current (A)

10.8

13.6

16.5

20.2

25.2

28.2

33.2

51.2

62.1

Cooling Capacity/
Power
(kW)

Evaporation temperature

-5℃

10.2/3.9

12.9/5.0

15.0/5.7

19.0/7.3

24.8/8.9

28.4/10.2

33.5/11.9

44.7/16.1

51.9/18.5

61.9/22.3

-8℃

9.1/3.7

11.5/4.7

13.4/5.4

17.0/6.9

22.1/8.4

25.2/9.6

29.8/11.3

39.8/15.2

46.3/17.5

55.2/21.0

-10℃

8.4/3.5

10.7/4.5

12.4/5.2

15.8/6.6

20.5/8.1

23.3/9.2

27.6/10.8

37.0/14.5

43.0/16.8

51.2/20.1

fan

Voltage (V)

3PH/380V/50HZ

Current (A)

1.02

1.7

1.9

3.2

Power (W)

2×205

2×414

2×500

2×800

Speed (r/min)

1380

1300

1380

1320

Suction port (mm)

φ22

φ28

φ35

φ42

φ54

Liquid supply port (mm)

φ12.7

φ16

φ22

Weight (kg)

212

218

223

315

330

343

460

473

480

Overall dimensions (L*W*H)

1290*655*1050

1590*805*1190

1890*905*1340

Installation dimensions (a*b)

557*625

850*775

1000*875

Medium temperature unit (refrigerant R404A/R507A)Standard design: ambient temperature 32°C, suction superheat 10K.

Unit model

BB05MY

BB06MY

BB07MY

BB09MY

BB12MY

BB15MY

BB20MY

BB25MY

BB30MY

BB35MY

power supply

3PH/380V/50Hz

Applicable temperature

-5℃~5℃

compressor

model

4FES-3Y

4EES-4Y

4DES-7Y

4CES-9Y

4TES-9Y

4PES-12Y

4NES-14Y

4HE-18Y

4GE-23Y

4FE-28Y

Maximum current (A)

9.5

12.2

16.5

20.2

19.9

22.7

26.6

36.7

43.9

52.8

Cooling Capacity/
Power
(kW)

Evaporation temperature

-5℃

10.2/4.5

12.9/5.8

15.0/6.5

18.7/8.2

23.6/10.3

27.0/11.4

32.2/13.8

43.2/18.6

48.8/20.5

58.4/25.6

-8℃

9.1/4.3

11.6/5.5

13.4/6.2

16.7/7.8

21.1/9.6

24.0/10.7

28.7/13.0

38.7/17.5

43.7/19.4

52.5/24.2

-10℃

8.5/4.1

10.8/5.3

12.5/5.9

15.6/7.4

19.6/9.2

22.3/10.2

26.7/12.4

36.2/16.7

42.0/19.9

49.7/23.7

fan

Voltage (V)

3PH/380V/50HZ

Current (A)

1.02

1.7

1.9

3.2

Power (W)

2×205

2×414

2×500

2×800

Speed (r/min)

1380

1300

1380

1320

Suction port (mm)

φ22

φ28

φ35

φ42

φ54

Liquid supply port (mm)

φ12.7

φ16

φ22

Weight (kg)

207

216

223

313

322

332

444

460

480

Overall dimensions (L*W*H)

1290*655*1050

1590*805*1190

1890*905*1340

Installation dimensions (a*b)

557*625

850*775

1000*875

Low temperature unit (refrigerant R404A/R507A)Standard design: ambient temperature 32°C, suction superheat 10K.

Unit model

BB05LY

BB06LY

BB09LY

BB12LY

BB14LY

BB18LY

BB23LY

BB28LY

BB34LY

BB44LY

power supply

3PH/380V/50Hz

Applicable temperature

-15℃~-35℃

compressor

model

4DES-5Y

4CES-6Y

4TES-9Y

4PES-12Y

4NES-14Y

4HE-18Y

4GE-23Y

4FES-28Y

6GE-34Y

6FE-44Y

Maximum current (A)

14.5

17.7

16.5

22.7

26.6

36.7

43.9

52.8

65.5

83.2

Cooling Capacity/
Power
(kW)

Evaporation temperature

-20℃

7.1/5.1

8.8/6.2

10.8/7.4

12.1/8.1

14.7/10.0

20.7/13.8

24.2/16.4

29.0/19.7

36.4/25.0

43.4/29.9

-25℃

5.7/4.4

7.0/5.4

8.6/6.4

9.5/6.9

11.7/8.6

16.7/12.0

19.7/14.3

23.5/17.1

29.7/21.8

35.3/26.2

-30℃

4.5/3.8

5.6/4.6

6.7/5.4

7.3/5.8

9.1/7.2

13.2/10.3

15.7/12.2

18.8/14.7

23.8/18.8

28.2/22.6

-35℃

3.5/3.2

4.3/3.9

5.1/4.4

5.5/4.7

7.0/6.0

10.2/8.7

12.3/10.4

14.7/12.4

18.8/16.0

22.0/19.3

-40℃

2.6/2.7

3.1/3.2

3.7/3.6

3.8/3.8

5.0/4.9

7.4/7.3

9.1/8.7

10.8/10.3

14.0/13.5

16.2/16.2

fan

Voltage (V)

3PH/380V/50HZ

Current (A)

1.02

1.7

1.9

3.2

Power (W)

2×205

2×414

2×500

2×800

Speed (r/min)

1380

1300

1380

1320

Suction port (mm)

φ28

φ35

φ42

φ54

Liquid supply port (mm)

φ12.7

φ16

φ22

Weight (kg)

212

217

270

272

273

370

382

402

485

512

Overall dimensions (L*W*H)

1290*655*1050

1590*805*1190

1890*905*1340

Installation dimensions (a*b)

557*625

850*775

1000*875

03Dimensions

04Unit Configuration

Medium and high temperature units

Note: ● indicates standard configuration, ○ indicates optional accessories, and / indicates no such option.

Unit Accessories	Unit model BB
	05H	06H	07H	09H	12H	15H	20H
	05M	06M	07M	09M	12M	15M	20M	25M	30M	35M
Semi-hermetic compressor	●	●	●	●	●	●	●	●	●	●
Oil heater	●	●	●	●	●	●	●	●	●	●
Exhaust shock absorber pipe	○	○	○	○	●	●	●	●	●	●
Oil separator	○	○	○	○	●	●	●	●	●	●
Condenser (hydrophilic aluminum foil)	●	●	●	●	●	●	●	●	●	●
External rotor fan	●	●	●	●	●	●	●	●	●	●
Reservoir	●	●	●	●	●	●	●	●	●	●
Receiver outlet shut-off valve	●	●	●	●	●	●	●	●	●	●
filter drier	●	●	●	●	●	●	●	●	●	●
sight glass	●	●	●	●	●	●	●	●	●	●
High/low pressure protection (diaphragm type)	●	●	●	●	●	●	●	●	●	●
Electronic oil pressure (oil level) protection	○	○	○	○	○	○	○	●	●	●
High/low pressure gauge	●	●	●	●	●	●	●	●	●	●
Liquid supply solenoid valve	○	○	○	○	○	○	○	○	○	○
High pressure control (fan control)	○	○	○	○	○	○	○	○	○	○
Low pressure control (pump down)	○	○	○	○	○	○	○	○	○	○

Low temperature unit

Note: ● indicates standard configuration, ○ indicates optional accessories, and / indicates no such option.

Unit accessories	Unit model BB
	05LY	06LY	09LY	12LY	14LY	18LY	23LY	28LY	34LY	44LY
Semi-hermetic compressor	●	●	●	●	●	●	●	●	●	●
Oil heating belt	●	●	●	●	●	●	●	●	●	●
Exhaust shock absorber pipe	○	○	●	●	●	●	●	●	●	●
Oil separator	○	○	●	●	●	●	●	●	●	●
Condenser (hydrophilic aluminum foil)	●	●	●	●	●	●	●	●	●	●
External rotor fan	●	●	●	●	●	●	●	●	●	●
Reservoir	●	●	●	●	●	●	●	●	●	●
Receiver outlet shut-off valve	●	●	●	●	●	●	●	●	●	●
filter drier	●	●	●	●	●	●	●	●	●	●
sight glass	●	●	●	●	●	●	●	●	●	●
High/low pressure protection (diaphragm type)	●	●	●	●	●	●	●	●	●	●
Electronic oil pressure (oil level) protection	○	○	○	○	○	●	●	●	●	●
High/low pressure gauge	●	●	●	●	●	●	●	●	●	●
Liquid supply solenoid valve	○	○	○	○	○	○	○	○	○	○
High pressure control (fan control)	○	○	○	○	○	○	○	○	○	○
Low pressure control (pump down)	○	○	○	○	○	○	○	○	○	○

05Inquiry

Zhejiang Kaidi Refrigeration Equipment Co., Ltd

30+

Years Industry Experience
300+

Employees
1000Million

Export Amount
100000+

Plant Area

Zhejiang Kaidi Refrigeration Equipment Co., Ltd was founded in 1995, Kaidi is our trademark. We have been focusing on refrigeration for nearly 30 years, and now we have developed into a scientific and technological company integrating scientific research and development, processing and manufacturing, pre-sales programme design, product sales and commissioning, and after-sales service guarantee. Headquartered in Shengzhou City, Zhejiang Province, our factory covers an area of 100,000 square metres, with more than 60,000 square metres of modern factory buildings and more than 8,000 square metres of offices, as well as Shanghai Hongqiao Office (R&D Centre), Guangzhou Panyu Office, Beijing Branch and so on.

After years of development, we have the management team of a top 500 enterprise and a standardised and efficient operation system, as well as strong technical research and development strength. The factory is equipped with complete and advanced CNC machining equipment and high-standard testing laboratory, with strong product development and lean processing and manufacturing capabilities; the establishment of a professional pre-sales technical support, after-sales service guarantee system, we not only research and development and production of advanced refrigeration equipment, but also the overall solution provider for high-quality customers to provide first-class products and services to ensure that our purpose and goal.

Our sales and service network not only spreads all over the country, but also develops rapidly in the world in the past few years, ‘Kaideli’ brand refrigeration products have a high reputation both at home and abroad, and have won the praise and recognition of our customers. At present, our customers include: cold chain logistics enterprises such as GLP, Shunfeng, Jingdong, Yaleng, Kai Orange, etc.; food processing enterprises such as Wufeng, Holliday, Ligao, Qingmei, Zuming, Anjing, Sienian, etc., central kitchens such as Makgindi, Lvcheng, Ajisai, etc.; slaughter enterprises such as Winsome, Xinning, etc.; edible fungi factory planting enterprises such as Xiangru Biological, Guiwang, Huaguang, Zongxing Mushroom, Lisa, etc., as well as Shanghai Pharmaceuticals, China Medicine Group, and so on. Group and so on.

HONOR & CERTIFICATE

Our products have obtained, include EC-Type Examination Certificate, BV, MODE, DNV, GL Certificate, EC Attestation of Conformity, Certificate of Type Approval for Marine Product and Lloyd’s Register Quality Assurance.

Recently News and Events
Share with you

View More News

26 Jul,2025

New Developments In Cold Chain Logistics

With advancements in cold chain logistics technology, food safety is better ensured, and new refrigeration equipment plays a key role in transportation and stor...
26 Jul,2025

Cooling Technology Supports Global Vaccine Distribution

As global demand for vaccine distribution increases, cooling technology plays a crucial role in vaccine cold chain transportation, offering new hope in the glob...
26 Jul,2025

Smart Refrigeration Systems Enter Households

The latest research shows that by integrating artificial intelligence technology, new smart refrigeration systems can automatically adjust to environmental chan...
26 Jul,2025

Breakthrough In Green Refrigeration Technology

A team of scientists announced the development of a new generation of environmentally friendly refrigerants aimed at reducing greenhouse gas emissions and promo...

SEND MESSAGE

Be the First to Know

For exclusive deals and latest offers, sign up by entering your email address below.

Web Menu

Product Search

Language

Exit Menu

U Type Condensing Unit

BB Series Box Type Condensing Unit

KCFP Series Open Type Condensing Unit

KCWP Series Open Type Compressor Condensing Unit

KL-E Series Condensing Unit

KL-B Series Condensing Unit

BB Series Box Type Condensing Unit

BF Series Box Type Condensing Unit

TB Series Box Type Condensing Unit

TF Series Box Type Condensing Unit

Zhejiang Kaidi Refrigeration Equipment Co., Ltd

30+

300+

1000Million

100000+

HONOR & CERTIFICATE

New Developments In Cold Chain Logistics

Cooling Technology Supports Global Vaccine Distribution

Smart Refrigeration Systems Enter Households

Breakthrough In Green Refrigeration Technology

SEND MESSAGE

Quick Links

Products

Contact Us

Submit feedback
