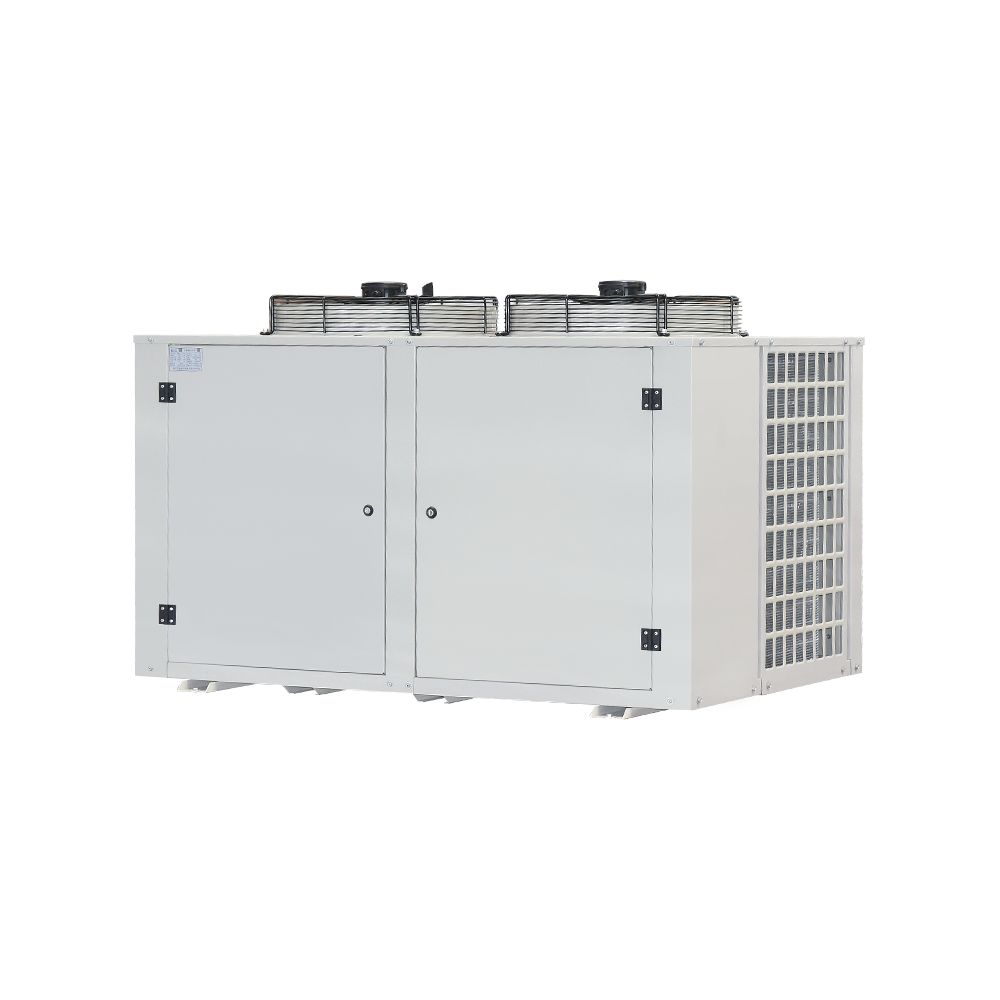

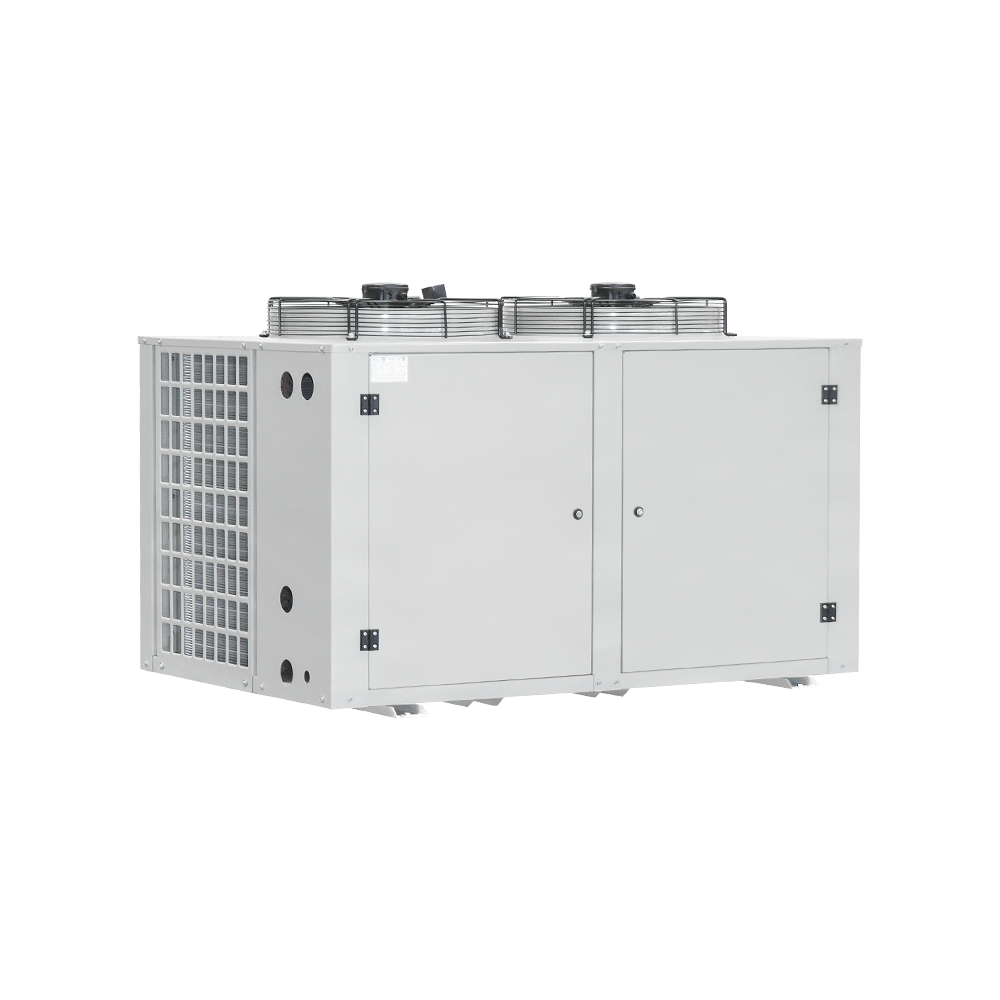

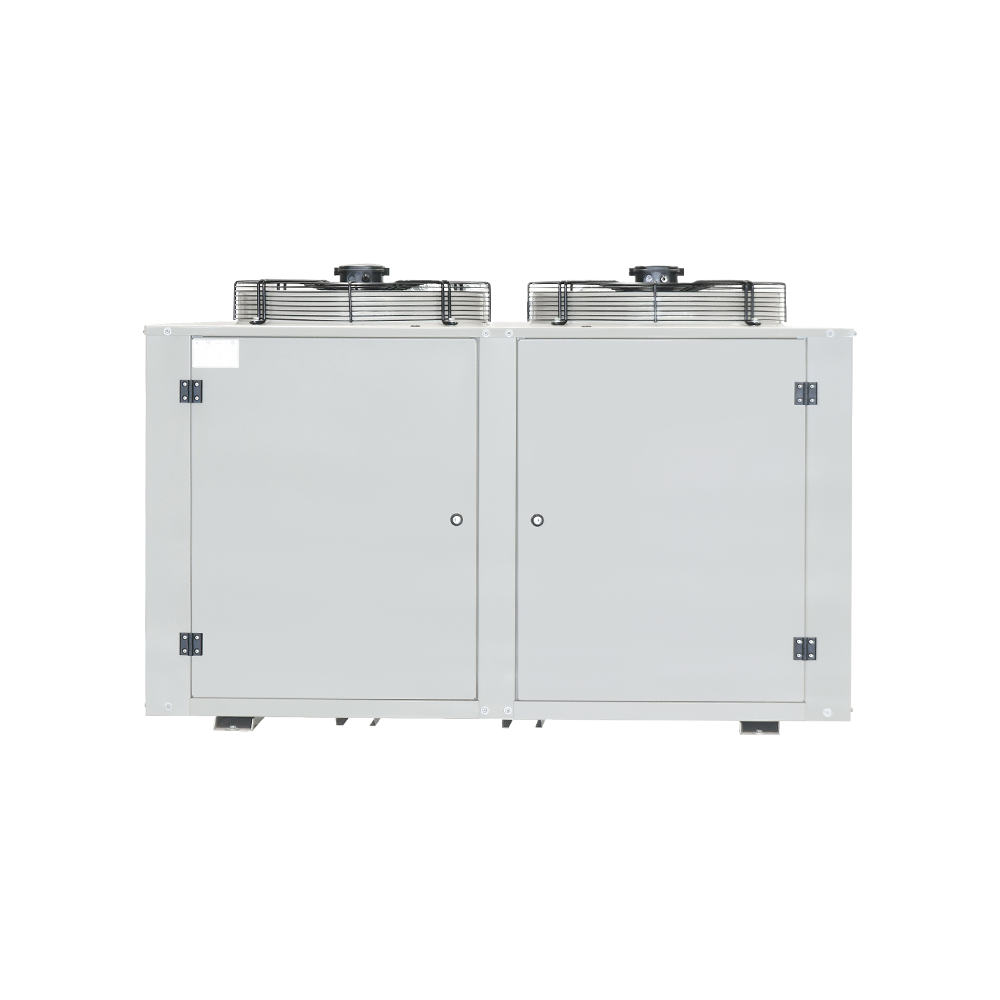

BF Series Box Type Condensing Unit

BF series box type condensing unit is specially developed for cold storage. The main unit adopts the semi-enclosed piston compressor imported from Italy Frascold, which has stable performance and high cost performance. It adopts a horizontal compact box structure, has strong corrosion resistance, and the pre-integrated terminal block simplifies installation. It is compatible with refrigerants such as R404A/R507A/R448/R449/R22.

CONTACT US
PREV：TB Series Box Type Condensing UnitNEXT：BB Series Box Type Condensing Unit
01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

1. Core compressor configuration​
The main unit is equipped with a semi-enclosed piston compressor imported from Italy Frascold, which has stable performance and outstanding cost performance. ​

2. Wide temperature range adaptation range​
The high temperature unit is suitable for 8~15℃ cold storage, the medium temperature unit is suitable for - 5~5℃ cold storage, and the low temperature unit is suitable for - 15~-35℃ cold storage. ​

3. Box structure design​
It adopts a horizontal compact box structure, and the shell is galvanized steel plate sprayed (silver gray RAL9006), with excellent corrosion resistance and suitable for outdoor installation; the chassis cover adopts a hinge structure for easy operation and maintenance.
​
4. Wind circle design features​
The overall stretched large rounded corner high wind circle design has efficient air flow, low noise and neat appearance.

5. Noise reduction design​
The chassis panel is pasted with honeycomb sound-absorbing cotton to effectively reduce operating noise and sheet metal resonance.

01 Advantages

1. Core compressor configuration​
The main unit is equipped with a semi-enclosed piston compressor imported from Italy Frascold, which has stable performance and outstanding cost performance. ​

2. Wide temperature range adaptation range​
The high temperature unit is suitable for 8~15℃ cold storage, the medium temperature unit is suitable for - 5~5℃ cold storage, and the low temperature unit is suitable for - 15~-35℃ cold storage. ​

3. Box structure design​
It adopts a horizontal compact box structure, and the shell is galvanized steel plate sprayed (silver gray RAL9006), with excellent corrosion resistance and suitable for outdoor installation; the chassis cover adopts a hinge structure for easy operation and maintenance.
​
4. Wind circle design features​
The overall stretched large rounded corner high wind circle design has efficient air flow, low noise and neat appearance.

5. Noise reduction design​
The chassis panel is pasted with honeycomb sound-absorbing cotton to effectively reduce operating noise and sheet metal resonance.

02Specifications
BF 15 M Y
Refrigeration oil code, Y: POE oil (R404A/R507A), no code: mineral oil (R22);
Applicable temperature code, H: high temperature, M: medium temperature, L: low temperature;
Compressor nominal power (HP);
product range (Frascold compressors);

High temperature unit Standard design: ambient temperature 32°C, suction superheat 10K.

Unit model BF04HY BF05HY BF07HY BF12HY BF15HY BF20HY
power supply 3PH/380V/50Hz
Applicable temperature 8℃~15℃
compressor model D4-18.1Y Q5-24.1Y Q7-28.1Y S12-42Y S15-52Y S20-56Y
Maximum current (A) 12.5 13.8 17.6 22.4 32.4 38.4
Cooling capacity/power (KW) Evaporation temperature R22 10℃ 18.5/4.4 24.3/6.0 29.5/6.7 44.4/10.2 55.9/12.4 59.9/14.4
5℃ 15.9/4.2 20.9/5.7 25.3/6.5 38.0/9.6 47.9/11.6 50.9/13.4
0℃ 13.5/4.0 17.8/5.3 21.5/6.1 32.3/8.9 40.7/10.7 43.3/12.4
R404A/R507A 7.5℃ / / / / 48.0/15.1 52.6/16.9
5℃ 15.2/5.6 20.4/6.6 24.3/8.1 35.1/11.1 45.3/14.3 49.8/16.0
0℃ 13.1/5.1 17.4/6.1 20.9/7.4 29.9/10.1 38.8/13.2 42.7/14.7
fan Voltage (V) 3PH/380V/50HZ
Current (A) 1.02 1.02 1.7 3.2 3.2 3.2
Power (W) 2×205 2×205 2×414 2×800 2×800 2×800
Speed (r/min) 1380 1380 1300 1320 1320 1320
Suction port (mm) φ28 φ28 φ35 φ35 φ42 φ42
Liquid supply port (mm) φ12.7 φ16 φ16 φ16 φ22 φ22
Weight (kg) 178 206 250 365 372 385
Overall dimensions (L*W*H) 1290*655*1050 1590*805*1190 1890*905*1340
Installation dimensions (a*b) 557*625 850*775 1000*875

Medium temperature unit Standard design: ambient temperature 32°C, suction superheat 10K.

Unit model BF04MY BF05MY BF07MY BF12MY BF15MY BF20MY BF25MY BF30MY BF35MY
power supply 3PH/380V/50Hz
Applicable temperature -5℃~5℃
compressor model D4-18.1Y Q5-24.1Y Q7-28.1Y S12-42Y S15-52Y S20-56Y V25-71Y V30-84Y V35-103Y
Maximum current (A) 12.5 13.8 17.6 22.4 32.4 38.4 43.5 49.2 61
Cooling capacity/power (KW) Evaporation temperature R22 -5℃ 10.7/4.0 14.0/5.3 16.9/6.1 25.3/8.7 31.8/10.5 34.1/12.0 42.1/14.5 49.4/17.5 60.1/21.1
-8℃ 9.6/3.8 12.5/5.0 15.1/5.8 22.6/8.3 28.3/9.9 30.8/11.4 38.0/13.8 44.6/16.6 54.6/20.1
-10℃ 9.0/3.7 11.6/4.8 14.1/5.6 21.1/7.9 26.3/9.5 28.8/10.9 35.5/13.2 41.7/15.9 51.4/19.4
R404A/R507A -5℃ 10.1/5.0 13.2/5.9 15.9/7.2 22.6/9.7 29.9/12.9 32.9/14.2 39.8/17.5 48.1/20.9 56.9/27.8
-8℃ 9.2/4.7 11.8/5.6 14.3/6.8 20.2/9.1 27.0/12.2 29.7/13.4 35.6/16.5 43.1/19.7 51.3/26.0
-10℃ 8.6/4.6 11.0/5.4 13.4/6.5 18.9/8.6 25.3/11.6 27.9/12.8 33.2/15.9 40.3/18.9 48.1/24.8
fan Voltage (V) 3PH/380V/50HZ
Current (A) 1.02 1.02 1.02 1.7 1.7 1.9 3.2 3.2 3.2
Power (W) 2×205 2×205 2×205 2×414 2×414 2×500 2×800 2×800 2×800
Speed (r/min) 1380 1380 1380 1300 1300 1380 1320 1320 1320
Suction port (mm) φ28 φ28 φ35 φ35 φ42 φ42 φ54 φ54 φ54
Liquid supply port (mm) φ12.7 φ12.7 φ12.7 φ16 φ16 φ22 φ22 φ22 φ22
Weight (kg) 172 203 203 290 305 320 440 452 465
Overall dimensions (L*W*H) 1290*655*1050 1290*655*1050 1290*655*1050 1590*805*1190 1590*805*1190 1590*805*1190 1890*905*1340 1890*905*1340 1890*905*1340
Installation dimensions (a*b) 557*625 557*625 557*625 850*775 850*775 850*775 1000*875 1000*875 1000*875

Low temperature unit (refrigerant R404A/R507A) Standard design: ambient temperature 32°C, suction superheat 10K.

Unit model BF04LY BF05LY BF08LY BF10LY BF15LY BF20LY BF25LY BF30LY BF40LY
power supply 3PH/380V/50Hz
Applicable temperature -15℃~-35℃
compressor model Q4-24.1Y Q5-33.1Y S8-42Y S10-52Y V15-71Y V20-84Y V25-103Y Z30-126Y Z40-154Y
Maximum current (A) 11.7 14.4 20.3 24.5 32.2 42.6 52.3 55.7 77.9
Cooling capacity/power (KW) Evaporation temperature -20℃ 6.1/4.4 9.0/6.6 11.7/7.8 14.7/10.1 19.9/14.0 22.5/15.8 28.2/21.0 33.6/22.8 44.1/30.3
-25℃ 4.9/3.8 7.4/5.7 9.5/6.8 12.1/8.7 16.3/12.0 18.4/13.7 22.6/18.1 27.1/19.8 36.3/26.1
-30℃ 3.9/3.3 5.9/4.8 7.5/5.8 9.8/7.4 13.2/10.2 14.7/11.7 17.7/15.4 21.4/16.9 29.4/22.2
-35℃ 2.9/2.8 4.6/4.1 5.8/4.8 7.7/6.3 10.3/8.5 11.4/9.9 13.5/12.9 16.4/14.2 23.1/18.6
-40℃ 2.1/2.3 3.5/3.4 4.2/3.9 5.8/5.2 7.7/7.0 8.5/8.2 9.8/10.8 12.1/11.7 17.2/15.4
fan Voltage (V) 3PH/380V/50HZ
Current (A) 1.02 1.02 1.02 1.02 1.7 1.7 1.9 3.2 3.2
Power (W) 2×205 2×205 2×205 2×205 2×414 2×414 2×500 2×800 2×800
Speed (r/min) 1380 1380 1380 1380 1300 1300 1380 1320 1320
Suction port (mm) φ28 φ35 φ35 φ35 φ42 φ42 φ54 φ54 φ54
Liquid supply port (mm) φ12.7 φ12.7 φ16 φ16 φ16 φ22 φ22 φ22 φ22
Weight (kg) 200 200 245 250 350 368 385 485 510
Overall dimensions (L*W*H) 1290*655*1050 1290*655*1050 1290*655*1050 1290*655*1050 1590*805*1190 1590*805*1190 1590*805*1190 1890*905*1340 1890*905*1340
Installation dimensions (a*b) 557*625 557*625 557*625 557*625 850*775 850*775 850*775 1000*875 1000*875

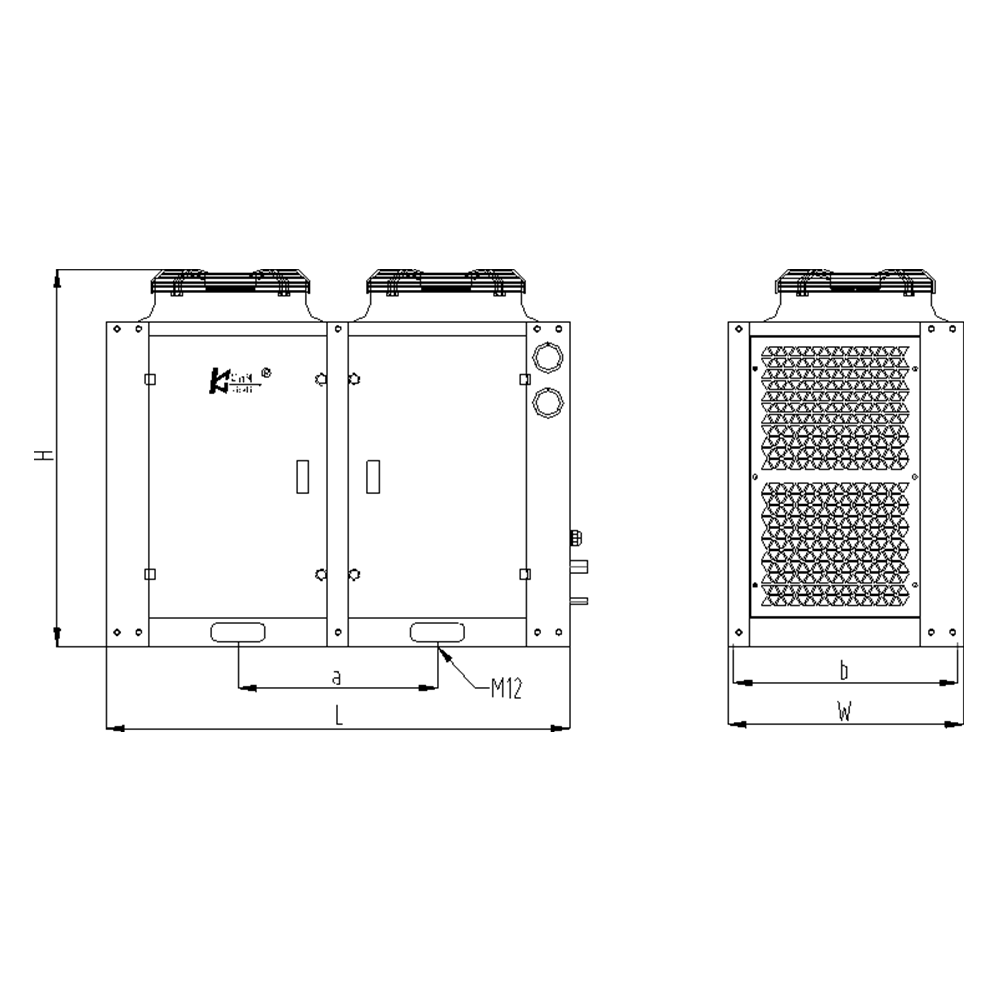

03Dimensions
    • 04Unit Configuration

    Medium and high temperature units

    Note: ● indicates standard configuration, ○ indicates optional accessories, and / indicates no such option.

    Unit Accessories Unit model
    BF04HY BF05HY BF07HY BF12HY BF15HY BF20HY
    BF04MY BF05MY BF07MY BF12MY BF15MY BF20MY BF25MY BF30MY BF35MY
    Semi-hermetic compressor ● ● ● ● ● ● ● ● ●
    Oil heater ● ● ● ● ● ● ● ● ●
    Exhaust shock absorber pipe ○ ○ ○ ● ● ● ● ● ●
    Oil separator ○ ○ ○ ● ● ● ● ● ●
    Condenser (hydrophilic aluminum foil) ● ● ● ● ● ● ● ● ●
    External rotor fan ● ● ● ● ● ● ● ● ●
    Reservoir ● ● ● ● ● ● ● ● ●
    Receiver outlet shut-off valve ● ● ● ● ● ● ● ● ●
    filter drier ● ● ● ● ● ● ● ● ●
    sight glass ● ● ● ● ● ● ● ● ●
    High/low pressure protection (diaphragm type) ● ● ● ● ● ● ● ● ●
    Electronic oil pressure (oil level) protection ○ ○ ○ ○ ○ ○ ● ● ●
    High/low pressure gauge ● ● ● ● ● ● ● ● ●
    Liquid supply solenoid valve ○ ○ ○ ○ ○ ○ ○ ○ ○
    High pressure control (fan control) ○ ○ ○ ○ ○ ○ ○ ○ ○
    Low pressure control (pump down) ○ ○ ○ ○ ○ ○ ○ ○ ○

    Low temperature unit

    Note: ● indicates standard configuration, ○ indicates optional accessories, and / indicates no such option.

    Unit accessories Unit model
    BF04LY BF05LY BF08LY BF10LY BF15LY BF20LY BF25LY BF30LY BF40LY
    Semi-hermetic compressor ● ● ● ● ● ● ● ● ●
    Oil heating belt ● ● ● ● ● ● ● ● ●
    Exhaust shock absorber pipe ○ ○ ● ● ● ● ● ● ●
    Oil separator ○ ○ ● ● ● ● ● ● ●
    Condenser (hydrophilic aluminum foil) ● ● ● ● ● ● ● ● ●
    External rotor fan ● ● ● ● ● ● ● ● ●
    Reservoir ● ● ● ● ● ● ● ● ●
    Receiver outlet shut-off valve ● ● ● ● ● ● ● ● ●
    Filter drier ● ● ● ● ● ● ● ● ●
    Sight glass ● ● ● ● ● ● ● ● ●
    High/low pressure protection (diaphragm type) ● ● ● ● ● ● ● ● ●
    Electronic oil pressure (oil level) protection ○ ○ ○ ○ ● ● ● ● ●
    High/low pressure gauges ● ● ● ● ● ● ● ● ●
    Liquid supply solenoid valve ○ ○ ○ ○ ○ ○ ○ ○ ○
    High pressure control (fan control) ○ ○ ○ ○ ○ ○ ○ ○ ○
    Low pressure control (pump down) ○ ○ ○ ○ ○ ○ ○ ○ ○
