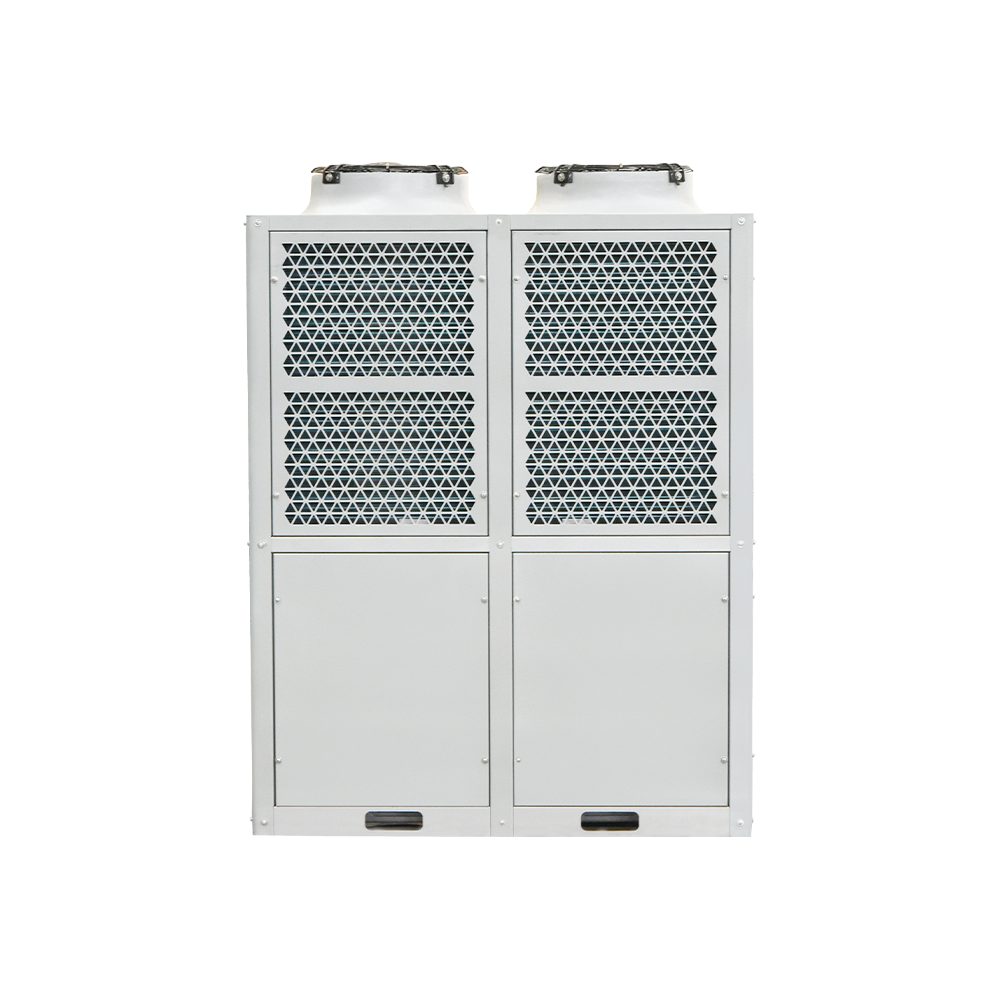

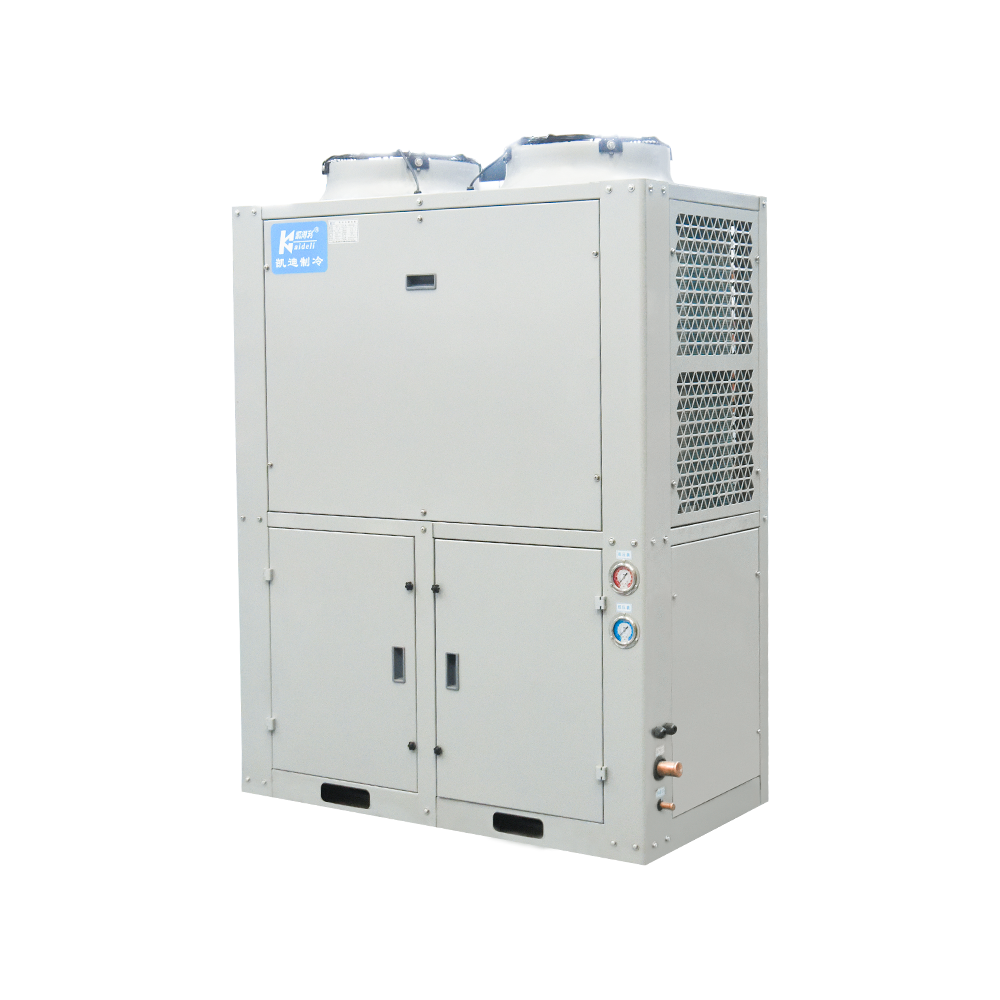

TE Series Box Type Condensing Unit

TE series box type condensing unit is an efficient refrigeration solution enabled by Emerson technology. It is based on scroll compressors and adopts a double-layer large box structure design, which is specially designed for medium and low temperature cold storage scenarios. With reliable performance, flexible application and convenient maintenance, this series of products is widely used in supermarket cold chain, pharmaceutical warehousing, food processing and other fields, meeting users' diversified needs for energy saving, stability and environmental protection.

CONTACT US
PREV：KU Series Piston Condensing UnitNEXT：BW Series Box Type Condensing Unit
01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

1. Compressor system:
The unit is equipped with Emerson scroll compressor dual platform: the medium temperature type adopts ZB series compressor, covering - 2~5℃ refrigeration scenarios, the single machine capacity extends to 30HP, and the cooling capacity reaches 53kW; the low temperature type is equipped with ZFI series compressor with jet enthalpy increase (EVI) technology, which can operate in a deep cold environment of - 15~-35℃, and the pressure is adjusted by dynamic exhaust valve, combined with jet enthalpy increase loop control, so that the energy efficiency ratio is improved by 15%-20%.

2. Heat exchange system:
U-shaped condenser: adopts a streamlined tube row design, the air inlet area is 30% larger than the traditional structure, and the heat exchange efficiency is increased by 25% with the synchronous operation of dual fans.
Fan optimization: the overall stretched large rounded high wind tube design, combined with the external rotor motor, increases the air volume by 18% while reducing the noise to below 68dB.

3. Box engineering design:
Double-layer anti-corrosion structure: galvanized steel plate spray-coated shell (RAL9006 silver gray) has been tested for more than 1000 hours by salt spray, and is suitable for extreme environments of -40℃ to 50℃.
Maintenance convenience: modular layout of upper and lower layers, the compressor door adopts a hinged design, combined with honeycomb sound-absorbing cotton lining, the maintenance space is expanded by 40% and the operating noise is reduced by 5dB.

4. Intelligent control logic:
Standard microcomputer controller, supports multi-mode operation:
Energy-saving mode: Automatically adjust the start and stop of the dual fans according to the ambient temperature, reducing energy consumption by 20%;
Redundant protection: Integrated high and low pressure switches, oil pressure difference protection, motor overheat protection and other 12 safety mechanisms

01 Advantages

1. Compressor system:
The unit is equipped with Emerson scroll compressor dual platform: the medium temperature type adopts ZB series compressor, covering - 2~5℃ refrigeration scenarios, the single machine capacity extends to 30HP, and the cooling capacity reaches 53kW; the low temperature type is equipped with ZFI series compressor with jet enthalpy increase (EVI) technology, which can operate in a deep cold environment of - 15~-35℃, and the pressure is adjusted by dynamic exhaust valve, combined with jet enthalpy increase loop control, so that the energy efficiency ratio is improved by 15%-20%.

2. Heat exchange system:
U-shaped condenser: adopts a streamlined tube row design, the air inlet area is 30% larger than the traditional structure, and the heat exchange efficiency is increased by 25% with the synchronous operation of dual fans.
Fan optimization: the overall stretched large rounded high wind tube design, combined with the external rotor motor, increases the air volume by 18% while reducing the noise to below 68dB.

3. Box engineering design:
Double-layer anti-corrosion structure: galvanized steel plate spray-coated shell (RAL9006 silver gray) has been tested for more than 1000 hours by salt spray, and is suitable for extreme environments of -40℃ to 50℃.
Maintenance convenience: modular layout of upper and lower layers, the compressor door adopts a hinged design, combined with honeycomb sound-absorbing cotton lining, the maintenance space is expanded by 40% and the operating noise is reduced by 5dB.

4. Intelligent control logic:
Standard microcomputer controller, supports multi-mode operation:
Energy-saving mode: Automatically adjust the start and stop of the dual fans according to the ambient temperature, reducing energy consumption by 20%;
Redundant protection: Integrated high and low pressure switches, oil pressure difference protection, motor overheat protection and other 12 safety mechanisms

02Specifications
TE 15 M Y
Refrigeration oil code, Y: POE oil (R404A/R507A), no code: mineral oil (R22);
Applicable temperature code, H: high temperature, M: medium temperature, L: low temperature;
Compressor nominal power (HP);
Product range;

Medium temperature unit (refrigerant R22) Standard design: ambient temperature 32°C, suction superheat 10K.

Unit model TE08M TE09M TE10M TE12M TE13M TE15M TE20M TE22M TE25M TE30M
power supply 3PH/380V/50Hz
Applicable temperature -2℃~5℃
compressor model ZB58KQ ZB66KQ ZB76KQ ZB88KQ ZB95KQ ZB114KQ ZB130KQ ZB150KQ ZB190KQ ZB220KQ
Maximum current (A) 15.9 17.5 20.4 22.3 31 33.5 33.1 38 49.1 58.9
Cooling capacity/power (KW) Evaporation temperature -5℃ 14.9/5.6 17.3/6.2 20.4/7.3 23.2/8.3 24.2/9.3 29.0/11.1 32.6/11.7 38.9/14.6 47.6/18.2 59.8/21.9
-8℃ 13.2/5.5 15.5/6.0 18.3/7.1 20.8/8.0 21.5/9.0 25.7/10.8 28.9/11.3 34.9/14.3 42.6/17.8 53.5/21.3
-10℃ 12.2/5.3 14.5/5.9 17.1/6.9 19.4/7.8 20.0/8.8 23.8/10.5 26.7/11.1 32.5/13.5 39.6/17.4 49.8/20.7
fan Voltage (V) 3PH/380V/50HZ
Current (A) 1.02 1.02 1.02 1.7 1.7 1.9 1.9 3.2 3.2 3.2
Power (W) 2×205 2×205 2×205 2×414 2×414 2×500 2×500 2×800 2×800 2×800
Speed (r/min) 1380 1380 1380 1300 1300 1380 1380 1320 1320 1320
Suction port (mm) φ28 φ28 φ35 φ35 φ35 φ35 φ42 φ42 φ42 φ42
Liquid supply port (mm) φ12.7 φ12.7 φ16 φ16 φ16 φ16 φ22 φ22 φ22 φ22
Weight (kg) 230 239 239 295 295 304 340 475 510 535
Overall dimensions (L*W*H) 1290*655*1750 1290*655*1750 1290*655*1750 1590*805*1990 1590*805*1990 1590*805*1990 1590*805*1990 1890*905*2190 1890*905*2190 1890*905*2190
Installation dimensions (a*b) 557*625 557*625 557*625 850*775 850*775 850*775 850*775 1000*875 1000*875 1000*875

Medium temperature unit (refrigerant R404A/R507A) Standard design: ambient temperature 32°C, suction superheat 10K.

Unit model TE08MY TE09MY TE10MY TE13MY TE15MY TE20MY TE22MY TE25MY TE30MY
power supply 3PH/380V/50Hz 3PH/380V/50Hz
Applicable temperature -5℃~5℃ -5℃~5℃
compressor model ZB58KQE ZB66KQE ZB76KQE ZB95KQE ZB114KQE ZB130KQE ZB150KQE ZB190KQE ZB220KQE
Maximum current (A) 15.9 17.5 20.4 31 33.5 33.1 38 49.1 58.9
Cooling capacity/power (KW) Evaporation temperature -5℃ 15.0/6.5 16.8/7.3 20.0/8.5 24.5/10.9 29.1/13.0 31.7/13.4 38.4/16.7 48.1/21.0 58.8/25.3
-8℃ 13.6/6.3 15.2/7.1 18.1/8.3 22.1/10.7 26.2/12.7 28.6/13.0 34.7/16.3 43.5/20.4 53.1/24.6
-10℃ 12.7/6.2 14.3/6.9 17.0/8.1 20.8/10.4 24.5/12.4 26.7/12.7 32.6/15.9 40.8/20.0 49.8/24.0
-15℃ 10.6/5.9 12.1/6.6 14.2/7.6 17.4/9.9 20.4/11.8 22.3/12.0 27.5/15.1 34.5/19.0 41.9/22.8
fan Voltage (V) 3PH/380V/50HZ 3PH/380V/50HZ
Current (A) 1.02 1.02 1.02 1.7 1.9 1.9 3.2 3.2 3.2
Power (W) 2×205 2×205 2×205 2×414 2×500 2×500 2×800 2×800 2×800
Speed (r/min) 1380 1380 1380 1300 1380 1380 1320 1320 1320
Suction port (mm) φ28 φ28 φ35 φ35 φ35 φ42 φ42 φ42 φ42
Liquid supply port (mm) φ12.7 φ12.7 φ16 φ16 φ16 φ22 φ22 φ22 φ22
Weight (kg) 230 239 239 295 304 340 475 510 535
Overall dimensions (L*W*H) 1290*655*1750 1290*655*1750 1290*655*1750 1590*805*1990 1590*805*1990 1590*805*1990 1890*905*2190 1890*905*2190 1890*905*2190
Installation dimensions (a*b) 557*625 557*625 557*625 850*775 850*775 850*775 1000*875 1000*875 1000*875

Low temperature unit (with EVI air injection enthalpy increase) Standard design: Ambient temperature 32°C. Suction superheat 10K. The effect of subcooling should be considered when selecting an expansion valve.

Unit model TE08LY TE10LY TE12LY TE15LY TE18LY TE20LY TE25LY TE30LY
power supply 3PH/380V/50Hz
Applicable temperature -15℃~-35℃
compressor model ZFI36KQE ZFI39KQE ZFI50KQE ZFI59KQE ZFI68KQE ZFI81KQE ZFI96KQE ZFI122KQE
Maximum current (A) 16 18.1 25 29 30 31 41.5 53.6
R404A/R507A Evaporation temperature -20℃ Cooling capacity/power KW 12.1/6.7 12.8/8.1 16.5/8.9 20.0/10.8 22.6/12.5 26.6/15.2 34.1/18.9 43.0/22.9
Liquid temperature ℃ 12.7 12.7 11.5 13.6 13.6 13.6 14.4 14.4
-25℃ Cooling capacity/power KW 10.4/6.2 11.9/7.5 14.0/8.2 17.0/9.9 19.2/11.6 22.5/14.1 28.9/17.4 36.4/21.2
Liquid temperature ℃ 6.8 6.8 7.5 9.6 9.5 9.6 10 10
-30℃ Cooling capacity/power KW 8.8/5.6 10.1/6.8 11.7/7.5 14.2/9.1 16.1/10.6 18.9/13.0 24.3/16.1 30.6/19.6
Liquid temperature ℃ 0.7 0.7 3.4 5.7 5.6 5.6 5.8 5.8
-35℃ Cooling capacity/power KW 7.4/5.1 8.5/6.2 9.9/6.9 12.0/8.4 13.5/9.7 15.9/11.8 20.3/14.8 25.5/18.0
Liquid temperature ℃ -5.5 -5.5 -2.2 0.2 0.2 0.2 1.8 1.8
-40℃ Cooling capacity/power KW 6.1/4.6 7.0/5.6 8.4/6.4 10.3/7.8 11.6/9.0 13.6/11.0 16.7/13.8 21.0/16.9
Liquid temperature ℃ -10.8 -10.8 -12.1 -9.5 -9.6 -9.5 -0.9 -0.9
fan Voltage (V) 3PH/380V/50HZ
Current (A) 1.02 1.02 1.02 1.7 1.7 1.9 3.2 3.2
Power (W) 2×205 2×205 2×205 2×414 2×414 2×500 2×800 2×800
Speed (r/min) 1380 1380 1380 1300 1300 1380 1320 1320
Suction port (mm) φ22 φ22 φ35 φ35 φ35 φ35 φ42 φ42
Liquid supply port (mm) φ12.7 φ12.7 φ16 φ16 φ16 φ22 φ22 φ22
Weight (kg) 210 211 235 305 308 320 515 525
Overall dimensions (L*W*H) 1290*655*1750 1290*655*1750 1290*655*1750 1590*805*1990 1590*805*1990 1590*805*1990 1890*905*2190 1890*905*2190
Installation dimensions (a*b) 557*625 557*625 557*625 850*775 850*775 850*775 1000*875 1000*875

03Dimensions
    • 04Unit Configuration

    Medium temperature unit

    Note: ● indicates standard configuration, ○ indicates optional accessories, and / indicates no such option.

    Unit accessories Unit model
    TE08M TE09M TE10M TE12M TE13M TE15M TE20M TE22M TE25M TE30M
    Scroll compressor (weld) ● ● ● ● ● ● ● ● ● ●
    Oil heating belt ● ● ● ● ● ● ● ● ● ●
    Exhaust shock absorber pipe ○ ○ ○ ○ ○ ○ ● ● ● ●
    Oil separator ○ ○ ○ ○ ○ ○ ● ● ● ●
    Condenser (hydrophilic aluminum foil) ● ● ● ● ● ● ● ● ● ●
    External rotor fan ● ● ● ● ● ● ● ● ● ●
    Reservoir ● ● ● ● ● ● ● ● ● ●
    Receiver outlet shut-off valve ● ● ● ● ● ● ● ● ● ●
    filter drier ● ● ● ● ● ● ● ● ● ●
    sight glass ● ● ● ● ● ● ● ● ● ●
    Gas-liquid separator ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
    High/low pressure protection (diaphragm type) ● ● ● ● ● ● ● ● ● ●
    High/low pressure gauge ● ● ● ● ● ● ● ● ● ●
    Liquid supply solenoid valve ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
    High pressure control (fan control) ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
    Low pressure control (pump down) ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

    Low temperature unit

    Note: ● indicates standard configuration, ○ indicates optional accessories, and / indicates no such option.

    Unit accessories Unit model
    TE08LY TE10LY TE12LY TE15LY TE18LY TE20LY TE25LY TE30LY
    Scroll compressor (EVI) ● ● ● ● ● ● ● ●
    Oil heating belt ● ● ● ● ● ● ● ●
    Exhaust shock absorber pipe ○ ○ ○ ○ ○ ○ ● ●
    Oil separator ○ ○ ○ ○ ○ ○ ● ●
    Condenser (hydrophilic aluminum foil) ● ● ● ● ● ● ● ●
    External rotor fan ● ● ● ● ● ● ● ●
    Reservoir ● ● ● ● ● ● ● ●
    Receiver outlet shut-off valve ● ● ● ● ● ● ● ●
    filter drier ● ● ● ● ● ● ● ●
    sight glass ● ● ● ● ● ● ● ●
    Gas-liquid separator ○ ○ ○ ○ ○ ○ ○ ○
    High/low pressure protection (diaphragm type) ● ● ● ● ● ● ● ●
    High/low pressure gauge ● ● ● ● ● ● ● ●
    (Subcooling) solenoid valve ● ● ● ● ● ● ● ●
    (Subcooling) expansion valve ● ● ● ● ● ● ● ●
    Subcooling plate replacement ● ● ● ● ● ● ● ●
    Liquid supply solenoid valve ○ ○ ○ ○ ○ ○ ○ ○
    High pressure control (fan control) ○ ○ ○ ○ ○ ○ ○ ○
    Low pressure control (pump down) ○ ○ ○ ○ ○ ○ ○ ○
    05Inquiry

    Zhejiang Kaidi Refrigeration Equipment Co., Ltd

    • 30+

      Years Industry Experience

    • 300+

      Employees

    • 1000Million

      Export Amount

    • 100000+

      Plant Area

    Zhejiang Kaidi Refrigeration Equipment Co., Ltd was founded in 1995, Kaidi is our trademark. We have been focusing on refrigeration for nearly 30 years, and now we have developed into a scientific and technological company integrating scientific research and development, processing and manufacturing, pre-sales programme design, product sales and commissioning, and after-sales service guarantee. Headquartered in Shengzhou City, Zhejiang Province, our factory covers an area of 100,000 square metres, with more than 60,000 square metres of modern factory buildings and more than 8,000 square metres of offices, as well as Shanghai Hongqiao Office (R&D Centre), Guangzhou Panyu Office, Beijing Branch and so on.

    After years of development, we have the management team of a top 500 enterprise and a standardised and efficient operation system, as well as strong technical research and development strength. The factory is equipped with complete and advanced CNC machining equipment and high-standard testing laboratory, with strong product development and lean processing and manufacturing capabilities; the establishment of a professional pre-sales technical support, after-sales service guarantee system, we not only research and development and production of advanced refrigeration equipment, but also the overall solution provider for high-quality customers to provide first-class products and services to ensure that our purpose and goal.

    Our sales and service network not only spreads all over the country, but also develops rapidly in the world in the past few years, ‘Kaideli’ brand refrigeration products have a high reputation both at home and abroad, and have won the praise and recognition of our customers. At present, our customers include: cold chain logistics enterprises such as GLP, Shunfeng, Jingdong, Yaleng, Kai Orange, etc.; food processing enterprises such as Wufeng, Holliday, Ligao, Qingmei, Zuming, Anjing, Sienian, etc., central kitchens such as Makgindi, Lvcheng, Ajisai, etc.; slaughter enterprises such as Winsome, Xinning, etc.; edible fungi factory planting enterprises such as Xiangru Biological, Guiwang, Huaguang, Zongxing Mushroom, Lisa, etc., as well as Shanghai Pharmaceuticals, China Medicine Group, and so on. Group and so on.

    HONOR & CERTIFICATE

    Our products have obtained, include EC-Type Examination Certificate, BV, MODE, DNV, GL Certificate, EC Attestation of Conformity, Certificate of Type Approval for Marine Product and Lloyd’s Register Quality Assurance.

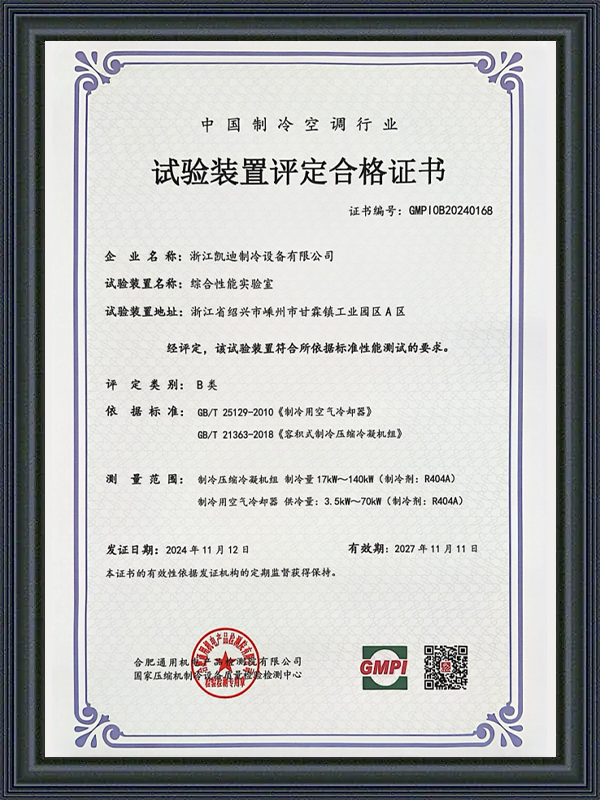

    • Certificate of conformity for evaluation of test devices

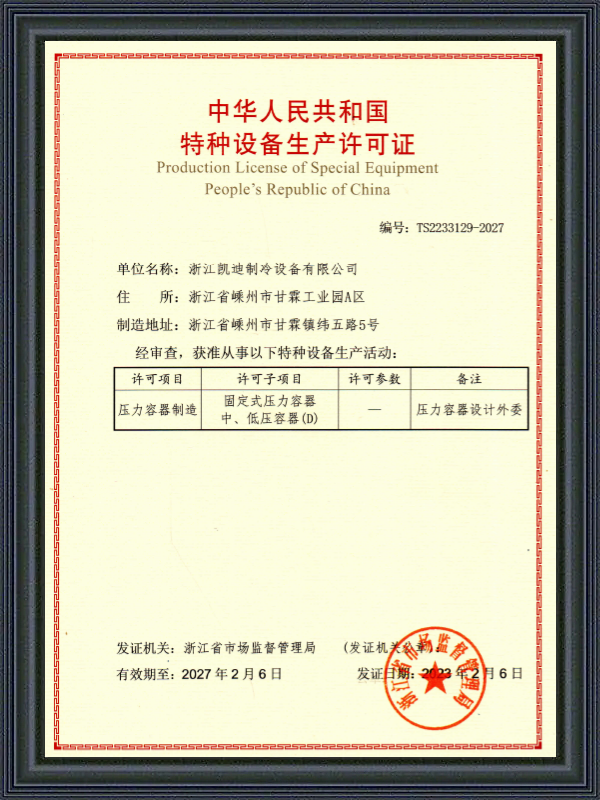

    • Special Equipment Manufacturing License

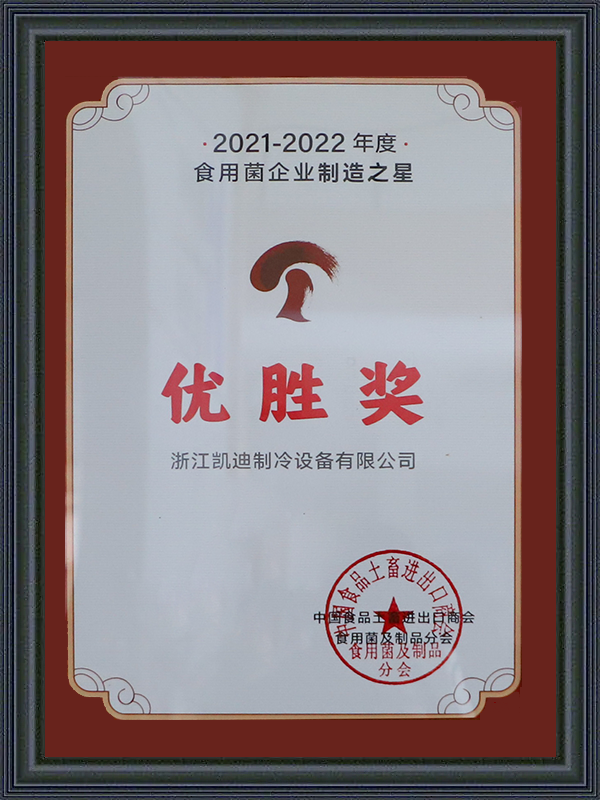

    • Edible Mushroom Enterprise Manufacturing Star
    • Excellent Unit Member of China Institute of Refrigeration
    • 2023 Guangxi Refrigeration Society Refrigeration and Cold Storage Specialized Committee

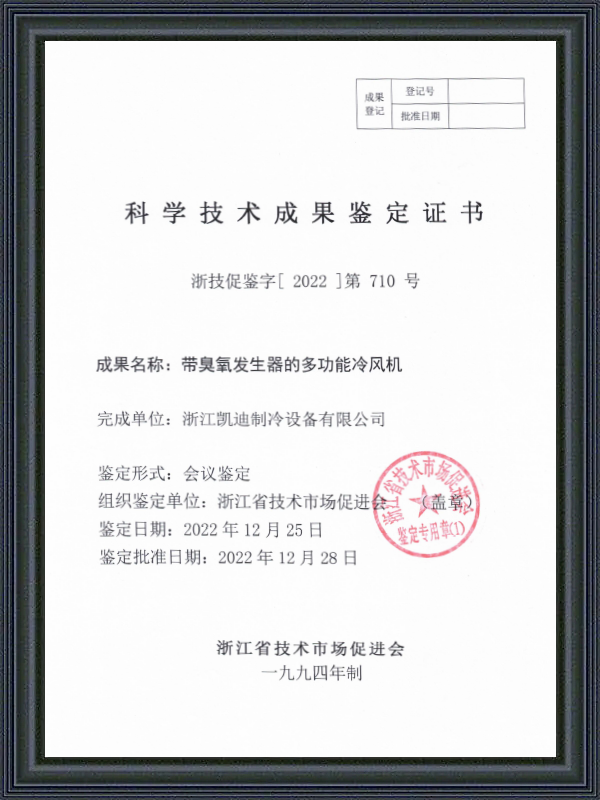

    • Science and Technology Achievement Appraisal Certificate
