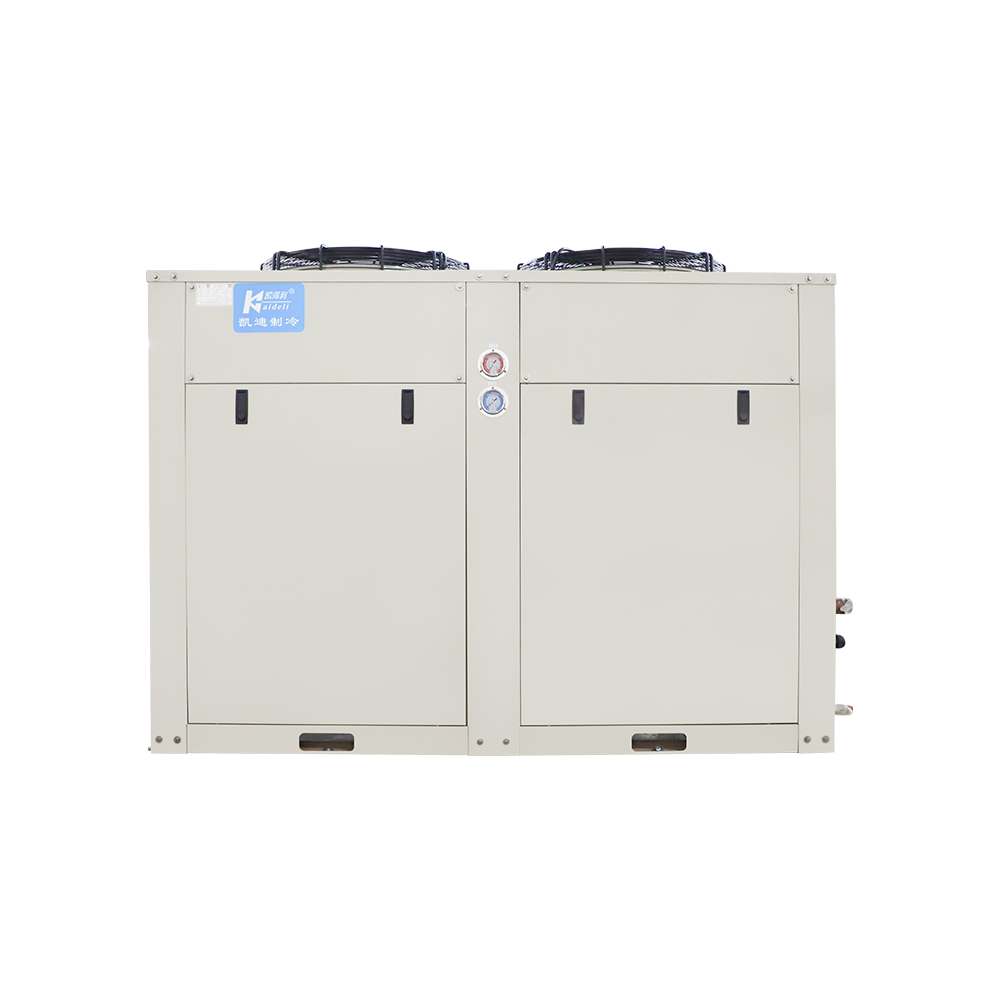

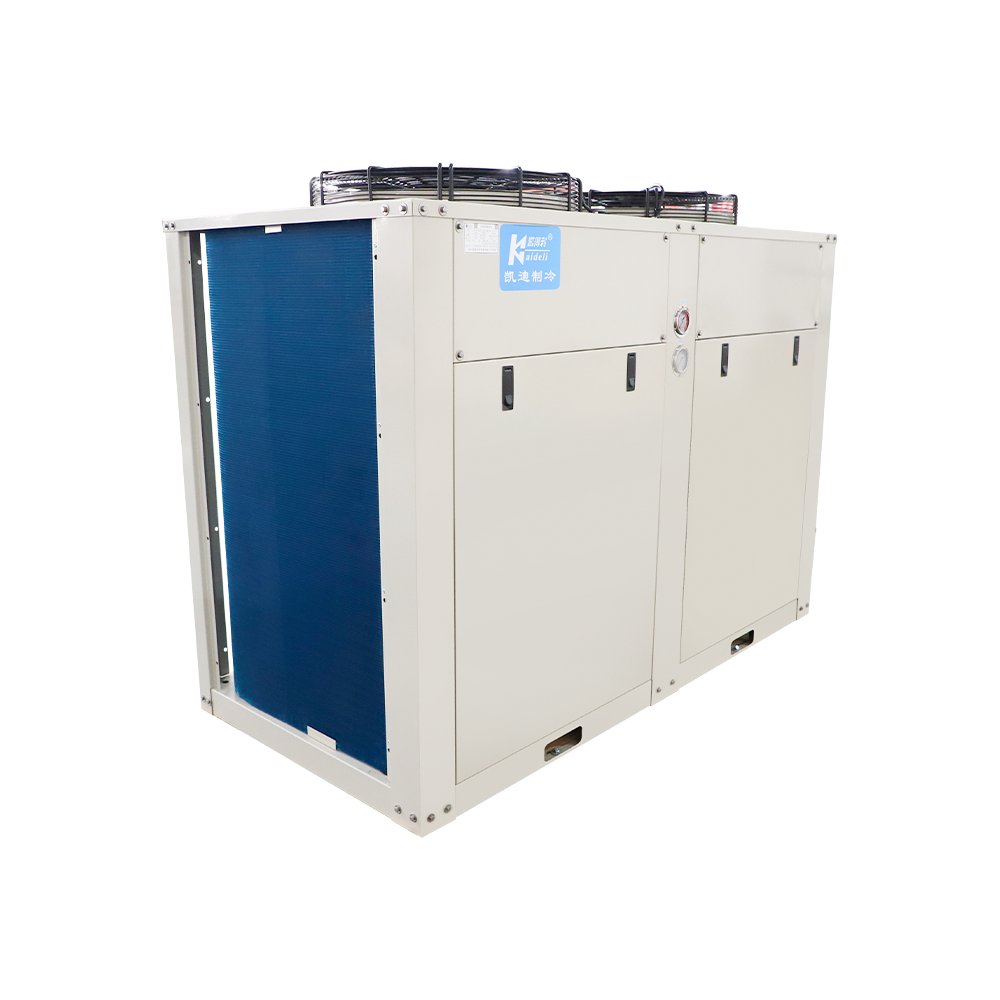

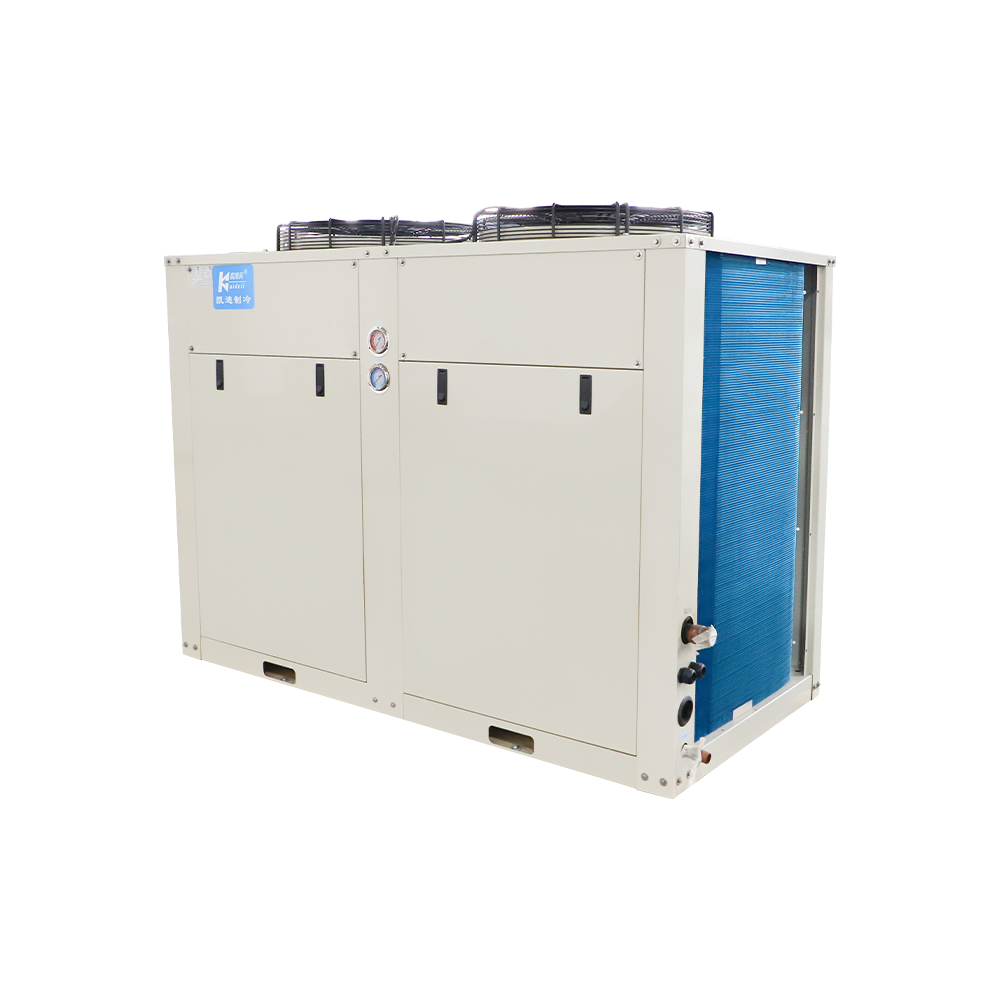

KU Series Piston Condensing Unit

KU series piston condensing unit has a place in the field of commercial refrigeration with the unique advantages of piston compression. Its overall box-type structure design allows the unit to maintain a compact appearance while the internal piston compressor can achieve efficient compression of the refrigerant through precise reciprocating motion. Whether it is to cope with the continuous refrigeration needs of small and medium-sized cold storages or to meet the intermittent refrigeration conditions of commercial refrigerators, the unit can provide reliable power for various refrigeration equipment with stable performance and flexible adaptability. It is a refrigeration equipment that takes into account both efficiency and durability. ​

CONTACT US
PREV：KU Series Scroll Condensing UnitNEXT：TE Series Box Type Condensing Unit
01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

Product Features​:
1. Compact structure and efficient heat exchange​
Adopting an overall box-type structure, the compact structure greatly saves installation space and can be easily adapted to different site environments. ​
The internal structure is reasonably designed and the wind field is evenly distributed, so that the heat exchange capacity of the condenser is fully utilized, the heat exchange efficiency is improved, and strong support is provided for the efficient refrigeration of the unit. ​

2. Stable performance, low consumption and low noise​
The performance design is reasonable, combined with the working characteristics of the piston compressor, the unit has a high energy efficiency ratio, while ensuring the refrigeration effect, it effectively reduces energy consumption and reduces operating costs.​
Equipped with an external rotor motor, the driven fan has a good appearance and low noise during operation, which not only ensures the heat dissipation effect, but also creates a quiet operating atmosphere. ​

3. Convenient maintenance
The panel of the unit adopts an easy-to-disassemble design, which is convenient for operators to carry out daily inspections, repairs and maintenance, reducing the difficulty and time cost of maintenance. ​
Maintain a good cooperative relationship with suppliers, strictly control the quality of raw materials purchased, and ensure the quality of the unit from the source to ensure that customers are provided with high-quality and reliable products. ​

4. Widely adaptable
It can be built-in and installed with various brands of compressors, with strong compatibility. It can select the appropriate compressor according to different refrigeration needs to meet a variety of refrigeration conditions. ​
It is suitable for various refrigerants such as R134a, R404A, R507, R22, etc., and is widely used in refrigeration equipment in many fields such as food refrigeration, commercial refrigeration, and pharmaceutical cold chain. ​

01 Advantages

Product Features​:
1. Compact structure and efficient heat exchange​
Adopting an overall box-type structure, the compact structure greatly saves installation space and can be easily adapted to different site environments. ​
The internal structure is reasonably designed and the wind field is evenly distributed, so that the heat exchange capacity of the condenser is fully utilized, the heat exchange efficiency is improved, and strong support is provided for the efficient refrigeration of the unit. ​

2. Stable performance, low consumption and low noise​
The performance design is reasonable, combined with the working characteristics of the piston compressor, the unit has a high energy efficiency ratio, while ensuring the refrigeration effect, it effectively reduces energy consumption and reduces operating costs.​
Equipped with an external rotor motor, the driven fan has a good appearance and low noise during operation, which not only ensures the heat dissipation effect, but also creates a quiet operating atmosphere. ​

3. Convenient maintenance
The panel of the unit adopts an easy-to-disassemble design, which is convenient for operators to carry out daily inspections, repairs and maintenance, reducing the difficulty and time cost of maintenance. ​
Maintain a good cooperative relationship with suppliers, strictly control the quality of raw materials purchased, and ensure the quality of the unit from the source to ensure that customers are provided with high-quality and reliable products. ​

4. Widely adaptable
It can be built-in and installed with various brands of compressors, with strong compatibility. It can select the appropriate compressor according to different refrigeration needs to meet a variety of refrigeration conditions. ​
It is suitable for various refrigerants such as R134a, R404A, R507, R22, etc., and is widely used in refrigeration equipment in many fields such as food refrigeration, commercial refrigeration, and pharmaceutical cold chain. ​

02Specifications
KU 20 M Y B - B
Version Code
Compressor code, E: Copeland; B: Bitzer
Refrigeration oil code, abbreviated: mineral oil; Y: POE
M: medium temperature; L: low temperature
Compressor horsepower (HP)
Kaidi compression condensing unit product series

Air-cooled high temperature (refrigerant R404A)

Unit model KU05MYB-B KU09MYB-B KU15MYB-B KU20MYB-B KU25MYB-B KU30MYB-B
power supply 380V/3PH/50 HZ
Applicable storage temperature (℃) -5℃  ~5  ℃
compressor model 4FES-5Y 4CES-9Y 4PES-15Y 4NES-20Y 4HE-25Y 4GE-30Y
Maximum operating current (A) 10.8 20.2 28.2 33.2 44 51.2
Condenser model LNU-80 LNU-100 LNU-165 LNU-200 LNU-230 LNU-260
Fan power (W) 600 600 390 ×2 800×2 1450×2 1450×2
Current (A) 1.2 1.2 1.98 3.2 5.8 5.8
Reservoir Volume (L) 8 10 20 29 29 29
Compressor cooling capacity and power Evaporation -5℃ Cooling capacity (kW) 10.39 19.15 27.5 33 43.5 49.9
Power (kW) 4.38 8.13 11.17 13.32 17.59 20.3
Evaporation -7℃ Cooling capacity (kW) 9.51 17.51 25 30.1 39.8 45.7
Power (kW) 4.27 7.89 10.78 12.89 17.04 19.7
Evaporation -10℃ Cooling capacity (kW) 8.3 15.25 21.6 26.1 34.8 39.9
Power (kW) 4.09 7.51 10.17 12.2 16.19 18.71
interface Suction port (mm) 22 28 42 42 54 54
Liquid supply interface (mm) 12 16 22 22 22 22
Weight (kg) 282 399 424 486 563 596
Noise dBA (1 meter sound pressure level) 75 75 74 79 82 82
Dimensions A (mm) 1000 1000 1400 1900 1900 1900
B (mm) 810 810 810 910 910 910
C (mm) 1230 1230 1230 1250 1450 1450
Installation dimensions (a×b) (mm) 450*760 450*760 900*760 900*860 900*860 900*860

Air-cooled low temperature (refrigerant R404A)

Unit model KU08LYB-B KU15LYB-B KU20LYB-B KU25LYB-B KU30LYB-B KU40LYB-B
power supply 380V/3PH/50 HZ
Applicable storage temperature (℃) -25℃  ~-15 ℃
compressor model 4TES-9Y 4HE-18Y 4GE-23Y 4FE-28Y 6GE-34Y 6FE-44Y
Maximum operating current (A) 19.9 36.7 43.9 52.8 65.5 83.2
Condenser model LNU-80 LNU-140 LNU-165 LNU-200 LNU-230 LNU-260
Fan power (W) 600 390 ×2 390 ×2 800×2 1450×2 1450×2
Current (A) 1.2 1.98 1.98 3.2 5.8 5.8
Reservoir Volume (L) 20 20 20 29 29 40
Compressor cooling capacity and power Evaporation -20℃ Cooling capacity (kW) 11.48 21.8 25.6 30.5 38.3 45.7
Power (kW) 7.34 13.66 16.24 19.47 24.6 29.6
Evaporation -25℃ Cooling capacity (kW) 8.62 16.69 19.68 23.5 29.7 35.3
Power (kW) 6.35 12 14.27 17.13 21.8 26.3
Evaporation -30℃ Cooling capacity (kW) 6.31 12.45 14.82 17.76 22.6 26.6
Power (kW) 5.38 10.35 12.33 14.78 18.95 22.7
interface Suction port (mm) 35 42 54 54 54 54
Liquid supply interface (mm) 16 22 22 22 22 28
Weight (kg) 352 469 478 554 616 650
Noise dBA (1 meter sound pressure level) 75 75 79 79 82 83
Dimensions A (mm) 1000 1400 1400 1900 1900 1900
B (mm) 810 810 810 910 910 910
C (mm) 1230 1230 1230 1250 1450 1450
Installation dimensions (a×b) (mm) 450*760 900*760 900*760 900*860 900*860 900*860

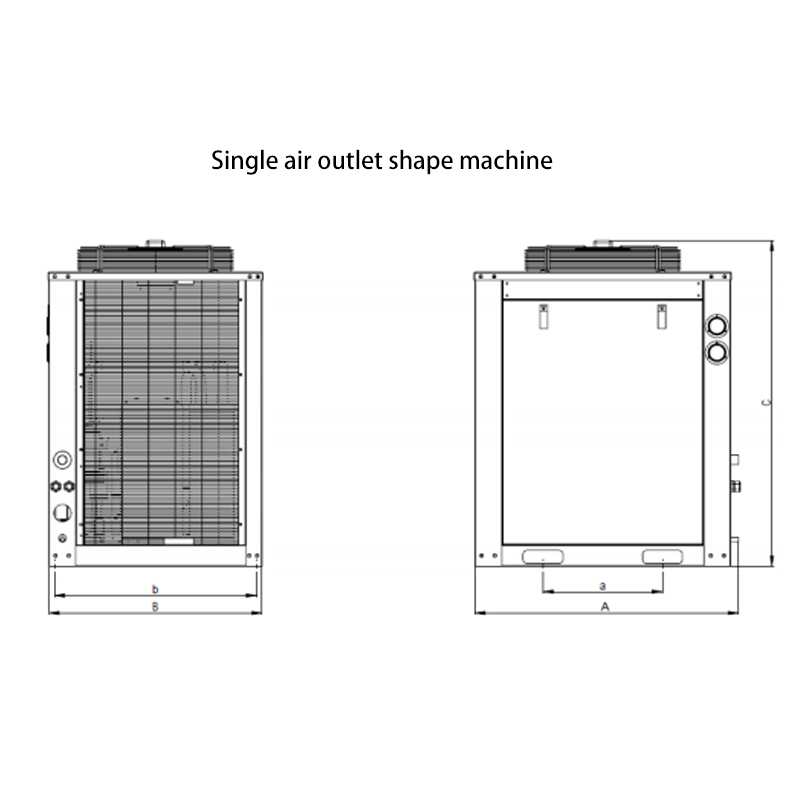

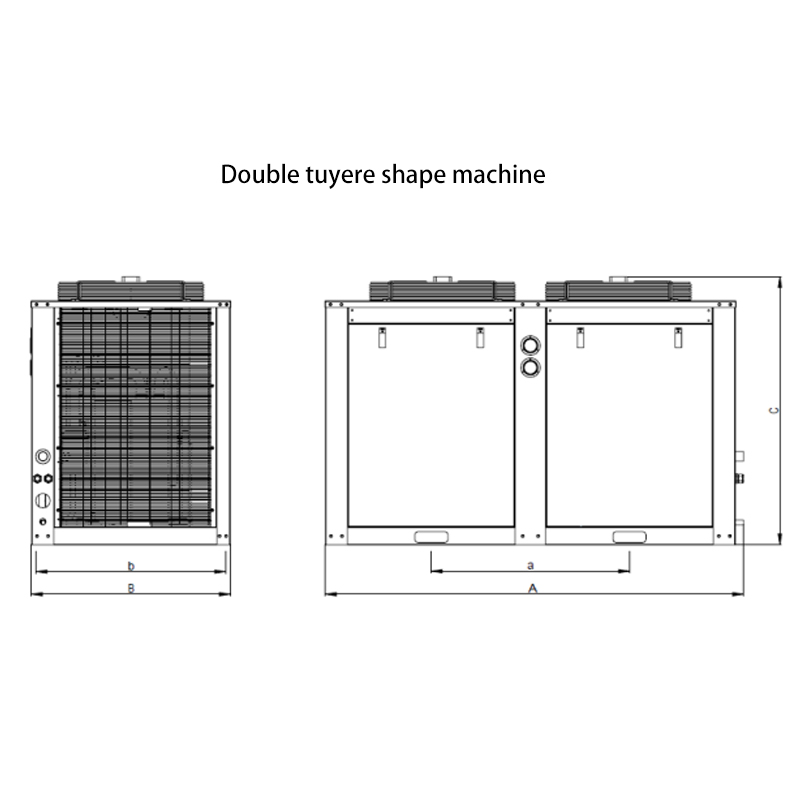

03Dimensions
    • 04Unit Configuration
    Unit accessories KU_MB-B/ KU_MYB-B KU_LB-B/ KU_LYB-B
    KU05M(Y)B-B~KU20M(Y)B-B KU25M(Y)B-B~KU30M(Y)B-B KU08L(Y)B-B KU15L(Y)B-B~KU40L(Y)B-B
    Piston compressor ● ● ● ●
    Oil heater ● ● ● ●
    Oil pressure differential controller × ● × ●
    shock absorber tube ○ ○ ○ ○
    Oil separator ○ ○ ○ ○
    Gas-liquid separator ○ ○ ○ ○
    Suction filtration ○ ○ ○ ○
    Air-cooled condenser ● ● ● ●
    Reservoir ● ● ● ●
    filter drier ● ● ● ●
    sight glass ● ● ● ●
    solenoid valve ● ● ● ●
    High and low pressure gauges ● ● ● ●
    High and low voltage controllers ● ● ● ●
    Standard ● Optional O None ×
