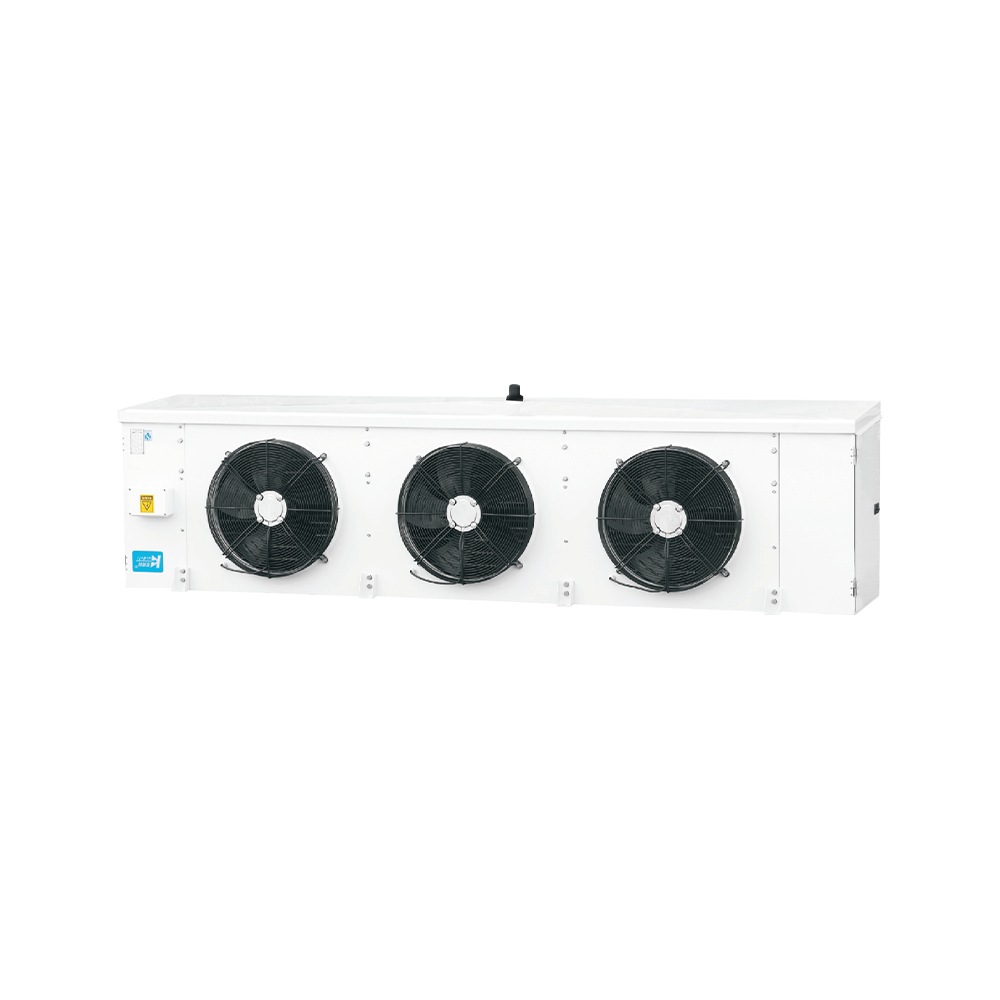

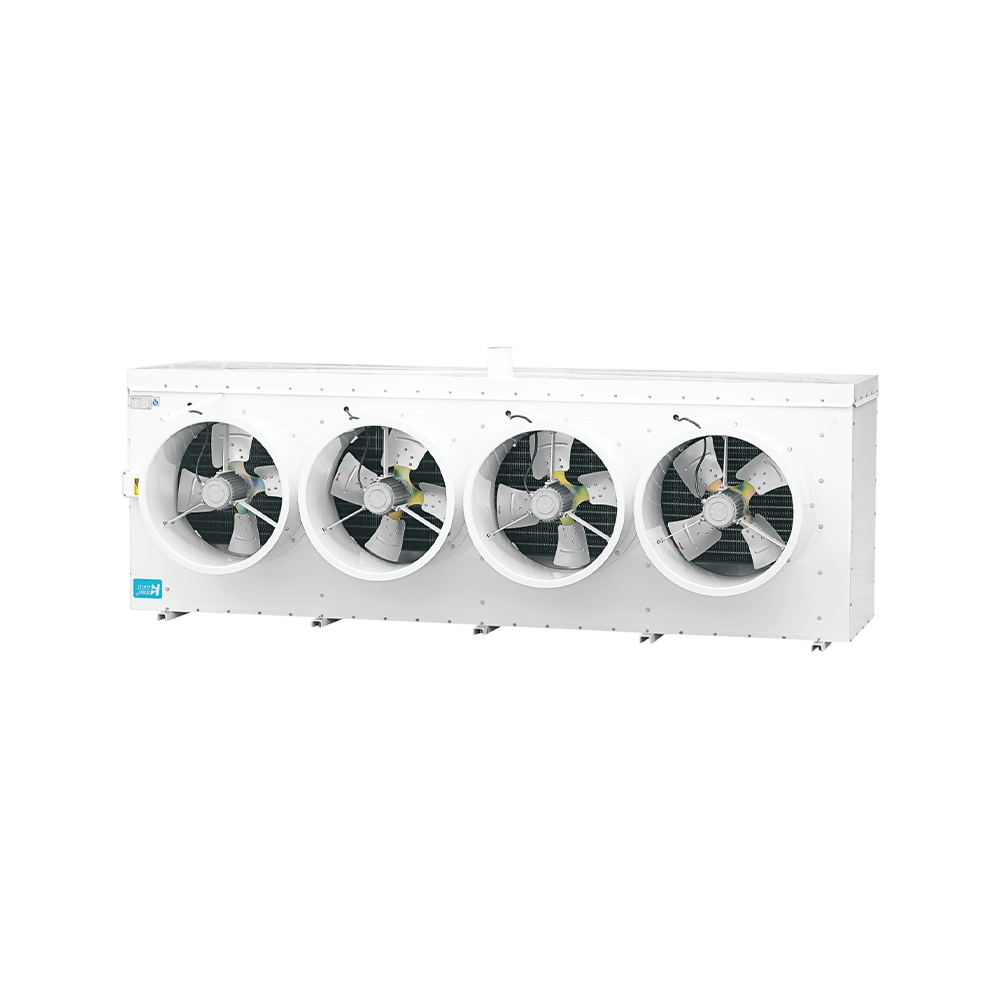

KUD Series Ceiling Type Evaporator

KUD series ceiling type evaporator is an efficient and energy-saving refrigeration equipment launched by Zhejiang Kaidi Refrigeration Equipment Co., Ltd., which is specially designed for scenes such as cold storage, food processing room and logistics center. Its compact and reliable structural design maximizes the utilization of storage space, and the low-noise external rotor motor effectively reduces work area noise and improves comfort. The refrigeration capacity covers 1.2KW to 114KW, and is compatible with a variety of refrigerants such as R134a, R404A, R507A, R407C and R22. It is widely used in fresh preservation, freezing and quick freezing needs.

CONTACT US
PREV：GU Series High Efficiency EvaporatorNEXT：ESL Series Direct Expansion Stainless Steel Tube Evaporator
01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

Features:
1. Efficient heat exchange and energy-saving design
   - Adopt a staggered coil structure and combined with mechanical expansion tube technology to make the copper tube tightly fit with the aluminum fins, significantly improving heat exchange efficiency and ensuring seal reliability.
   - The thickness of the heat exchange copper tube can reach 0.6mm, and with reasonable fin spacing (high-temperature type 4.5mm, medium-temperature type 6.0mm, low-temperature type 9.0mm), achieving uniform frosting and efficient refrigeration.

2. Low noise and long life operation
   - Equipped with a low-noise external rotor motor, with large air volume and long range, and low power consumption, significantly lower noise than traditional equipment, extending service life.
   - The fan adopts moisture-proof and low-temperature resistant design to ensure stable operation in extreme environments.

3. Reliable defrosting and safety performance
   - Choose stainless steel tubular electric heating tube with strong insulation, which is evenly distributed in the coil, with short melting time and uniform effect to avoid secondary icing.
   - The coil is airtightly tested at 2.6MPa air pressure and has high airtightness when leaving the factory to ensure long-term and stable operation.

4. Flexible adaptation and durable case
   - The shell is provided with two materials: aluminium plate and plastic-sprayed steel plate, which meets different corrosion protection and aesthetic needs.
   - The shell treated by the plastic spraying process is corrosion-resistant and vibration-resistant, and is suitable for the high humidity environment of the cold storage.

With its excellent performance and reliability, the KUD series of air coolers have become an ideal choice in the field of cold storage refrigeration, suitable for all scenarios from fruit and vegetable preservation to frozen food storage.

01 Advantages

Features:
1. Efficient heat exchange and energy-saving design
   - Adopt a staggered coil structure and combined with mechanical expansion tube technology to make the copper tube tightly fit with the aluminum fins, significantly improving heat exchange efficiency and ensuring seal reliability.
   - The thickness of the heat exchange copper tube can reach 0.6mm, and with reasonable fin spacing (high-temperature type 4.5mm, medium-temperature type 6.0mm, low-temperature type 9.0mm), achieving uniform frosting and efficient refrigeration.

2. Low noise and long life operation
   - Equipped with a low-noise external rotor motor, with large air volume and long range, and low power consumption, significantly lower noise than traditional equipment, extending service life.
   - The fan adopts moisture-proof and low-temperature resistant design to ensure stable operation in extreme environments.

3. Reliable defrosting and safety performance
   - Choose stainless steel tubular electric heating tube with strong insulation, which is evenly distributed in the coil, with short melting time and uniform effect to avoid secondary icing.
   - The coil is airtightly tested at 2.6MPa air pressure and has high airtightness when leaving the factory to ensure long-term and stable operation.

4. Flexible adaptation and durable case
   - The shell is provided with two materials: aluminium plate and plastic-sprayed steel plate, which meets different corrosion protection and aesthetic needs.
   - The shell treated by the plastic spraying process is corrosion-resistant and vibration-resistant, and is suitable for the high humidity environment of the cold storage.

With its excellent performance and reliability, the KUD series of air coolers have become an ideal choice in the field of cold storage refrigeration, suitable for all scenarios from fruit and vegetable preservation to frozen food storage.

02Specifications
K U D D 260 - E W 4 4 T B
A, B, C..., can be omitted in the first design:
Without air duct - omitted; T - means with air duct;
0--means 0 units (no motor, omitted): 1--means 1 unit: 2--means 2 units; 3--means 3 units: ...
380V-3-50Hz--Omittd;2--380V-3-60Hz;.3--380~415V-3-50Hz;4--220V-1-50Hz;5--208~230V-1-60Hz:6--220~240V-1-50Hz;
Refrigerant - omitted, W represents fresh water, Y represents ethylene glycol, N represents sodium chloride and G represents calcium chloride
E stands for electric defrost, W stands for water defrost, and B stands for thermal oxidation defrost
Heat exchange area
L stands for high temperature type, D stands for medium temperature type, and J stands for low temperature type
D indicates ceiling-mounted cooling unit, L indicates floor-mounted top-discharge cooling unit, V indicates floor-mounted flat-discharge cooling unit, S indicates double-side-discharge cooling unit, and F indicates oblique-side-discharge cooling unit.
U stands for air cooler
K stands for Kaidi Company

KUDL ceiling high temperature air cooler (electric defrost; blade spacing 4.5mm)

model Cooling capacity (kW) Cooling area (m²) fan Defrost heating tube Remark
quantity Diameter Φ (mm) Air volume (m²/h) Wind pressure (pa) Range (m) Power (W) Coil (kW/unit) Water tray (kW) Voltage (V)
KUDL016-E2C 3.2 16 2 300 2×1563 90 10 2×75 0.36×4 0.36×2 220 Non-standard design possible
KUDL020-E2C 4.1 20 2 300 2×1563 90 10 2×75 0.37×4 0.37×2 220
KUDL030-E2C 6.1 30 2 350 2×2290 90 10 2×129 0.46×4 0.46×2 220
KUDL040-E2C 8.0 40 2 350 2×2290 90 10 2×129 0.49×4 0.49×2 220
KUDL060-E2C 11.2 60 2 400 2×3400 90 13 2×180 0.51×6 0.51×2 220
KUDL080-E2C 16.2 80 2 500 2×6570 90 15 2×460 0.61×6 0.61×2 220
KUDL105-E3C 21.5 105 3 500 2×6570 90 15 2×460 0.81×6 0.81×2 220
KUDL135-E3C 27.6 135 3 500 3×6570 90 15 3×460 0.83×6 0.83×4 220
KUDL160-E3C 32.8 160 3 500 3×6570 90 15 3×460 1.0×6 1.0×4 220
KUDL185-E4C 37.6 185 4 500 4×6570 90 15 4×460 1.1×6 1.1×4 220
KUDL210-E4C 42.7 210 4 500 4×6570 90 15 4×460 1.1×8 1.1×4 220
KUDL260-E3C 52.9 260 3 550 3×8720 90 15 3×600 1.2×12 1.2×4 220 Outer rotor motor
KUDL330-E4C 67.6 330 4 550 4×8720 90 15 4×600 1.1×14 1.1×4 220
KUDL400-E4C 82.0 400 4 600 4×10820 120 15 4×780 1.3×14 1.3×4 220
KUDL185-E2TC 37.6 185 2 600 2×12000 200 20 2×1500 0.73×8 0.73×4 220 With hairdryer
KUDL210-E2TC 42.7 210 2 600 2×12000 200 20 2×1500 0.75×14 0.75×4 220
KUDL240-E2TC 48.7 240 2 600 2×12000 200 20 2×1500 0.84×14 0.84×4 220
KUDL260-E2TC 52.9 260 2 600 2×12000 200 20 2×1500 0.92×14 0.92×4 220
KUDL310-E3TC 63.5 310 3 600 3×12000 200 20 3×1500 1.05×14 1.05×4 220
KUDL330-E3TC 67.6 330 3 600 3×12000 200 20 3×1500 1.1×14 1.1×4 220
KUDL380-E3TC 77.9 380 3 600 3×12000 200 20 3×1500 1.05×14 1.05×4 220
KUDL400-E3TC 82 400 3 600 3×12000 200 20 3×1500 1.1×14 1.1×4 220
KUDL470-E3TC 96.3 470 3 600 3×12000 200 20 3×1500 1.05×20 1.05×4 220
KUDL500-E3TC 107.5 500 3 600 3×12000 200 20 3×1500 1.1×20 1.1×4 220
KUDL560-E4TC 120.4 560 4 600 4×12000 200 20 4×1500 1.2×20 1.2×4 220
KUDL600-E4TC 129 600 4 600 4×12000 200 20 4×1500 1.2×20 1.2×4 220
Remark Cold room temp.0℃;△t=8℃

KUDD ceiling medium temperature air cooler (electric defrost; blade spacing 6mm)

model Cooling capacity (kW) Cooling area (m²) fan Defrost heating tube Remark
quantity Diameter Φ (mm) Air volume (m²/h) Wind pressure (pa) Range (m) Power (W) Coil (kW/unit) Water tray (kW) Voltage (V)
KUDD012-E2C 2.2 12 2 300 2×1563 90 10 2×75 0.36×6 0.36×2 220 Non-standard design possible
KUDD015-E2C 2.8 15 2 300 2×1563 90 10 2×75 0.37×6 0.37×2 220
KUDD022-E2C 3.7 22 2 350 2×2290 90 10 2×129 0.46×6 0.46×2 220
KUDD030-E2C 5.7 30 2 350 2×2290 90 10 2×129 0.49×6 0.49×2 220
KUDD040-E2C 7.5 40 2 400 2×3400 90 13 2×180 0.51×8 0.51×2 220
KUDD060-E2C 11.4 60 2 500 2×6570 90 15 2×460 0.61×8 0.61×2 220
KUDD080-E2C 15.2 80 2 500 2×6570 90 15 2×460 0.81×8 0.81×2 220
KUDD100-E3C 18.7 100 3 500 3×6570 90 15 3×460 0.83×8 0.83×4 220
KUDD120-E3C 22.4 120 3 500 3×6570 90 15 3×460 1.0×8 1.0×4 220
KUDD140-E4C 26.2 140 4 500 4×6570 90 15 4×460 1.1×8 1.1×4 220
KUDD160-E4C 30.0  160 4 500 4×6570 90 15 4×460 1.1×10 1.1×4 220
KUDD200-E3C 37.4 200 3 550 3×8720 90 15 3×600 1.2×12 1.2×4 220 Outer rotor motor
KUDD250-E4C 46.8 250 4 550 4×8720 90 15 4×600 1.1×14 1.1×4 220
KUDD300-E4C 56.2 300 4 600 4×10820 120 15 4×780 1.3×14 1.3×4 220
KUDD140-E2TC 26.3 140 2 600 2×12000 200 20 2×1500 0.73×14 0.73×4 220 With hairdryer
KUDD160-E2TC 30 160 2 600 2×12000 200 20 2×1500 0.75×20 0.75×4 220
KUDD180-E2TC 33.6 180 2 600 2×12000 200 20 2×1500 0.84×20 0.84×4 220
KUDD200-E2TC 37.4 200 2 600 2×12000 200 20 2×1500 0.92×20 0.92×4 220
KUDD230-E3TC 43.1 230 3 600 3×12000 200 20 3×1500 1.05×20 1.05×4 220
KUDD250-E3TC 46.8 250 3 600 3×12000 200 20 3×1500 1.1×20 1.1×4 220
KUDD280-E3TC 52.4 280 3 600 3×12000 200 20 3×1500 1.05×20 1.05×4 220
KUDD300-E3TC 56.2 300 3 600 3×12000 200 20 3×1500 1.1×20 1.1×4 220
KUDD350-E3TC 65.5 350 3 600 3×12000 200 20 3×1500 1.05×26 1.05×4 220
KUDD370-E3TC 69.3 370 3 600 3×12000 200 20 3×1500 1.1×26 1.1×4 220
KUDD420-E4TC 78.6 420 4 600 4×12000 200 20 4×1500 1.2×26 1.2×4 220
KUDD450-E4TC 84.2 450 4 600 4×12000 200 20 4×1500 1.2×26 1.2×4 220
Remark Cold room temp.-18℃;△t=7℃

KUDJ ceiling medium temperature air cooler (electric defrost; blade spacing 9mm)

model Cooling capacity (kW) Cooling area (m²) fan Defrost heating tube Remark
quantity Diameter Φ (mm) Air volume (m²/h) Wind pressure (pa) Range (m) Power (W) Coil (kW/unit) Water tray (kW) Voltage (V)
KUDJ008-E2C 1.2 8 2 300 2×1563 90 10 2×75 0.36×6 0.36×2 220 Non-standard design possible
KUDJ010-E2C 1.5 10 2 300 2×1563 90 10 2×75 0.37×6 0.37×2 220
KUDJ015-E2C 2.3 15 2 350 2×2290 90 10 2×129 0.46×6 0.46×2 220
KUDJ020-E2C 3.3 20 2 350 2×2290 90 10 2×129 0.49×6 0.49×2 220
KUDJ030-E2C 4.8 30 2 400 2×3400 90 13 2×180 0.51×8 0.51×2 220
KUDJ040-E2C 7.1 40 2 500 2×6570 90 15 2×460 0.61×8 0.61×2 220
KUDJ055-E2C 8.9 55 2 500 2×6570 90 15 2×460 0.81×8 0.81×2 220
KUDJ070-E3C 11.5 70 3 500 3×6570 90 15 3×460 0.83×8 0.83×4 220
KUDJ085-E3C 14.3 85 3 500 3×6570 90 15 3×460 1.0×8 1.0×4 220
KUDJ100-E4C 17.1 100 4 500 4×6570 90 15 4×460 1.1×8 1.1×4 220
KUDJ115-E4C 19.6  115 4 500 4×6570 90 15 4×460 1.1×10 1.1×4 220
KUDJ140-E3C 23.8 140 3 550 3×8720 90 15 3×600 1.2×12 1.2×4 220 Outer rotor motor
KUDJ170-E4C 29.8 170 4 550 4×8720 90 15 4×600 1.1×14 1.1×4 220
KUDJ210-E4C 35.7 210 4 600 4×10820 120 15 4×780 1.3×14 1.3×4 220
KUDJ100-E2TC 17.1 100 2 600 2×12000 200 20 2×1500 0.73×14 0.73×4 220 With hairdryer
KUDJ115-E2TC 19.6 115 2 600 2×12000 200 20 2×1500 0.75×20 0.75×4 220
KUDJ120-E2TC 20.4 120 2 600 2×12000 200 20 2×1500 0.84×20 0.84×4 220
KUDJ140-E2TC 23.8 140 2 600 2×12000 200 20 2×1500 0.92×20 0.92×4 220
KUDJ150-E3TC 26.3 150 3 600 3×12000 200 20 3×1500 1.05×20 1.05×4 220
KUDJ170-E3TC 29.8 170 3 600 3×12000 200 20 3×1500 1.1×20 1.1×4 220
KUDJ190-E3TC 32.3 190 3 600 3×12000 200 20 3×1500 1.05×20 1.05×4 220
KUDJ210-E3TC 35.7 210 3 600 3×12000 200 20 3×1500 1.1×20 1.1×4 220
KUDJ230-E3TC 39.1 230 3 600 3×12000 200 20 3×1500 1.05×26 1.05×4 220
KUDJ250-E3TC 42.5 250 3 600 3×12000 200 20 3×1500 1.1×26 1.1×4 220
KUDJ280-E4TC 47.6 280 4 600 4×12000 200 20 4×1500 1.2×26 1.2×4 220
KUDJ300-E4TC 51 300 4 600 4×12000 200 20 4×1500 1.2×26 1.2×4 220
Remark Cold room temp.-25℃;△t=6℃

KUDL ceiling high temperature air cooler (water defrost; blade spacing 4.5mm)

model Cooling capacity (kW) Cooling area (m²) fan Defrosting water volume (m³/h) Voltage (V) Remark
quantity Diameter Φ (mm) Air volume (m²/h) Wind pressure (pa) Range (m) Power (W)
KUDL060-W2C 12.9 60 2 400 2×3400 90 13 2×180 0.8 380 Non-standard design possible
KUDL080-W2C 17.2 80 2 500 2×6570 90 15 2×460 1.3×14 380
KUDL105-W2C 22.5 105 2 500 2×6570 90 15 2×460 1.7 380
KUDL135-W3C 29 135 3 500 3×6570 90 15 3×460 2.1 380
KUDL160-W3C 34.4 160 3 500 3×6570 90 15 4×460 2.5 380
KUDL185-W4C 39.7 185 4 500 4×6570 90 15 4×460 2.9 380
KUDL210-W4C 45.1 210 4 500 4×6570 90 15 4×460 3.4 380
KUDL260-W3C 55.9 260 3 550 3×8720 90 15 4×600 4.2 380
KUDL330-W4C 70.9 330 4 550 4×8720 90 15 4×600 5.3 380
KUDL400-W4C 86 400 4 600 4×10820 120 15 4×780 6.3 380
KUDL210-W2TC 45.1 210 2 600 2×12000 200 20 2×1500 3.4 380 With hairdryer
KUDL260-W2TC 55.9 260 2 600 2×12000 200 20 2×1500 4.2 380
KUDL330-W3TC 70.9 330 3 600 3×12000 200 20 3×1500 5.3 380
KUDL400-W3TC 86 400 3 600 3×12000 200 20 3×1500 6.3 380
KUDL500-W3TC 107.5 500 3 600 3×12000 200 20 3×1500 7.8 380
KUDL600-W4TC 129 600 4 600 4×12000 200 20 4×1500 9.5 380
KUDL640-W4TC 137.6 640 4 600 4×12000 200 20 4×1500 10 380
KUDL700-W4TC 150.5 700 4 600 4×12000 200 20 4×1500 10.9 380
Remark Cold room temp.0℃;△t=8℃

KUDD ceiling high temperature air cooler (water defrost; blade spacing 6mm)

model Cooling capacity (kW) Cooling area (m²) fan Defrosting water volume (m³/h) Voltage (V) Remark
quantity Diameter Φ (mm) Air volume (m²/h) Wind pressure (pa) Range (m) Power (W)
KUDD040-W2C 7.8 40 2 400 2×3400 90 13 2×180 0.8 380 Non-standard design possible
KUDD060-W2C 11.7 60 2 500 2×6570 90 15 2×460 1.3×14 380
KUDD080-W2C 15.6 80 2 500 2×6570 90 15 2×460 1.7 380
KUDD100-W3C 19.5 100 3 500 3×6570 90 15 3×460 2.1 380
KUDD120-W3C 23.4 120 3 500 3×6570 90 15 4×460 2.5 380
KUDD140-W4C 27.3 140 4 500 4×6570 90 15 4×460 2.9 380
KUDD160-W4C 31.2 1260 4 500 4×6570 90 15 4×460 3.4 380
KUDD200-W3C 39 200 3 550 3×8720 90 15 4×600 4.2 380
KUDD250-W4C 48.7 250 4 550 4×8720 90 15 4×600 5.3 380
KUDD300-W4C 58.5 300 4 600 4×10820 120 15 4×780 6.3 380
KUDD160-W2TC 31.2 160 2 600 2×12000 200 20 2×1500 3.4 380 With hairdryer
KUDD200-W2TC 39 200 2 600 2×12000 200 20 2×1500 4.2 380
KUDD250-W3TC 48.47 250 3 600 3×12000 200 20 3×1500 5.3 380
KUDD300-W3TC 58.5 300 3 600 3×12000 200 20 3×1500 6.3 380
KUDD370-W3TC 72.1 370 3 600 3×12000 200 20 3×1500 7.8 380
KUDD450-W4TC 87.7 450 4 600 4×12000 200 20 4×1500 9.5 380
KUDD480-W4TC 93.6 4180 4 600 4×12000 200 20 4×1500 10 380
KUDD520-W4TC 101.4 520 4 600 4×12000 200 20 4×1500 10.9 380
Remark Cold room temp.-18℃;△t=7℃

KUDJ ceiling high temperature air cooler (water defrost; blade spacing 9mm)

model Cooling capacity (kW) Cooling area (m²) fan Defrosting water volume (m³/h) Voltage (V) Remark
quantity Diameter Φ (mm) Air volume (m²/h) Wind pressure (pa) Range (m) Power (W)
KUDJ030-W2C 7.8 30 2 400 2×3400 90 13 2×180 0.8 380 Non-standard design possible
KUDJ040-W2C 11.7 40 2 500 2×6570 90 15 2×460 1.3×14 380
KUDJ055-W2C 15.6 55 2 500 2×6570 90 15 2×460 1.7 380
KUDJ070-W3C 19.5 70 3 500 3×6570 90 15 3×460 2.1 380
KUDJ085-W3C 23.4 85 3 500 3×6570 90 15 4×460 2.5 380
KUDJ100-W4C 27.3 100 4 500 4×6570 90 15 4×460 2.9 380
KUDJ115-W4C 31.2 115 4 500 4×6570 90 15 4×460 3.4 380
KUDJ140-W3C 39 140 3 550 3×8720 90 15 4×600 4.2 380
KUDJ170-W4C 48.7 170 4 550 4×8720 90 15 4×600 5.3 380
KUDJ210-W4C 58.5 210 4 600 4×10820 120 15 4×780 6.3 380
KUDJ115-W2TC 31.2 115 2 600 2×12000 200 20 2×1500 3.4 380 With hairdryer
KUDJ140-W2TC 39 140 2 600 2×12000 200 20 2×1500 4.2 380
KUDJ170-W3TC 48.47 170 3 600 3×12000 200 20 3×1500 5.3 380
KUDJ210-W3TC 58.5 210 3 600 3×12000 200 20 3×1500 6.3 380
KUDJ250-W3TC 72.1 250 3 600 3×12000 200 20 3×1500 7.8 380
KUDJ300-W4TC 87.7 300 4 600 4×12000 200 20 4×1500 9.5 380
KUDJ320-W4TC 93.6 320 4 600 4×12000 200 20 4×1500 10 380
KUDJ350-W4TC 101.4 350 4 600 4×12000 200 20 4×1500 10.9 380
Remark Cold room temp.-25℃;△t=6℃

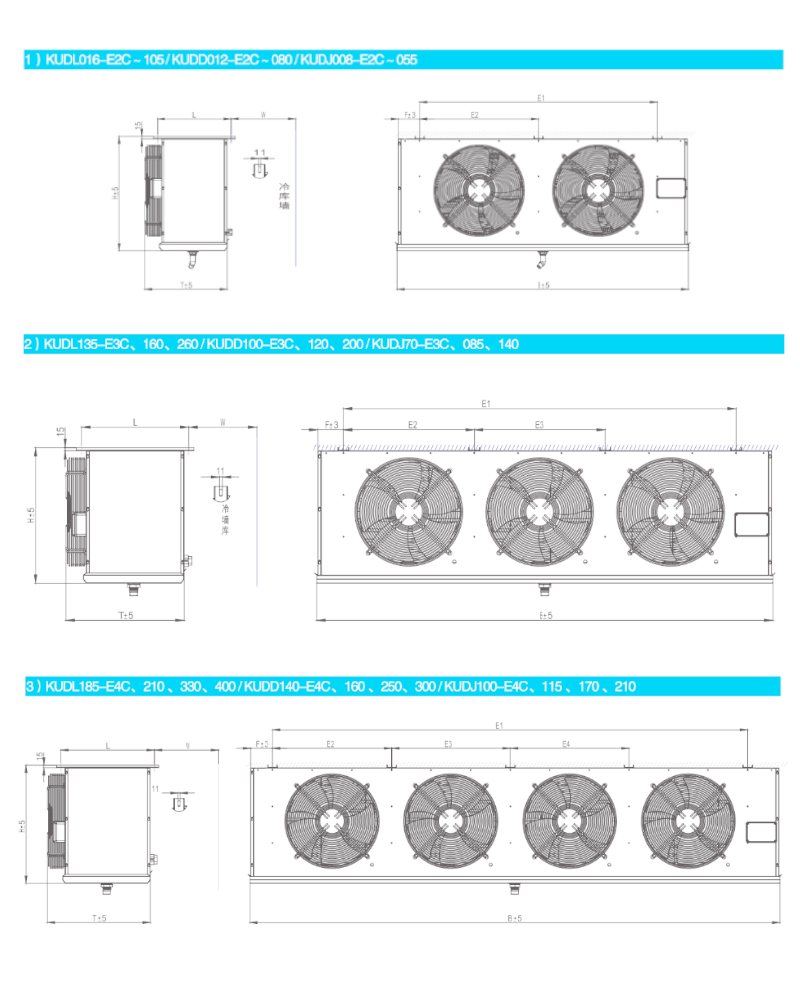

Overall dimensions and installation dimensions of ceiling-mounted air cooler (electric defrost)

model Length (L) Width (W) High (H) Installation dimensions Water pipe (inch) Connecting pipe diameter Φ Weight (kg)
B T H L E1 E2 E3 E4 F Inlet (mm) Outlet (mm)
KUDL016-E2C 1190 370 460 340 870 / / / 132 3/4 12 22 35
KUDD012-E2C 34
KUDJ008-E2C 49
KUDL020-E2C 1220 370 460 340 900 / / / 132 3/4 12 22 38
KUDD015-E2C 37
KUDJ010-E2C 36
KUDL030-E2C 1470 370 560 340 1150 / / / 132 3/4 12 22 50
KUDD022-E2C 49
KUDJ015-E2C 48
KUDLO40-E2C 1400 380 570 340 1080 / / / 135 1 16 28 57
KUDD030-E2C 56
KUDJ020-E2C 54
KUDL060-E2C 1450 380 670 340 1130 / / / 130 1 16 28 68
KUDD040-E2C 67
KUDJ030-E2C 66
KUDL080-E2C 1700 470 670 430 1370 695 / / 130 1 16 35 96
KUDD060-E2C 95
KUDJ040-E2C 94
KUDL105-E2C 2200 470 670 430 1890 945 / / 130 1 22 42 114
KUDD080-E2C 113
KUDJ055-E2C 112
KUDL135-E3C 2250 570 670 530 1938 646 646 / 130 1.5 22 42 143
KUDD100-E3C 142
KUDJ070-E3C 141
KUDL160-E3C 2750 5270 670 530 2440 813 813 / 130 1.5 22 42 179
KUDD120-E3C 178
KUDJ085-E3C 177
KUDL185-E4C 3000 570 670 530 2688 672 672 672 130 1.5 25 50 214
KUDD140-E4C 213
KUDJ100-E4C 212
KUDL210-E4C 2900 570 670 530 2588 647 647 647 130 1.5 25 50 225
KUDD160-E4C 224
KUDJ115-E4C 223
KUDL260-E3C 3200 620 770 570 2889 963 963 / 130 1.5 25 50 261
KUDD200-E3C 260
KUDJ140-E3C 258
KUDL330-E4C 3000 720 770 690 2700 675 675 675 125 2 25 50 320
KUDD250-E4C 317
KUDJ170-E4C 315
KUDL400-E4C 3400 720 770 690 3100 775 775 775 125 2 25 50 360
KUDD300-E4C 359
KUDJ210-E4C 357
KUDL185-E2TC 2000 890 900 590 1700 850 / / 120 1.5 25 50 216
KUDD140-E2TC 210
KUDJ100-E2TC 207
KUDL210-E2TC 2050 990 800 690 1750 875 / / 120 1.5 25 50 235
KUDD160-E2TC 228
KUDJ115-E2TC 223
KUDL240-E2TC 2280 990 800 690 1980 990 / / 120 1.5 25 50 245
KUDD180-E2TC 240
KUDJ120-E2TC 238
KUDL260-E2TC 2480 990 800 690 2180 1090 / / 120 1.5 25 50 264
KUDD200-E2TC 255
KUDJ140-E2TC 250
KUDL310-E3TC 2800 990 800 690 2500 833 833 / 120 2 25 50 310
KUDD230-E3TC 302
KUDJ150-E3TC 299
KUDL330-E3TC 3000 990 800 690 2700 900 900 / 120 2 25 50 339
KUDD250-E3TC 330
KUDJ170-E3TC 325
KUDL380-E3TC 2800 990 900 690 2500 833 833 / 120 2 25 50 345
KUDD280-E3TC 340
KUDJ190-E3TC 338
KUDL400-E3TC 3000 990 900 690 2700 900 900 / 120 2 25 50 367
KUDD300-E3TC 355
KUDJ210-E3TC 350
KUDL470-E3TC 2800 1090 910 790 2500 833 833 / 120 2 25 54 415
KUDD350-E3TC 400
KUDJ230-E3TC 394
KUDL500-E3TC 3000 1090 910 790 2700 900 900 / 120 2 25 54 436
KUDD370-E3TC 420
KUDJ250-E3TC 412
KUDL560-E4TC 3150 1090 960 790 2850 712 712 712 120 2 32 67 508
KUDD420-E4TC 490
KUDJ280-E4TC 483
KUDL600-E4TC 3200 1090 1010 790 2900 725 725 725 120 2 2×25 2×25 532
KUDD450-E4TC 512
KUDJ300-E4TC 504

Overall dimensions and installation dimensions of ceiling-mounted air cooler (water defrost)

model Length (L) Width (W) High (H) Installation dimensions Water pipe (inch) Connecting pipe diameter Φ Weight (kg)
B T H L E1 E2 E3 E4 E5 F Inlet (mm) Outlet (mm) Water inlet (inch)
KUDL060-W2C 1460 611 889 510 1150 575 575 / / 130 3 16 35 1-1/2 106
KUDD040-W2C 105
KUDJ030-W2C 104
KUDL080-W2C 1710 669 889 560 1400 700 700 / / 130 3 16 35 1-1/2 136
KUDD060-W2C 134
KUDJ040-W2C 132
KUDL105-W2C 1810 719 889 610 1500 750 750 / / 130 3 16 50 1-1/2 153
KUDD080-W2C 150
KUDJ055-W2C 147
KUDL135-W3C 2260 719 889 610 1950 650 650 650 / 130 3 22 50 1-1/2×2 194
KUDD100-W3C 190
KUDJ070-W3C 188
KUDL160-W3C 2760 719 889 610 2450 817 816 817 / 130 3 22 50 1-1/2×2 227
KUDD120-W3C 222
KUDJ085-W3C 217
KUDL185-W4C 3010 719 889 610 2700 675 675 675 675 130 3 25 50 1-1/2×2 258
KUDD140-W4C 255
KUDJ100-W4C 252
KUDL210-W4C 2910 769 889 660 2600 650 650 650 650 130 3 25 50 1-1/2×2 274
KUDD160-W4C 267
KUDJ115-W4C 260
KUDL260-W3C 3110 769 989 660 2800 933 934 933 / 130 4 25 50 2×2 311
KUDD200-W3C 302
KUDJ140-W3C 295
KUDL330-W4C 3010 819 989 710 2700 675 675 675 675 130 4 25 50 2×2 348
KUDD250-W4C 337
KUDJ170-W4C 330
KUDL400-W4C 3010 819 1086 710 2700 675 675 675 675 130 4 25 54 2×2 388
KUDD300-W4C 375
KUDJ210-W4C 370
KUDL210-W2TC 2060 1059 1008 710 1750 875 875 / / 130 4 25 50 2 282
KUDD160-W2TC 275
KUDJ115-W2TC 268
KUDL260-W2TC 2490 1059 1008 710 2180 1090 1090 / / 130 4 25 54 2 319
KUDD200-W2TC 310
KUDJ140-W2TC 305
KUDL330-W3TC 3010 1059 1008 710 2700 900 900 900 / 130 4 25 54 2×2 398
KUDD250-W3TC 387
KUDJ170-W3TC 382
KUDL400-W3TC 3010 1059 1108 710 2700 900 900 900 / 130 4 25 54 2×2 424
KUDD300-W3TC 411
KUDJ210-W3TC 405
KUDL500-W3TC 3010 1159 1108 810 2700 900 900 900 / 130 4 25 54 2×2 473
KUDD370-W3TC 457
KUDJ250-W3TC 450
KUDL600-W4TC 3210 1159 1208 810 2900 725 725 725 725 130 4 2-25 2-54 2×2 573
KUDD450-W4TC 553
KUDJ300-W4TC 543
KUDL640-W4TC 3410 1174 1208 810 3100 775 775 775 775 130 4 2×25 2×54 2×2 594
KUDD480-W4TC 574
KUDJ320-W4TC 564
KUDL700-W4TC 3710 1174 1208 810 3400 850 850 850 850 130 4 2×25 2×54 2×2 629
KUDD520-W4TC 607
KUDJ350-W4TC 597
03Dimensions
    • 04Unit Configuration
    05Inquiry

    Zhejiang Kaidi Refrigeration Equipment Co., Ltd

    • 30+

      Years Industry Experience

    • 300+

      Employees

    • 1000Million

      Export Amount

    • 100000+

      Plant Area

    Zhejiang Kaidi Refrigeration Equipment Co., Ltd. was founded in 1995, with “Kaidi” as our registered trademark. As one of the professional China KUD Series Ceiling Type Evaporator Supplier and Wholesale KUD Series Ceiling Type EvaporatorOEM/ODM Company, we have been focusing on refrigeration for nearly 30 years. Today, Kaidi has developed into a scientific and technological enterprise integrating scientific research and development, processing and manufacturing, pre-sales program design, product sales and commissioning, and comprehensive after-sales service support. Headquartered in Shengzhou City, Zhejiang Province, our factory covers an area of 100,000 square metres, with more than 60,000 square metres of modern factory buildings and more than 8,000 square metres of offices, as well as Shanghai Hongqiao Office (R&D Centre), Guangzhou Panyu Office, Beijing Branch and so on.

    After years of development, we have the management team of a top 500 enterprise and a standardised and efficient operation system, as well as strong technical research and development strength. The factory is equipped with complete and advanced CNC machining equipment and high-standard testing laboratory, with strong product development and lean processing and manufacturing capabilities; the establishment of a professional pre-sales technical support, after-sales service guarantee system, we not only research and development and production of advanced refrigeration equipment, but also the overall solution provider for high-quality customers to provide first-class products and services to ensure that our purpose and goal.

    Our sales and service network not only spreads all over the country, but also develops rapidly in the world in the past few years, ‘Kaideli’ brand refrigeration products have a high reputation both at home and abroad, and have won the praise and recognition of our customers. At present, our customers include: cold chain logistics enterprises such as GLP, Shunfeng, Jingdong, Yaleng, Kai Orange, etc.; food processing enterprises such as Wufeng, Holliday, Ligao, Qingmei, Zuming, Anjing, Sienian, etc., central kitchens such as Makgindi, Lvcheng, Ajisai, etc.; slaughter enterprises such as Winsome, Xinning, etc.; edible fungi factory planting enterprises such as Xiangru Biological, Guiwang, Huaguang, Zongxing Mushroom, Lisa, etc., as well as Shanghai Pharmaceuticals, China Medicine Group, and so on. Group and so on.

    HONOR & CERTIFICATE

    Our products have obtained, include EC-Type Examination Certificate, BV, MODE, DNV, GL Certificate, EC Attestation of Conformity, Certificate of Type Approval for Marine Product and Lloyd’s Register Quality Assurance.

    • Certificate of conformity for evaluation of test devices
    • Special Equipment Manufacturing License
    • Edible Mushroom Enterprise Manufacturing Star
    • Excellent Unit Member of China Institute of Refrigeration
    • 2023 Guangxi Refrigeration Society Refrigeration and Cold Storage Specialized Committee
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Computer Software Copyright Registration Certificate
    • Computer Software Copyright Registration Certificate
    • Computer Software Copyright Registration Certificate
    Recently News and Events
    Share with you
    View More News

    SEND MESSAGE

    Leave Your Message*

    Be the First to Know

    For exclusive deals and latest offers, sign up by entering your email address below.

    We focus on refrigeration for nearly 30 years.

    Quick Links

    Products

    Contact Us

    • Zhejiang Kaidi Refrigeration Equipment Co., Ltd Block A, Ganlin Industry Park, Shengzhou, Zhejiang, China.
    • Zhejiang Kaidi Refrigeration Equipment Co., Ltdkd@zjkaideli.com
    • Zhejiang Kaidi Refrigeration Equipment Co., Ltd+86-0575-83272600
      +86-400-188-3366

    Copyright © 2025Zhejiang Kaidi Refrigeration Equipment Co., Ltd

      China KUD Series Ceiling Type Evaporator Supplier   Wholesale KUD Series Ceiling Type Evaporator Company
