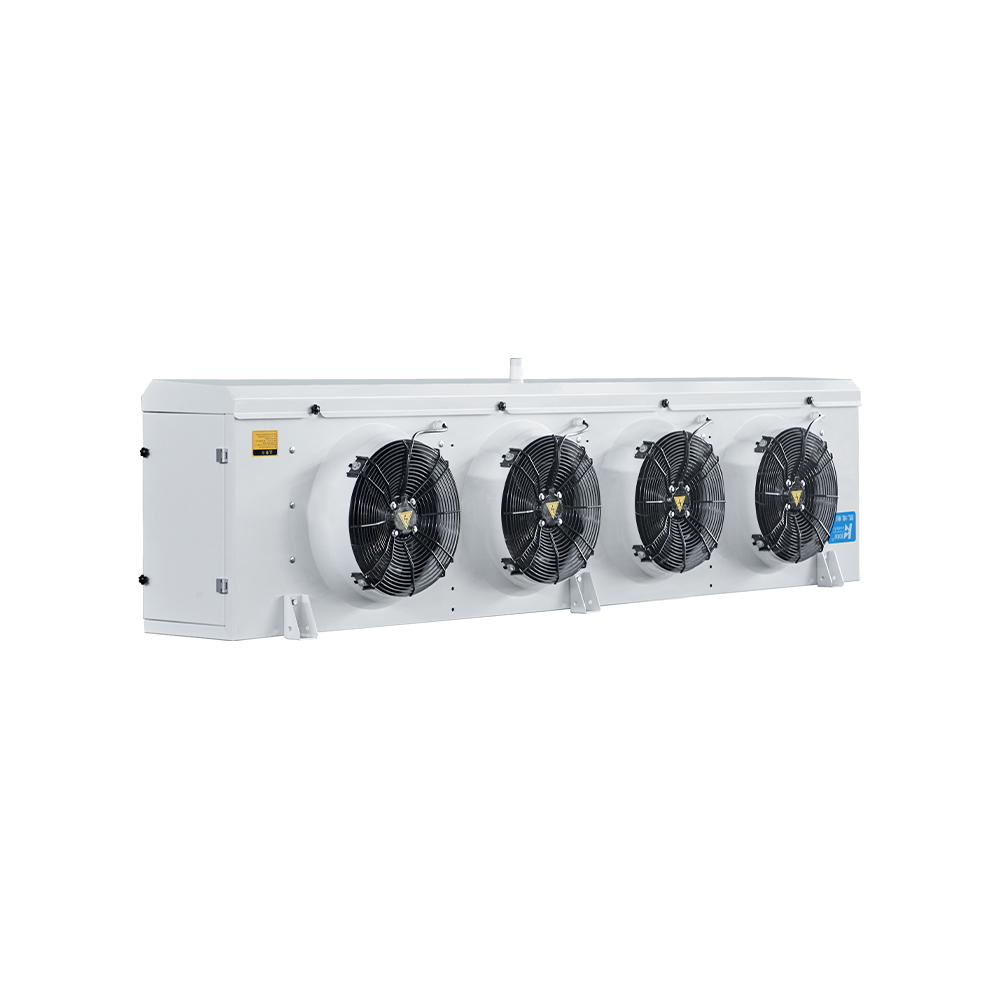

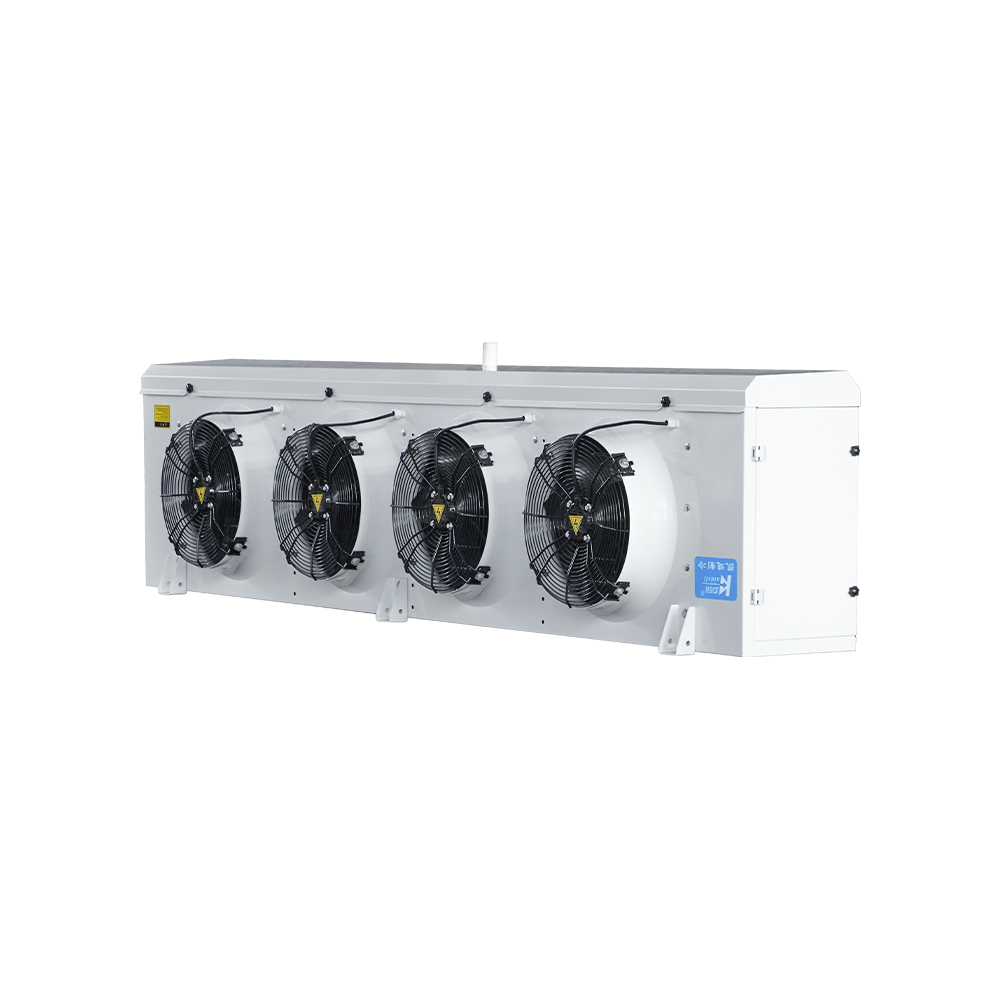

EL Series Industrial Ceiling Type Evaporator

With its powerful performance and durable design, EL Series Industrial Ceiling type Evaporator has become an ideal choice for industrial heavy-duty refrigeration scenarios. The shell adopts anti-corrosion sprayed plastic galvanized steel plate, paired with hinged side plates and outer water trays, taking into account protection and convenient operation; the end plate of the aluminum plate heat exchanger not only protects the copper pipe but also reduces weight. The double-layer water tray design achieves drainage without dead corners, and maintains it easily and efficiently.

CONTACT US
01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

The core advantages show more industrial-grade strength: φ15 copper tubes are arranged in square shape, combined with multi-specimen hydrophilic aluminum foil, with large heat transfer area and small temperature difference, effectively reducing food dry consumption and delaying frost; high-power external rotor fans operate stably in extreme environments of -40℃~60℃, and multiple specifications can be used to adapt to a variety of industrial spaces. Standard electric heating defrost covers comprehensively, supports customization of hot gas defrost, IP65 waterproof wiring and independent circuit design ensure safety, 23bar pressure test is compatible with multiple refrigerants and more reliable. Whether it is pre-assembled accessories or coping with complex working conditions, the EL series can provide efficient and stable performance to protect industrial refrigeration, making temperature control in heavy-duty scenarios more worry-free and more efficient.

01 Advantages

The core advantages show more industrial-grade strength: φ15 copper tubes are arranged in square shape, combined with multi-specimen hydrophilic aluminum foil, with large heat transfer area and small temperature difference, effectively reducing food dry consumption and delaying frost; high-power external rotor fans operate stably in extreme environments of -40℃~60℃, and multiple specifications can be used to adapt to a variety of industrial spaces. Standard electric heating defrost covers comprehensively, supports customization of hot gas defrost, IP65 waterproof wiring and independent circuit design ensure safety, 23bar pressure test is compatible with multiple refrigerants and more reliable. Whether it is pre-assembled accessories or coping with complex working conditions, the EL series can provide efficient and stable performance to protect industrial refrigeration, making temperature control in heavy-duty scenarios more worry-free and more efficient.

02Specifications
EL 35 1 / D L - E V T
Voltage, T: 3PH/380V/50hz, S: 1PH/220V/50hz.
Pre-installed expansion valve (optional).
Defrost, E: Electric heating, A: Air (without electric heating), H: Hot air,
Pitch code, L: 4.0mm, D: 6.0mm, J: 9.0mm, K: 12.0mm
Coil specification code
Number of fans
Fan diameter (cm)
Product Series Code

Pitch 4.0mm

Model Cooling capacity/R404A (KW) area Tube volume Air volume Range Interface specifications (mm) weight
Tc=0℃ Tc=10℃ m2 dm3 m3/h m Liquid inlet Returning Qi drain kg
ΔΤ=8K ΔΤ=10K
350 fan series
EL351/BL-ET 2.2 3.2 12.2 1.9 2100 8 φ12 φ22 R1” 39
EL351/CL-ET 2.9 4.3 18.2 2.9 1900 8 φ12 φ22 R1” 41
EL352/BL-ET 4.2 6.2 24.3 3.5 4200 10 φ12 φ22 R1” 54
EL352/CL-ET 5.8 8.5 36.5 5.3 3800 10 φ12 φ22 R1” 58
EL353/BL-ET 6.6 9.7 36.5 5.1 6300 11 φ12 φ22 R1” 69
EL353/CL-ET 8.8 12.9 54.7 7.7 5700 11 φ12 φ22 R1” 75
EL354/BL-ET 8.8 12.9 48.6 6.8 8400 12 φ12 φ22 R1” 84
EL354/CL-ET 11.7 17.2 72.9 10.1 7600 12 φ16 φ28 R1” 92
400 fan series
EL401/CL-ET 4.4 6.4 26.2 4.1 3700 12 φ12 φ22 R1” 49
EL401/DL-ET 5.3 7.8 35 5.4 3200 12 φ12 φ22 R1” 52
EL402/CL-ET 8.9 13.1 52.5 7.5 7400 13 φ12 φ22 R1.5” 72
EL402/DL-ET 10.5 15.4 70 10 6400 13 φ16 φ22 R1.5” 78
EL403/CL-ET 13.4 19.7 78.7 11 11100 14 φ16 φ28 R1.5” 95
EL403/DL-ET 15.7 23.1 105 14.6 9600 14 φ16 φ28 R1.5” 104
EL404/CL-ET 17.8 26.2 105 14.5 14800 15 φ16 φ35 R1.5” 118
EL404/DL-ET 21 30.9 140 19.3 12800 15 φ16 φ35 R1.5” 130
500 fan series
EL501/DL-ET 9.8 14.4 61.2 9 6800 18 φ16 φ22 R1.5” 93
EL501/EL-ET 11.4 16.8 76.5 11.2 6350 17 φ16 φ28 R1.5” 99
EL501/FL-ET 12.9 19 91.9 13.5 5500 17 φ16 φ28 R1.5” 104
EL502/DL-ET 19.6 28.8 122.5 17.1 13600 20 φ22 φ35 R1.5” 132
EL502/EL-ET 22.9 33.7 153.1 21.3 12700 19 φ22 φ35 R1.5” 143
EL502/FL-ET 25.7 37.8 183.7 25.6 11000 19 φ22 φ42 R1.5” 153
EL503/DL-ET 29.3 43 183.7 25.2 20400 22 φ22 φ42 R2” 180
EL503/EL-ET 34.4 50.6 229.6 31.5 19050 21 φ22 φ42 R2” 196
EL503/FL-ET 38.5 56.6 275.6 37.8 16500 21 φ22 φ42 R2” 212
EL504/DL-ET 39.2 57.6 244.9 33.3 27200 23 φ22 φ42 R2” 228
EL504/EL-ET 43.3 63.6 288.7 39.2 25400 22 φ22 φ42 R2” 249
EL504/FL-ET 51.4 75.6 367.4 49.9 22000 22 φ28 φ54 R2” 270
EL505/DL-ET 49 72 306.2 41.4 34000 24 φ28 φ54 R2” 276
EL505/EL-ET 54.1 79.5 360.9 48.7 31750 23 φ28 φ54 R2” 302
EL505/FL-ET 64.3 94.5 459.3 62 27500 23 φ28 φ54 R2” 328
630 fan series
EL631/DL-ET 15.8 23.2 105 15 10000 28 φ16 φ28 R1.5” 125
EL631/EL-ET 18.3 26.9 131.2 18.8 9600 27 φ16 φ28 R1.5” 134
EL631/FL-ET 20.4 30 157.5 22.5 9100 27 φ22 φ35 R1.5” 143
EL632/DL-ET 31.5 46.3 210 28.9 20000 31 φ22 φ42 R1.5” 206
EL632/EL-ET 36.7 53.5 262.4 36.1 19200 30 φ22 φ42 R1.5” 224
EL632/FL-ET 40.9 60.1 314.9 43.3 18200 30 φ22 φ42 R1.5” 242
EL633/DL-ET 47.2 69.4 314.9 42.8 30000 34 φ22 φ42 R2” 288
EL633/EL-ET 55.1 81 393.7 53.4 28800 33 φ28 φ54 R2” 314
EL633/FL-ET 61.4 90.3 472.4 64.1 27300 33 φ28 φ54 R2” 341
EL634/DL-ET 63 92.6 419.9 56.6 40000 36 φ28 φ54 R2” 369
EL634/EL-ET 73.5 108 524.9 70.8 38400 35 φ28 φ54 R2” 405
EL634/FL-ET 81.9 120.3 629.9 84.9 36400 35 φ35 φ54 R2” 440

1) In the table, Tc is the storage temperature, and ΔΤ is the heat transfer temperature difference, which is the difference between the storage temperature and the evaporating temperature.

2) The range is the air supply distance at 0.5 m/s at room temperature.

3) For cooling capacity under other operating conditions, refer to the correction factor.

Pitch 6.0mm

Model Cooling capacity/R404A (KW) area Tube volume Air volume Range Interface specifications (mm) weight
Tc=0℃ Tc=-18℃ m2 dm3 m3/h m Liquid inlet Returning Qi drain kg
ΔΤ=8K ΔΤ=7K
350 fan series
EL351/BD-ET 1.8 1.4 8.2 1.9 2150 9 φ12 φ22 R1” 38
EL351/CD-ET 2.4 1.9 12.4 2.9 1950 9 φ12 φ22 R1” 40
EL352/BD-ET 3.6 2.9 16.5 3.5 4300 11 φ12 φ22 R1” 52
EL352/CD-ET 4.7 3.7 24.7 5.3 3900 11 φ12 φ22 R1” 56
EL353/BD-ET 5.4 4.3 24.7 5.1 6450 12 φ12 φ22 R1” 67
EL353/CD-ET 7 5.6 37.1 7.7 5850 12 φ12 φ22 R1” 72
EL354/BD-ET 7.3 5.8 33 6.8 8600 13 φ12 φ22 R1” 81
EL354/CD-ET 9.4 7.5 49.4 10.1 7800 13 φ16 φ28 R1” 88
400 fan series
EL401/CD-ET 3.3 2.6 17.8 4.1 3800 13 φ12 φ22 R1” 47
EL401/DD-ET 4 3.2 23.7 5.4 3450 13 φ12 φ22 R1” 50
EL402/CD-ET 6.7 5.3 35.6 7.5 7600 14 φ12 φ22 R1.5” 69
EL402/DD-ET 8.1 6.5 47.5 10 6900 14 φ16 φ22 R1.5” 74
EL403/CD-ET 10.1 8 53.4 11 11400 15 φ16 φ28 R1.5” 90
EL403/DD-ET 12.2 9.7 71.2 14.6 10350 15 φ16 φ28 R1.5” 98
EL404/CD-ET 13.5 10.8 71.2 14.5 15200 16 φ16 φ35 R1.5” 112
EL404/DD-ET 16.1 12.9 94.9 19.3 13800 16 φ16 φ35 R1.5” 122
500 fan series
EL501/DD-ET 8.3 6.6 41.5 9 7000 19 φ16 φ22 R1.5” 90
EL501/ED-ET 9.8 7.8 51.9 11.2 6500 18 φ16 φ28 R1.5” 94
EL501/FD-ET 11.2 9 62.3 13.5 6100 18 φ16 φ28 R1.5” 99
EL502/DD-ET 16.6 13.3 83.1 17.1 14000 21 φ22 φ35 R1.5” 126
EL502/ED-ET 19.7 15.8 103.8 21.3 13000 20 φ22 φ35 R1.5” 134
EL502/FD-ET 22.4 17.9 124.6 25.6 12200 20 φ22 φ42 R1.5” 143
EL503/DD-ET 24.9 19.9 124.6 25.2 21000 23 φ22 φ42 R2” 170
EL503/ED-ET 29.5 23.6 155.7 31.5 19500 22 φ22 φ42 R2” 183
EL503/FD-ET 33.6 26.9 186.9 37.8 18300 22 φ22 φ42 R2” 196
EL504/DD-ET 33.2 26.6 166.1 33.3 28000 24 φ22 φ42 R2” 215
EL504/ED-ET 37.2 29.8 195.8 39.2 26000 23 φ22 φ42 R2” 232
EL504/FD-ET 44.8 35.8 249.2 49.9 24400 23 φ28 φ54 R2” 250
EL505/DD-ET 41.5 33.2 207.6 41.4 35000 25 φ28 φ54 R2” 259
EL505/ED-ET 46.5 37.2 244.7 48.7 32500 24 φ28 φ54 R2” 281
EL505/FD-ET 56.1 44.9 311.5 62 30500 24 φ28 φ54 R2” 303
630 fan series
EL631/DD-ET 13.5 10.8 71.2 15 10300 29 φ16 φ28 R1.5” 119
EL631/ED-ET 16 12.8 89 18.8 9800 28 φ16 φ28 R1.5” 126
EL631/FD-ET 18.2 14.5 106.8 22.5 9100 28 φ22 φ35 R1.5” 134
EL632/DD-ET 27.1 21.7 142.4 28.9 20600 32 φ22 φ42 R1.5” 194
EL632/ED-ET 32 25.6 178 36.1 19600 31 φ22 φ42 R1.5” 209
EL632/FD-ET 36.3 29 213.6 43.3 18200 31 φ22 φ42 R1.5” 224
EL633/DD-ET 40.5 32.4 213.6 42.8 30900 35 φ22 φ42 R2” 270
EL633/ED-ET 48.1 38.5 267 53.4 29400 34 φ28 φ54 R2” 292
EL633/FD-ET 54.5 43.6 320.4 64.1 27300 34 φ28 φ54 R2” 315
EL634/DD-ET 54.1 43.3 284.8 56.6 41200 37 φ28 φ54 R2” 346
EL634/ED-ET 64.1 51.3 356 70.8 39200 36 φ28 φ54 R2” 375
EL634/FD-ET 72.6 58.1 427.2 84.9 36400 36 φ35 φ54 R2” 405

1) In the table, Tc is the storage temperature, and ΔΤ is the heat transfer temperature difference, which is the difference between the storage temperature and the evaporating temperature.

2) The range is the air supply distance at 0.5 m/s at room temperature.

3) For cooling capacity under other operating conditions, refer to the correction factor.

Pitch 9.0mm

Model Cooling capacity/R404A (KW) area Tube volume Air volume Range Interface specifications (mm) weight
Tc=0℃ Tc=-18℃ Tc=-25℃ m2 dm3 m3/h m Liquid inlet Returning Qi drain kg
ΔΤ=8K ΔΤ=7K ΔΤ=6K
350 fan series
EL351/BJ-ET 1.4 1.1 0.9 5.6 1.9 2250 10 φ12 φ22 R1” 38
EL351/CJ-ET 2 1.6 1.3 8.5 2.9 2050 10 φ12 φ22 R1” 40
EL352/BJ-ET 2.8 2.2 1.8 11.3 3.5 4500 12 φ12 φ22 R1” 52
EL352/CJ-ET 3.9 3.1 2.6 16.9 5.3 4100 12 φ12 φ22 R1” 55
EL353/BJ-ET 4.2 3.4 2.8 16.9 5.1 6750 13 φ12 φ22 R1” 66
EL353/CJ-ET 5.8 4.6 3.8 25.4 7.7 6150 13 φ12 φ22 R1” 71
EL354/BJ-ET 5.7 4.6 3.7 22.6 6.8 9000 14 φ12 φ22 R1” 80
EL354/CJ-ET 7.8 6.2 5.1 33.8 10.1 8200 14 φ16 φ28 R1” 87
400 fan series
EL401/CJ-ET 2.6 2.1 1.7 12.2 4.1 3900 14 φ12 φ22 R1” 47
EL401/DJ-ET 3.2 2.5 2.1 16.2 5.4 3650 14 φ12 φ22 R1” 50
EL402/CJ-ET 5.1 4.1 3.4 24.4 7.5 7800 15 φ12 φ22 R1.5” 68
EL402/DJ-ET 6.5 5.2 4.3 32.5 10 7300 15 φ16 φ22 R1.5” 73
EL403/CJ-ET 7.7 6.2 5.1 36.5 11 11700 16 φ16 φ28 R1.5” 89
EL403/DJ-ET 9.7 7.8 6.4 48.7 14.6 10950 16 φ16 φ28 R1.5” 97
EL404/CJ-ET 10.2 8.2 6.7 48.7 14.5 15600 17 φ16 φ35 R1.5” 111
EL404/DJ-ET 13 10.4 8.6 65 19.3 14600 17 φ16 φ35 R1.5” 120
500 fan series
EL501/DJ-ET 7.1 5.7 4.7 28.4 9 7380 20 φ16 φ22 R1.5” 89
EL501/EJ-ET 8.5 6.8 5.6 35.5 11.2 6800 19 φ16 φ28 R1.5” 93
EL501/FJ-ET 9.8 7.8 6.5 42.6 13.5 6350 19 φ16 φ28 R1.5” 98
EL502/DJ-ET 14.2 11.3 9.4 56.9 17.1 14760 22 φ22 φ35 R1.5” 124
EL502/EJ-ET 17 13.6 11.2 71.1 21.3 13600 21 φ22 φ35 R1.5” 132
EL502/FJ-ET 19.6 15.7 12.9 85.3 25.6 12700 21 φ22 φ42 R1.5” 141
EL503/DJ-ET 21.3 17 14 85.3 25.2 22140 24 φ22 φ42 R2” 168
EL503/EJ-ET 25.6 20.5 16.9 106.6 31.5 20400 23 φ22 φ42 R2” 180
EL503/FJ-ET 29.4 23.5 19.4 127.9 37.8 19050 23 φ22 φ42 R2” 193
EL504/DJ-ET 28.4 22.7 18.7 113.7 33.3 29520 25 φ22 φ42 R2” 212
EL504/EJ-ET 32.2 25.7 21.2 134 39.2 27200 24 φ22 φ42 R2” 228
EL504/FJ-ET 39.2 31.3 25.9 170.6 49.9 25400 24 φ28 φ54 R2” 245
EL505/DJ-ET 35.5 28.4 23.4 142.1 41.4 36900 26 φ28 φ54 R2” 256
EL505/EJ-ET 40.2 32.1 26.5 167.5 48.7 34000 25 φ28 φ54 R2” 276
EL505/FJ-ET 49 39.2 32.3 213.2 62 31750 25 φ28 φ54 R2” 297
630 fan series
EL631/DJ-ET 11.2 9 7.4 48.7 15 10600 30 φ16 φ28 R1.5” 118
EL631/EJ-ET 13.1 10.5 8.6 60.9 18.8 10000 29 φ16 φ28 R1.5” 125
EL631/FJ-ET 14.6 11.7 9.6 73.1 22.5 9600 29 φ22 φ35 R1.5” 132
EL632/DJ-ET 22.4 17.9 14.8 97.5 28.9 21200 33 φ22 φ42 R1.5” 192
EL632/EJ-ET 26.2 21 17.3 121.8 36.1 20000 32 φ22 φ42 R1.5” 206
EL632/FJ-ET 29.2 23.3 19.3 146.2 43.3 19200 32 φ22 φ42 R1.5” 220
EL633/DJ-ET 33.6 26.9 22.2 146.2 42.8 31800 36 φ22 φ42 R2” 266
EL633/EJ-ET 39.3 31.4 25.9 182.7 53.4 30000 35 φ28 φ54 R2” 282
EL633/FJ-ET 43.8 35 28.9 219.3 64.1 28800 35 φ28 φ54 R2” 309
EL634/DJ-ET 44.8 35.8 29.5 194.9 56.6 42400 38 φ28 φ54 R2” 340
EL634/EJ-ET 52.3 41.8 34.5 243.6 70.8 40000 37 φ28 φ54 R2” 369
EL634/FJ-ET 58.5 46.8 38.6 292.4 84.9 38400 37 φ35 φ54 R2” 397

1) In the table, Tc is the storage temperature, and ΔΤ is the heat transfer temperature difference, which is the difference between the storage temperature and the evaporating temperature.

2) The range is the air supply distance at 0.5 m/s at room temperature.

3) For cooling capacity under other operating conditions, refer to the correction factor.

Pitch 12.0mm

Model Cooling capacity/R404A (KW) area Tube volume Air volume Range Interface specifications (mm) weight
Tc=0℃ Tc=-25℃ Tc=-35℃ m2 dm3 m3/h m Liquid inlet Returning Qi drain kg
ΔΤ=8K ΔΤ=6K ΔΤ=6K
400 fan series
EL401/DK-ET 2.9 1.9 1.9 12.5 5.4 3800 15 φ12 φ22 R1” 50
EL402/DK-ET 5.8 3.8 3.8 25 10 7600 16 φ16 φ22 R1.5” 74
EL403/DK-ET 8.6 5.7 5.6 37.5 14.6 11400 17 φ16 φ28 R1.5” 97
EL404/DK-ET 11.5 7.6 7.5 50 19.3 15200 18 φ16 φ35 R1.5” 121
500 fan series
EL501/EK-ET 7.4 4.9 4.8 27.3 11.2 7000 20 φ16 φ28 R1.5” 94
EL501/FK-ET 8.5 5.6 5.5 32.8 13.5 6500 20 φ16 φ28 R1.5” 98
EL502/EK-ET 14.8 9.8 9.6 54.7 21.3 14000 22 φ22 φ35 R1.5” 134
EL502/FK-ET 17.1 11.3 11.1 65.6 25.6 13000 22 φ22 φ42 R1.5” 142
EL503/EK-ET 22.1 14.6 14.3 82 31.5 21000 24 φ22 φ42 R2” 182
EL503/FK-ET 25.5 16.8 16.5 98.4 37.8 19500 24 φ22 φ42 R2” 195
EL504/EK-ET 27.8 18.3 18 103.1 39.2 28000 25 φ22 φ42 R2” 231
EL504/FK-ET 34.1 22.5 22.1 131.2 49.9 26000 25 φ28 φ54 R2” 248
EL505/EK-ET 34.8 23 22.6 128.9 48.7 35000 26 φ28 φ54 R2” 279
EL505/FK-ET 42.6 28.1 27.7 164.1 62 32500 26 φ28 φ54 R2” 301
630 fan series
EL631/EK-ET 10.8 7.1 7 46.9 18.8 10300 30 φ16 φ28 R1.5” 126
EL631/FK-ET 12.3 8.1 8 56.2 22.5 9800 30 φ22 φ35 R1.5” 133
EL632/EK-ET 21.6 14.3 14 93.7 36.1 20600 33 φ22 φ42 R1.5” 208
EL632/FK-ET 24.7 16.3 16 112.5 43.3 19600 33 φ22 φ42 R1.5” 223
EL633/EK-ET 32.3 21.3 21 140.6 53.4 30900 36 φ28 φ54 R2” 291
EL633/FK-ET 37.1 24.5 24.1 168.7 64.1 29400 36 φ28 φ54 R2” 313
EL634/EK-ET 43.1 28.4 28 187.5 70.8 41200 38 φ28 φ54 R2” 373
EL634/FK-ET 49.5 32.7 32.1 225 84.9 39200 38 φ35 φ54 R2” 402

1) In the table, Tc is the storage temperature, and ΔΤ is the heat transfer temperature difference, which is the difference between the storage temperature and the evaporating temperature.

2) The range is the air supply distance at 0.5 m/s at room temperature.

3) For cooling capacity under other operating conditions, refer to the correction factor.

Electrical parameters

Model fan motor Electric defrost
Voltage (V) Power (W) Current (A) Speed (r/min) Coil (KW) Water tray (KW) Total power (KW)
EL351* 380-3 129 0.4 1400 2×0.5 1×0.5 1.5
EL352* 380-3 258 0.8 1400 2×0.9 1×0.9 2.7
EL353* 380-3 387 1.2 1400 2×1.3 1×1.3 3.9
EL354* 380-3 516 1.6 1400 2×1.7 1×1.7 5.1
EL401/C* 380-3 205 0.51 1380 3×0.6 1×0.6 2.4
EL401/D* 380-3 205 0.51 1380 4×0.6 1×0.6 3
EL402/C* 380-3 410 1.02 1380 3×1.1 1×1.1 4.4
EL402/D* 380-3 410 1.02 1380 4×1.1 1×1.1 5.5
EL403/C* 380-3 615 1.53 1380 3×1.6 1×1.6 6.4
EL403/D* 380-3 615 1.53 1380 4×1.6 1×1.6 8
EL404/C* 380-3 820 2.04 1380 3×2.0 1×2.0 8
EL404/D* 380-3 820 2.04 1380 4×2.0 1×2.0 10
EL501/D* 380-3 500 0.95 1380 4×0.8 2×0.8 4.8
EL501/E* 380-3 500 0.95 1380 6×0.8 2×0.8 6.4
EL501/F* 380-3 500 0.95 1380 6×0.8 2×0.8 6.4
EL502/D* 380-3 1000 1.9 1380 4×1.6 2×1.6 9.6
EL502/E* 380-3 1000 1.9 1380 6×1.6 2×1.6 12.8
EL502/F* 380-3 1000 1.9 1380 6×1.6 2×1.6 12.8
EL503/D* 380-3 1500 2.85 1380 4×2.3 2×2.3 13.8
EL503/E* 380-3 1500 2.85 1380 6×2.3 2×2.3 18.4
EL503/F* 380-3 1500 2.85 1380 6×2.3 2×2.3 18.4
EL504/D* 380-3 2000 3.8 1380 4×3.0 2×3.0 18
EL504/E* 380-3 2000 3.8 1380 6×3.0 2×3.0 24
EL504/F* 380-3 2000 3.8 1380 6×3.0 2×3.0 24
EL505/D* 380-3 2500 4.75 1380 6×3.0 2×3.0 24
EL505/E* 380-3 2500 4.75 1380 8×3.0 2×3.0 30
EL505/F* 380-3 2500 4.75 1380 8×3.0 2×3.0 30
EL631/D* 380-3 800 1.6 1320 6×1.1 2×1.1 8.8
EL631/E* 380-3 800 1.6 1320 9×1.1 2×1.1 12.1
EL631/F* 380-3 800 1.6 1320 9×1.1 2×1.1 12.1
EL632/D* 380-3 1600 3.2 1320 6×2.0 2×2.0 16
EL632/E* 380-3 1600 3.2 1320 9×2.0 2×2.0 22
EL632/F* 380-3 1600 3.2 1320 9×2.0 2×2.0 22
EL633/D* 380-3 2400 4.8 1320 6×3.0 2×3.0 24
EL633/E* 380-3 2400 4.8 1320 9×3.0 2×3.0 33
EL633/F* 380-3 2400 4.8 1320 9×3.0 2×3.0 33
EL634/D* 380-3 3200 6.4 1320 8×3.0 2×3.0 30
EL634/E* 380-3 3200 6.4 1320 11×3.0 2×3.0 39
EL634/F* 380-3 3200 6.4 1320 11×3.0 2×3.0 39

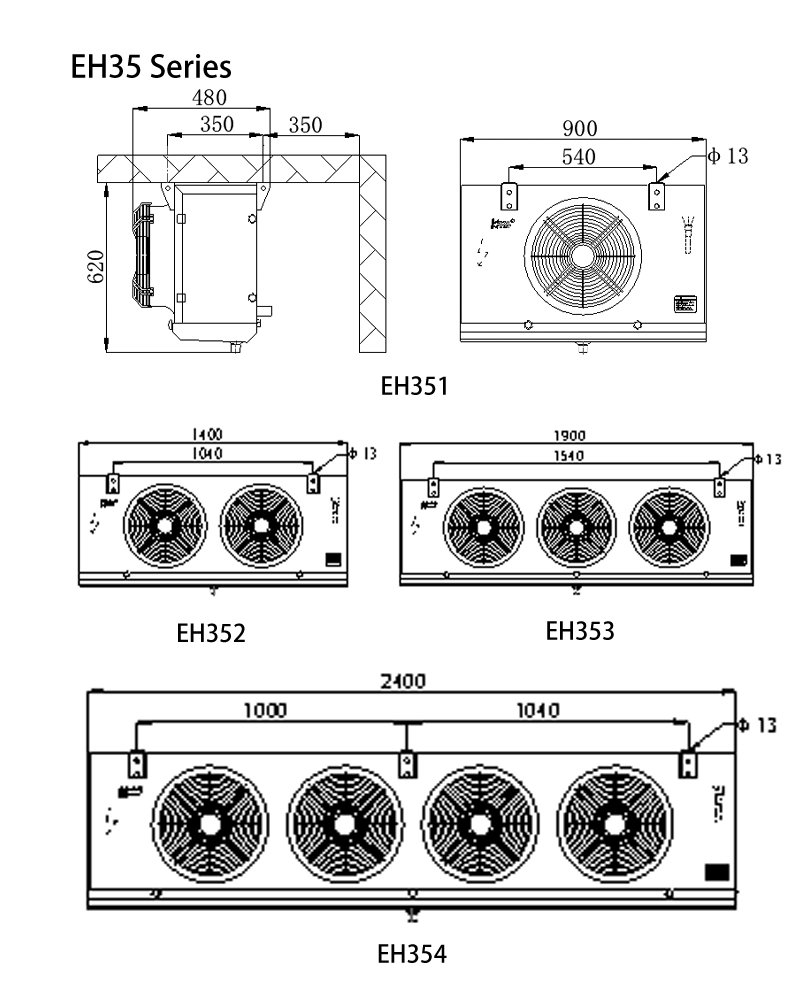

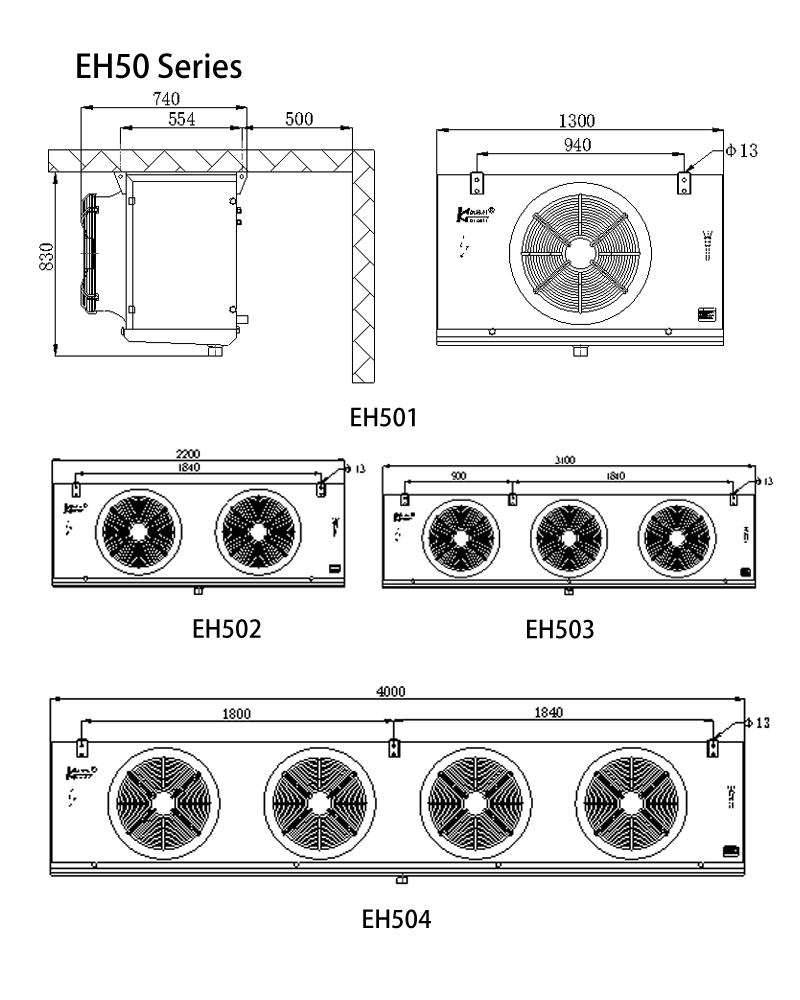

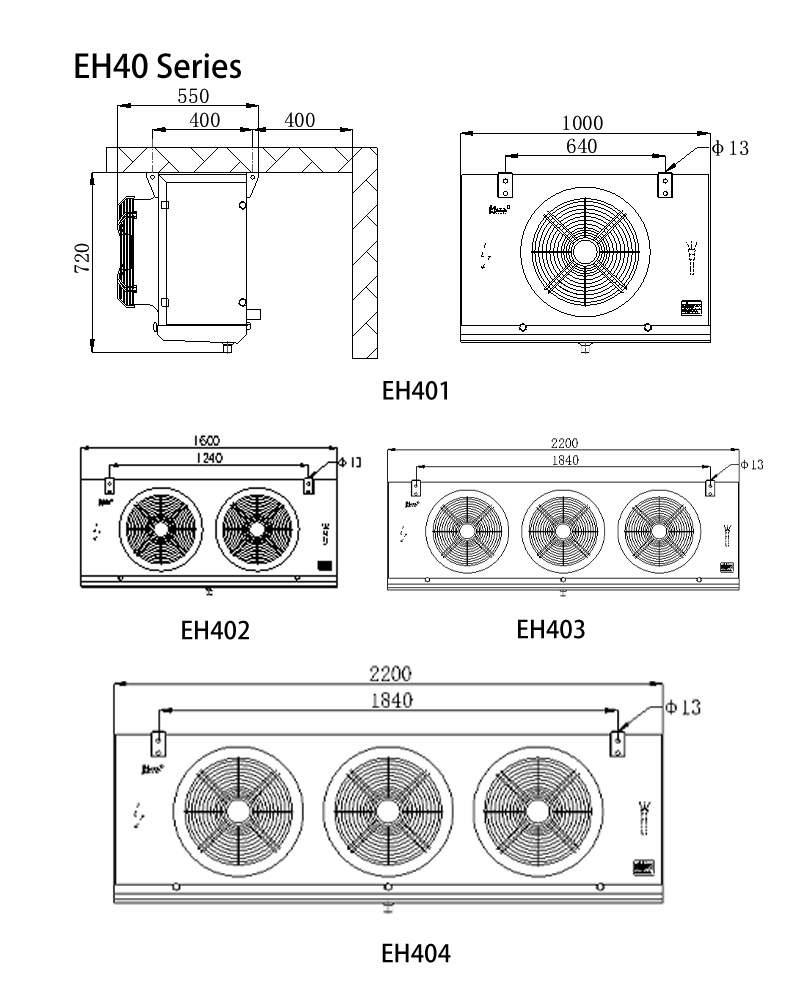

03Dimensions
  • 04Unit Configuration

    ●: Standard configuration; ○: Optional; ×: Not optional

    part Configuration part Configuration
    shell Aluminum plate spraying × Defrost Air defrost
    Steel plate spraying Electric heating tube
    Galvanized sheet spraying Hot air (coil + water pan)
    Stainless steel plate* expansion valve
    motor Low-light outer rotor motor Drain heating line
    (Sucking air) Low-light outer rotor motor Wind circle heating zone
    Air duct fan Blower type fan
    aluminum foil Light Foil Support legs
    Hydrophilic aluminum foil (blue sheet)
    *The wind circle is a normal wind circle.

    05Inquiry

    Zhejiang Kaidi Refrigeration Equipment Co., Ltd

    • 30+

      Years Industry Experience

    • 300+

      Employees

    • 1000Million

      Export Amount

    • 100000+

      Plant Area

    Zhejiang Kaidi Refrigeration Equipment Co., Ltd. was founded in 1995, with “Kaidi” as our registered trademark. As one of the professional China EL Series Industrial Ceiling Type Evaporator Supplier and Wholesale EL Series Industrial Ceiling Type EvaporatorOEM/ODM Company, we have been focusing on refrigeration for nearly 30 years. Today, Kaidi has developed into a scientific and technological enterprise integrating scientific research and development, processing and manufacturing, pre-sales program design, product sales and commissioning, and comprehensive after-sales service support. Headquartered in Shengzhou City, Zhejiang Province, our factory covers an area of 100,000 square metres, with more than 60,000 square metres of modern factory buildings and more than 8,000 square metres of offices, as well as Shanghai Hongqiao Office (R&D Centre), Guangzhou Panyu Office, Beijing Branch and so on.

    After years of development, we have the management team of a top 500 enterprise and a standardised and efficient operation system, as well as strong technical research and development strength. The factory is equipped with complete and advanced CNC machining equipment and high-standard testing laboratory, with strong product development and lean processing and manufacturing capabilities; the establishment of a professional pre-sales technical support, after-sales service guarantee system, we not only research and development and production of advanced refrigeration equipment, but also the overall solution provider for high-quality customers to provide first-class products and services to ensure that our purpose and goal.

    Our sales and service network not only spreads all over the country, but also develops rapidly in the world in the past few years, ‘Kaideli’ brand refrigeration products have a high reputation both at home and abroad, and have won the praise and recognition of our customers. At present, our customers include: cold chain logistics enterprises such as GLP, Shunfeng, Jingdong, Yaleng, Kai Orange, etc.; food processing enterprises such as Wufeng, Holliday, Ligao, Qingmei, Zuming, Anjing, Sienian, etc., central kitchens such as Makgindi, Lvcheng, Ajisai, etc.; slaughter enterprises such as Winsome, Xinning, etc.; edible fungi factory planting enterprises such as Xiangru Biological, Guiwang, Huaguang, Zongxing Mushroom, Lisa, etc., as well as Shanghai Pharmaceuticals, China Medicine Group, and so on. Group and so on.

    HONOR & CERTIFICATE

    Our products have obtained, include EC-Type Examination Certificate, BV, MODE, DNV, GL Certificate, EC Attestation of Conformity, Certificate of Type Approval for Marine Product and Lloyd’s Register Quality Assurance.

    • Certificate of conformity for evaluation of test devices
    • Special Equipment Manufacturing License
    • Edible Mushroom Enterprise Manufacturing Star
    • Excellent Unit Member of China Institute of Refrigeration
    • 2023 Guangxi Refrigeration Society Refrigeration and Cold Storage Specialized Committee
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Computer Software Copyright Registration Certificate
    • Computer Software Copyright Registration Certificate
    • Computer Software Copyright Registration Certificate
    Recently News and Events
    Share with you
    View More News

    SEND MESSAGE

    Leave Your Message*
