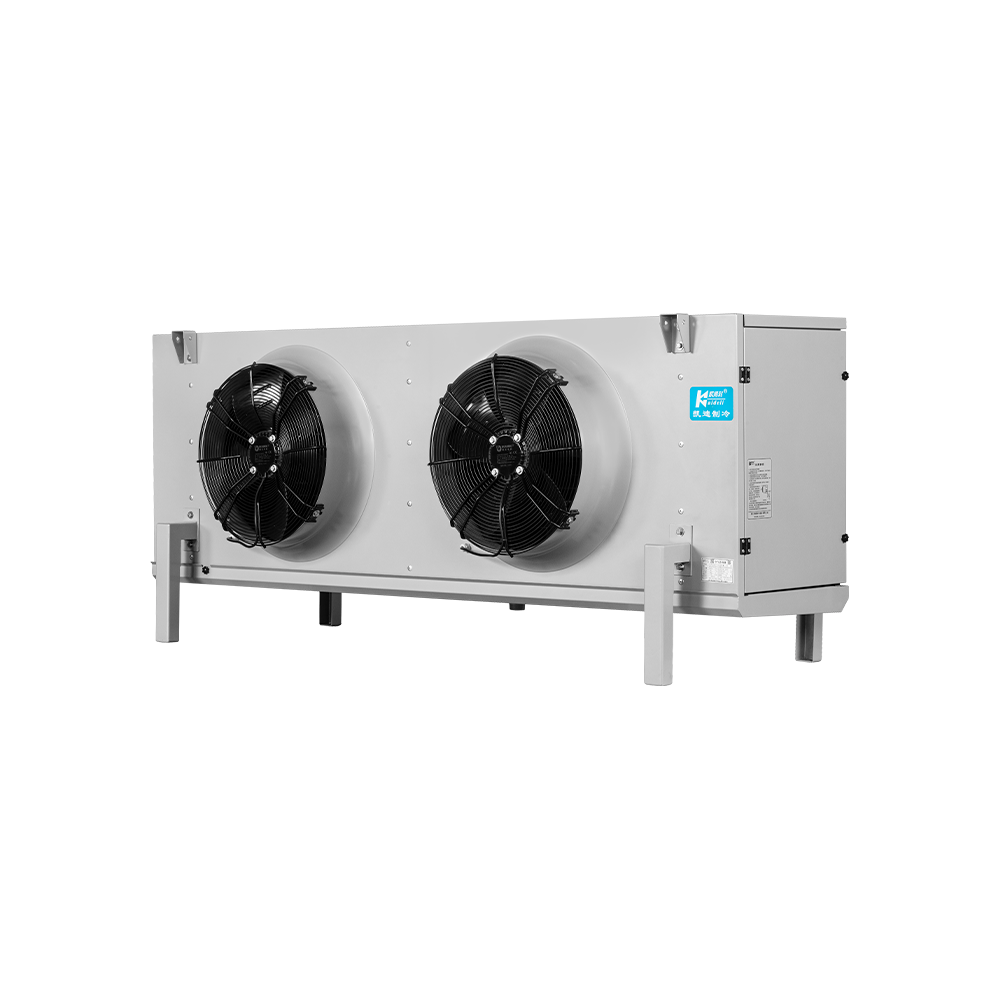

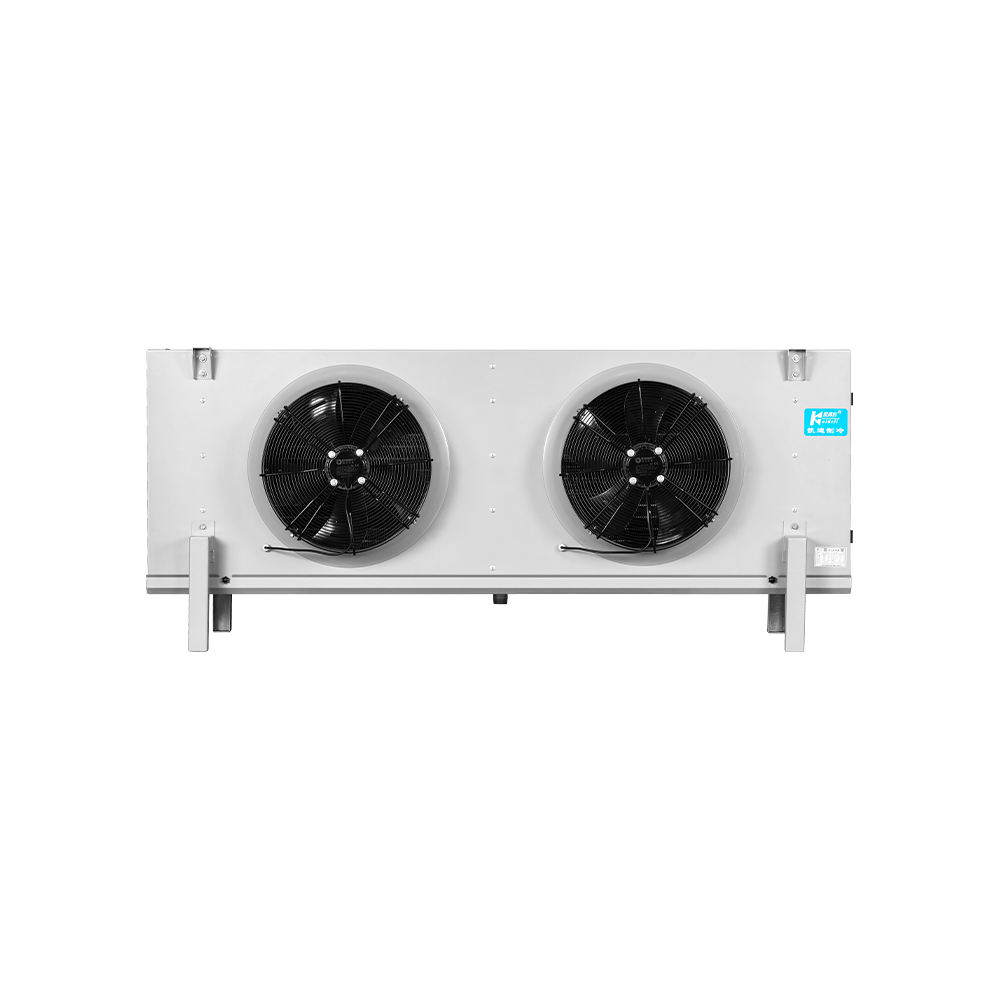

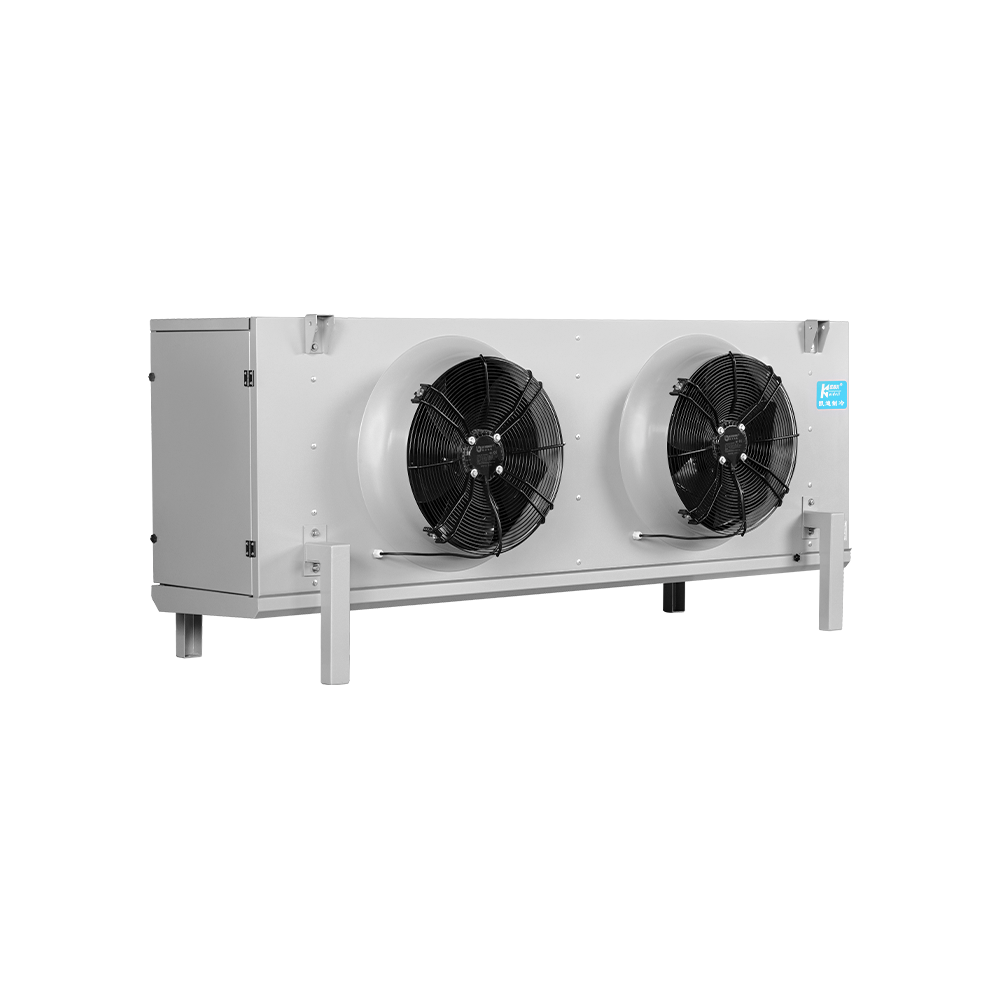

EH Series Commercial High Efficiency Ceiling Type Evaporator

EH series commercial high efficiency Ceiling type Evaporator is a high-quality commercial refrigeration equipment that integrates efficient refrigeration, durability, reliability, flexible adaptability. With its careful structural design, high-quality material selection and diverse functional configuration, it can fully meet the refrigeration needs of different commercial scenarios and is an ideal choice in the field of commercial refrigeration.​

CONTACT US
01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

Product Features:
The shell adopts high-quality galvanized steel plate with plastic spray on the surface (silver-gray RAL9006), which has strong corrosion resistance. The two side plates and outer water tray plates are hinged structures, which are convenient to operate.​

The aluminum plate of the heat exchanger end plate can protect the copper tube and reduce weight, achieving a lightweight design.​

The double-layer water tray design, the outer water tray is an angled structure with an angle, and the drainage is smooth and there are no dead corners; the inner water tray is an aluminum plate sink structure, and condensate or defrost water can be directly discharged into the drain of the outer water tray.​

It adopts an overall stretched large circular high-circular air duct design, with good air conduction effect and even cooling capacity distribution.​

The coil is a φ12 internal thread copper tube, arranged in a triangular manner, and has high heat transfer efficiency; the hydrophilic aluminum foil corrugated aluminum sheet has a variety of sheet spacings of 4.0mm, 6.0mm and 9.0mm, which are suitable for different temperature and humidity requirements.​

Equipped with a high-power external rotor fan, the operating temperature range is - 30℃~60℃, and the specifications are φ350, φ400, and φ500, forming a multi-spec series for users to choose.​

The defrost standard is electric defrost. The stainless steel heating pipes are all arranged on the coil fins, which have good results; hot air defrost can also be used according to customer requirements.​

It adopts IP65-grade waterproof junction box and connector, with good waterproof effect, and the fan and heating pipe are wired separately, which has high reliability.​

The outlet has a needle valve, which is convenient for pressure detection; after strict pressure test, the test pressure is 23 bar, safe and stable.

Accessories such as expansion valves, air ring heating belts and other accessories can be pre-installed according to customer needs, and can be adapted to R404A, R507A and other refrigerants, which are highly adaptable.

01 Advantages

Product Features:
The shell adopts high-quality galvanized steel plate with plastic spray on the surface (silver-gray RAL9006), which has strong corrosion resistance. The two side plates and outer water tray plates are hinged structures, which are convenient to operate.​

The aluminum plate of the heat exchanger end plate can protect the copper tube and reduce weight, achieving a lightweight design.​

The double-layer water tray design, the outer water tray is an angled structure with an angle, and the drainage is smooth and there are no dead corners; the inner water tray is an aluminum plate sink structure, and condensate or defrost water can be directly discharged into the drain of the outer water tray.​

It adopts an overall stretched large circular high-circular air duct design, with good air conduction effect and even cooling capacity distribution.​

The coil is a φ12 internal thread copper tube, arranged in a triangular manner, and has high heat transfer efficiency; the hydrophilic aluminum foil corrugated aluminum sheet has a variety of sheet spacings of 4.0mm, 6.0mm and 9.0mm, which are suitable for different temperature and humidity requirements.​

Equipped with a high-power external rotor fan, the operating temperature range is - 30℃~60℃, and the specifications are φ350, φ400, and φ500, forming a multi-spec series for users to choose.​

The defrost standard is electric defrost. The stainless steel heating pipes are all arranged on the coil fins, which have good results; hot air defrost can also be used according to customer requirements.​

It adopts IP65-grade waterproof junction box and connector, with good waterproof effect, and the fan and heating pipe are wired separately, which has high reliability.​

The outlet has a needle valve, which is convenient for pressure detection; after strict pressure test, the test pressure is 23 bar, safe and stable.

Accessories such as expansion valves, air ring heating belts and other accessories can be pre-installed according to customer needs, and can be adapted to R404A, R507A and other refrigerants, which are highly adaptable.

02Specifications
EH 35 1 / D L - E V T
Voltage, T: 3PH/380V/50hz, S: 1PH/220V/50hz.
Pre-installed expansion valve (optional).
Defrost, E: Electric heating, A: Air (without electric heating), H: Hot air,
Pitch code, L: 4.0mm, D: 6.0mm, J: 9.0mm,
Coil specification code
Number of fans
Fan diameter (cm)
Product Series Code

Pitch 4.0mm

Model Cooling capacity/R404A (KW) area Tube volume Air volume Range Interface specifications (mm) weight
Tc=0℃ Tc=10℃ m2 dm3 m3/h m Liquid inlet Returning Qi drain kg
ΔΤ=8K ΔΤ=10K
350 fan series
EH351/CL-ET 2.7 4 10.9 2.2 2050 7 φ12 φ22 R1” 36
EH351/DL-ET 3.4 5 14.6 2.9 1850 7 φ12 φ22 R1” 37
EH352/CL-ET 5.5 8.1 21.9 4 4100 9 φ12 φ22 R1” 56
EH352/DL-ET 6.7 9.8 29.2 5.3 3700 9 φ12 φ22 R1” 59
EH353/CL-ET 8.2 12.1 32.8 5.8 6150 10 φ12 φ22 R1” 77
EH353/DL-ET 10.1 14.8 43.8 7.8 5550 10 φ12 φ22 R1” 81
EH354/CL-ET 11 16.2 43.8 7.7 8200 11 φ12 φ22 R1” 98
EH354/DL-ET 13.4 19.6 58.4 10.2 7400 11 φ16 φ28 R1” 104
400 fan series
EH401/DL-ET 5.6 8.2 23.3 4.5 3600 11 φ12 φ22 R1” 47
EH401/FL-ET 7.4 10.9 35 6.7 2950 11 φ12 φ22 R1” 52
EH402/DL-ET 11.2 16.5 46.7 8.4 7200 12 φ16 φ28 R1.5” 77
EH402/FL-ET 14.7 21.6 70 12.6 5900 12 φ16 φ28 R1.5” 86
EH403/DL-ET 16.8 24.7 70 12.3 10800 13 φ22 φ35 R1.5” 106
EH403/FL-ET 22.1 32.5 105 18.4 8850 13 φ22 φ35 R1.5” 120
EH404/DL-ET 22.4 32.9 93.4 16.2 14400 14 φ22 φ35 R1.5” 132
EH404/FL-ET 29.4 43.2 140.1 24.3 11800 14 φ22 φ42 R1.5” 151
500 fan series
EH501/DL-ET 10.6 15.6 39.4 7.2 6500 17 φ16 φ28 R1.5” 78
EH501/FL-ET 13 19.1 59.1 10.8 5400 16 φ16 φ28 R1.5” 86
EH502/DL-ET 21.3 31.3 78.8 13.8 13000 19 φ22 φ35 R1.5” 124
EH502/FL-ET 26 38.2 118.2 20.7 10800 18 φ22 φ35 R1.5” 139
EH503/DL-ET 31.9 46.8 118.2 20.4 19500 21 φ22 φ42 R2” 171
EH503/FL-ET 39 57.3 177.3 30.7 16200 20 φ28 φ54 R2” 194
EH504/DL-ET 42.6 62.6 157.6 27 26000 22 φ28 φ54 R2” 219
EH504/FL-ET 52 76.4 236.4 40.6 21600 21 φ28 φ54 R2” 251

1) In the table, Tc is the storage temperature, and ΔΤ is the heat transfer temperature difference, which is the difference between the storage temperature and the evaporating temperature.

2) The range is the air supply distance at 0.5 m/s at room temperature.

3) For cooling capacity under other operating conditions, refer to the correction factor.

Pitch 6.0mm

Model Cooling capacity/R404A (KW) area Tube volume Air volume Range Interface specifications (mm) weight
Tc=0℃ Tc=-18℃ m2 dm3 m3/h m Liquid inlet Returning Qi drain kg
ΔΤ=8K ΔΤ=7K
350 fan series
EH351/CD-ET 2.1 1.6 7.5 2.2 2100 8 φ12 φ22 R1” 35
EH351/DD-ET 2.6 2.1 10 2.9 1900 8 φ12 φ22 R1” 37
EH352/CD-ET 4.2 3.3 15 4 4200 10 φ12 φ22 R1” 55
EH352/DD-ET 5.2 4.2 20 5.3 3800 10 φ12 φ22 R1” 58
EH353/CD-ET 6.3 5 22.6 5.8 6300 11 φ12 φ22 R1” 75
EH353/DD-ET 7.8 6.2 30 7.8 5700 11 φ12 φ22 R1” 79
EH354/CD-ET 8.4 6.7 30 7.7 8400 12 φ12 φ22 R1” 97
EH354/DD-ET 10.4 8.3 40.1 10.2 7600 12 φ16 φ28 R1” 102
400 fan series
EH401/DD-ET 4.2 3.4 16.1 4.5 3700 12 φ12 φ22 R1” 47
EH401/FD-ET 5.5 4.4 24.1 6.7 3200 12 φ12 φ22 R1” 51
EH402/DD-ET 8.3 6.6 32.1 8.4 7400 13 φ16 φ28 R1.5” 75
EH402/FD-ET 11.1 8.9 48.2 12.6 6400 13 φ16 φ28 R1.5” 83
EH403/DD-ET 12.5 10 48.2 12.3 11100 14 φ22 φ35 R1.5” 104
EH403/FD-ET 16.6 13.3 72.2 18.4 9600 14 φ22 φ35 R1.5” 116
EH404/DD-ET 16.7 13.4 64.2 16.2 14800 15 φ22 φ35 R1.5” 129
EH404/FD-ET 22.1 17.7 96.3 24.3 12800 15 φ22 φ42 R1.5” 145
500 fan series
EH501/DD-ET 8.7 7 27.1 7.2 6800 18 φ16 φ28 R1.5” 77
EH501/FD-ET 10.6 8.5 40.6 10.8 5800 17 φ16 φ28 R1.5” 84
EH502/DD-ET 17.3 13.8 54.2 13.8 13600 20 φ22 φ35 R1.5” 120
EH502/FD-ET 21.1 16.9 81.3 20.7 11600 19 φ22 φ35 R1.5” 134
EH503/DD-ET 26 20.8 81.3 20.4 20400 22 φ22 φ42 R2” 165
EH503/FD-ET 31.7 25.4 121.9 30.7 17400 21 φ28 φ54 R2” 187
EH504/DD-ET 34.7 27.8 108.3 27 27200 23 φ28 φ54 R2” 212
EH504/FD-ET 42.3 33.8 162.5 40.6 23200 22 φ28 φ54 R2” 240

1) In the table, Tc is the storage temperature, and ΔΤ is the heat transfer temperature difference, which is the difference between the storage temperature and the evaporating temperature.

2) The range is the air supply distance at 0.5 m/s at room temperature.

3) For cooling capacity under other operating conditions, refer to the correction factor.

Pitch 9.0mm

model Cooling capacity/R404A (KW) area Tube volume Air volume Range Interface specifications (mm) weight
Tc=0℃ Tc=-18℃ Tc=-25℃ m2 dm3 m3/h m Liquid inlet Returning Qi drain kg
ΔΤ=8K ΔΤ=7K ΔΤ=6K
350 fan series
EH351/CJ-ET 1.7 1.3 1.1 5.2 2.2 2150 9 φ12 φ22 R1” 35
EH351/DJ-ET 2.1 1.7 1.4 7 2.9 1950 9 φ12 φ22 R1” 36
EH352/CJ-ET 3.4 2.7 2.2 10.5 4 4300 11 φ12 φ22 R1” 55
EH352/DJ-ET 4.2 3.4 2.8 14 5.3 3900 11 φ12 φ22 R1” 57
EH353/CJ-ET 5 4 3.3 15.7 5.8 6450 12 φ12 φ22 R1” 74
EH353/DJ-ET 6.3 5 4.2 21 7.8 5850 12 φ12 φ22 R1” 78
EH354/CJ-ET 6.7 5.4 4.4 21 7.7 8600 13 φ12 φ22 R1” 96
EH354/DJ-ET 8.4 6.7 5.5 27.9 10.2 7800 13 φ16 φ28 R1” 100
400 fan series
EH401/DJ-ET 3.2 2.6 2.1 11.2 4.5 3800 13 φ12 φ22 R1” 46
EH401/FJ-ET 4.4 3.5 2.9 16.8 6.7 3450 13 φ12 φ22 R1” 50
EH402/DJ-ET 6.5 5.2 4.3 22.3 8.4 7600 14 φ16 φ28 R1.5” 73
EH402/FJ-ET 8.7 7 5.7 33.5 12.6 6900 14 φ16 φ28 R1.5” 81
EH403/DJ-ET 9.7 7.8 6.4 33.5 12.3 11400 15 φ22 φ35 R1.5” 101
EH403/FJ-ET 13.1 10.5 8.6 50.3 18.4 10350 15 φ22 φ35 R1.5” 113
EH404/DJ-ET 13 10.4 8.6 44.7 16.2 15200 16 φ22 φ35 R1.5” 125
EH404/FJ-ET 17.4 13.9 11.5 67 24.3 13800 16 φ22 φ42 R1.5” 141
500 fan series
EH501/DJ-ET 7.2 5.8 4.8 18.9 7.2 7000 19 φ16 φ28 R1.5” 75
EH501/FJ-ET 9.3 7.4 6.1 28.3 10.8 6200 18 φ16 φ28 R1.5” 82
EH502/DJ-ET 14.3 11.4 9.4 37.7 13.8 14000 21 φ22 φ35 R1.5” 119
EH502/FJ-ET 18.7 15 12.3 56.6 20.7 12400 20 φ22 φ35 R1.5” 131
EH503/DJ-ET 21.5 17.2 14.2 56.6 20.4 21000 23 φ22 φ42 R2” 161
EH503/FJ-ET 28 22.4 18.5 84.9 30.7 18600 22 φ28 φ54 R2” 181
EH504/DJ-ET 28.7 23 18.9 75.4 27 28000 24 φ28 φ54 R2” 207
EH504/FJ-ET 37.3 29.8 24.6 113.1 40.6 24800 23 φ28 φ54 R2” 233

1) In the table, Tc is the storage temperature, and ΔΤ is the heat transfer temperature difference, which is the difference between the storage temperature and the evaporating temperature.

2) The range is the air supply distance at 0.5 m/s at room temperature.

3) For cooling capacity under other operating conditions, refer to the correction factor.

Electrical parameters

model fan motor Electric defrost
Voltage (V) Power (W) Current (A) Speed (r/min) Coil (KW) Water tray (KW) Total power (KW)
EH351* 380-3 129 0.4 1400 2×0.5 1×0.5 1.5
EH352* 380-3 258 0.8 1400 2×0.9 1×0.9 2.7
EH353* 380-3 387 1.2 1400 2×1.3 1×1.3 3.9
EH354* 380-3 516 1.6 1400 2×1.7 1×1.7 5.1
EH401/D* 380-3 205 0.51 1380 3×0.6 1×0.6 2.4
EH401/F* 380-3 205 0.51 1380 5×0.6 1×0.6 3.6
EH402/D* 380-3 410 1.02 1380 3×1.1 1×1.1 4.4
EH402/F* 380-3 410 1.02 1380 5×1.1 1×1.1 6.6
EH403/D* 380-3 615 1.53 1380 3×1.6 1×1.6 6.4
EH403/F* 380-3 615 1.53 1380 5×1.6 1×1.6 9.6
EH404/D* 380-3 820 2.04 1380 3×2.0 1×2.0 8
EH404/F* 380-3 820 2.04 1380 5×2.0 1×2.0 12
EH501/D* 380-3 500 0.95 1380 3×0.8 2×0.8 4
EH501/F* 380-3 500 0.95 1380 5×0.8 2×0.8 5.6
EH502/D* 380-3 1000 1.9 1380 3×1.6 2×1.6 8
EH502/F* 380-3 1000 1.9 1380 5×1.6 2×1.6 11.2
EH503/D* 380-3 1500 2.85 1380 3×2.3 2×2.3 11.5
EH503/F* 380-3 1500 2.85 1380 5×2.3 2×2.3 16.1
EH504/D* 380-3 2000 3.8 1380 3×3.0 2×3.0 15
EH504/F* 380-3 2000 3.8 1380 5×3.0 2×3.0 21

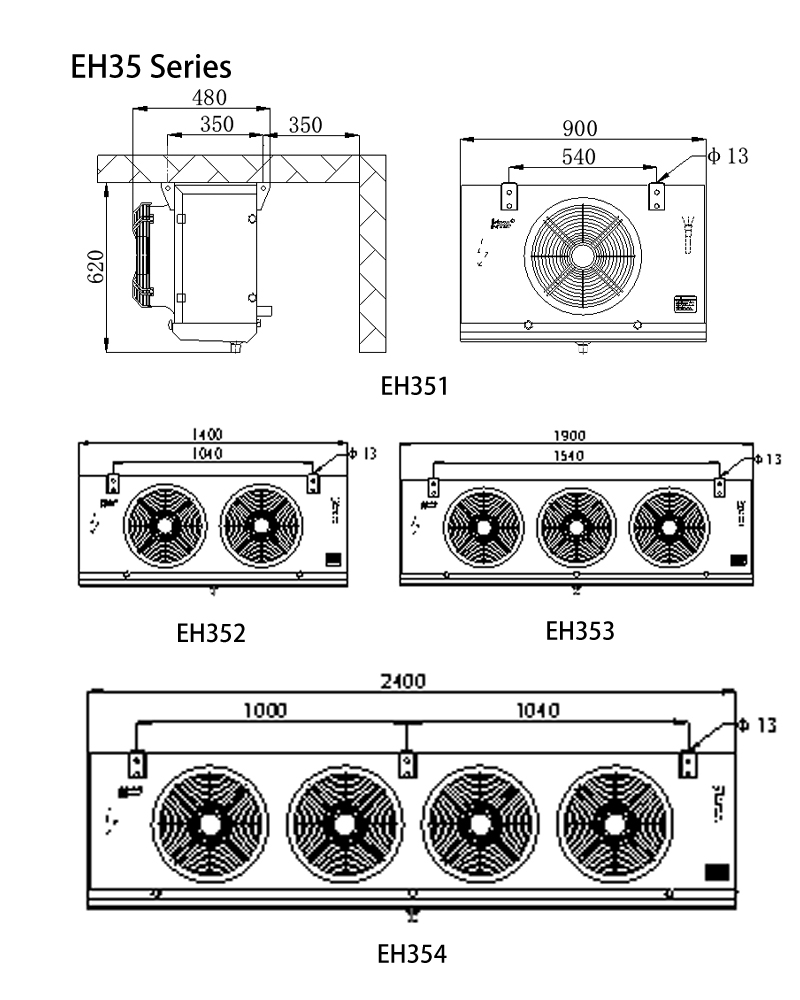

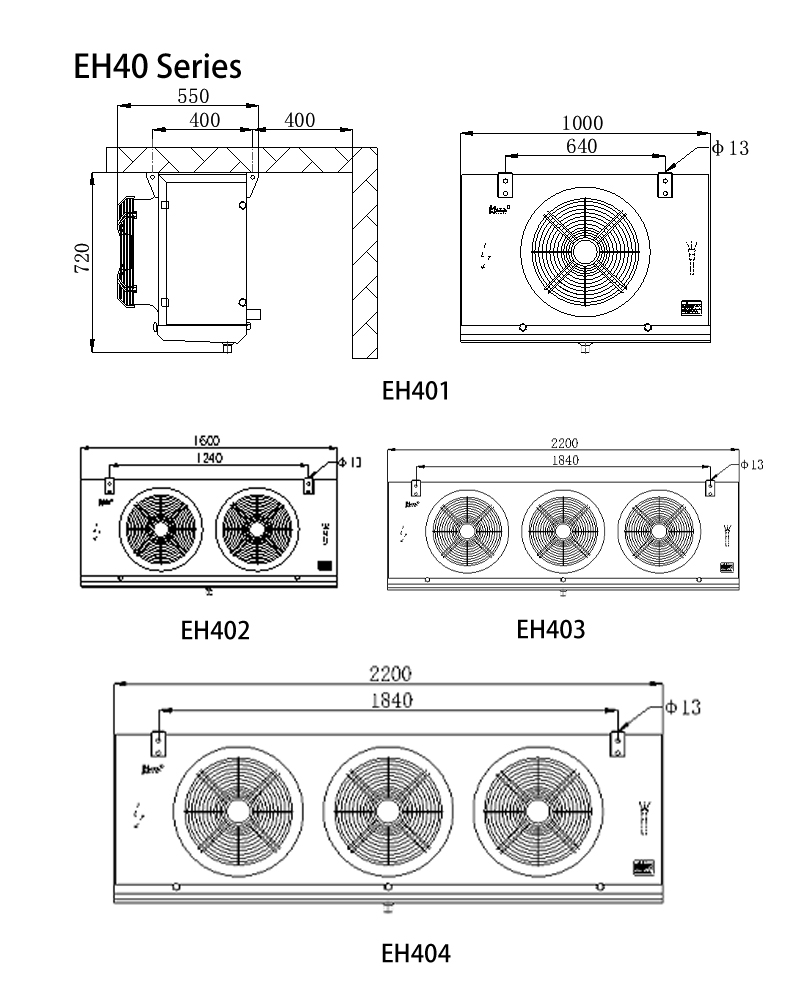

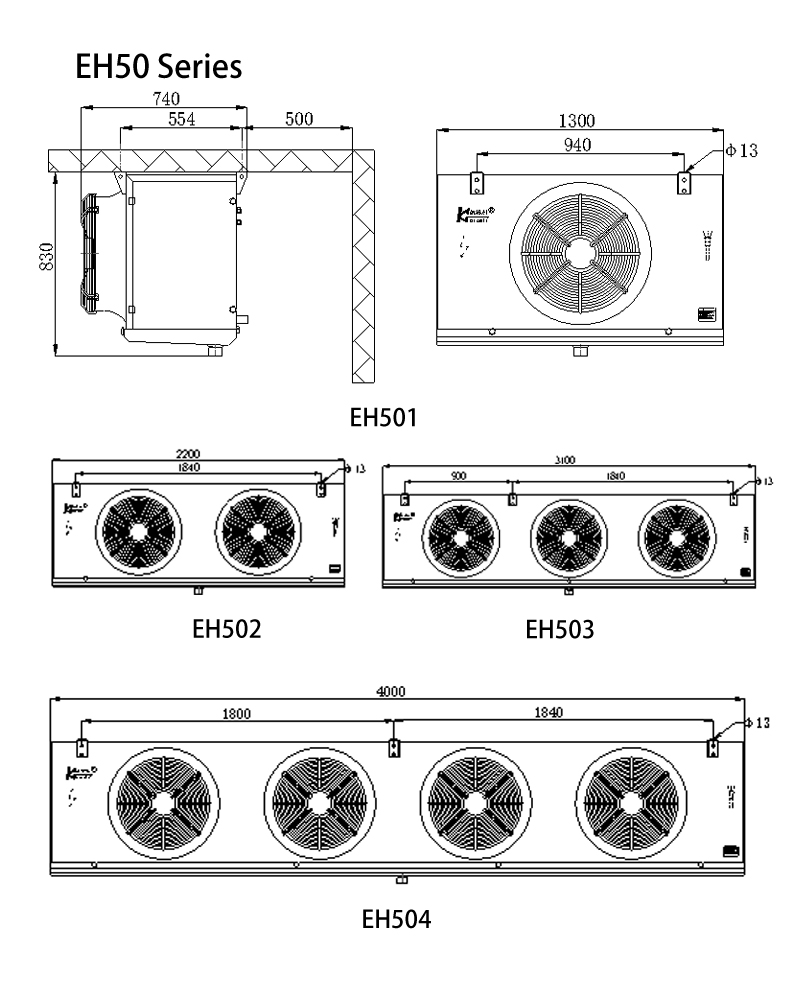

03Dimensions
  • 04Unit Configuration

    ●: Standard configuration; ○: Optional configuration; ×: Not optional. * indicates a standard air ring.

    part Configuration part Configuration
    shell Aluminum plate spraying × Defrost Air defrost
    Steel plate spraying Electric heating tube
    Galvanized sheet spraying Hot air (coil + water pan)
    Stainless steel plate* expansion valve
    fan Low-light outer rotor Drain heating line
    (Suction type) EBM outer rotor* Wind circle heating zone
    Air duct fan Fan blowing type
    aluminum foil Light Foil
    Hydrophilic aluminum foil (blue sheet)
