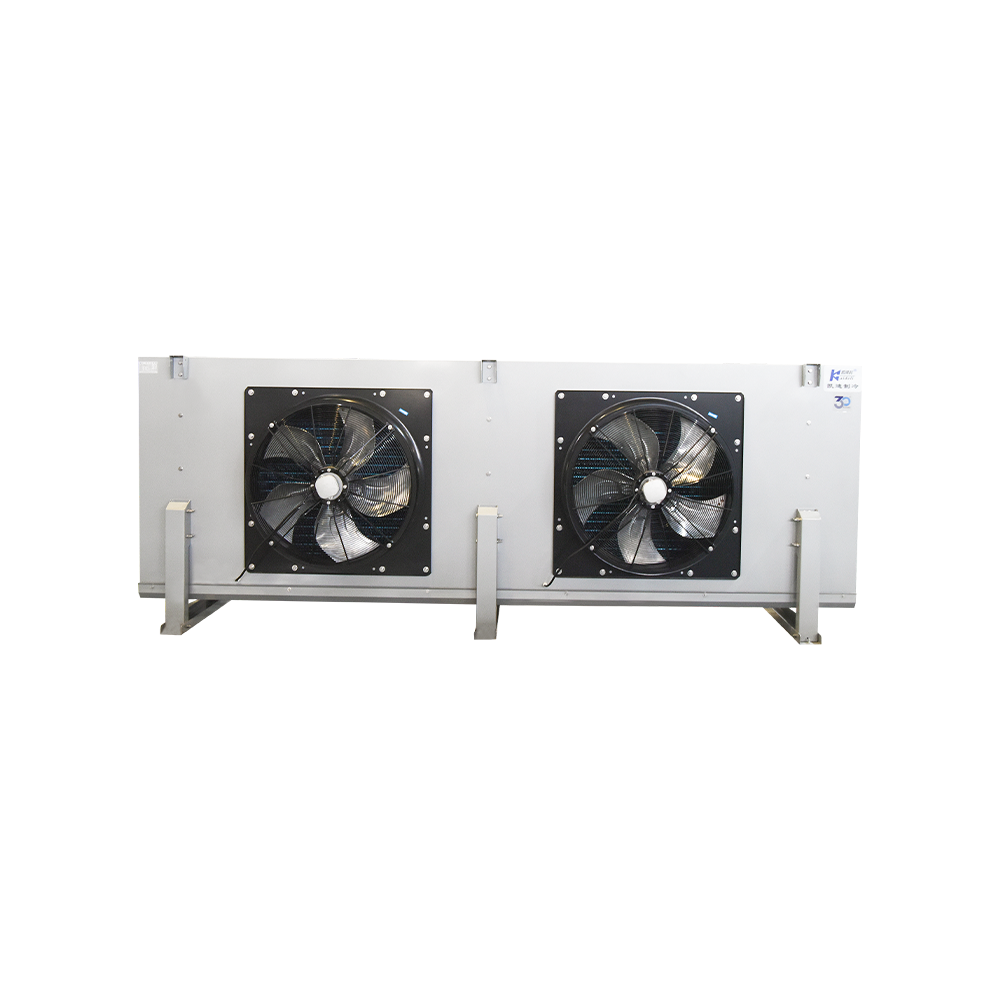

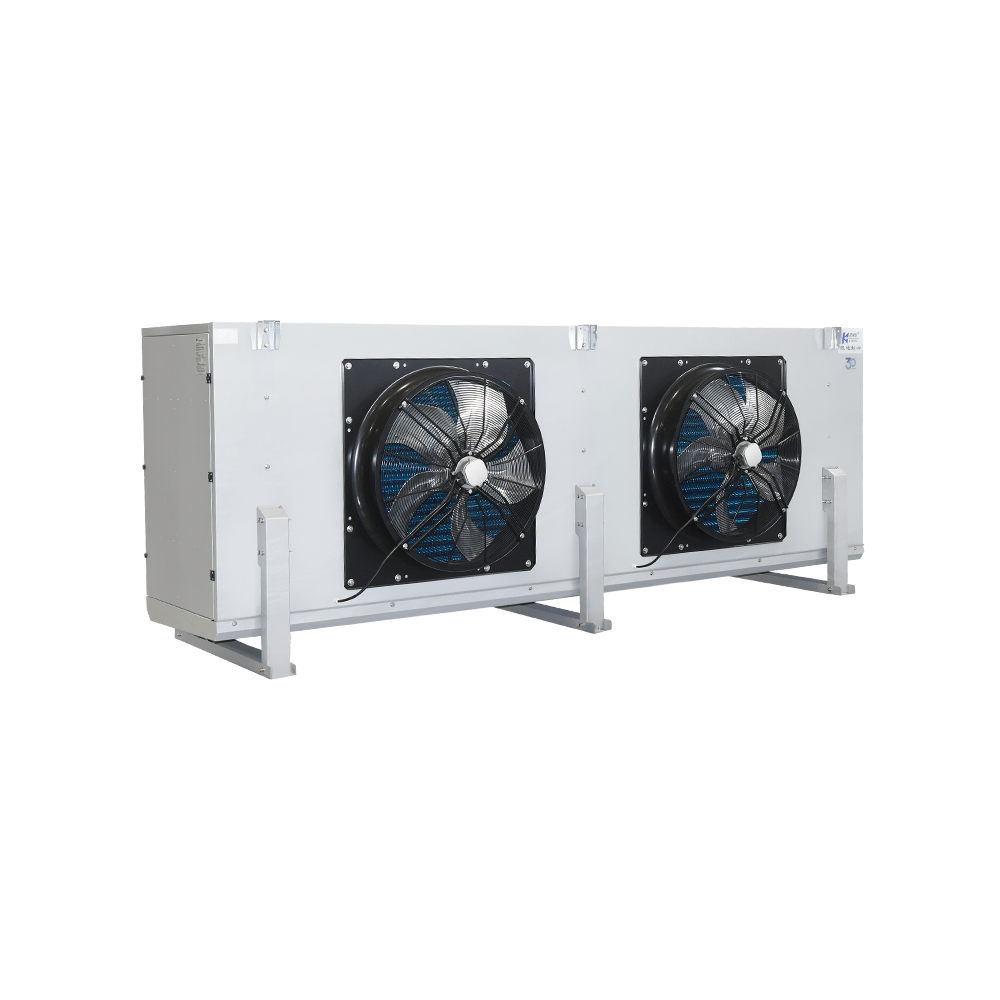

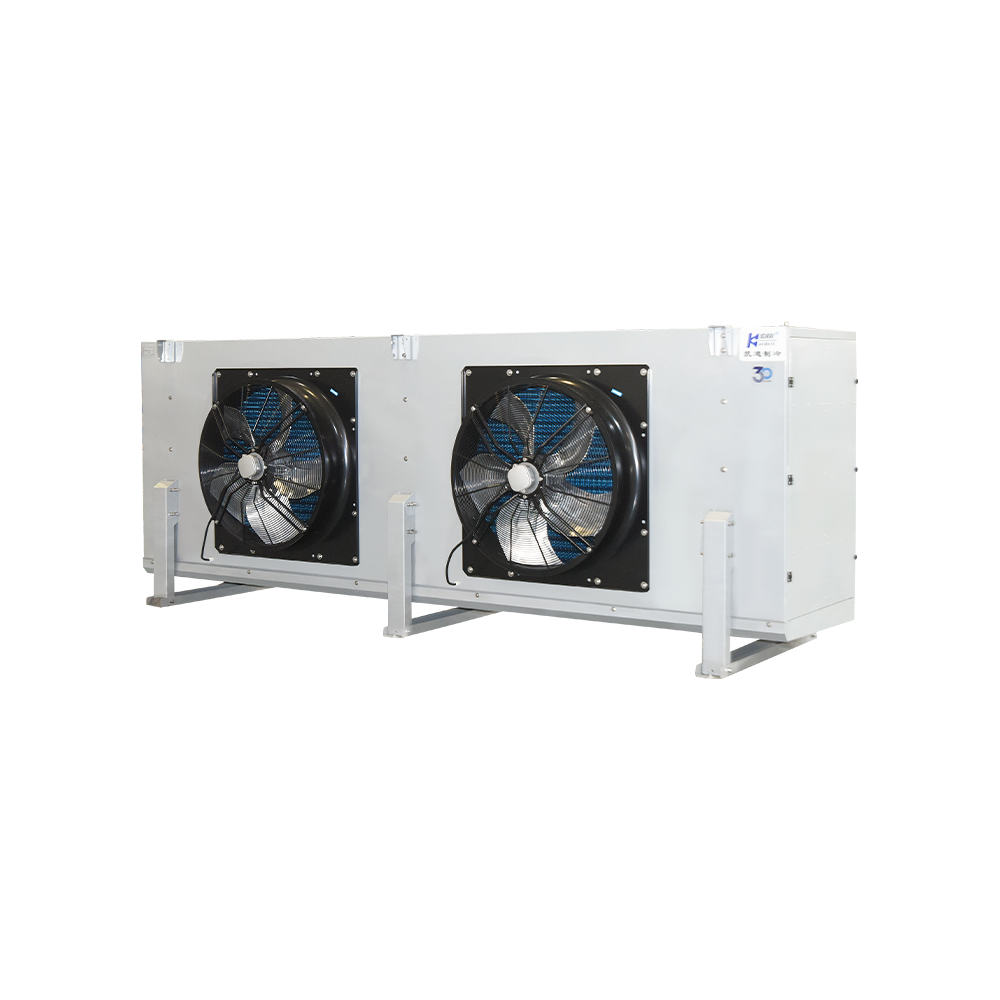

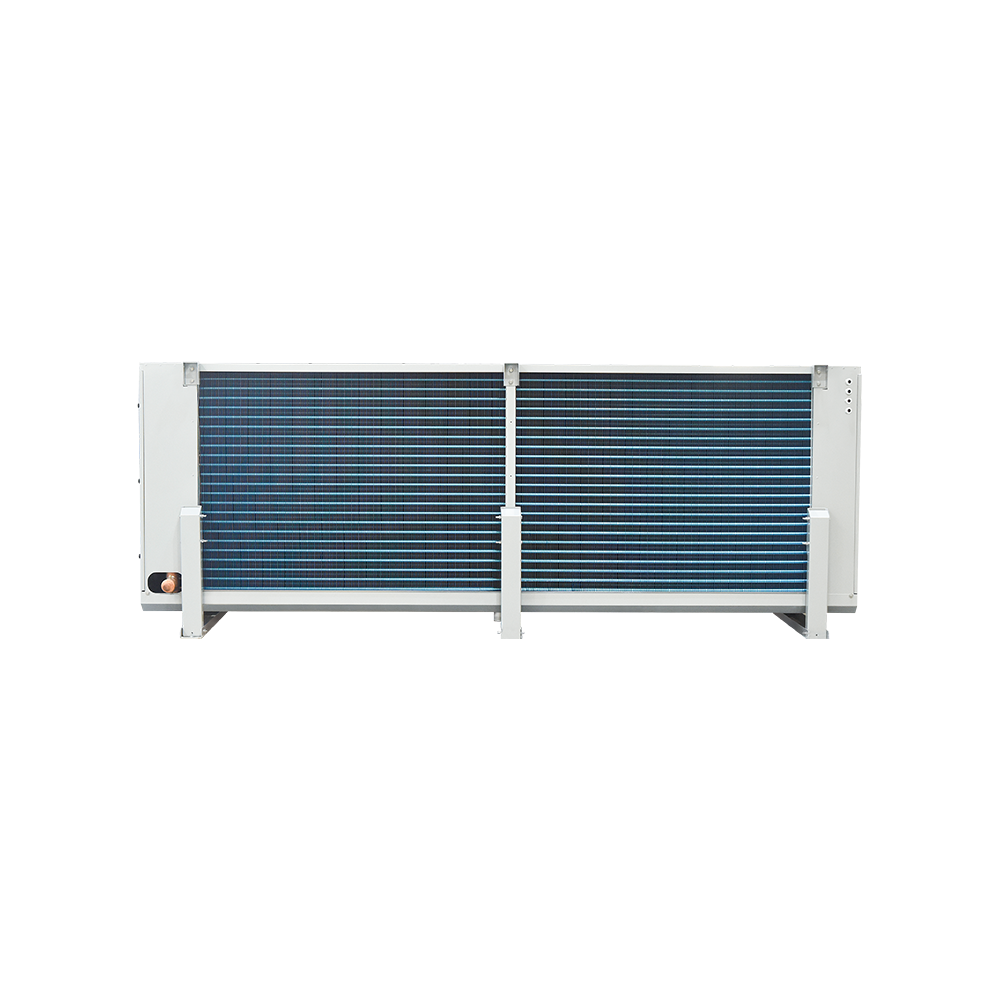

EN Series Large Ceiling Type Evaporator

EN series large Ceiling type Evaporator is a equipment specially developed for large-scale cold storage and high-refrigeration capacity demand scenarios. Its core design revolves around large-scale fan motors and is equipped with fans with a diameter of more than 710mm, which can meet the needs of large-scale storage cold storage, industrial refrigeration workshops and other environments with high requirements for refrigeration efficiency and coverage. By optimizing structural design and core component configuration, this series of products not only ensures stable refrigeration performance, but also takes into account the convenience of installation and maintenance and the adaptability to multiple working conditions. It can adapt to large refrigeration systems of different sizes, providing continuous and reliable cooling output for low-temperature storage, rapid freezing and other scenarios.

CONTACT US
PREV：ESP Series Pump-Fed Liquid-Fed Stainless Steel Tube Air CoolerNEXT：EA Series Commercial Angle Evaporator

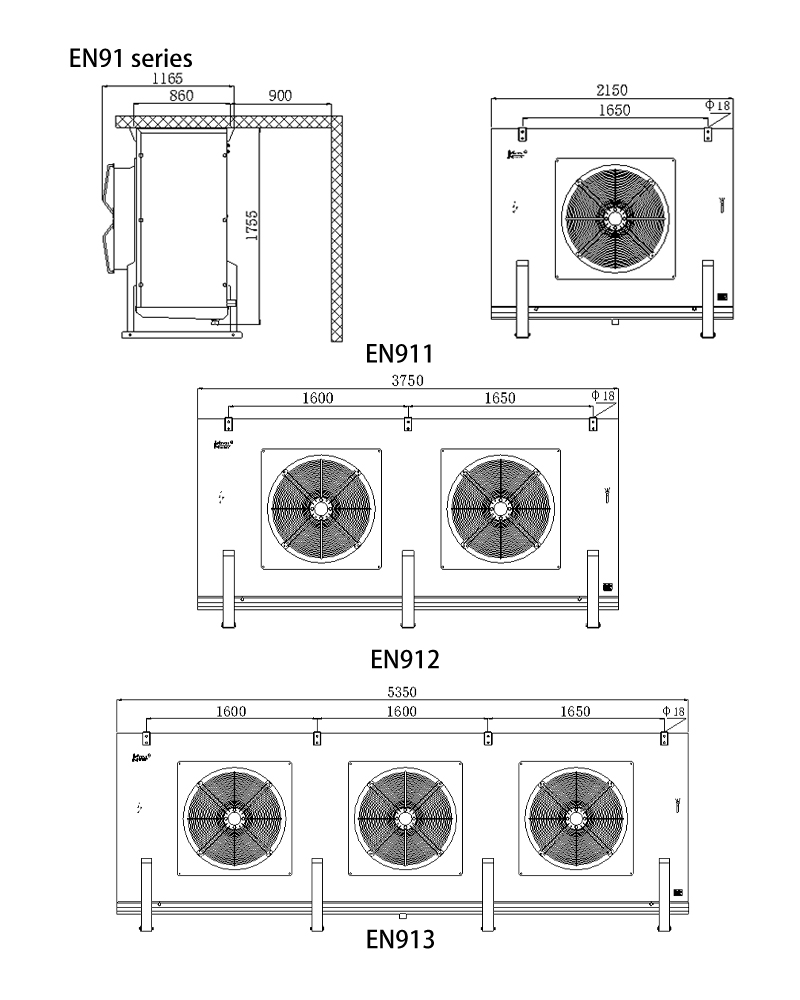

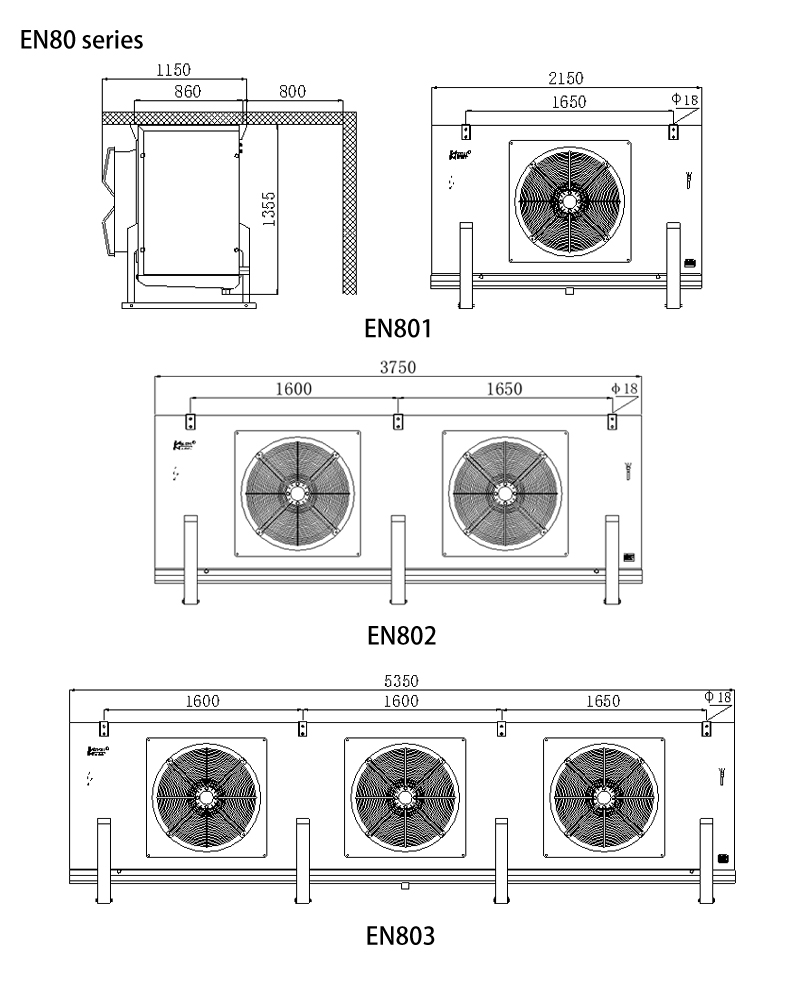

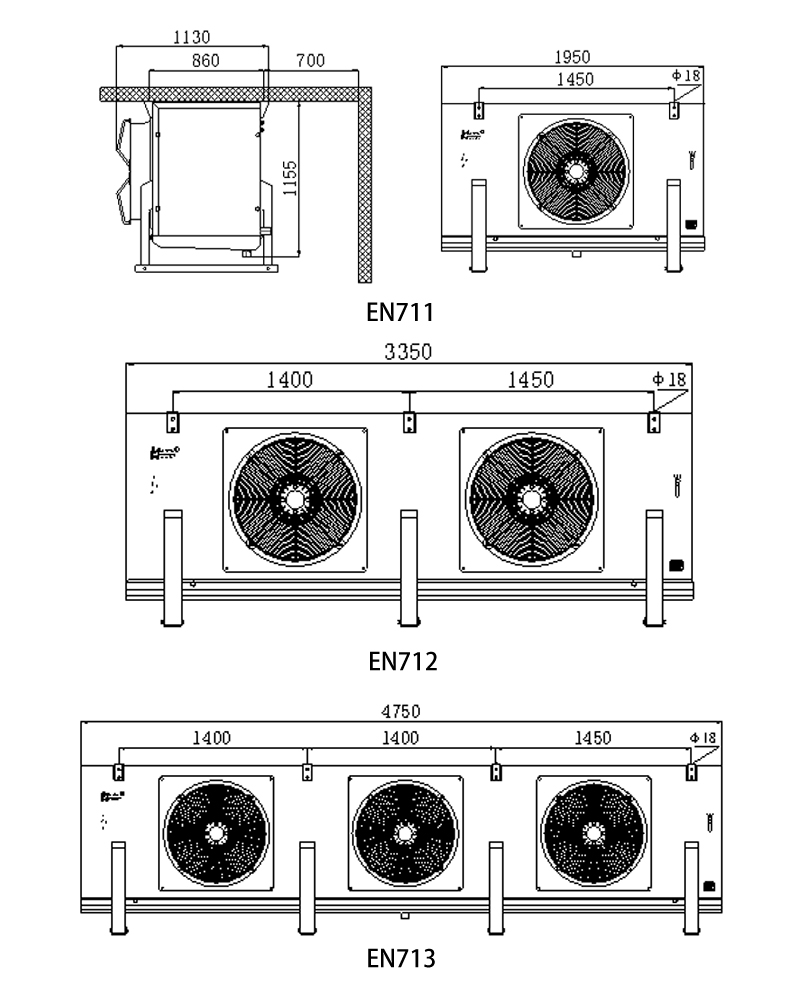

01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

1. Structure and materials: The outer shell is made of galvanized steel plate and is sprayed with RAL9006, which is highly anti-corrosion; the two side plates and the outer water tray plate are hinged, which are convenient to operate; the end plate of the heat exchanger is supported by aluminum plates to avoid contact damage between the copper tube and the steel plate; in the double-layer water tray structure, the outer plate is angled and the inner plate is aluminum plate sink type to ensure no residue in drainage.​

2. Heat exchange system: It adopts square arrangement of φ15 copper tubes, combined with hydrophilic aluminum foil corrugated aluminum sheets with a pitch of 4.0-12.0mm, which can be flexibly adapted according to temperature and humidity requirements, reducing food dry consumption and frosting speed.​

3. Operating configuration: equipped with 6-electrode fan with φ710, φ800, and φ910 specifications; stainless steel electric heating pipes are uniformly arranged in standard defrost, supporting customization of hot gas defrost; the electrical system adopts IP65 waterproof junction box and connectors, the fan and heating pipe are independently wired, and a needle valve is installed at the outlet. After a 23bar pressure test, the reliability is outstanding.​

4. Adaptation capability: It can be pre-installed with expansion valves and other accessories, compatible with R404A, R507A and other refrigerants; it is equipped with floor-standing support feet to simplify the installation process.

01 Advantages

1. Structure and materials: The outer shell is made of galvanized steel plate and is sprayed with RAL9006, which is highly anti-corrosion; the two side plates and the outer water tray plate are hinged, which are convenient to operate; the end plate of the heat exchanger is supported by aluminum plates to avoid contact damage between the copper tube and the steel plate; in the double-layer water tray structure, the outer plate is angled and the inner plate is aluminum plate sink type to ensure no residue in drainage.​

2. Heat exchange system: It adopts square arrangement of φ15 copper tubes, combined with hydrophilic aluminum foil corrugated aluminum sheets with a pitch of 4.0-12.0mm, which can be flexibly adapted according to temperature and humidity requirements, reducing food dry consumption and frosting speed.​

3. Operating configuration: equipped with 6-electrode fan with φ710, φ800, and φ910 specifications; stainless steel electric heating pipes are uniformly arranged in standard defrost, supporting customization of hot gas defrost; the electrical system adopts IP65 waterproof junction box and connectors, the fan and heating pipe are independently wired, and a needle valve is installed at the outlet. After a 23bar pressure test, the reliability is outstanding.​

4. Adaptation capability: It can be pre-installed with expansion valves and other accessories, compatible with R404A, R507A and other refrigerants; it is equipped with floor-standing support feet to simplify the installation process.

02Specifications
EN 71 1 / D L - E T
Voltage, T:3PH/380V/50hz
Defrost, E: Electric heating, A: Air (without electric heating), H: Hot air
Pitch code, L: 4.0mm, D: 6.0mm, J: 9.0mm, K: 12.0mm
Coil specification code
Number of fans
Fan diameter (cm)
Product Series Code

Pitch 4.0mm

Model Cooling capacity/R404A (KW) area Tube volume Air volume Range Interface specifications (mm) weight
Tc=0℃ Tc=10℃ m2 dm3 m3/h m Liquid inlet Returning Qi drain kg
ΔΤ=8K ΔΤ=10K
710 fan series
EN711/DL-ET 20.4 30 136 19.5 11800 30 22 35 R2" 210
EN711/EL-ET 22.9 33.2 170 24.4 11200 30 22 35 R2" 222
EN711/FL-ET 25.5 37.5 204 29.3 10800 29 28 35 R2" 234
EN711/HL-ET 28.5 41.9 272 39 10000 28 28 42 R2" 258
EN712/DL-ET 40.8 60 272 37.7 23600 33 35 42 R2" 358
EN712/EL-ET 45.9 67.5 340 47.2 22400 33 35 54 R2" 379
EN712/FL-ET 51 75 408 56.6 21600 32 35 54 R2" 406
EN712/HL-ET 57.1 83.9 544 75.5 20000 31 35 54 R2" 453
EN713/DL-ET 61.2 90 408 56 35400 35 35 54 R2" 506
EN713/EL-ET 66.2 97.3 490 67.2 33600 35 35 54 R2" 540
EN713/FL-ET 76.5 112.4 612 84 32400 34 35 67 R2" 577
EN713/HL-ET 85.7 126 817 112 30000 33 35 67 R2" 646
800 fan series
EN801/DL-ET 28.1 41.3 187 26.5 17300 35 28 42 R2" 252
EN801/EL-ET 31.5 46.3 233 33.2 16500 35 28 42 R2" 268
EN801/FL-ET 35 51.4 280 39.8 15800 34 28 42 R2" 284
EN801/HL-ET 39.2 57.6 373 53.1 15100 33 35 54 R2" 317
EN802/DL-ET 56 82.3 373 51.6 34600 38 35 54 R2" 431
EN802/EL-ET 63 92.6 467 64.4 33000 38 35 54 R2" 464
EN802/FL-ET 70 102.9 560 77.4 31600 37 35 67 R2" 497
EN802/HL-ET 78.4 115.2 747 103.1 30200 36 35 67 R2" 562
EN803/DL-ET 84 123.5 560 76.6 51900 40 35 67 R2" 614
EN803/EL-ET 94.5 138.9 700 95.7 49500 40 2-35 2-54 R2" 664
EN803/FL-ET 105 154.4 840 114.8 47400 39 2-35 2-54 R2" 711
EN803/HL-ET 117.6 172.8 1120 153.1 45300 38 2-35 2-54 R2" 815
910 fan series
EN911/DL-ET 37.4 55 249 35.4 23100 40 35 42 R2" 305
EN911/EL-ET 42 61.7 311 44.3 22100 40 35 54 R2" 327
EN911/FL-ET 46.6 68.5 373 53.1 20800 39 35 54 R2" 349
EN911/HL-ET 52.3 76.9 498 70.8 20000 38 35 54 R2" 392
EN912/DL-ET 74.7 109.8 498 68.7 46200 44 35 67 R2" 521
EN912/EL-ET 84 123.5 622 85.9 44200 44 35 67 R2" 565
EN912/FL-ET 93.4 137.3 747 103.1 41600 43 2-35 2-54 R2" 608
EN912/HL-ET 104.5 153.6 995 137.5 40000 42 2-35 2-54 R2" 694
EN913/DL-ET 112.1 164.8 747 102.1 69300 47 2-35 2-54 R2" 742
EN913/EL-ET 122.9 180.7 910 127.6 66300 47 2-35 2-67 R2" 808
EN913/FL-ET 140 205.8 1120 153.1 62400 46 2-35 2-67 R2" 873
EN913/HL-ET 156.8 230.5 1493 204.1 60000 45 2-35 2-67 R2" 1007

1) In the table, Tc is the storage temperature, and ΔΤ is the heat transfer temperature difference, which is the difference between the storage temperature and the evaporating temperature.

2) The range is the air supply distance at 0.5 m/s at room temperature.

3) For cooling capacity under other operating conditions, refer to the correction factor.

Pitch 6.0mm

Model Cooling capacity/R404A (KW) area Tube volume Air volume Range Interface specifications (mm) weight
Tc=0℃ Tc=-18℃ m2 dm3 m3/h m Liquid inlet Returning Qi drain kg
ΔΤ=8K ΔΤ=7K
710 fan series
EN711/DD-ET 16.5 13.2 92 19.5 12800 30 22 35 R2" 200
EN711/ED-ET 19.5 15.6 115 24.4 12300 30 22 35 R2" 210
EN711/FD-ET 22 17.5 138 29.3 11800 29 28 35 R2" 220
EN711/HD-ET 26.8 21.4 185 39 11200 28 28 42 R2" 239
EN712/DD-ET 33.3 26.5 185 37.7 25600 33 35 42 R2" 337
EN712/ED-ET 39.2 31.3 231 47.2 24600 33 35 54 R2" 356
EN712/FD-ET 44.3 35.4 277 56.6 23600 32 35 54 R2" 378
EN712/HD-ET 53.5 42.8 369 75.5 22400 31 35 54 R2" 415
EN713/DD-ET 49.8 39.8 277 56 38400 35 35 54 R2" 477
EN713/ED-ET 56.4 45 332 67.2 36900 35 35 54 R2" 505
EN713/FD-ET 66.4 53 415 84 35400 34 35 67 R2" 534
EN713/HD-ET 80.3 64.2 554 112 33600 33 35 67 R2" 589
800 fan series
EN801/DD-ET 22.9 18.3 127 26.5 18800 36 28 42 R2" 239
EN801/ED-ET 26.9 21.5 158 33.2 18000 36 28 42 R2" 252
EN801/FD-ET 30.4 24.3 190 39.8 17300 35 28 42 R2" 265
EN801/HD-ET 36.7 29.4 253 53.1 16500 34 35 54 R2" 291
EN802/DD-ET 45.5 36.4 253 51.6 37600 39 35 54 R2" 405
EN802/ED-ET 53.7 43 316 64.4 36000 39 35 54 R2" 432
EN802/FD-ET 60.8 48.6 380 77.4 34600 38 35 67 R2" 458
EN802/HD-ET 73.4 58.7 506 103.1 33000 37 35 67 R2" 510
EN803/DD-ET 68.4 54.7 380 76.6 56400 41 35 67 R2" 576
EN803/ED-ET 80.8 64.6 475 95.7 54000 41 2-35 2-54 R2" 615
EN803/FD-ET 91.2 73 570 114.8 51900 40 2-35 2-54 R2" 653
EN803/HD-ET 110.2 88.2 760 153.1 49500 39 2-35 2-54 R2" 737
910 fan series
EN911/DD-ET 30.4 24.3 169 35.4 25000 41 35 42 R2" 288
EN911/ED-ET 35.9 28.7 211 44.3 24100 41 35 54 R2" 305
EN911/FD-ET 40.5 32.4 253 53.1 23100 40 35 54 R2" 323
EN911/HD-ET 49 39.2 338 70.8 22100 39 35 54 R2" 357
EN912/DD-ET 60.8 48.6 338 68.7 50000 45 35 67 R2" 486
EN912/ED-ET 71.7 57.4 422 85.9 48200 45 35 67 R2" 522
EN912/FD-ET 81 64.8 506 103.1 46200 44 2-35 2-54 R2" 556
EN912/HD-ET 97.9 78.3 675 137.5 44200 43 2-35 2-54 R2" 624
EN913/DD-ET 91.1 72.9 506 102.1 75000 48 2-35 2-54 R2" 690
EN913/ED-ET 104.9 83.9 617 127.6 72300 48 2-35 2-67 R2" 743
EN913/FD-ET 121.6 97.3 760 153.1 69300 47 2-35 2-67 R2" 795
EN913/HD-ET 146.9 117.5 1013 204.1 66300 46 2-35 2-67 R2" 903

1) In the table, Tc is the storage temperature, and ΔΤ is the heat transfer temperature difference, which is the difference between the storage temperature and the evaporating temperature.

2) The range is the air supply distance at 0.5 m/s at room temperature.

3) For cooling capacity under other operating conditions, refer to the correction factor.

Pitch 9.0mm

Model Cooling capacity/R404A (KW) area Tube volume Air volume Range Interface specifications (mm) weight
Tc=0℃ Tc=-18 Tc=-25 m2 dm3 m3/h m Liquid inlet Returning Qi drain kg
ΔΤ=8K ΔΤ=7K ΔΤ=6K
710 fan series
EN711/FJ-ET 19 15.2 12.5 95 29.3 12300 30 28 35 R2" 223
EN711/HJ-ET 22.6 18 14.9 126 39 11800 29 28 42 R2" 243
EN712/FJ-ET 39 31.2 25.7 190 56.6 24600 33 35 54 R2" 384
EN712/HJ-ET 45.5 36.4 30 253 75.5 23600 32 35 54 R2" 423
EN713/FJ-ET 56.8 45.4 37.5 284 84 36900 35 35 67 R2" 544
EN713/HJ-ET 68.2 54.5 45 379 112 35400 34 35 67 R2" 602
800 fan series
EN801/FJ-ET 26 20.8 17.2 130 39.8 18000 36 28 42 R2" 269
EN801/HJ-ET 31.1 24.9 20.5 173 53.1 17300 35 35 54 R2" 297
EN802/FJ-ET 52 41.6 34.3 260 77.4 36000 39 35 67 R2" 466
EN802/HJ-ET 62.3 49.8 41.1 346 103.1 34600 38 35 67 R2" 522
EN803/FJ-ET 78 62.4 51.5 390 114.8 54000 41 2-35 2-54 R2" 666
EN803/HJ-ET 93.6 74.9 61.7 520 153.1 51900 40 2-35 2-54 R2" 755
910 fan series
EN911/FJ-ET 34.6 27.7 22.8 173 53.1 24100 41 35 54 R2" 329
EN911/HJ-ET 41.6 33.3 27.4 231 70.8 23100 40 35 54 R2" 365
EN912/FJ-ET 69.2 55.4 45.6 346 103.1 48200 45 2-35 2-54 R2" 568
EN912/HJ-ET 83.2 66.6 54.9 462 137.5 46200 44 2-35 2-54 R2" 640
EN913/FJ-ET 104 83.2 68.6 520 153.1 72300 48 2-35 2-67 R2" 813
EN913/HJ-ET 124.7 99.8 82.3 693 204.1 69300 47 2-35 2-67 R2" 926

1) In the table, Tc is the storage temperature, and ΔΤ is the heat transfer temperature difference, which is the difference between the storage temperature and the evaporating temperature.

2) The range is the air supply distance at 0.5 m/s at room temperature.

3) For cooling capacity under other operating conditions, refer to the correction factor.

Pitch 12.0mm

Model Cooling capacity/R404A (KW) area Tube volume Air volume Range Interface specifications (mm) weight
Tc=0℃ Tc=-25 Tc=-35℃ m2 dm3 m3/h m Liquid inlet Returning Qi drain kg
ΔΤ=8K ΔΤ=6K ΔΤ=6K
710 fan series
EN711/FK-ET 16.4 10.8 10.6 73 29.3 12800 30 28 35 R2" 215
EN711/HK-ET 19.8 13 12.8 97 39 12300 29 28 42 R2" 233
EN712/FK-ET 32.8 21.6 21.3 146 56.6 25600 33 35 54 R2" 368
EN712/HK-ET 39.7 26.2 25.8 194 75.5 24600 32 35 54 R2" 402
EN713/FK-ET 49.2 32.4 31.9 219 84 38400 35 35 67 R2" 520
EN713/HK-ET 59.8 39.4 38.8 292 112 36900 34 35 67 R2" 571
800 fan series
EN801/FK-ET 22.5 14.9 14.6 100 39.8 18800 36 28 42 R2" 259
EN801/HK-ET 27.3 18 17.7 133 53.1 18000 35 35 54 R2" 282
EN802/FK-ET 45 29.7 29.3 200 77.4 37600 39 35 67 R2" 445
EN802/HK-ET 54.7 36.1 35.6 267 103.1 36000 38 35 67 R2" 493
EN803/FK-ET 67.5 44.6 43.9 300 114.8 56400 41 2-35 2-54 R2" 634
EN803/HK-ET 82 54.1 53.3 400 153.1 54000 40 2-35 2-54 R2" 711
910 fan series
EN911/FK-ET 29.9 19.7 19.4 133 53.1 25000 41 35 54 R2" 315
EN911/HK-ET 36.5 24.1 23.7 178 70.8 24100 40 35 54 R2" 346
EN912/FK-ET 60.1 39.7 39.1 267 103.1 50000 45 2-35 2-54 R2" 539
EN912/HK-ET 73 48.2 47.5 356 137.5 48200 44 2-35 2-54 R2" 601
EN913/FK-ET 90 59.4 58.5 400 153.1 75000 48 2-35 2-67 R2" 769
EN913/HK-ET 109.3 72.1 71 533 204.1 72300 47 2-35 2-67 R2" 869

1) In the table, Tc is the storage temperature, and ΔΤ is the heat transfer temperature difference, which is the difference between the storage temperature and the evaporating temperature.

2) The range is the air supply distance at 0.5 m/s at room temperature.

3) For cooling capacity under other operating conditions, refer to the correction factor.

Electrical parameters

model fan motor Electric defrost
Voltage (V) Power (W) Current (A) Speed (r/min) Coil (KW) Water tray (KW) Total power (KW)
EN711/D* 380-3 1030 2.35 905 5×1.2 2×1.4 8.8
EN711/E* 380-3 1030 2.35 905 6×1.2 2×1.4 10
EN711/F* 380-3 1030 2.35 905 8×1.2 2×1.4 12.4
EN711/H* 380-3 1030 2.35 905 10×1.2 2×1.4 14.8
EN712/D* 380-3 2060 4.7 905 5×2.4 2×2.6 17.2
EN712/E* 380-3 2060 4.7 905 6×2.4 2×2.6 19.6
EN712/F* 380-3 2060 4.7 905 8×2.4 2×2.6 24.4
EN712/H* 380-3 2060 4.7 905 10×2.4 2×2.6 29.2
EN713/D* 380-3 3090 7.05 905 6×3.0 2×3.0 24
EN713/E* 380-3 3090 7.05 905 7×3.0 2×3.0 27
EN713/F* 380-3 3090 7.05 905 10×3.0 2×3.0 36
EN713/H* 380-3 3090 7.05 905 12×3.0 2×3.0 42
EN801/D* 380-3 1940 3.9 880 6×1.4 2×1.5 11.4
EN801/E* 380-3 1940 3.9 880 8×1.4 2×1.6 14.4
EN801/F* 380-3 1940 3.9 880 9×1.4 2×1.6 15.8
EN801/H* 380-3 1940 3.9 880 12×1.4 2×1.6 20
EN802/D* 380-3 3880 7.8 880 6×2.8 2×2.9 22.6
EN802/E* 380-3 3880 7.8 880 8×2.8 2×2.9 28.2
EN802/F* 380-3 3880 7.8 880 9×2.8 2×2.9 31
EN802/H* 380-3 3880 7.8 880 12×2.8 2×2.9 39.4
EN803/D* 380-3 5820 11.7 880 8×3.0 3×3.0 33
EN803/E* 380-3 5820 11.7 880 11×3.0 3×3.0 42
EN803/F* 380-3 5820 11.7 880 12×3.0 3×3.0 45
EN803/H* 380-3 5820 11.7 880 18×3.0 3×3.0 63
EN911/D* 380-3 2480 5.15 885 8×1.4 2×1.6 14.4
EN911/E* 380-3 2480 5.15 885 10×1.4 2×1.6 17.2
EN911/F* 380-3 2480 5.15 885 12×1.4 2×1.6 20
EN911/H* 380-3 2480 5.15 885 16×1.4 2×1.6 25.6
EN912/D* 380-3 4960 10.3 885 8×2.8 2×2.9 28.2
EN912/E* 380-3 4960 10.3 885 10×2.8 2×2.9 33.8
EN912/F* 380-3 4960 10.3 885 12×2.8 2×2.9 39.4
EN912/H* 380-3 4960 10.3 885 16×2.8 2×2.9 50.6
EN913/D* 380-3 7440 15.45 885 11×3.0 3×3.0 42
EN913/E* 380-3 7440 15.45 885 14×3.0 3×3.0 51
EN913/F* 380-3 7440 15.45 885 18×3.0 3×3.0 63
EN913/H* 380-3 7440 15.45 885 21×3.0 3×3.0 72
03Dimensions
    • 04Unit Configuration

    ●: Standard configuration; ○: Optional configuration; ×: Not optional

    part Configuration part Configuration
    shell Aluminum plate spraying × Defrost Air defrost ○
    Steel plate spraying ○ Electric heating tube ●
    Galvanized sheet spraying ● Hot air (coil + water pan) ○
    stainless steel plate ○ expansion valve ○
    motor EBM external rotor motor ● Drain heating line ○
    Low-light outer rotor motor ○ Wind circle heating zone ○
    aluminum foil Light Foil ○
    Hydrophilic aluminum foil (blue sheet) ●
    05Inquiry

    Zhejiang Kaidi Refrigeration Equipment Co., Ltd

    • 30+

      Years Industry Experience

    • 300+

      Employees

    • 1000Million

      Export Amount

    • 100000+

      Plant Area

    Zhejiang Kaidi Refrigeration Equipment Co., Ltd. was founded in 1995, with “Kaidi” as our registered trademark. As one of the professional China EN Series Large Ceiling Type Evaporator Supplier and Wholesale EN Series Large Ceiling Type EvaporatorOEM/ODM Company, we have been focusing on refrigeration for nearly 30 years. Today, Kaidi has developed into a scientific and technological enterprise integrating scientific research and development, processing and manufacturing, pre-sales program design, product sales and commissioning, and comprehensive after-sales service support. Headquartered in Shengzhou City, Zhejiang Province, our factory covers an area of 100,000 square metres, with more than 60,000 square metres of modern factory buildings and more than 8,000 square metres of offices, as well as Shanghai Hongqiao Office (R&D Centre), Guangzhou Panyu Office, Beijing Branch and so on.

    After years of development, we have the management team of a top 500 enterprise and a standardised and efficient operation system, as well as strong technical research and development strength. The factory is equipped with complete and advanced CNC machining equipment and high-standard testing laboratory, with strong product development and lean processing and manufacturing capabilities; the establishment of a professional pre-sales technical support, after-sales service guarantee system, we not only research and development and production of advanced refrigeration equipment, but also the overall solution provider for high-quality customers to provide first-class products and services to ensure that our purpose and goal.

    Our sales and service network not only spreads all over the country, but also develops rapidly in the world in the past few years, ‘Kaideli’ brand refrigeration products have a high reputation both at home and abroad, and have won the praise and recognition of our customers. At present, our customers include: cold chain logistics enterprises such as GLP, Shunfeng, Jingdong, Yaleng, Kai Orange, etc.; food processing enterprises such as Wufeng, Holliday, Ligao, Qingmei, Zuming, Anjing, Sienian, etc., central kitchens such as Makgindi, Lvcheng, Ajisai, etc.; slaughter enterprises such as Winsome, Xinning, etc.; edible fungi factory planting enterprises such as Xiangru Biological, Guiwang, Huaguang, Zongxing Mushroom, Lisa, etc., as well as Shanghai Pharmaceuticals, China Medicine Group, and so on. Group and so on.

    HONOR & CERTIFICATE

    Our products have obtained, include EC-Type Examination Certificate, BV, MODE, DNV, GL Certificate, EC Attestation of Conformity, Certificate of Type Approval for Marine Product and Lloyd’s Register Quality Assurance.

    • Certificate of conformity for evaluation of test devices
    • Special Equipment Manufacturing License
    • Edible Mushroom Enterprise Manufacturing Star
    • Excellent Unit Member of China Institute of Refrigeration
    • 2023 Guangxi Refrigeration Society Refrigeration and Cold Storage Specialized Committee
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Science and Technology Achievement Appraisal Certificate
    • Computer Software Copyright Registration Certificate
    • Computer Software Copyright Registration Certificate
    • Computer Software Copyright Registration Certificate
    Recently News and Events
    Share with you
    View More News

    SEND MESSAGE

    Leave Your Message*

    Be the First to Know

    For exclusive deals and latest offers, sign up by entering your email address below.

    We focus on refrigeration for nearly 30 years.

    Quick Links

    Products

    Contact Us

    • Zhejiang Kaidi Refrigeration Equipment Co., Ltd Block A, Ganlin Industry Park, Shengzhou, Zhejiang, China.
    • Zhejiang Kaidi Refrigeration Equipment Co., Ltdkd@zjkaideli.com
    • Zhejiang Kaidi Refrigeration Equipment Co., Ltd+86-0575-83272600
      +86-400-188-3366

    Copyright © 2025Zhejiang Kaidi Refrigeration Equipment Co., Ltd

      China EN Series Large Ceiling Type Evaporator Supplier   Wholesale EN Series Large Ceiling Type Evaporator Company
