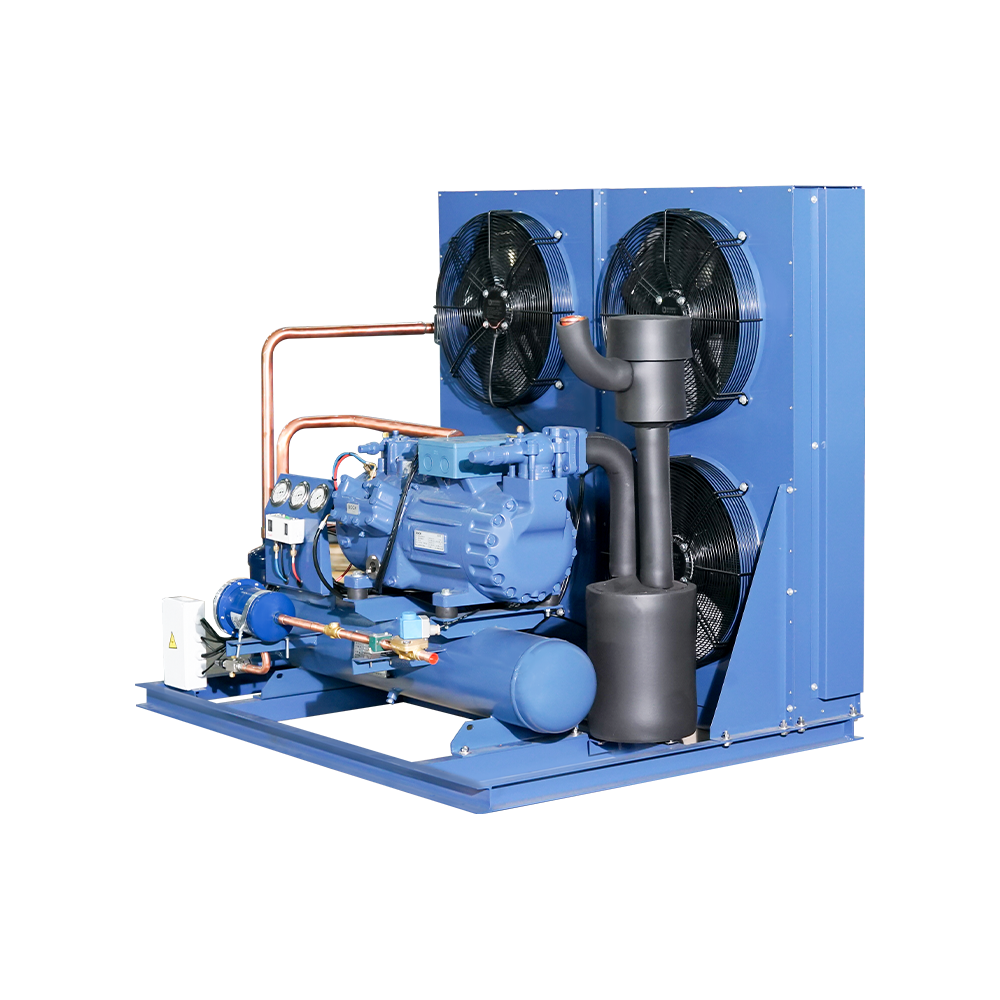

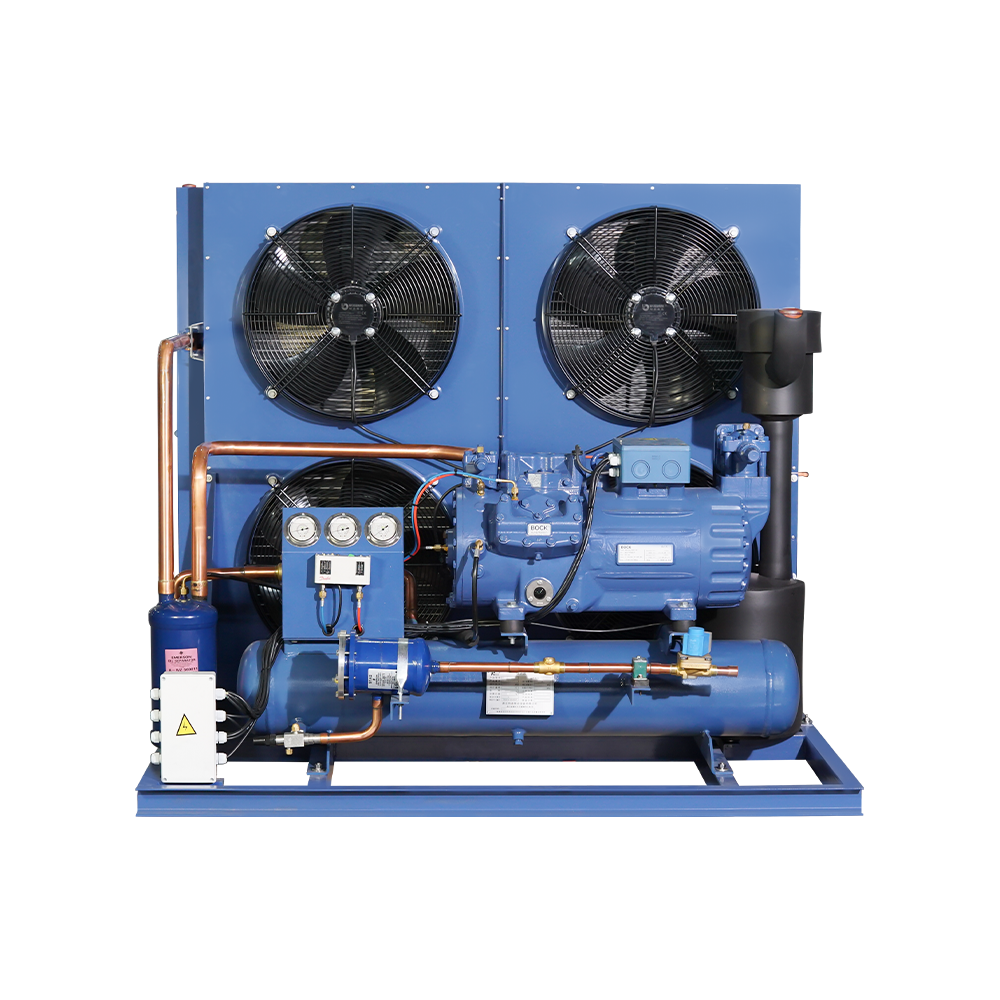

KCFP Series Open Type Condensing Unit

KCFP series Open type Condensing unit is a core refrigeration equipment designed for industrial and large commercial refrigeration systems. It uses an external motor to drive the compressor (open design) and integrates key components such as compressor, air-cooled condenser, and liquid storage tank. It is mainly used to compress, cool and condense gaseous refrigerant into liquid, providing stable refrigeration cycle core power for cold storage, food processing, cold chain logistics and other applications.

CONTACT US
PREV：KCWP Series Open Type Compressor Condensing UnitNEXT：No next product
01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

1. Core compressor system
Equipped with Bitzer original refrigeration compressor to ensure that the operating stability and thermodynamic performance meet the requirements of industrial refrigeration.

2. Water-cooled unit heat exchange system
The shell and tube water condenser adopts a high-efficiency external thread reinforced heat exchange tube design, and the tube wall structure effectively increases the heat exchange area. The manufacturing and acceptance process are carried out in accordance with the NB/T47012-2020 "Pressure Vessel for Refrigeration Equipment" standard to ensure pressure safety and process consistency.

3. Air-cooled unit heat exchange system
The heat exchanger is equipped with a high-efficiency internal thread copper tube, combined with a corrugated aluminum fin structure to improve the air side turbulence efficiency and heat conduction performance.
The fan adopts an external rotor type condensing fan with low noise operation characteristics (the specific sound pressure level needs to refer to the measured data) and high air volume output efficiency.

4. Selection of refrigeration accessories
Key refrigeration components (including but not limited to expansion valves, filters, solenoid valves) use domestic/imported industrial-grade accessories that meet national or international standards to ensure the long-term reliability of system operation.

5. Energy efficiency design characteristics
By increasing the condenser volume margin design, reducing the system condensation temperature, and optimizing the compressor working pressure ratio, the energy efficiency ratio of the whole machine operation is improved (the COP value needs to be measured according to specific working conditions).

6. Technical specifications and applicability
The product covers a wide range of refrigeration temperature ranges (the specific temperature range needs to indicate the model parameters), and can adapt to -40℃ to +10℃ refrigeration needs.
It is suitable for the supporting condensation needs of industrial and commercial refrigeration systems such as fresh-keeping warehouses, refrigeration equipment, and ice machines.

01 Advantages

1. Core compressor system
Equipped with Bitzer original refrigeration compressor to ensure that the operating stability and thermodynamic performance meet the requirements of industrial refrigeration.

2. Water-cooled unit heat exchange system
The shell and tube water condenser adopts a high-efficiency external thread reinforced heat exchange tube design, and the tube wall structure effectively increases the heat exchange area. The manufacturing and acceptance process are carried out in accordance with the NB/T47012-2020 "Pressure Vessel for Refrigeration Equipment" standard to ensure pressure safety and process consistency.

3. Air-cooled unit heat exchange system
The heat exchanger is equipped with a high-efficiency internal thread copper tube, combined with a corrugated aluminum fin structure to improve the air side turbulence efficiency and heat conduction performance.
The fan adopts an external rotor type condensing fan with low noise operation characteristics (the specific sound pressure level needs to refer to the measured data) and high air volume output efficiency.

4. Selection of refrigeration accessories
Key refrigeration components (including but not limited to expansion valves, filters, solenoid valves) use domestic/imported industrial-grade accessories that meet national or international standards to ensure the long-term reliability of system operation.

5. Energy efficiency design characteristics
By increasing the condenser volume margin design, reducing the system condensation temperature, and optimizing the compressor working pressure ratio, the energy efficiency ratio of the whole machine operation is improved (the COP value needs to be measured according to specific working conditions).

6. Technical specifications and applicability
The product covers a wide range of refrigeration temperature ranges (the specific temperature range needs to indicate the model parameters), and can adapt to -40℃ to +10℃ refrigeration needs.
It is suitable for the supporting condensation needs of industrial and commercial refrigeration systems such as fresh-keeping warehouses, refrigeration equipment, and ice machines.

02Specifications
KC F P - 005 M / BZ
Compressor brand code
Unit applicable temperature code; H: high temperature, M: medium temperature, L: low temperature
Compressor nominal power (HP)
Piston compressor code
Cooling method: F: air cooling, W: water cooling
Kaidi compression condensing unit product series

Air-cooled medium-temperature applications (applicable evaporation temperature -5°C to -20°C) (refrigerant R404A)

Unit model KCFP-005MR1/BZ KCFP-006MR1/BZ KCFP-007MR1/BZ KCFP-009MR1/BZ KCFP-010MR1/BZ KCFP-012MR1/BZ KCFP-015MR1/BZ KCFP-020MR1/BZ KCFP-025MR1/BZ KCFP-030MR1/BZ KCFP-035MR1/BZ KCFP-040MR1/BZ KCFP-050MR1/BZ
power supply 380V/3 phase/50 HZ
Applicable storage temperature (℃) -10℃ ~5 ℃
compressor model 4FES-5Y 4EES-6Y 4DES-7Y 4CES-9Y 4VES-10Y 4TES-12Y 4PES-15Y 4NES-20Y 4HE-25Y 4GE-30Y 6HE-35Y 6GE-40Y 6FE-50Y
Maximum operating current (A) 10.8 13.6 16.5 20.2 19.9 25.1 28.2 33.2 44 51.2 64.4 73.9 96.2
Condenser model KGHM017 KGHM025 KGHM025 KGHM033 KGHM033 KGHM044 KGHM044 KGHM055 KGVT062(Split) KGVT074(Split) KGVT098(Split) KGVT102(Split) KGVT132(Split)
Fan power (W) 180×2 250×2 250×2 180×4 180×4 600×2 600×2 390×4 800×2 780×3 800×3 800×3 800×4
Current (A) 0.9 1.25 1.25 1.8 1.8 3 3 3.9 4 5.85 6 6 8
Reservoir Volume (L) 6 8 10 10 15 15 20 20 40 40 45 45 75
Compressor cooling capacity and power Evaporation -5℃ Cooling capacity (kW) 10.39 13.06 15.32 19.15 19.94 24.2 27.5 33 43.5 49.9 63.9 72.6 88.4
Power (kW) 4.38 5.54 6.42 8.13 8.01 9.86 11.17 13.32 17.59 20.3 26.1 30.3 37.5
Evaporation-7℃ Cooling capacity (kW) 9.51 11.94 14.02 17.51 18.16 22 25 30.1 39.8 45.7 58.5 66.5 81.2
Power (kW) 4.27 5.39 6.25 7.89 7.74 9.53 10.78 12.89 17.04 19.7 25.4 29.4 36.4
Evaporation-10℃ Cooling capacity (kW) 8.3 10.4 12.24 15.25 15.72 19.12 21.6 26.1 34.8 39.9 51.1 58.2 71.1
Power (kW) 4.09 5.14 5.97 7.51 7.32 9.02 10.17 12.2 16.19 18.71 24.2 28 34.6
Evaporation-15℃ Cooling capacity (kW) 6.55 8.18 9.65 11.98 12.21 14.91 16.74 20.4 27.4 31.6 40.3 46.2 56.5
Power (kW) 3.76 4.7 5.47 6.82 6.58 8.13 9.09 11 14.7 16.99 22 25.6 31.5
interface Suction port (mm) φ22 φ28 φ28 φ28 φ28 φ35 φ42 φ42 φ54 φ54 φ54 φ54 φ54
Liquid supply interface (mm) φ12 φ12 φ16 φ16 φ16 φ16 φ22 φ22 φ22 φ22 φ28 φ28 φ35
Weight (kg) 175 200 210 240 305 335 405 410 325 340 380 385 415
Noise dBA (1 meter sound pressure level) 71 73 75 77 78 79 80 83 81 87 90 91 91
Dimensions A (mm) 1300 1300 1300 1300 1250 1565 1565 1565 1310 1310 1410 1410 1480
B (mm) 750 750 750 750 880 980 980 980 700 700 775 775 810
C (mm) 765 915 915 1165 1180 1230 1230 1380 840 840 830 830 880
Installation dimensions (a×b) (mm) 1250×440 1250×440 1250×440 1250×440 1175×680 1531×730 1531×730 1531×730 900×330 900×330 1000×330 1000×330 1100×380

Air-cooled low-temperature applications (applicable evaporation temperature -20°C to -30°C) (refrigerant R404A)

Unit model KCFP-003LR1/BZ KCFP-004LR1/BZ KCFP-005LR1/BZ KCFP-006LR1/BZ KCFP-008LR1/BZ KCFP-010LR1/BZ KCFP-012LR1/BZ KCFP-015LR1/BZ KCFP-020LR1/BZ KCFP-025LR1/BZ KCFP-030LR1/BZ KCFP-040LR1/BZ
power supply 380V/3 phase/50 HZ
Applicable storage temperature (℃) -15℃ ~-25℃
compressor model 4FES-3Y 4EES-4Y 4DES-5Y 4VES-7Y 4TES-9Y 4PES-12Y 4NES-14Y 4HE-18Y 4GE-23Y 6HE-28Y 6GE-34Y 6FE-44Y
Maximum operating current (A) 6.1 12.2 14.5 16.6 19.9 22.7 26.6 36.7 43.9 53.2 65.5 83.2
Condenser model KGHM010 KGHM012 KGHM019 KGHM025 KGHM029 KGHM029 KGHM036 KGHM055 KGHM061 KGVT062(Split) KGVT074(Split) KGVT093(Split)
Fan power (W) 250×1 390×1 180×2 250×2 390×2 390×2 180×4 390×4 390×4 800×2 780×3 800×3
Current (A) 0.63 0.98 0.9 1.25 1.95 1.95 1.8 3.9 3.9 4 5.85 6
Reservoir Volume (L) 6 8 8 15 15 20 20 25 25 40 40 45
Compressor cooling capacity and power Evaporation-20℃ Cooling capacity (kW) 5.09 6.47 7.49 9.29 11.48 12.81 15.59 21.8 25.6 32.1 38.3 45.7
Power (kW) 3.45 4.36 5 5.92 7.34 8.03 9.92 13.66 16.24 20.2 24.6 29.6
Evaporation-25℃ Cooling capacity (kW) 3.89 4.94 5.72 6.92 8.62 9.5 11.7 16.69 19.67 24.6 29.7 35.3
Power (kW) 3.06 3.94 4.41 5.08 6.35 6.88 8.58 12 14.27 17.69 21.8 26.2
Evaporation-30℃ Cooling capacity (kW) 2.91 3.69 4.27 4.99 6.31 6.83 8.55 12.45 14.82 18.34 22.6 26.6
Power (kW) 2.66 3.32 3.82 4.26 5.38 5.74 7.24 10.35 12.33 15.2 18.95 22.7
interface Suction port (mm) φ22 φ28 φ28 φ28 φ35 φ35 φ35 φ42 φ54 φ54 φ54 φ54
Liquid supply interface (mm) φ12 φ12 φ12 φ16 φ16 φ16 φ16 φ22 φ22 φ22 φ22 φ28
Weight (kg) 160 175 190 265 280 310 345 450 465 365 375 415
Noise dBA (1 meter sound pressure level) 71 73 75 78 79 80 83 81 87 90 90 91
Dimensions A (mm) 920 920 1300 1250 1250 1250 1250 1565 1565 1310 1310 1410
B (mm) 730 730 750 880 880 880 880 980 980 700 700 775
C (mm) 710 785 800 930 980 980 1380 1380 1380 840 840 830
Installation dimensions (a×b) (mm) 870×525 870×525 1250×440 1175×680 1175×680 1175×680 1175×680 1531×730 1531×730 900×330 900×330 1000×330

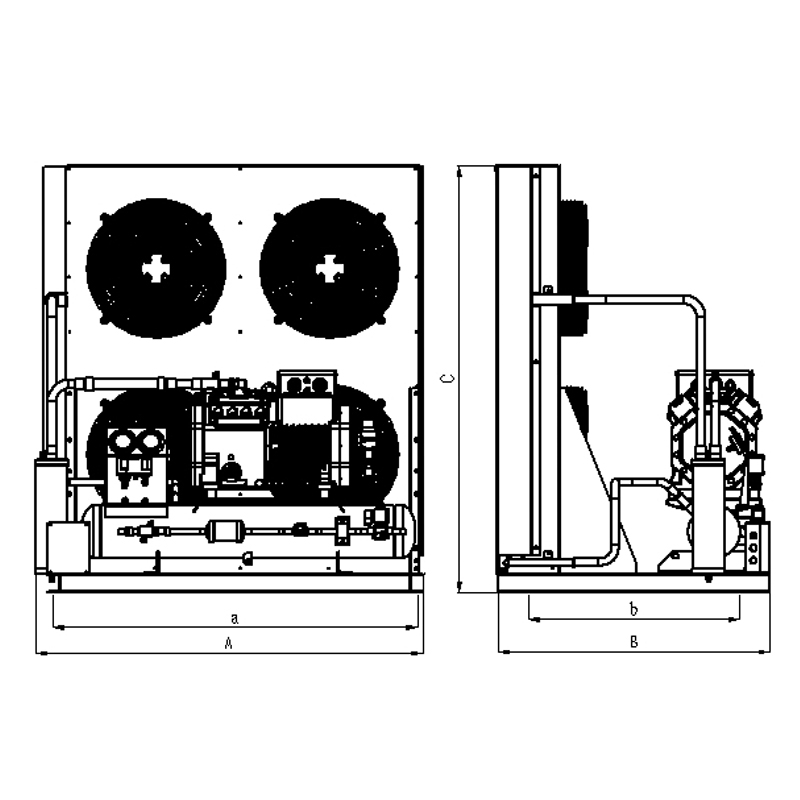

03Dimensions
    • 04Unit Configuration

    Standard and optional

    ①Compressor ②Oil heating ③ shock absorber tube ④Oil separator ⑤Condenser ⑥Liquid reservoir ⑦Filter ⑧ sight glass ⑨Solenoid valve ⑩High and low pressure gauges ⑪Mechanical pressure control  ⑫ Oil pressure protection (some units do not have) ⑬Gas-liquid separator ⑭Suction filter cartridge
    Common configuration includes: ①②⑤⑥⑦⑨⑩⑪⑫
    Standard configuration includes: ①②③④⑤⑥⑦⑧⑨⑩⑪⑫
    Contains: ①②③④⑤⑥⑦⑧⑨⑩⑪⑫⑬⑭
