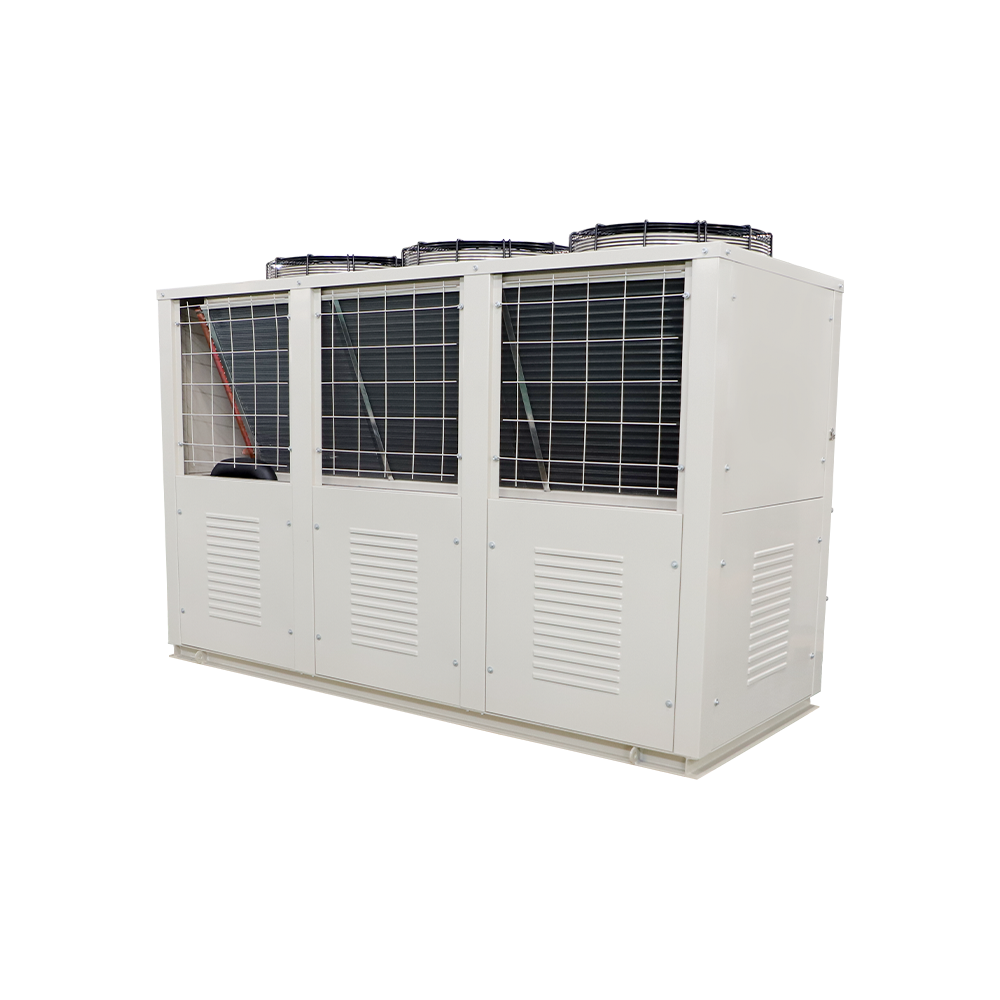

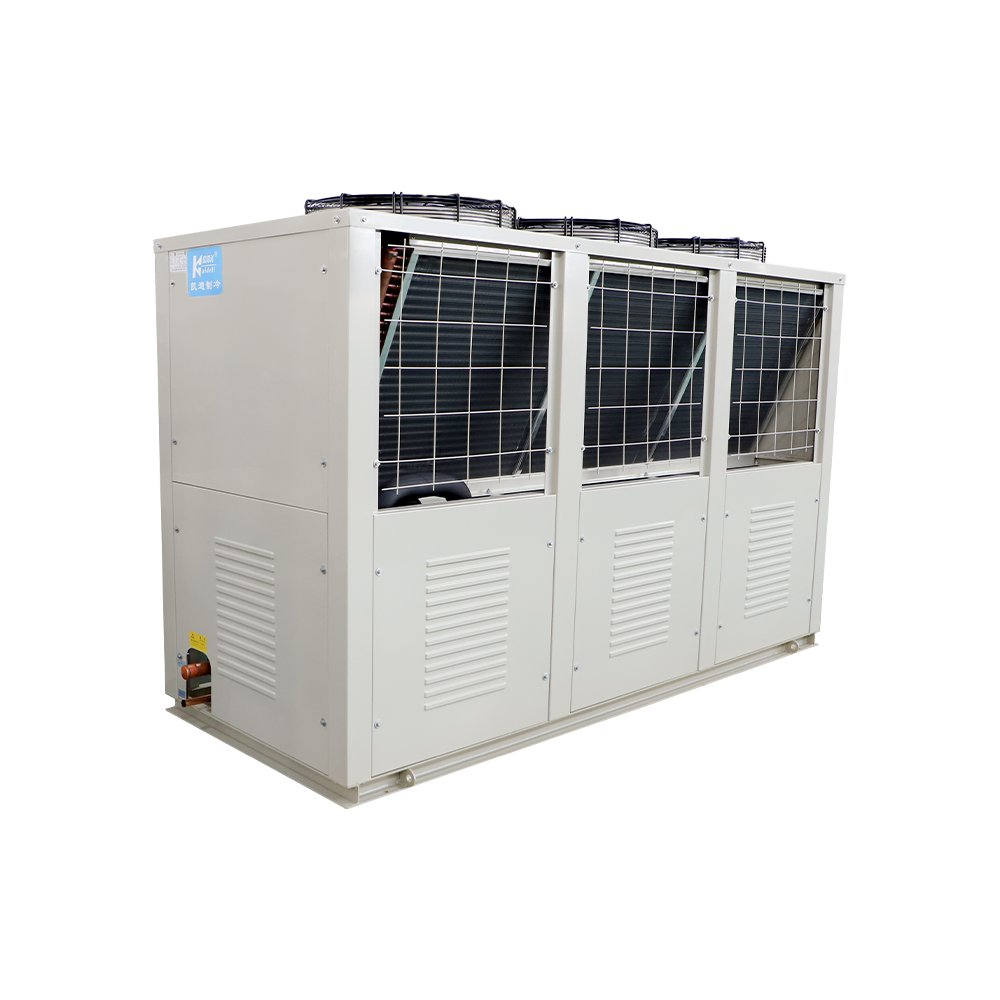

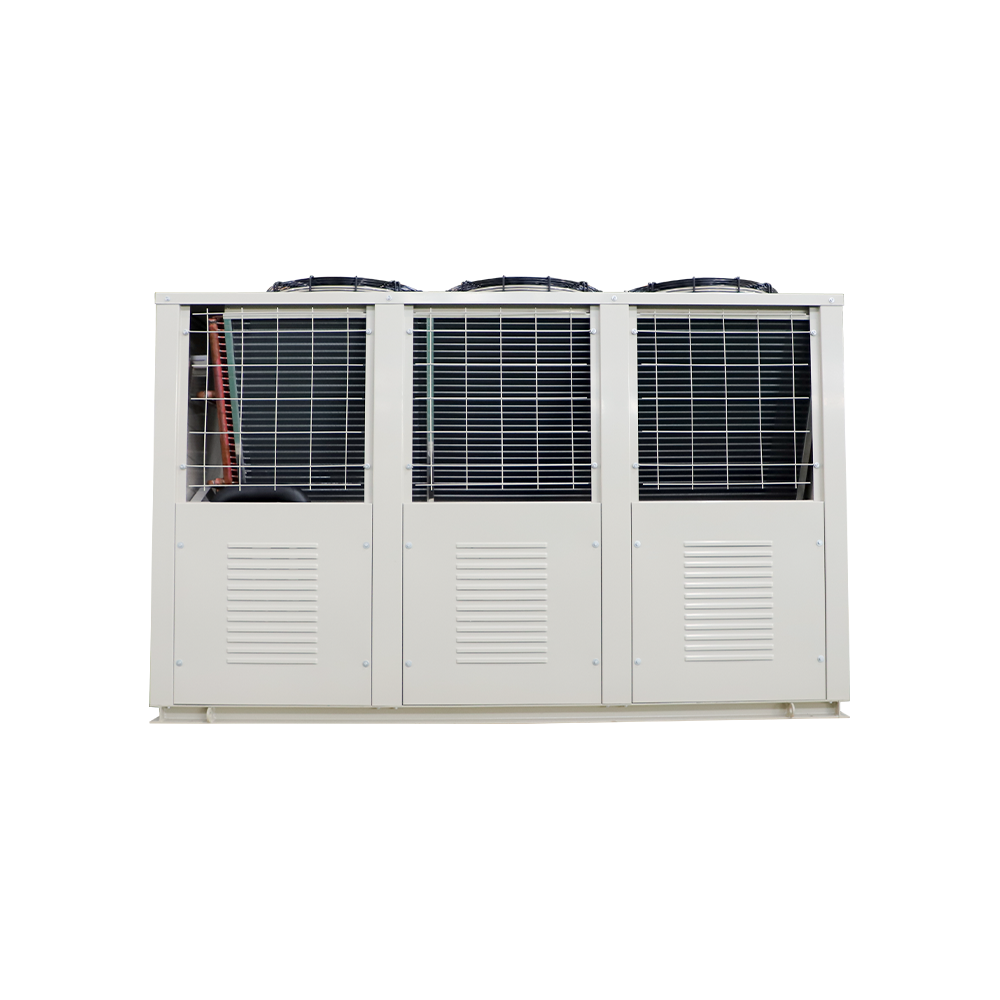

KCFV1P Series V Type Box Type Condensing Unit

KCFV1P series V type box type condensing unit is a V type box type compression condensing unit with excellent design and performance, specially designed to meet various refrigeration needs. It integrates the compressor, condenser, liquid receiver and related control components into a compact and beautiful box, providing efficient and reliable refrigeration core solutions.

CONTACT US
01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

1. Structural design: integrated sheet metal box, compact structure, small footprint, V-shaped air duct layout, uniform forced convection, heat exchange efficiency increased by 15%+

2. Performance parameters: high energy efficiency ratio design (COP≥3.2), compatible with refrigerants such as R134a/R404A/R507/R22, applicable temperature range -40℃~+10℃

3. Component configuration: support mainstream compressor brands such as Bitzer, Copeland, Danfoss, external rotor EC fan, IP54 protection level, plate/shell and tube heat exchanger optional

4. Operation and maintenance advantages: quick-detachable maintenance panel (≤3min disassembly), fully welded pipeline system, leakage rate <0.5%/year, shockproof foot pad + noise reduction design (≤72dB(A))

5. Application scope: refrigeration industry, cold storage engineering, agriculture, food processing, catering, chemical industry

01 Advantages

1. Structural design: integrated sheet metal box, compact structure, small footprint, V-shaped air duct layout, uniform forced convection, heat exchange efficiency increased by 15%+

2. Performance parameters: high energy efficiency ratio design (COP≥3.2), compatible with refrigerants such as R134a/R404A/R507/R22, applicable temperature range -40℃~+10℃

3. Component configuration: support mainstream compressor brands such as Bitzer, Copeland, Danfoss, external rotor EC fan, IP54 protection level, plate/shell and tube heat exchanger optional

4. Operation and maintenance advantages: quick-detachable maintenance panel (≤3min disassembly), fully welded pipeline system, leakage rate <0.5%/year, shockproof foot pad + noise reduction design (≤72dB(A))

5. Application scope: refrigeration industry, cold storage engineering, agriculture, food processing, catering, chemical industry

02Specifications
K C F V1 P - 008 L / BZ
Various compressor codes: such as Copeland (EM), Bitzer (BZ)
H means high temperature environment; M means medium temperature environment; S means for low temperature environment;
Compressor motor rated power (horsepower or horsepower code)
Indicates the compressor type
Indicates the structural type
F indicates air-cooled
C represents compressor condensing unit
K stands for Kaideli

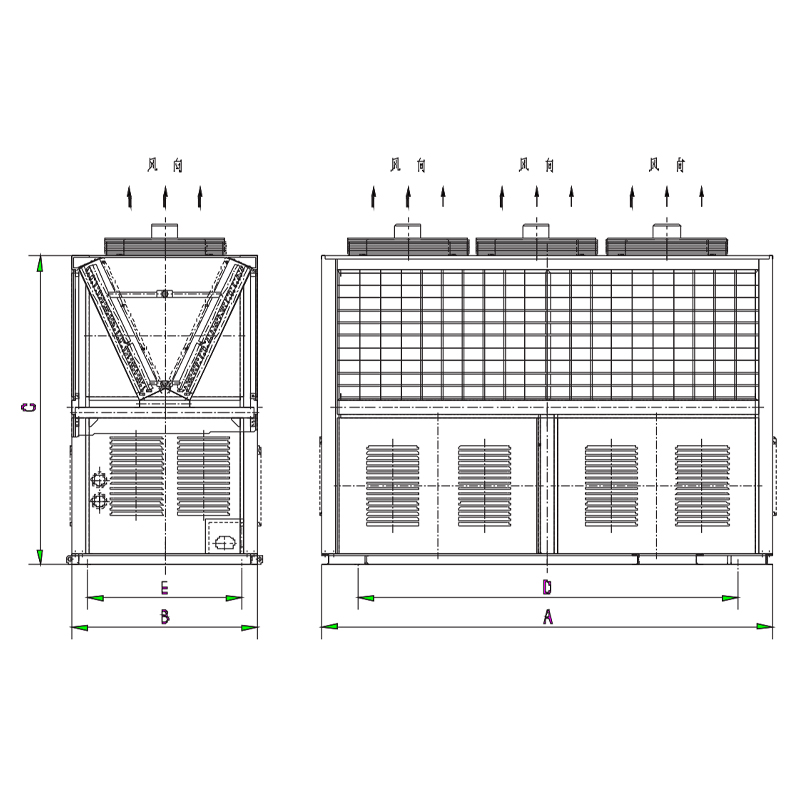

03Dimensions
  • 04Unit Configuration
    05Inquiry
