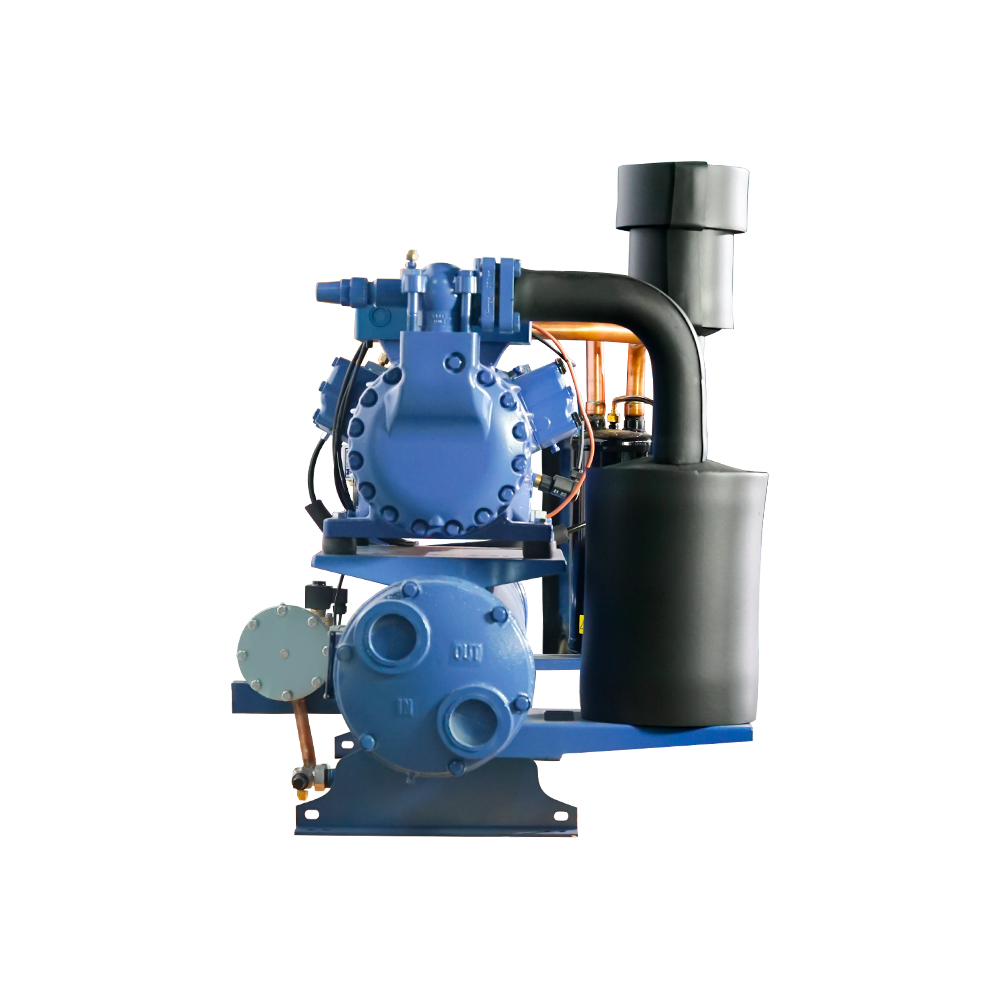

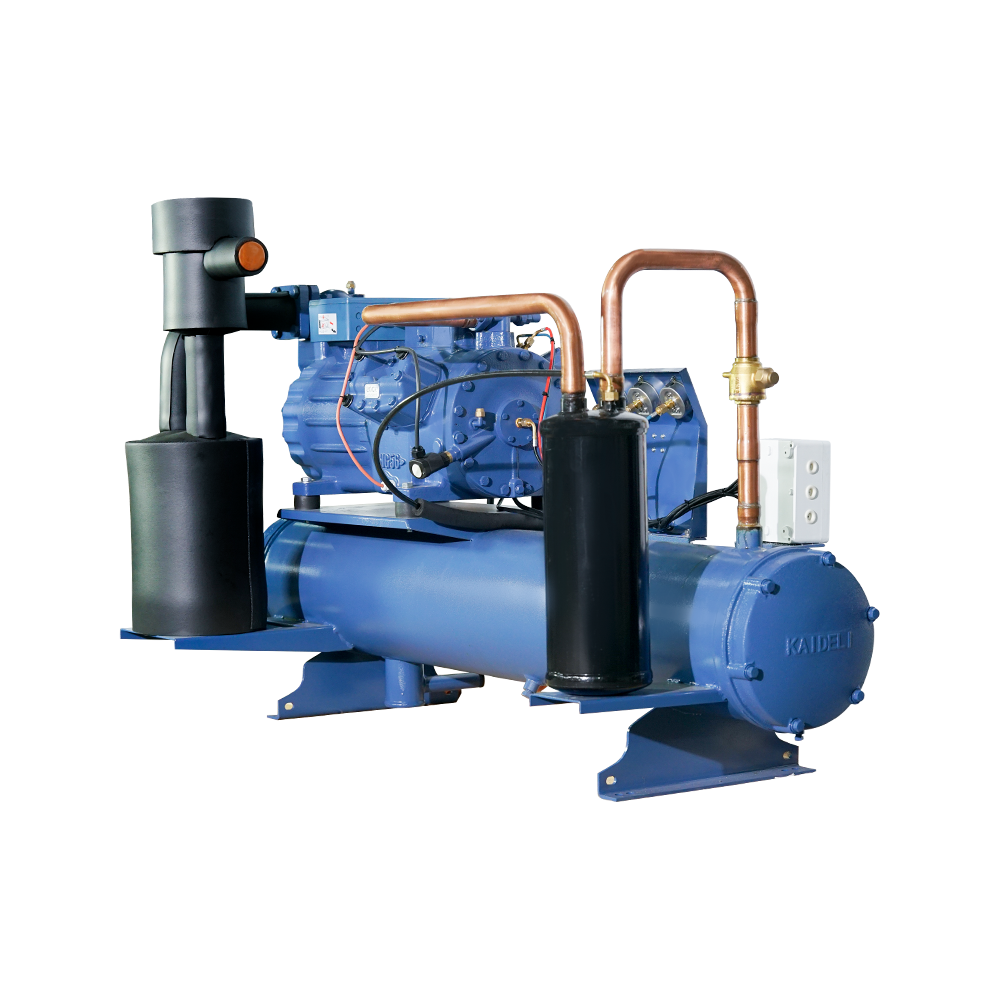

KCWP Series Open Type Compressor Condensing Unit

KCWP series Open type compressor Condensing unit takes high-quality configuration and high-efficiency performance as its core advantages, and is suitable for refrigeration needs in multiple fields. The core is equipped with Bitzer original head, which has strong stability; the condensing system is divided into water cooling and air cooling - the water-cooled model is equipped with high-efficiency external threaded heat exchange tubes (in accordance with NB/T47012-2020 standard), and the air-cooled model uses internal threaded heat exchange tubes and corrugated aluminum fins, with low-noise and high-efficiency external rotor fans, and the heat exchange efficiency is outstanding. The unit uses high-quality accessories to ensure reliable operation and long life, and the condenser has large capacity and high energy efficiency ratio. The series of models is complete, with a wide range of applicable temperature. It can be equipped with equipment such as fresh-keeping, refrigeration, and ice making, and is widely used in food, medicine, industry and other industries.

PREV：No previous product NEXT：KCFP Series Open Type Condensing Unit

01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

Core components: using Bitzer original head, strong stability and superior performance, providing solid guarantee for long-term continuous operation of the unit, ensuring stable and reliable refrigeration process.

Condensation system:
Water-cooled model: Equipped with high-efficiency external thread heat exchange shell and tube condenser, strictly abide by NB/T47012-2020 "Pressure Vessel for Refrigeration Equipment" standard manufacturing acceptance, high heat exchange efficiency, can quickly achieve heat exchange.
Air-cooled model: Adopts high-efficiency internal thread heat exchange tube and corrugated aluminum fin combination, matched with external rotor condensing fan, with low noise, high efficiency, significant heat dissipation effect, suitable for a variety of environments.

Accessories and reliability: Select high-quality domestic and foreign brand refrigeration accessories, strictly select and adapt the compressor system, effectively reduce the failure rate, extend the service life of the equipment, and ensure the stable operation of the whole machine.
Energy efficiency performance: The condenser is designed with sufficient capacity, which can fully enhance the heat exchange process and improve the energy efficiency ratio of the whole machine. While ensuring strong refrigeration performance, it reduces energy consumption costs and achieves a balance between energy saving and high efficiency.

Applicable scenarios: The series has a rich range of models and a wide range of applicable temperature. It can be used with a variety of refrigeration systems such as fresh-keeping warehouses, refrigeration equipment, ice-making units, etc. It is widely used in food processing, pharmaceutical warehousing, industrial refrigeration and other fields to meet the diverse refrigeration needs of different scenarios.

005

Compressor brand code

Unit applicable temperature code; H: high temperature, M: medium temperature, L: low temperature

Compressor nominal power (HP)

Piston compressor code

Cooling method: F: air cooling, W: water cooling

Kaidi compression condensing unit product series

Air-cooled medium-temperature applications (applicable evaporation temperature -5°C to -20°C) (refrigerant R404A)

Unit model			KCWP-005MR1/BZ	KCWP-006MR1/BZ	KCWP-007MR1/BZ	KCWP-009MR1/BZ	KCWP-010MR1/BZ	KCWP-012MR1/BZ	KCWP-015MR1/BZ	KCWP-020MR1/BZ	KCWP-025MR1/BZ	KCWP-030MR1/BZ	KCWP-035MR1/BZ	KCWP-040MR1/BZ	KCWP-050MR1/BZ
power supply			380V/3 phase/50 HZ
Applicable storage temperature (℃)			-10℃ ~5 ℃
compressor	model		4FES-5Y	4EES-6Y	4DES-7Y	4CES-9Y	4VES-10Y	4TES-12Y	4PES-15Y	4NES-20Y	4HE-25Y	4GE-30Y	6HE-35Y	6GE-40Y	6FE-50Y
compressor	Maximum operating current (A)		10.8	13.6	16.5	20.2	19.9	25.1	28.2	33.2	44	51.2	64.4	73.9	96.2
Condenser	model		KCWS-008JD1B	KCWS-008JD1B	KCWS-010JD1B	KCWS-015JD1B	KCWS-015JD1B	KCWS-015JD1B	KCWS-020JD1B	KCWS-025JD1B	KCWS-035JD1B	KCWS-035D1B	KCWS-050JD1B	KCWS-060JD1B	KCWS-060JD1B
	Water flow (m3/h)		4.22	4.22	4.22	7.91	7.91	7.91	9.21	10.78	15.21	15.21	21.56	28.01	28.01
	Water interface		1-1/2"	1-1/2"	1-1/2"	2 "	2 "	2"	2"	2"	2"	2"	2-1/2"	2-1/2"	2-1/2"
Compressor cooling capacity and power	Evaporation -5℃	Cooling capacity (kW)	11.59	14.56	17.01	21.2	22.3	26.9	30.8	36.7	48.3	55.4	70.9	80.6	98.2
	Evaporation -5℃	Power (kW)	4.14	5.24	6.06	7.66	7.61	9.33	10.62	12.6	16.68	19.3	24.7	28.7	35.7
	Evaporation -7℃	Cooling capacity (kW)	10.63	13.34	15.6	19.44	20.3	24.6	28.1	33.6	44.3	50.9	65	74	90.3
	Evaporation -7℃	Power (kW)	4.04	5.11	5.92	7.46	7.38	9.05	10.29	12.23	16.21	18.76	24.1	27.9	34.7
	Evaporation -10℃	Cooling capacity (kW)	9.3	11.66	13.65	17	17.68	21.4	24.4	29.2	38.8	44.6	57	65	79.4
	Evaporation -10℃	Power (kW)	3.89	4.9	5.68	7.14	7.01	8.61	9.76	11.64	15.47	17.89	23	26.7	33.2
	Evaporation -15℃	Cooling capacity (kW)	7.37	9.22	10.83	13.45	13.84	16.85	19.03	23	30.8	35.5	45.3	51.8	63.4
	Evaporation -15℃	Power (kW)	3.61	4.51	5.24	6.54	6.36	7.82	8.8	10.58	14.16	16.37	21.1	24.6	30.4
interface	Suction port (mm)		φ22	28	28	28	28	35	42	42	54	54	54	54	54
interface	Liquid supply interface (mm)		φ16	16	22	22	22	28	28	28	28	28	35	35	42
Weight (kg)			241	241	245	293	352	354	358	392	466	470	534	554	558
Noise dB(A) (1 meter sound pressure level)			61	64	66	67	66	67	69	71	71	74	74	76	75
Dimensions		A (mm)	1050	1050	1050	1255	1255	1255	1365	1655	1655	1655	1855	1855	1855
		B (mm)	590	590	590	645	630	630	710	710	710	710	770	770	770
		C (mm)	755	755	755	810	890	890	850	945	900	900	890	890	890
Installation dimensions (a×b) (mm)			650*330	650*330	650*330	970*330	970*330	970*330	970*330	1100*380	1100*380	1300*380	1300*380	1300*380	1300*380

Air-cooled low-temperature applications (applicable evaporation temperature -20°C to -30°C) (refrigerant R404A)

Unit model			KCWP-003L R1/BZ	KCWP-004L R1/BZ	KCWP-005L R1/BZ	KCWP-006L R1/BZ	KCWP-008L R1/BZ	KCWP-010L R1/BZ	KCWP-012L R1/BZ	KCWP-015L R1/BZ	KCWP-020L R1/BZ	KCWP-025L R1/BZ	KCWP-030L R1/BZ	KCWP-040L R1/BZ
power supply			380V/3 phase/50 HZ
Applicable storage temperature (℃)			-20℃ ~-15℃
compressor	model		4FES-3Y	4EES-4Y	4DES-5Y	4VES-7Y	4TES-9Y	4PES-12Y	4NES-14Y	4HE-18Y	4GE-23Y	6HE-28Y	6GE-34Y	6FE-44Y
compressor	Maximum operating current (A)		9.5	12.2	14.5	16.6	19.9	22.7	26.6	36.7	43.9	53.2	65.5	83.2
Condenser	model		KCWS-005JD1B	KCWS-005JD1B	KCWS-008JD1B	KCWS-008JD1B	KCWS-010JD1B	KCWS-015JD1B	KCWS-015JD1B	KCWS-020JD1B	KCWS-025JD1B	KCWS-030JD1B	KCWS-040JD1B	KCWS-040JD1B
	Water flow (m3/h)		2.85	2.85	4.22	4.22	5.29	7.91	7.91	9.21	10.78	12.69	12.69	19.01
	Water interface		1-1/2"	1-1/2"	1-1/2"	1-1/2"	1-1/2"	2"	2"	2"	2"	2-1/2"	2-1/2"	2-1/2"
Compressor cooling capacity and power	Evaporation -20℃	Cooling capacity (kW)	5.77	7.32	8.48	10.65	13.08	14.71	17.8	24.7	28.8	36.3	43	51.5
	Evaporation -20℃	Power (kW)	3.33	4.2	4.82	5.75	14.77	7.86	9.67	13.23	15.68	19.49	23.6	28.6
	Evaporation -25℃	Cooling capacity (kW)	4.44	5.64	6.53	8.03	9.94	11.06	13.52	19.05	22.4	28	33.6	40.1
	Evaporation -25℃	Power (kW)	2.97	3.73	4.29	4.97	6.2	6.81	8.45	11.72	13.88	17.25	21.1	25.5
	Evaporation -30℃	Cooling capacity (kW)	3.36	4.26	4.93	5.88	7.37	8.09	10.03	14.38	17.02	21.2	25.8	30.5
	Evaporation -30℃	Power (kW)	2.61	3.25	3.74	4.21	5.3	5.76	7.23	10.2	12.09	14.97	18.46	22.4
interface	Suction port (mm)		22	28	28	28	35	35	35	42	54	54	54	54
interface	Liquid supply interface (mm)		16	16	22	22	28	28	28	28	28	32	35	42
Weight (kg)			234	237	241	293	300	352	354	407	443	487	504	517
Noise dB(A) (1 meter sound pressure level)			62	64	66	69	70	71	74	72	78	81	81	82
Dimensions		A (mm)	1150	1050	1050	1150	1150	1150	1251	1255	1365	1655	1655	1655
		B (mm)	505	590	590	590	590	590	630	650	710	775	775	870
		C (mm)	735	735	755	760	800	800	890	900	975	960	960	960
Installation dimensions (a×b) (mm)			650*330	650*330	650*330	650*330	650*330	970*380	970*380	1100*380	1100*380	1100*380	1100*380	1100*380

01 Advantages

02Specifications

005

Compressor brand code

Unit applicable temperature code; H: high temperature, M: medium temperature, L: low temperature

Compressor nominal power (HP)

Piston compressor code

Cooling method: F: air cooling, W: water cooling

Kaidi compression condensing unit product series

Air-cooled medium-temperature applications (applicable evaporation temperature -5°C to -20°C) (refrigerant R404A)

Unit model			KCWP-005MR1/BZ	KCWP-006MR1/BZ	KCWP-007MR1/BZ	KCWP-009MR1/BZ	KCWP-010MR1/BZ	KCWP-012MR1/BZ	KCWP-015MR1/BZ	KCWP-020MR1/BZ	KCWP-025MR1/BZ	KCWP-030MR1/BZ	KCWP-035MR1/BZ	KCWP-040MR1/BZ	KCWP-050MR1/BZ
power supply			380V/3 phase/50 HZ
Applicable storage temperature (℃)			-10℃ ~5 ℃
compressor	model		4FES-5Y	4EES-6Y	4DES-7Y	4CES-9Y	4VES-10Y	4TES-12Y	4PES-15Y	4NES-20Y	4HE-25Y	4GE-30Y	6HE-35Y	6GE-40Y	6FE-50Y
compressor	Maximum operating current (A)		10.8	13.6	16.5	20.2	19.9	25.1	28.2	33.2	44	51.2	64.4	73.9	96.2
Condenser	model		KCWS-008JD1B	KCWS-008JD1B	KCWS-010JD1B	KCWS-015JD1B	KCWS-015JD1B	KCWS-015JD1B	KCWS-020JD1B	KCWS-025JD1B	KCWS-035JD1B	KCWS-035D1B	KCWS-050JD1B	KCWS-060JD1B	KCWS-060JD1B
	Water flow (m3/h)		4.22	4.22	4.22	7.91	7.91	7.91	9.21	10.78	15.21	15.21	21.56	28.01	28.01
	Water interface		1-1/2"	1-1/2"	1-1/2"	2 "	2 "	2"	2"	2"	2"	2"	2-1/2"	2-1/2"	2-1/2"
Compressor cooling capacity and power	Evaporation -5℃	Cooling capacity (kW)	11.59	14.56	17.01	21.2	22.3	26.9	30.8	36.7	48.3	55.4	70.9	80.6	98.2
	Evaporation -5℃	Power (kW)	4.14	5.24	6.06	7.66	7.61	9.33	10.62	12.6	16.68	19.3	24.7	28.7	35.7
	Evaporation -7℃	Cooling capacity (kW)	10.63	13.34	15.6	19.44	20.3	24.6	28.1	33.6	44.3	50.9	65	74	90.3
	Evaporation -7℃	Power (kW)	4.04	5.11	5.92	7.46	7.38	9.05	10.29	12.23	16.21	18.76	24.1	27.9	34.7
	Evaporation -10℃	Cooling capacity (kW)	9.3	11.66	13.65	17	17.68	21.4	24.4	29.2	38.8	44.6	57	65	79.4
	Evaporation -10℃	Power (kW)	3.89	4.9	5.68	7.14	7.01	8.61	9.76	11.64	15.47	17.89	23	26.7	33.2
	Evaporation -15℃	Cooling capacity (kW)	7.37	9.22	10.83	13.45	13.84	16.85	19.03	23	30.8	35.5	45.3	51.8	63.4
	Evaporation -15℃	Power (kW)	3.61	4.51	5.24	6.54	6.36	7.82	8.8	10.58	14.16	16.37	21.1	24.6	30.4
interface	Suction port (mm)		φ22	28	28	28	28	35	42	42	54	54	54	54	54
interface	Liquid supply interface (mm)		φ16	16	22	22	22	28	28	28	28	28	35	35	42
Weight (kg)			241	241	245	293	352	354	358	392	466	470	534	554	558
Noise dB(A) (1 meter sound pressure level)			61	64	66	67	66	67	69	71	71	74	74	76	75
Dimensions		A (mm)	1050	1050	1050	1255	1255	1255	1365	1655	1655	1655	1855	1855	1855
		B (mm)	590	590	590	645	630	630	710	710	710	710	770	770	770
		C (mm)	755	755	755	810	890	890	850	945	900	900	890	890	890
Installation dimensions (a×b) (mm)			650*330	650*330	650*330	970*330	970*330	970*330	970*330	1100*380	1100*380	1300*380	1300*380	1300*380	1300*380

Air-cooled low-temperature applications (applicable evaporation temperature -20°C to -30°C) (refrigerant R404A)

Unit model			KCWP-003L R1/BZ	KCWP-004L R1/BZ	KCWP-005L R1/BZ	KCWP-006L R1/BZ	KCWP-008L R1/BZ	KCWP-010L R1/BZ	KCWP-012L R1/BZ	KCWP-015L R1/BZ	KCWP-020L R1/BZ	KCWP-025L R1/BZ	KCWP-030L R1/BZ	KCWP-040L R1/BZ
power supply			380V/3 phase/50 HZ
Applicable storage temperature (℃)			-20℃ ~-15℃
compressor	model		4FES-3Y	4EES-4Y	4DES-5Y	4VES-7Y	4TES-9Y	4PES-12Y	4NES-14Y	4HE-18Y	4GE-23Y	6HE-28Y	6GE-34Y	6FE-44Y
compressor	Maximum operating current (A)		9.5	12.2	14.5	16.6	19.9	22.7	26.6	36.7	43.9	53.2	65.5	83.2
Condenser	model		KCWS-005JD1B	KCWS-005JD1B	KCWS-008JD1B	KCWS-008JD1B	KCWS-010JD1B	KCWS-015JD1B	KCWS-015JD1B	KCWS-020JD1B	KCWS-025JD1B	KCWS-030JD1B	KCWS-040JD1B	KCWS-040JD1B
	Water flow (m3/h)		2.85	2.85	4.22	4.22	5.29	7.91	7.91	9.21	10.78	12.69	12.69	19.01
	Water interface		1-1/2"	1-1/2"	1-1/2"	1-1/2"	1-1/2"	2"	2"	2"	2"	2-1/2"	2-1/2"	2-1/2"
Compressor cooling capacity and power	Evaporation -20℃	Cooling capacity (kW)	5.77	7.32	8.48	10.65	13.08	14.71	17.8	24.7	28.8	36.3	43	51.5
	Evaporation -20℃	Power (kW)	3.33	4.2	4.82	5.75	14.77	7.86	9.67	13.23	15.68	19.49	23.6	28.6
	Evaporation -25℃	Cooling capacity (kW)	4.44	5.64	6.53	8.03	9.94	11.06	13.52	19.05	22.4	28	33.6	40.1
	Evaporation -25℃	Power (kW)	2.97	3.73	4.29	4.97	6.2	6.81	8.45	11.72	13.88	17.25	21.1	25.5
	Evaporation -30℃	Cooling capacity (kW)	3.36	4.26	4.93	5.88	7.37	8.09	10.03	14.38	17.02	21.2	25.8	30.5
	Evaporation -30℃	Power (kW)	2.61	3.25	3.74	4.21	5.3	5.76	7.23	10.2	12.09	14.97	18.46	22.4
interface	Suction port (mm)		22	28	28	28	35	35	35	42	54	54	54	54
interface	Liquid supply interface (mm)		16	16	22	22	28	28	28	28	28	32	35	42
Weight (kg)			234	237	241	293	300	352	354	407	443	487	504	517
Noise dB(A) (1 meter sound pressure level)			62	64	66	69	70	71	74	72	78	81	81	82
Dimensions		A (mm)	1150	1050	1050	1150	1150	1150	1251	1255	1365	1655	1655	1655
		B (mm)	505	590	590	590	590	590	630	650	710	775	775	870
		C (mm)	735	735	755	760	800	800	890	900	975	960	960	960
Installation dimensions (a×b) (mm)			650*330	650*330	650*330	650*330	650*330	970*380	970*380	1100*380	1100*380	1100*380	1100*380	1100*380

03Dimensions

04Unit Configuration

Standard and optional

①Compressor

②Oil heating

③ shock absorber tube

④Oil separator

⑤Condenser

⑥Liquid reservoir

⑦Filter

⑧ sight glass

⑨Solenoid valve

⑩High and low pressure gauges

⑪Mechanical pressure control

⑫ Oil pressure protection (some units do not have)

⑬Gas-liquid separator

⑭Suction filter cartridge

Common configuration includes: ①②⑤⑦⑨⑩⑪⑫
Standard configuration includes: ①②③④⑤⑦⑧⑨⑩⑪⑫
Contains: ①②③④⑤⑦⑧⑨⑩⑪⑫⑬⑭
