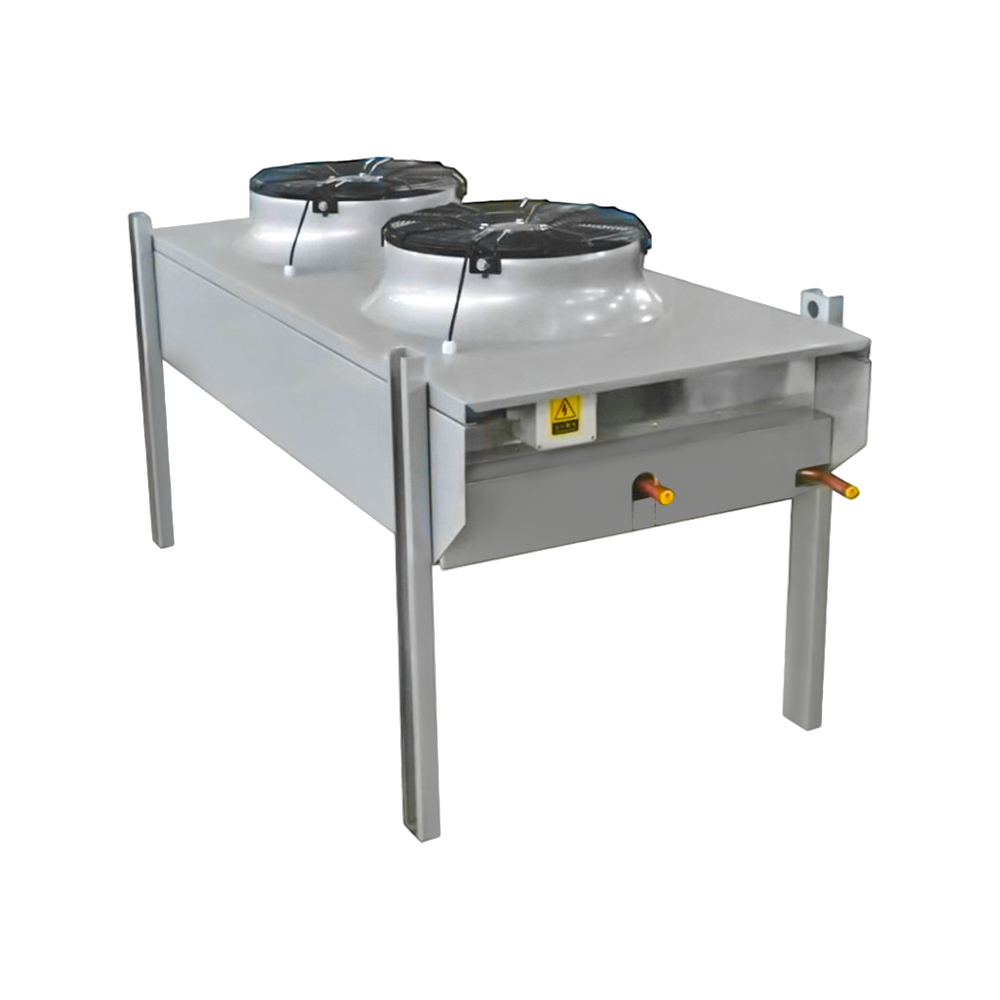

CP Series Horizontal Flat Plate Condenser

The CP series horizontal flat plate condenser adopts an efficient flat plate structural design and is specially developed for remote refrigeration systems such as large-cooling piston parallel unit and screw unit. The airflow layout of the lower inlet and upper outflow air combines high-quality heat exchange materials and low-noise fans to ensure efficient heat dissipation and stable operation, and is suitable for medium and large-scale refrigeration needs such as industrial refrigeration and cold chain logistics.

CONTACT US
01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

Core advantages:
1. Efficient heat exchange design:
·Internal threaded copper pipe (φ9.5mm) + triangle arrangement: improves heat exchange efficiency and reduces pressure loss.
·Hydrophilic aluminum foil corrugated fins (2.1mm pitch): Enhance the air contact area, prevent frost and easy to clean.
·Aluminum end plate protection: corrosion resistant and extends coil life.

2. Flexible configuration:
·Single-row/double-row fan is available: single-row 1-5 fans, double-row 4-10 fans, adapt to different cooling capacity needs.
·Multi-fan specifications: φ500/φ630 external rotor fan, 4-pole/6-pole motor, balance air volume and noise.

3. Industrial-grade durability:
·Galvanized steel plate plastic-sprayed shell (RAL9006 silver ash): resistant to corrosion and suitable for harsh outdoor environments.
·Overall stretched high wind ring: smooth wind guidance and simple appearance.
·32Bar high-voltage test: Ensure the system is safe and stable.

4. Wide compatibility
·Supports refrigerants such as R404A, R507A, R448A/R449A, R134a, R22, etc. to meet environmental protection and energy efficiency requirements.

01 Advantages

Core advantages:
1. Efficient heat exchange design:
·Internal threaded copper pipe (φ9.5mm) + triangle arrangement: improves heat exchange efficiency and reduces pressure loss.
·Hydrophilic aluminum foil corrugated fins (2.1mm pitch): Enhance the air contact area, prevent frost and easy to clean.
·Aluminum end plate protection: corrosion resistant and extends coil life.

2. Flexible configuration:
·Single-row/double-row fan is available: single-row 1-5 fans, double-row 4-10 fans, adapt to different cooling capacity needs.
·Multi-fan specifications: φ500/φ630 external rotor fan, 4-pole/6-pole motor, balance air volume and noise.

3. Industrial-grade durability:
·Galvanized steel plate plastic-sprayed shell (RAL9006 silver ash): resistant to corrosion and suitable for harsh outdoor environments.
·Overall stretched high wind ring: smooth wind guidance and simple appearance.
·32Bar high-voltage test: Ensure the system is safe and stable.

4. Wide compatibility
·Supports refrigerants such as R404A, R507A, R448A/R449A, R134a, R22, etc. to meet environmental protection and energy efficiency requirements.

02Specifications
CP 50 1 1 B 4
Number of motor poles: 4: 4 poles, 6: 6 poles;
Coil specification code;
Number of fans per row;
Number of fan rows, 1: single row, 2: double row;
Fan specifications (CM)
Product Series

500 fan series

Model Heat exchange capacity (KW) area Pipe volume dm3 fan Noise dB (A) Interface specifications (mm) Weight kg
ΔT=15K m2 Air volume m3/h Power (W) Current (A) Intake bleeding
4-pole motor: speed 1320 r/min
CP5011B4 20.6 24.6 3.1 6600 414 0.85 52 φ22 φ16 56
CP5011C4 23.6 36.9 4.7 6400 414 0.85 52 φ22 φ16 60
CP5011D4 25.4 49.3 6.2 6000 414 0.85 52 φ22 φ16 64
CP5012B4 41.4 49.3 6 13200 828 1.7 55 φ28 φ22 85
CP5012C4 47.3 73.9 9 12800 828 1.7 55 φ28 φ22 93
CP5012D4 50.7 98.5 12.1 12000 828 1.7 55 φ28 φ22 101
CP5013B4 62.1 73.9 8.9 19800 1242 2.55 56 φ35 φ22 115
CP5013C4 70.9 110.8 13.4 19200 1242 2.55 56 φ35 φ22 126
CP5013D4 76.1 147.8 17.9 18000 1242 2.55 56 φ35 φ28 137
CP5014B4 82.7 98.5 11.8 26400 1656 3.4 57 φ35 φ28 152
CP5014C4 94.6 147.8 17.8 25600 1656 3.4 57 φ35 φ28 167
CP5014D4 101.5 197 23.7 24000 1656 3.4 57 φ35 φ28 182
CP5015B4 103.4 123.1 14.7 33000 2070 4.25 58 φ35 φ28 181
CP5015C4 118.2 184.7 22.1 32000 2070 4.25 58 φ42 φ28 200
CP5015D4 126.8 246.3 29.5 30000 2070 4.25 58 φ42 φ28 219
CP5022B4 82.7 98.5 12.1 26400 1656 3.4 57 φ35 φ28 170
CP5022C4 94.6 147.8 18.1 25600 1656 3.4 57 φ35 φ28 186
CP5022D4 101.5 197 24.1 24000 1656 3.4 57 φ35 φ28 202
CP5023B4 124.2 147.8 17.9 39600 2484 5.1 59 φ42 φ35 230
CP5023C4 141.8 221.6 26.8 38400 2484 5.1 59 φ42 φ35 252
CP5023D4 152.2 295.5 35.7 36000 2484 5.1 59 φ54 φ35 274
CP5024B4 165.5 197 23.7 52800 3312 6.8 61 φ54 φ35 304
CP5024C4 189.1 295.5 35.5 51200 3312 6.8 61 φ54 φ35 334
CP5024D4 202.9 394 47.3 48000 3312 6.8 61 φ54 φ35 364
CP5025B4 206.9 246.3 29.5 66000 4140 8.5 63 φ54 φ42 362
CP5025C4 236.4 369.4 44.2 64000 4140 8.5 63 φ54 φ42 400
CP5025D4 253.6 492.5 58.9 60000 4140 8.5 63 φ54 φ42 438
6-pole motor: speed 900 r/min
CP5011B6 16 24.6 3.1 4700 210 0.54 46 φ22 φ16 56
CP5011C6 18.5 36.9 4.7 4400 210 0.54 46 φ22 φ16 60
CP5012B6 32 49.3 6 9400 420 1.08 49 φ28 φ22 85
CP5012C6 36.9 73.9 9 8800 420 1.08 49 φ28 φ22 93
CP5013B6 48 73.9 8.9 14100 630 1.62 50 φ35 φ28 115
CP5013C6 55.4 110.8 13.4 13200 630 1.62 50 φ35 φ28 126
CP5014B6 64 98.5 11.8 18800 840 2.16 51 φ35 φ28 152
CP5014C6 73.9 147.8 17.8 17600 840 2.16 51 φ35 φ28 167
CP5015B6 79.9 123.1 14.7 23500 1050 2.7 52 φ35 φ28 181
CP5015C6 92.3 184.7 22.1 22000 1050 2.7 52 φ42 φ28 200
CP5022B6 64 98.5 12.1 18800 840 2.16 51 φ35 φ28 170
CP5022C6 73.9 147.8 18.1 17600 840 2.16 51 φ35 φ28 186
CP5023B6 96.1 147.8 17.9 28200 1260 3.24 53 φ42 φ35 230
CP5023C6 110.8 221.6 26.8 26400 1260 3.24 53 φ42 φ35 252
CP5024B6 128.1 197 23.7 37600 1680 4.32 55 φ54 φ35 304
CP5024C6 147.7 295.5 35.5 35200 1680 4.32 55 φ54 φ35 334
CP5025B6 160.1 246.3 29.5 47000 2100 5.4 57 φ54 φ42 362
CP5025C6 184.7 369.4 44.2 44000 2100 5.4 57 φ54 φ42 400

1) Cooling capacity calibration: Inlet air temperature 25°C, condensing temperature 40°C, temperature difference 15K, refrigerant R404A. For heat transfer capacities under other operating conditions, please refer to the correction factor.
2) Noise is calibrated as the sound pressure value at a distance of 10 meters.

Model Heat exchange capacity (KW) area Pipe volume dm3 fan Noise dB (A) Interface specifications (mm) Weight kg
ΔT=15K m2 Air volume m3/h Power (W) Current (A) Intake bleeding
4-pole motor: speed 1320 r/min
CP6311B4 28.8 38.5 4.8 11750 800 1.6 57 φ28 φ22 72
CP6311C4 36.3 57.7 7.2 11500 800 1.6 57 φ28 φ22 78
CP6311D4 41.5 77 9.6 10750 800 1.6 57 φ28 φ22 84
CP6312B4 57.5 77 9.3 23500 1600 3.2 60 φ28 φ22 115
CP6312C4 72.7 115.4 14 23000 1600 3.2 60 φ35 φ28 127
CP6312D4 83.1 153.9 18.7 21500 1600 3.2 60 φ35 φ28 139
CP6313B4 86.3 115.4 13.9 35250 2400 4.8 61 φ35 φ28 156
CP6313C4 109.1 173.2 20.8 34500 2400 4.8 61 φ35 φ28 174
CP6313D4 124.5 230.9 27.8 32250 2400 4.8 61 φ35 φ28 194
CP6314B4 115.1 153.9 18.4 47000 3200 6.4 62 φ35 φ28 206
CP6314C4 145.4 230.9 27.6 46000 3200 6.4 62 φ42 φ35 230
CP6314D4 166.2 307.9 36.8 43000 3200 6.4 62 φ42 φ35 254
CP6315B4 143.9 192.4 23 58750 4000 8 63 φ42 φ35 247
CP6315C4 181.8 288.6 34.4 57500 4000 8 63 φ54 φ42 278
CP6315D4 207.7 384.8 45.9 53750 4000 8 63 φ54 φ42 308
CP6322B4 115.1 153.9 18.7 47000 3200 6.4 62 φ42 φ35 230
CP6322C4 145.4 230.9 28 46000 3200 6.4 62 φ42 φ35 254
CP6322D4 166.2 307.8 37.4 43000 3200 6.4 62 φ42 φ35 278
CP6323B4 172.7 230.9 27.8 70500 4800 9.6 64 φ42 φ35 312
CP6323C4 218.1 346.2 41.6 69000 4800 9.6 64 φ54 φ42 348
CP6323D4 249.3 461.8 55.5 64500 4800 9.6 64 φ54 φ42 388
CP6324B4 230.2 307.8 36.8 94000 6400 12.8 66 2-φ42 2-φ35 412
CP6324C4 290 461.8 55.3 92000 6400 12.8 66 2-φ42 2-φ35 460
CP6324D4 332.4 615.7 73.7 86000 6400 12.8 66 2-φ42 2-φ35 508
CP6325B4 287.8 384.8 45.9 117500 8000 16 68 2-φ42 2-φ35 494
CP6325C4 363.6 577.2 68.9 115000 8000 16 68 2-φ54 2-φ42 556
CP6325D4 415.5 769.6 91.8 107500 8000 16 68 2-φ54 2-φ42 616
6-pole motor: speed 900 r/min
CP6311B6 25.4 38.5 4.8 9375 550 1.45 52 φ28 φ22 72
CP6311C6 31.7 57.7 7.2 8850 550 1.45 52 φ28 φ22 78
CP6311D6 34.6 77 9.6 8150 550 1.45 52 φ28 φ22 84
CP6312B6 50.8 77 9.3 18750 1100 2.9 55 φ28 φ22 115
CP6312C6 63.4 115.4 14 17700 1100 2.9 55 φ35 φ28 127
CP6312D6 69.2 153.9 18.7 16300 1100 2.9 55 φ35 φ28 139
CP6313B6 76.2 115.4 13.9 28125 1650 4.35 56 φ35 φ28 156
CP6313C6 95.2 173.2 20.8 26550 1650 4.35 56 φ35 φ28 174
CP6313D6 103.9 230.9 27.8 24450 1650 4.35 56 φ35 φ28 194
CP6314B6 101.5 153.9 18.4 37500 2200 5.8 57 φ35 φ28 206
CP6314C6 127 230.9 27.6 35400 2200 5.8 57 φ42 φ35 230
CP6314D6 138.5 307.9 36.8 32600 2200 5.8 57 φ42 φ35 254
CP6315B6 127 192.4 23 46875 2750 7.25 58 φ42 φ35 247
CP6315C6 158.7 288.6 34.4 44250 2750 7.25 58 φ54 φ42 278
CP6315D6 173.2 384.8 45.9 40750 2750 7.25 58 φ54 φ42 308
CP6322B6 101.5 153.9 18.7 37500 2200 5.8 57 φ42 φ35 230
CP6322C6 127 230.9 28 35400 2200 5.8 57 φ42 φ35 254
CP6322D6 138.5 307.8 37.4 32600 2200 5.8 57 φ42 φ35 278
CP6323B6 152.3 230.9 27.8 56250 3300 8.7 59 φ42 φ35 312
CP6323C6 190.4 346.2 41.6 53100 3300 8.7 59 φ54 φ42 348
CP6323D6 207.8 461.8 55.5 48900 3300 8.7 59 φ54 φ42 388
CP6324B6 203.1 307.8 36.8 75000 4400 11.6 61 2-φ42 2-φ35 412
CP6324C6 254 461.8 55.3 70800 4400 11.6 61 2-φ42 2-φ35 460
CP6324D6 277 615.7 73.7 65200 4400 11.6 61 2-φ42 2-φ35 508
CP6325B6 254 384.8 45.9 93750 5500 14.5 63 2-φ42 2-φ35 494
CP6325C6 317.4 577.2 68.9 88500 5500 14.5 63 2-φ54 2-φ42 556
CP6325D6 346.3 769.6 91.8 81500 5500 14.5 63 2-φ54 2-φ42 616
1) Cooling capacity calibration: Inlet air temperature 25°C, condensing temperature 40°C, temperature difference 15K, refrigerant R404A. For heat transfer capacities under other operating conditions, please refer to the correction factor.
2) Noise is calibrated as the sound pressure value at a distance of 10 meters.
03Dimensions
  • 04Unit Configuration

    Appearance and installation dimensions

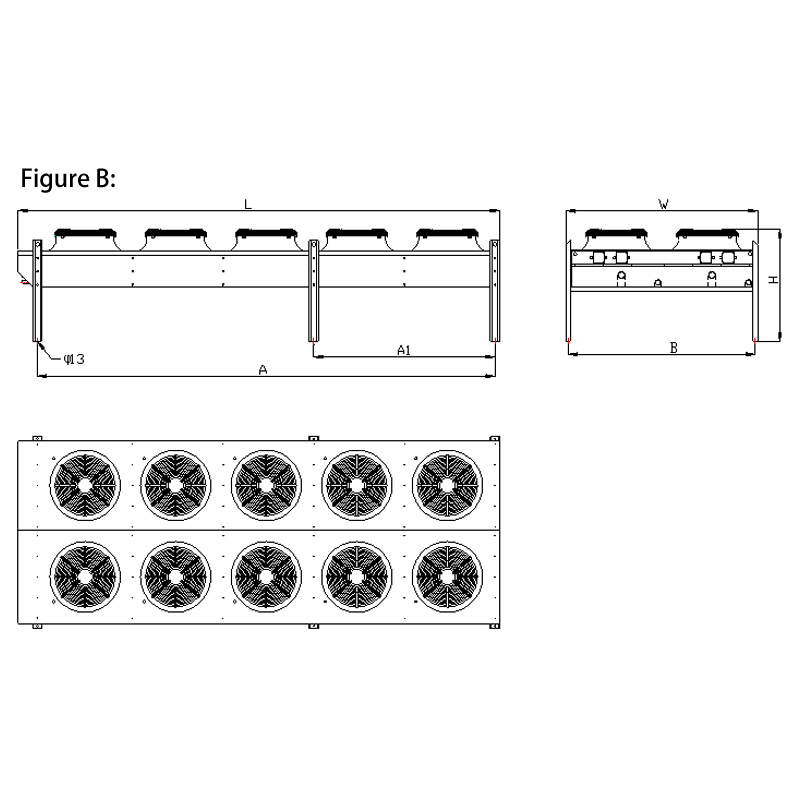

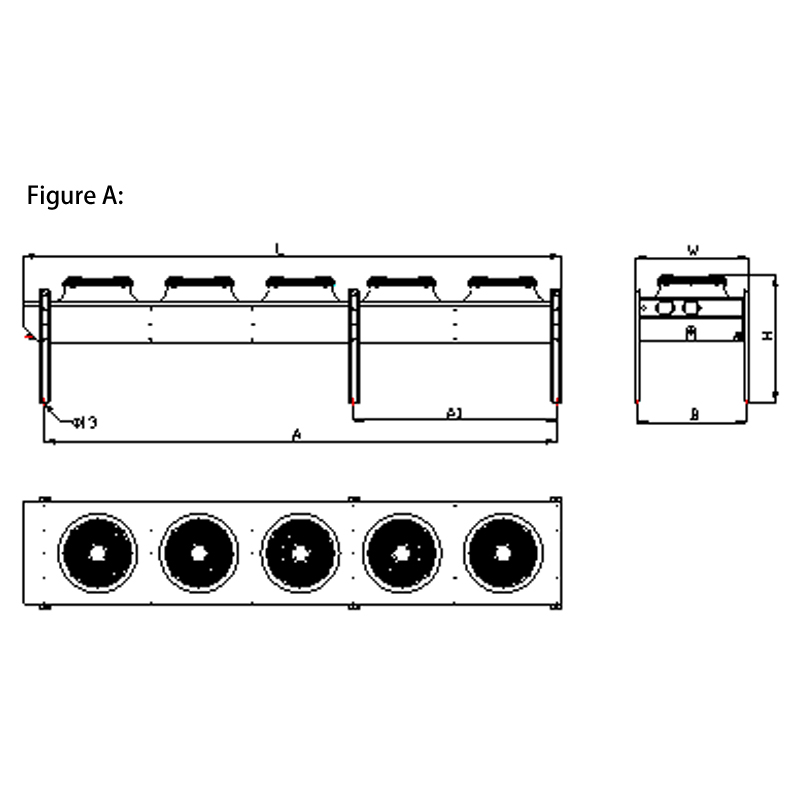

    Model size Single row fan (Figure A) Double exhaust fan (Figure B)
    CP50 L 1050 1850 2650 3450 4250 1850 2650 3450 4250
    W 900 900 900 900 900 1700 1700 1700 1700
    H 1000 1000 1000 1000 1000 1000 1000 1000 1000
    A 840 1640 2440 3240 4040 1640 2440 3240 4040
    A1 / / / 1600 1600 / / 1600 1600
    B 860 860 860 860 860 1660 1660 1660 1660
    CP63 L 1250 2250 3250 4250 5250 2250 3250 4250 5250
    W 1100 1100 1100 1100 1100 2100 2100 2100 2100
    H 1025 1025 1025 1025 1025 1025 1025 1025 1025
    A 1040 2040 3040 4040 5040 2040 3040 4040 5040
    A1 / / / 2000 2000 / / 2000 2000
    B 1060 1060 1060 1060 1060 2060 2060 2060 2060
