KDLS Series Evaporative Condenser

KDLS series evaporative condenser redefines efficient cooling solutions with innovative design and superior performance. The equipment uses water and air as the medium, and condenses the gaseous refrigerant into liquid through a unique evaporation heat exchange mechanism. Its core component, the high-efficiency elliptical coil adopts a compact arrangement, which increases the heat exchange area by 20% compared to traditional circular tubes. It also comes with a slope design and weldless process, which not only reduces the refrigerant charge, but also avoids leakage risks from the root cause; hot-dip zinc anti-corrosion and high-pressure testing ensure long-term and stable operation.

PREV：KDLN Series Evaporative Condenser NEXT：No next product

01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

In terms of detail design, the equipment is also outstanding. High-quality PVC heat exchange packing, independent air chamber structure, corrosion-resistant box and high-efficiency direct-connected fan work together, which not only enhances heat exchange efficiency, but also reduces energy consumption and maintenance costs. The spray system is equipped with multi-layer umbrella nozzles to achieve uniform coverage, and innovative designs such as anti-vortex air inlet windows and stepped water tanks to further optimize the management of airflow and water flow. Whether in harsh outdoor environments or industrial scenarios with high requirements for efficiency and stability, the KDLS series can provide reliable cooling support.

Heat rejection correction coefficient table

A: Refrigerant R717 (Ammonia) Heat Dissipation Correction Factor Table
Condensation temperature (℃)	Inlet air wet bulb temperature (℃)
Condensation temperature (℃)	13	14	15	16	17	18	19	20	21	22	23	24	25	26	27	28	29	30
29	0.83	0.87	0.92	0.97	1.04	1.10	1.19	1.30	1.43	1.60	1.83	2.15	2.64	/	/	/	/	/
30	0.78	0.82	0.86	0.90	0.96	1.01	1.09	1.18	1.28	1.42	1.60	1.84	2.19	2.62	/	/	/	/
31	0.73	0.76	0.80	0.83	0.88	0.92	0.98	1.05	1.13	1.23	1.36	1.52	1.74	2.05	2.45	/	/	/
32	0.69	0.72	0.75	0.78	0.82	0.86	0.91	0.97	1.03	1.12	1.22	1.35	1.52	1.75	2.06	/	/	/
33	0.65	0.67	0.70	0.72	0.76	0.79	0.83	0.88	0.93	1.00	1.08	1.17	1.29	1.45	1.70	1.95	2.26	2.64
34	0.62	0.64	0.66	0.68	0.71	0.74	0.78	0.82	0.86	0.92	0.99	1.06	1.16	1.29	1.48	1.67	1.93	2.21
35	0.58	0.60	0.62	0.64	0.67	0.69	0.72	0.75	0.79	0.84	0.89	0.95	1.03	1.12	1.25	1.38	1.56	1.74
36	0.55	0.57	0.59	0.61	0.63	0.65	0.68	0.71	0.74	0.78	0.82	0.88	0.94	1.02	1.12	1.23	1.37	1.52
37	0.53	0.54	0.56	0.57	0.59	0.61	0.63	0.66	0.69	0.72	0.75	0.80	0.85	0.91	0.99	1.07	1.18	1.30
38	0.50	0.52	0.53	0.55	0.56	0.58	0.60	0.62	0.65	0.68	0.70	0.75	0.79	0.84	0.90	0.97	1.05	1.14
39	0.48	0.49	0.51	0.52	0.54	0.55	0.56	0.58	0.60	0.63	0.65	0.69	0.72	0.76	0.82	0.87	0.95	1.02
40	0.46	0.47	0.48	0.50	0.51	0.52	0.54	0.55	0.57	0.60	0.62	0.65	0.68	0.71	0.76	0.80	0.86	0.93
41	0.44	0.45	0.46	0.47	0.48	0.49	0.51	0.52	0.54	0.56	0.58	0.60	0.63	0.66	0.70	0.73	0.78	0.82
42	0.42	0.43	0.44	0.45	0.46	0.47	0.49	0.50	0.51	0.53	0.55	0.57	0.59	0.62	0.65	0.68	0.72	0.76
43	0.41	0.41	0.42	0.43	0.44	0.45	0.46	0.47	0.48	0.50	0.52	0.53	0.55	0.57	0.60	0.63	0.67	0.70
44	0.39	0.40	0.41	0.42	0.42	0.43	0.44	0.45	0.46	0.48	0.49	0.51	0.52	0.54	0.57	0.59	0.62	0.66
45	0.38	0.38	0.39	0.40	0.41	0.41	0.42	0.43	0.44	0.45	0.46	0.48	0.49	0.51	0.53	0.55	0.58	0.61
B: Refrigerant R22, R134a (Freon) heat rejection correction coefficient table
Condensation temperature (℃)	Inlet air wet bulb temperature (℃)
Condensation temperature (℃)	13	14	15	16	17	18	19	20	21	22	23	24	25	26	27	28	29	30
29	1.00	1.04	1.10	1.16	1.24	1.32	1.43	1.56	1.73	1.94	2.22	2.62	3.21	/	/	/	/	/
30	0.94	0.98	1.03	1.08	1.15	1.22	1.31	1.42	1.55	1.72	1.94	2.24	2.67	3.09	/	/	/	/
31	0.88	0.91	0.96	1.00	1.06	1.11	1.18	1.27	1.37	1.50	1.65	1.86	2.13	2.51	/	/	/	/
32	0.83	0.86	0.90	0.94	0.98	1.03	1.10	1.17	1.25	1.36	1.48	1.65	1.86	2.15	2.51	/	/	/
33	0.78	0.80	0.84	0.87	0.91	0.95	1.01	1.06	1.13	1.22	1.31	1.43	1.59	1.78	2.09	2.40	2.78	3.27
34	0.74	0.76	0.79	0.82	0.86	0.90	0.94	0.99	1.05	1.12	1.20	1.30	1.43	1.58	1.82	2.06	2.38	2.80
35	0.70	0.72	0.75	0.77	0.81	0.84	0.87	0.92	0.96	1.02	1.09	1.17	1.26	1.38	1.55	1.71	1.98	2.33
36	0.67	0.69	0.71	0.73	0.76	0.79	0.82	0.86	0.90	0.95	0.96	1.08	1.15	1.25	1.38	1.52	1.71	1.98
37	0.64	0.65	0.67	0.69	0.72	0.74	0.77	0.80	0.84	0.88	0.83	0.98	1.04	1.12	1.22	1.32	1.45	1.63
38	0.61	0.63	0.64	0.66	0.68	0.71	0.73	0.76	0.79	0.83	0.82	0.92	0.97	1.03	1.12	1.20	1.32	1.43
39	0.59	0.60	0.62	0.63	0.65	0.67	0.69	0.71	0.74	0.77	0.81	0.85	0.89	0.94	1.01	1.08	1.17	1.27
40	0.56	0.58	0.59	0.60	0.62	0.64	0.66	0.68	0.70	0.73	0.76	0.80	0.84	0.88	0.94	1.00	1.07	1.15
41	0.54	0.55	0.56	0.57	0.59	0.60	0.62	0.64	0.66	0.69	0.71	0.74	0.78	0.81	0.86	0.91	0.97	1.03
42	0.52	0.53	0.54	0.55	0.56	0.58	0.60	0.61	0.63	0.66	0.68	0.70	0.74	0.76	0.80	0.85	0.90	0.95
43	0.50	0.51	0.52	0.53	0.54	0.55	0.57	0.58	0.60	0.62	0.64	0.66	0.69	0.71	0.75	0.78	0.83	0.86
44	0.48	0.49	0.50	0.51	0.52	0.53	0.55	0.56	0.58	0.59	0.61	0.63	0.65	0.68	0.71	0.74	0.78	0.81
45	0.46	0.47	0.48	0.49	0.50	0.51	0.52	0.53	0.55	0.56	0.58	0.59	0.61	0.64	0.67	0.69	0.73	0.77

Model List

KDLS series evaporative condenser model list
Serial number	code name	Heat output (KW)	Serial number	code name	Heat output (KW)
1	KDLS-300	300	22	KDLS-1600	1600
2	KDLS-340	340	23	KDLS-1720	1720
3	KDLS-370	370	24	KDLS-1800	1800
4	KDLS-390	390	25	KDLS-1900	1900
5	KDLS-420	420	26	KDLS-2090	2090
6	KDLS-450	450	27	KDLS-2200	2200
7	KDLS-480	480	28	KDLS-2340	2340
8	KDLS-550	550	29	KDLS-2400	2400
9	KDLS-660	660	30	KDLS-2580	2580
10	KDLS-700	700	31	KDLS-2700	2700
11	KDLS-730	730	32	KDLS-2850	2850
12	KDLS-780	780	33	KDLS-3000	3000
13	KDLS-800	800	34	KDLS-3200	3200
14	KDLS-860	860	35	KDLS-3440	3440
15	KDLS-900	900	36	KDLS-3600	3600
16	KDLS-950	950	37	KDLS-3800	3800
17	KDLS-1100	1100	38	KDLS-4050	4050
18	KDLS-1320	1320	39	KDLS-4300	4300
19	KDLS-1400	1400	40	KDLS-4600	4600
20	KDLS-1460	1460	41	KDLS-4900	4900
21	KDLS-1560	1560

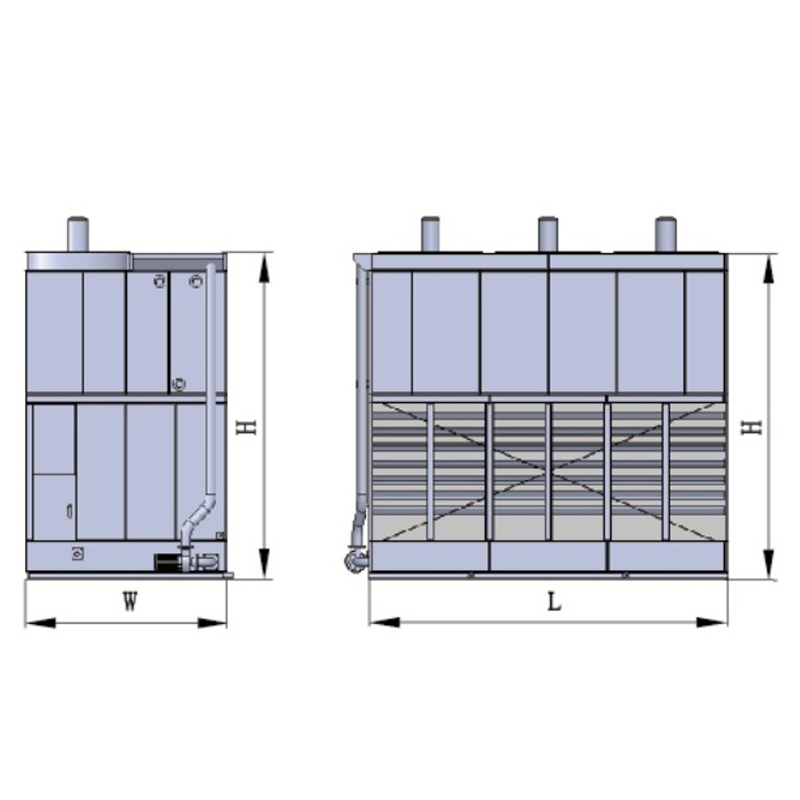

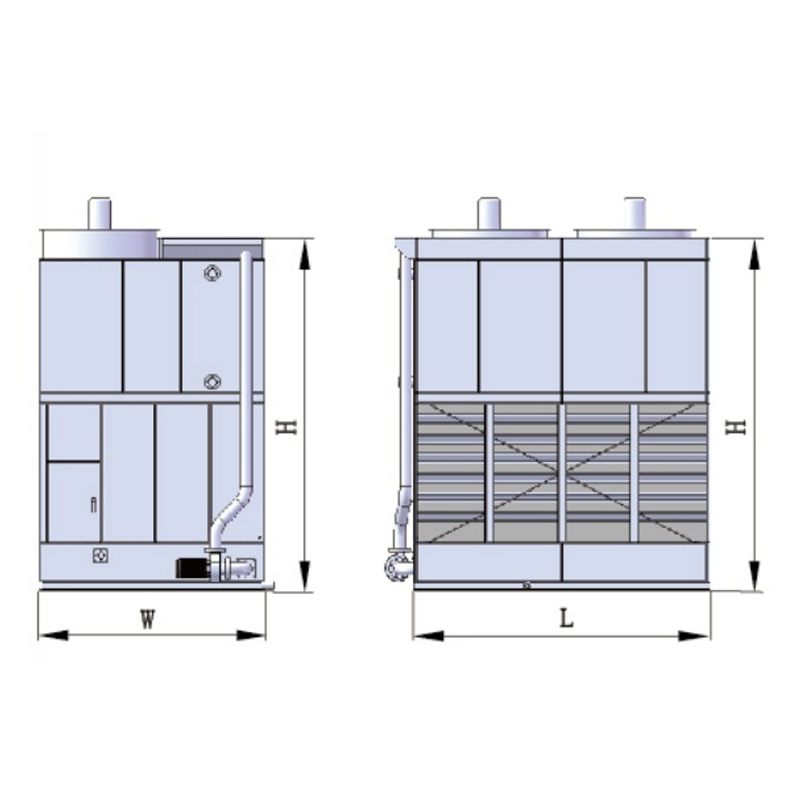

KDLS series evaporative condenser parameter table

Parameter Table	Standard Heat Discharge KW	Dimensions			Axial flow fans		Spray water pump		Equipment Weight kg	Operating weight kg	R717 Charge kg	Pipe parameters (mm)		Electric heating power (kW)
Parameter Table	Standard Heat Discharge KW	Length (mm)	Width mm	high mm	Power KW	Nominal air volume m3/h	Power KW	Flow rate m³/h	Equipment Weight kg	Operating weight kg	R717 Charge kg	Inlet and outlet pipe diameter	Water replenishment/sewage discharge/overflow	-15℃	-25℃
KDLS-300	300	1990	2530	4060	3×1	42000×1	1.5×1	60×1	2523	3918	31	1-DN100 1-DN100	1-DN25 1-DN50 1-DN80	1×4	1×6
KDLS-340	340			4060	4×1	49500×1			2533	3928	31
KDLS-370	370			4060	5.5×1	61000×1			2543	3938	31
KDLS-390	390			4060	4×1	49500×1			2717	4112	42
KDLS-420	420			4060	5.5×1	61000×1			2727	4122	42
KDLS-450	450			4060	4×1	49500×1			2912	4307	52
KDLS-480	480			4060	5.5×1	61000×1			2932	4327	52
KDLS-550	550	1990	3130	4810	7.5×1	86000×1	2.2×1	130×1	3408	5427	54	1-DN100 1-DN100	1-DN25 1-DN50 1-DN80	1×4	1×8
KDLS-660	660			4810	5.5×1	83000×1			3617	5636	68
KDLS-700	700			4810	7.5×1	86000×1			3647	5666	68
KDLS-730	730			4810	7.5×1	86000×1			3886	5905	76
KDLS-780	780			4810	11×1	97000×1			3927	5946	76
KDLS-800	800	1990	3500	4810	7.5×1	93000×1	2.2×1	130×1	4071	6395	81	1-DN100 1-DN100	1-DN25 1-DN50 1-DN80	1×6	1×10
KDLS-860	860			4810	11×1	105000×1			4111	6435	81
KDLS-900	900			4810	7.5×1	93000×1			4357	6681	98
KDLS-950	950			4810	11×1	105000×1			4397	6721	98
KDLS-1100	1100	3902	3130	4830	7.5×2	86000×2	4×1	170×1	5888	9682	110	1-DN100 1-DN100	1-DN25 1-DN50 1-DN80	1×8	1×12
KDLS-1320	1320			4830	7.5×2	86000×2			6362	10156	137
KDLS-1400	1400			4830	11×2	97000×2			6442	10236	137
KDLS-1460	1460			4830	7.5×2	86000×2			6835	10629	164
KDLS-1560	1560			4830	11×2	97000×2			6915	10709	164
KDLS-1600	1600	3902	3500	4830	7.5×2	93000×2	4×1	170×1	6984	11389	164	2-DN100 2-DN100	1-DN25 1-DN50 1-DN80	1×12	1×18
KDLS-1720	1720			4830	11×2	105000×2			7064	11469	164
KDLS-1800	1800			4830	7.5×2	93000×2			7660	12065	197
KDLS-1900	1900			4830	11×2	105000×2			7740	12145	197
KDLS-2090	2090	5814	3130	4850	7.5×3	86000×3	5.5×1	240×1	9533	15185	206	2-DN100 2-DN100	1-DN25 2-DN50 1-DN80	1×12	1×16
KDLS-2200	2200			4850	7.5×3	86000×3			10260	15912	248
KDLS-2340	2340			4850	11×3	97000×3			10380	16032	248
KDLS-2400	2400	5814	3500	4850	7.5×3	93000×3	7.5×1	270×1	10652	17304	248	2-DN100 2-DN100	1-DN25 2-DN50 1-DN80	1×12	1×18
KDLS-2580	2580			4850	11×3	105000×3			10771	17423	248
KDLS-2700	2700			4850	7.5×3	93000×3			11521	18173	297
KDLS-2850	2850			4850	11×3	105000×3			11641	18293	297
KDLS-3000	3000	7726	3500	4870	5.5×4	77000×4	4×2	170×2	13657	22000	325	2-DN100 2-DN100	2-DN25 2-DN50 1-DN80	2×8	2×12
KDLS-3200	3200			4870	7.5×4	93000×4			13737	22080	325
KDLS-3440	3440			4870	11×4	105000×4			13897	22240	325
KDLS-3600	3600			4870	7.5×4	93000×4			14861	23204	391
KDLS-3800	3800			4870	11×4	105000×4			15021	23364	391
KDLS-4050	4050			5120	11×4	105000×4			16312	24655	456
KDLS-4300	4300	8990	3500	4870	7.5×4	93000×4	5.5×2	240×2	16906	26746	457	2-DN100 2-DN100	2-DN25 2-DN50 1-DN80	2×10	2×12
KDLS-4600	4600			4870	11×4	105000×4			17068	26908	457
KDLS-4900	4900			5120	11×4	105000×4			18583	28423	533
