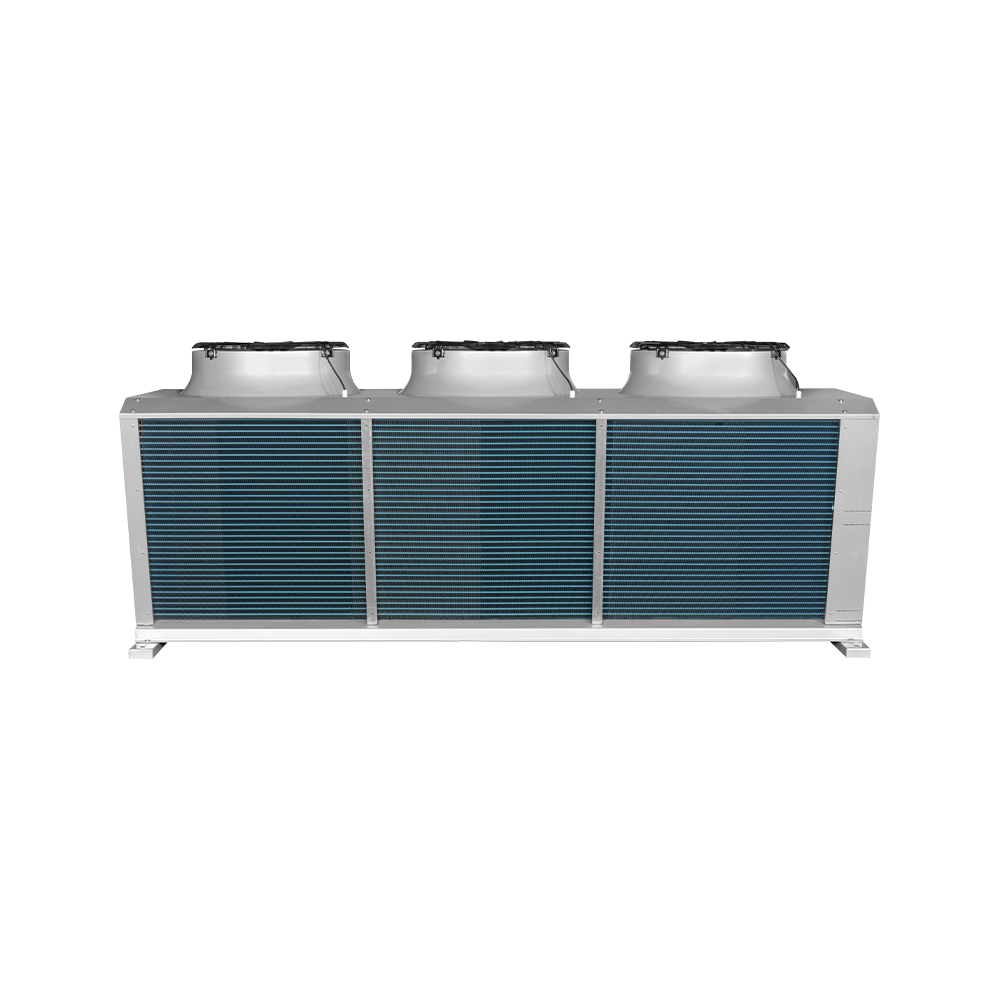

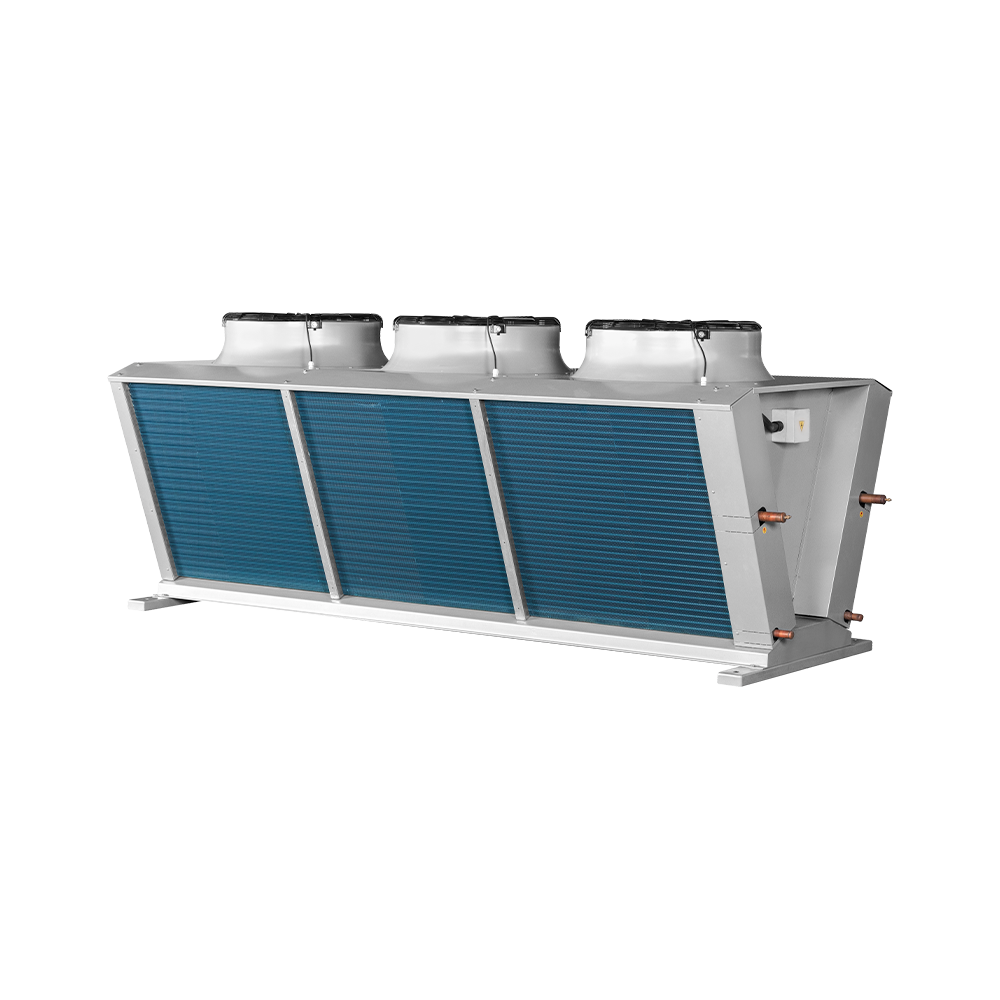

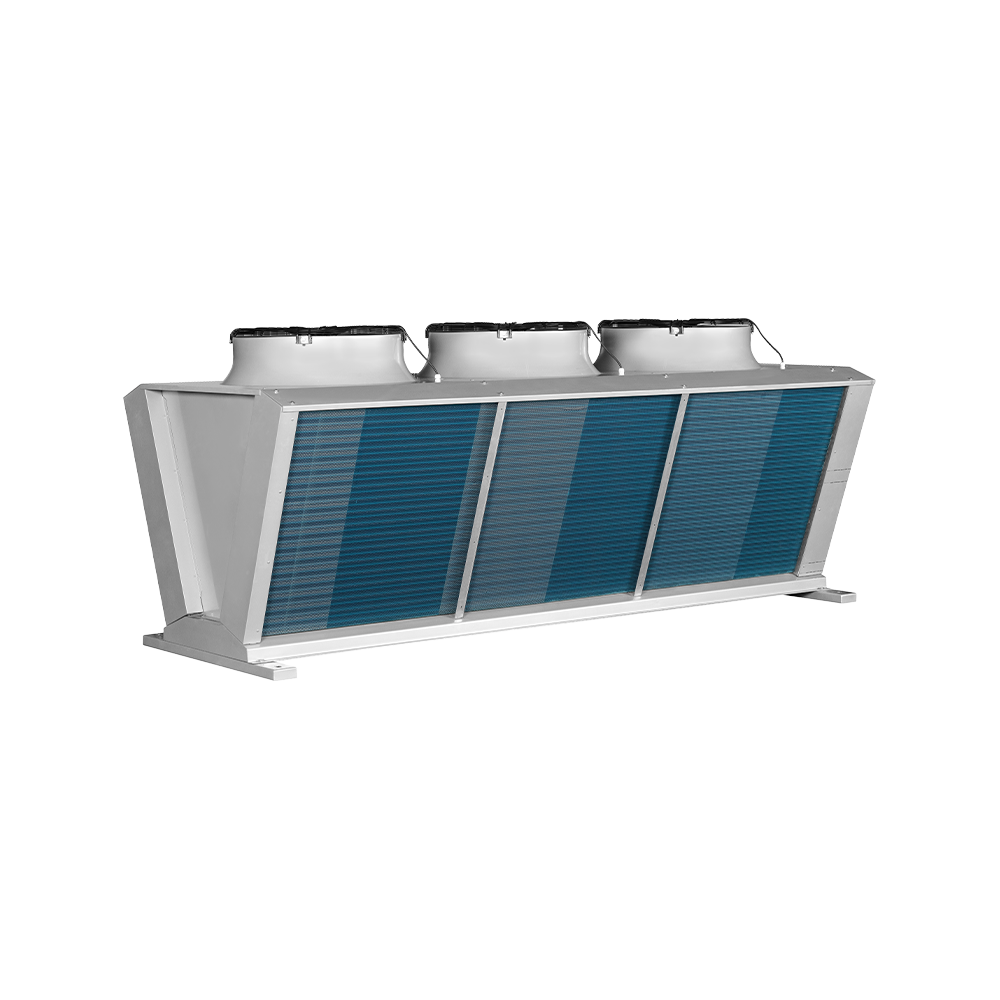

CV Series V-Type Condenser

The CV Series V-Type Condenser is suitable for refrigeration units with high heat exchange demand and remote installation, and is an efficient heat dissipation equipment. It adopts a V-shaped layout, with air inlet on both sides and air out of the upper part, which has a compact structure and high space utilization rate. Equipped with φ9.5 internal threaded copper tube (triangular arrangement) and hydrophilic aluminum foil corrugated aluminum sheet (plate distance 2.1mm), paired with a multi-special fan (3P/380V/50Hz), it can meet the use of various refrigerants such as R404A, and the test pressure is 32bar, and it is used in cold storage, industrial refrigeration and other fields.​

CONTACT US
01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

Product Features:
Heat exchange efficiency: The V-shaped structure increases the windward surface, the internal threaded copper pipe and triangular arrangement design improves the heat exchange efficiency, and the hydrophilic aluminum foil corrugated aluminum sheet increases the heat exchange area.​
Structural design: high-quality galvanized steel plate shell (plastic spray treatment), with overall stretched large rounded corners and high wind rings, reducing wind resistance; V-shaped layout reduces the floor area.​
Operating performance: adapted to 3P/380V/50Hz power supply, multi-spec fan (φ630/φ800) and motor pole number to meet different working conditions; test pressure is 32bar, stable operation.​
Maintenance characteristics: the components are simple, and the copper tube and aluminum sheet structures are easy to disassemble and repair, reducing maintenance difficulties.​
Adaptation range: Compatible with a variety of refrigerants such as R404A and R507A, and can be equipped with a variety of refrigeration equipment such as piston parallel unit and screw unit.​

01 Advantages

Product Features:
Heat exchange efficiency: The V-shaped structure increases the windward surface, the internal threaded copper pipe and triangular arrangement design improves the heat exchange efficiency, and the hydrophilic aluminum foil corrugated aluminum sheet increases the heat exchange area.​
Structural design: high-quality galvanized steel plate shell (plastic spray treatment), with overall stretched large rounded corners and high wind rings, reducing wind resistance; V-shaped layout reduces the floor area.​
Operating performance: adapted to 3P/380V/50Hz power supply, multi-spec fan (φ630/φ800) and motor pole number to meet different working conditions; test pressure is 32bar, stable operation.​
Maintenance characteristics: the components are simple, and the copper tube and aluminum sheet structures are easy to disassemble and repair, reducing maintenance difficulties.​
Adaptation range: Compatible with a variety of refrigerants such as R404A and R507A, and can be equipped with a variety of refrigeration equipment such as piston parallel unit and screw unit.​

02Specifications
CV 63 1 1 B 4
Number of motor poles: 4: 4 poles, 6: 6 poles;
Coil specification code;
Number of fans per row;
Number of fan rows, 1: single row, 2: double row;
Fan specifications (CM)
Product Series

630 fan series

Model Heat exchange capacity (KW) area Pipe volume dm3 fan Noise dB (A) Interface specifications (mm) Weight kg
ΔT=15K m2 Air volume m3/h Power (W) Current (A) Intake bleeding
4-pole motor: speed 1320 r/min
CV6311B4 40.5 62.3 7.8 11750 800 1.6 57 2-φ22 2-φ16 123
CV6311C4 47.6 93.5 11.8 11500 800 1.6 57 2-φ22 2-φ16 132
CV6311D4 50.9 124.7 15.7 10750 800 1.6 57 2-φ22 2-φ16 142
CV6312B4 81 124.7 15.2 23500 1600 3.2 60 2-φ28 2-φ22 199
CV6312C4 95.3 187 22.8 23000 1600 3.2 60 2-φ28 2-φ22 218
CV6312D4 101.7 249.4 30.4 21500 1600 3.2 60 2-φ35 2-φ28 238
CV6313B4 121.5 187 22.5 35250 2400 4.8 61 2-φ35 2-φ28 276
CV6313C4 143 280.5 33.8 34500 2400 4.8 61 2-φ35 2-φ28 304
CV6313D4 152.5 374 45.1 32250 2400 4.8 61 2-φ35 2-φ28 333
CV6314B4 162.1 249.4 29.9 47000 3200 6.4 62 2-φ42 2-φ28 351
CV6314C4 190.7 374 44.8 46000 3200 6.4 62 2-φ42 2-φ28 388
CV6314D4 203.4 498.7 59.8 43000 3200 6.4 62 2-φ42 2-φ28 427
CV6315B4 202.6 311.7 37.2 58750 4000 8 63 2-φ42 2-φ28 426
CV6315C4 238.4 467.5 55.9 57500 4000 8 63 2-φ54 2-φ42 474
CV6315D4 254.3 623.4 74.5 53750 4000 8 63 2-φ54 2-φ42 523
CV6316B4 243.1 374 44.6 70500 4800 9.6 64 2-φ42 2-φ35 501
CV6316C4 286.1 561 66.9 69000 4800 9.6 64 2-φ54 2-φ42 558
CV6316D4 305.2 748.1 89.2 64500 4800 9.6 64 2-φ54 2-φ42 616
6-pole motor: speed 900 r/min
CV6311B6 31.1 62.3 7.8 9375 550 1.45 52 2-φ22 2-φ16 123
CV6311C6 38.3 93.5 11.8 8850 550 1.45 52 2-φ22 2-φ16 132
CV6311D6 41.2 124.7 15.7 8150 550 1.45 52 2-φ22 2-φ16 142
CV6312B6 62.3 124.7 15.2 18750 1100 2.9 55 2-φ28 2-φ22 199
CV6312C6 76.6 187 22.8 17700 1100 2.9 55 2-φ28 2-φ22 218
CV6312D6 82.3 249.4 30.4 16300 1100 2.9 55 2-φ35 2-φ28 238
CV6313B6 93.5 187 22.5 28125 1650 4.35 56 2-φ35 2-φ28 276
CV6313C6 115 280.5 33.8 26550 1650 4.35 56 2-φ35 2-φ28 304
CV6313D6 123.4 374 45.1 24450 1650 4.35 56 2-φ35 2-φ28 333
CV6314B6 102.3 249.4 29.9 37500 2200 5.8 57 2-φ42 2-φ28 351
CV6314C6 153.3 374 44.8 35400 2200 5.8 57 2-φ42 2-φ28 388
CV6314D6 164.5 498.7 59.8 32600 2200 5.8 57 2-φ42 2-φ28 427
CV6315B6 155.8 311.7 37.2 46875 2750 7.25 58 2-φ42 2-φ28 426
CV6315C6 191.6 467.5 55.9 44250 2750 7.25 58 2-φ54 2-φ42 474
CV6315D6 205.7 623.4 74.5 40750 2750 7.25 58 2-φ54 2-φ42 523
CV6316B6 187 374 44.6 56250 3300 8.7 59 2-φ42 2-φ35 501
CV6316C6 230 561 66.9 53100 3300 8.7 59 2-φ54 2-φ42 558
CV6316D6 246.8 748.1 89.2 48900 3300 8.7 59 2-φ54 2-φ42 616

800 Fan Series (Single Row Fan)

Model Heat exchange capacity (KW) area Pipe volume dm3 fan Noise dB (A) Interface specifications (mm) Weight kg
ΔT=15K m2 Air volume m3/h Power (W) Current (A) Intake bleeding
6-pole motor: speed 920 r/min
CV8011B6 70.7 115 14.3 21600 1500 3.96 54 2-φ28 2-φ22 212
CV8011C6 88.2 173 21.4 20800 1500 3.96 54 2-φ28 2-φ22 240
CV8011D6 93.5 231 28.5 20000 1500 3.96 54 2-φ28 2-φ22 267
CV8012B6 142 231 27.9 43200 3000 7.92 57 2-φ35 2-φ28 361
CV8012C6 176.5 346 41.8 41600 3000 7.92 57 2-φ35 2-φ28 416
CV8012D6 187.1 462 55.7 40000 3000 7.92 57 2-φ35 2-φ28 471
CV8013B6 212.8 346 41.5 64800 4500 11.88 59 2-φ42 2-φ35 514
CV8013C6 265.2 520 62.2 62400 4500 11.88 59 2-φ42 2-φ35 597
CV8013D6 280.6 693 83 60000 4500 11.88 59 2-φ42 2-φ35 679
CV8014B6 284.1 462 55.1 86400 6000 15.84 60 2-φ42 2-φ35 662
CV8014C6 353.4 693 82.6 83200 6000 15.84 60 2-φ42 2-φ35 772
CV8014D6 374.2 924 110.2 80000 6000 15.84 60 2-φ42 2-φ35 882
CV8015B6 354.8 577 68.7 108000 7500 19.8 61 2-φ42 2-φ35 817
CV8015C6 441.6 866 103.1 104000 7500 19.8 61 2-φ54 2-φ42 954
CV8015D6 467.3 1154 137.4 100000 7500 19.8 61 2-φ54 2-φ42 1091

800 Fan Series (Double Row Fan)

Model Heat exchange capacity (KW) area Pipe volume dm3 fan Noise dB (A) Interface specifications (mm) Weight kg
ΔT=15K m2 Air volume m3/h Power (W) Current (A) Intake bleeding
6-pole motor: speed 920 r/min
CV8022C6 281.4 531 71.1 83200 6000 15.84 60 2-φ42 2-φ35 788
CV8022D6 297.4 708 94.8 80000 6000 15.84 60 2-φ42 2-φ35 880
CV8023C6 422.2 797 105.7 124800 9000 23.76 62 2-φ54 2-φ42 1134
CV8023D6 446.1 1062 140.9 120000 9000 23.76 62 2-φ54 2-φ42 1271
CV8024C6 562.9 1062 140.3 166400 12000 31.68 63 2-φ54 2-φ42 1451
CV8024D6 594.7 1416 187.1 160000 12000 31.68 63 2-φ54 2-φ42 1634
1) Cooling capacity calibration: Inlet air temperature 25°C, condensing temperature 40°C, temperature difference 15K, refrigerant R404A. For heat transfer capacities under other operating conditions, please refer to the correction factor.
2) Noise is calibrated as the sound pressure value at a distance of 10 meters.

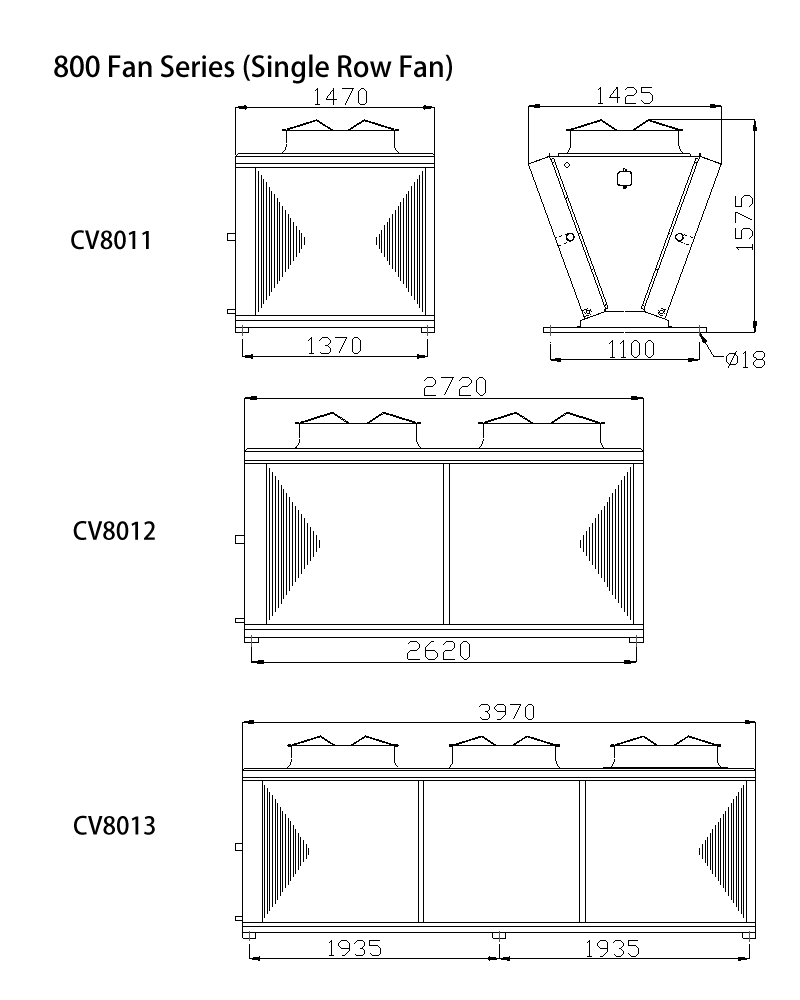

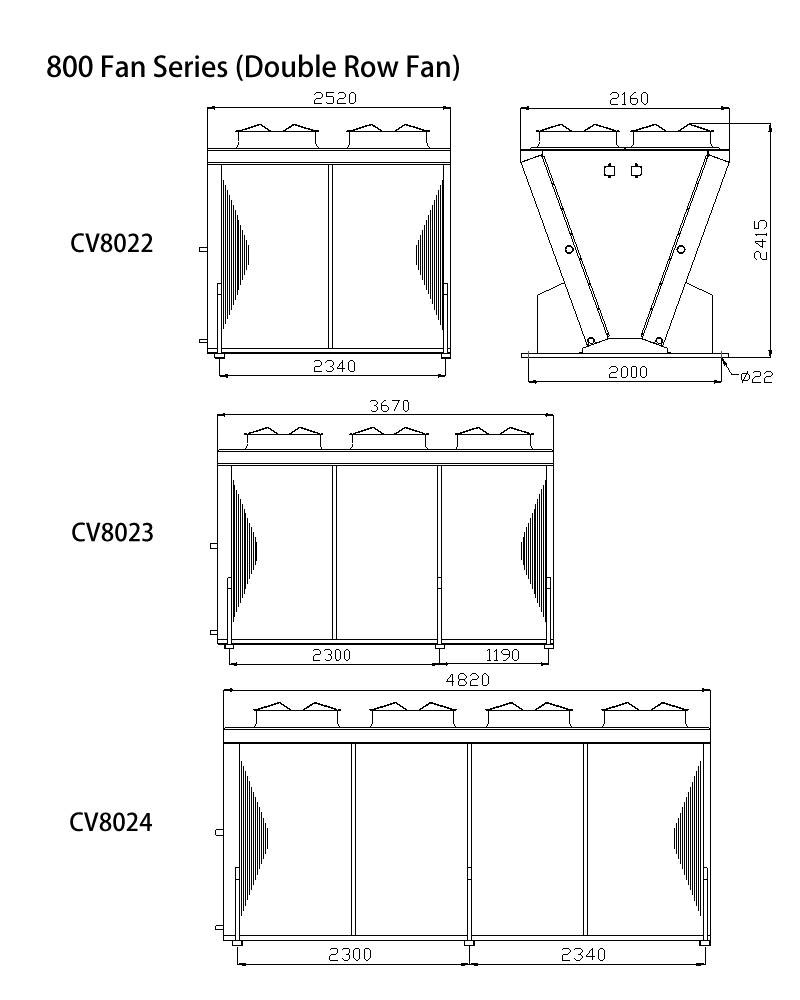

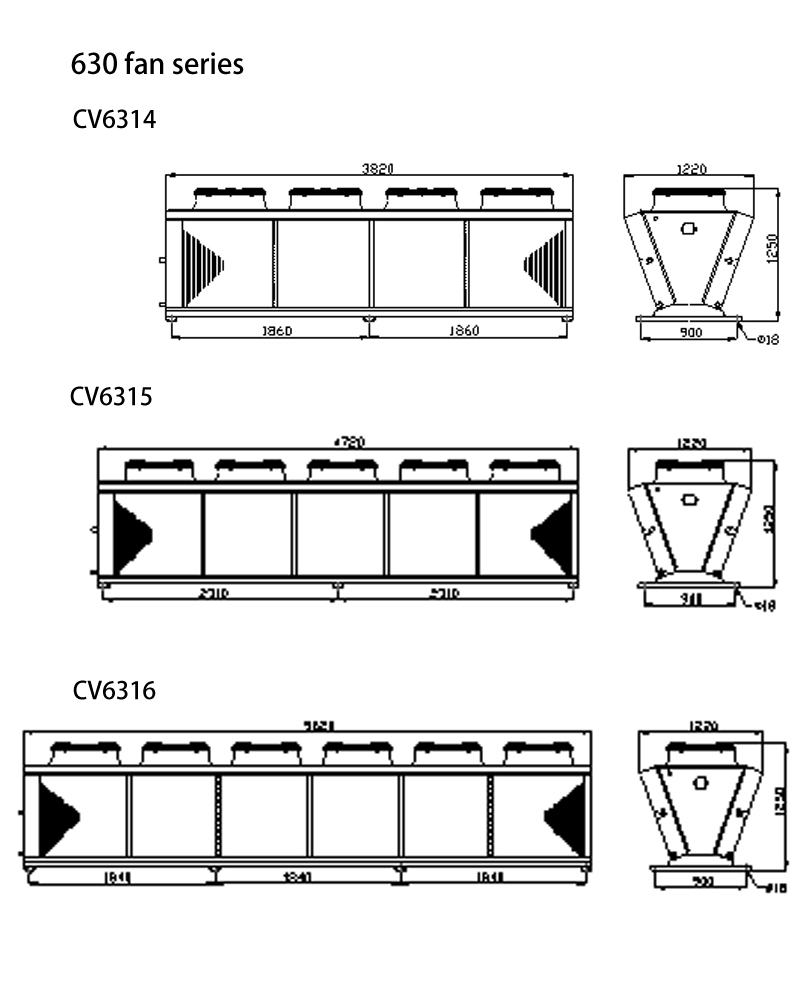

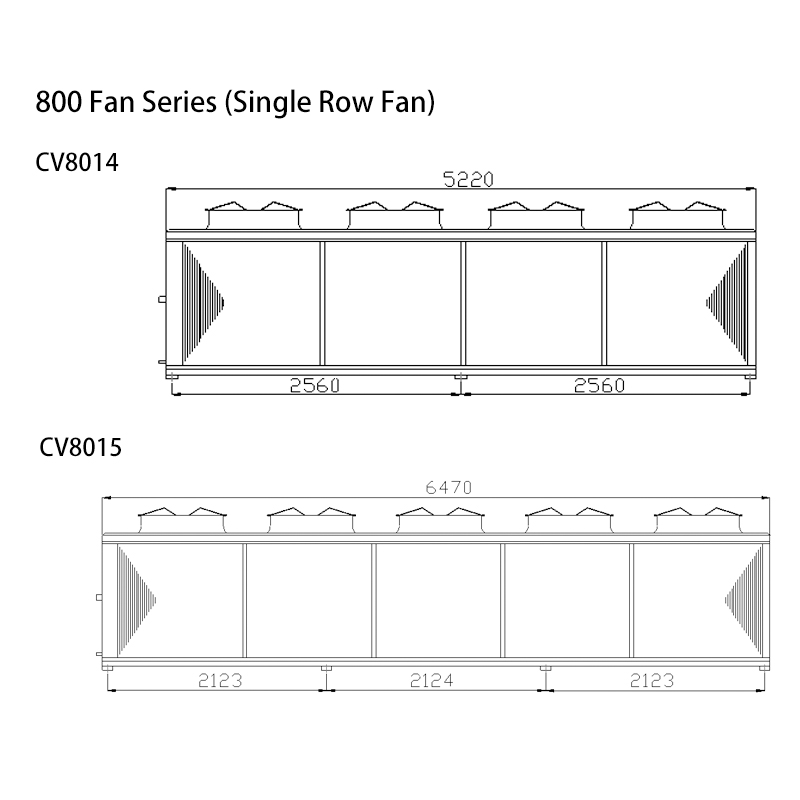

03Dimensions
