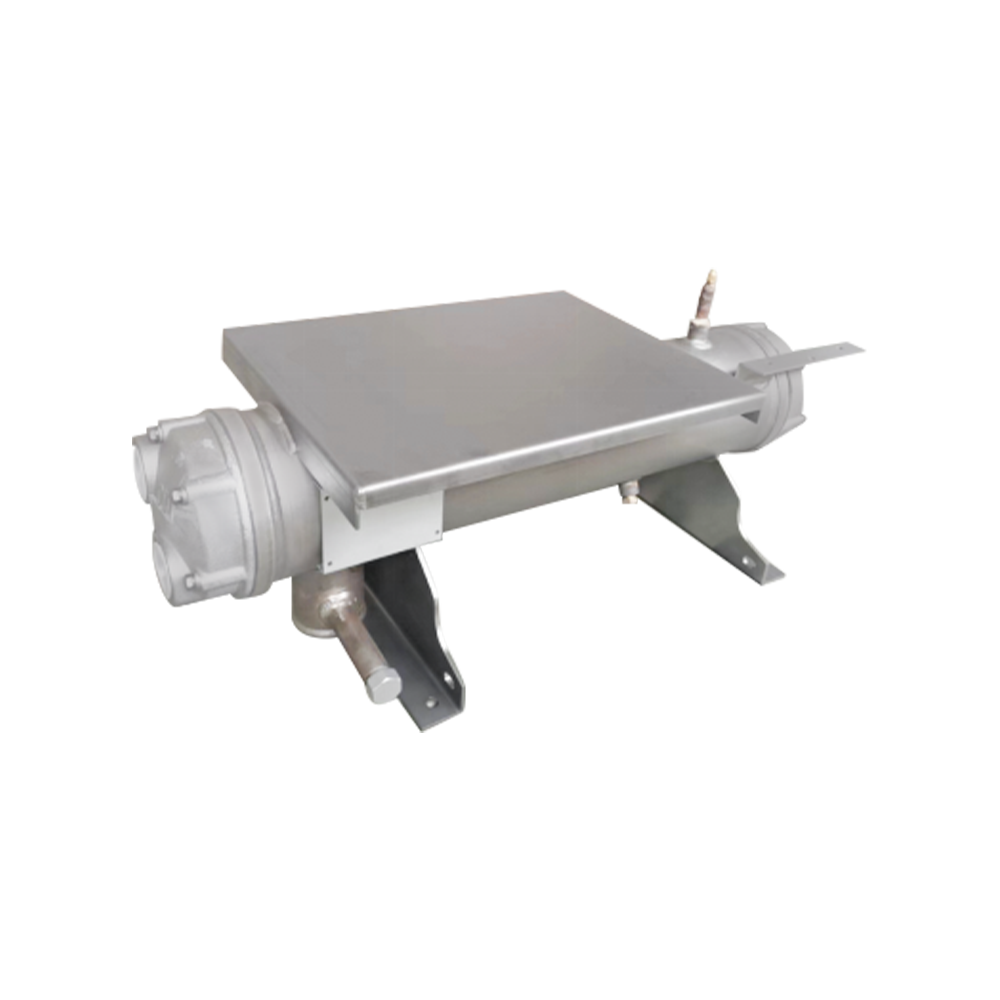

KCWS Series Shell And Tube Water-Cooled Condenser

As an important pressure vessel product of the KCWS series, KCWS always puts quality and safety first. All products have been strictly supervised and inspected by the Technical Supervision Bureau, and are designed, selected, manufactured and inspected in accordance with relevant national standards and industry standards such as GB150.1~GB150.4-2011 "Pressure Vessel", GB151-2014 "Heat Exchanger", NB/T47012-2020 "Pressure Vessel for Refrigeration Equipment", etc., to ensure your safety. ​
This series of products includes shell and tube water-cooled condensers, seawater condensers and other types, with heat exchange capacity ranging from 8.3KW to 397.3KW, suitable for various refrigerants such as R134a, R404A, R507, R407C, R22, etc., and can meet the refrigeration needs of different scenarios.

CONTACT US
PREV：KCWS Series Semi-Enclosed Piston Water-Cooled Compressor Condensing UnitNEXT：No next product
01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

1. Enhanced heat transfer structure: using double-sided enhanced high-efficiency heat transfer copper tubes, and the new special tooth shape of Kaidi condenser developed in cooperation with suppliers to improve heat exchange efficiency, making heat exchange faster and more sufficient. ​

2. Combination of standardization and customization: using standardized design, and can be customized according to customer specific needs to meet personalized usage scenarios. ​

3. Interface design: the inlet and outlet water interfaces adopt left and right eccentric design, and the interface is a national standard threaded interface, which is convenient for customers to install pipelines and valves on site. ​

4. Liquid collection bag pressure stabilization design: the unique liquid collection bag design provides better liquid supply effect, adapts to the fluctuation of refrigerant in the cylinder, and enhances the operation stability of the unit. ​

5. Multi-channel sealing and leak prevention: the tube sheet tube hole adopts a multi-channel sealing groove design to reduce the risk of leakage between the tube sheet and the heat exchange tube. ​

6. Safety fusible plug protection: set up a "safety fusible plug" device, when the liquid temperature in the shell exceeds the set value, it will automatically melt and reduce the pressure to ensure the safety of the refrigeration system.​

7. Supporting installation accessories: standard compressor bracket, pressure gauge and oil separator bracket are provided to facilitate customer installation and use; drainage ports are provided at the lower ends of the front and rear end covers to facilitate drainage and prevent water accumulation in the tube from freezing and breaking the heat exchange tube due to low ambient temperature. ​

8. Secondary shot peening: After secondary shot peening, the cleanliness of the shell is ensured, and the paint is firmly attached. The overall appearance is beautiful, small in size, large in heat exchange capacity, and low in failure rate. ​
Dual-pass pressure test: All products have undergone shell and tube pressure tests and passed the pressure test, and the quality is guaranteed. ​

9. Wide application: KCWS series shell and tube water-cooled condensers have rich application scenarios and can be widely used in the refrigeration industry, cold storage projects, agriculture, food, restaurants, chemical industries, and can also be used with central air-conditioning host equipment.

01 Advantages

1. Enhanced heat transfer structure: using double-sided enhanced high-efficiency heat transfer copper tubes, and the new special tooth shape of Kaidi condenser developed in cooperation with suppliers to improve heat exchange efficiency, making heat exchange faster and more sufficient. ​

2. Combination of standardization and customization: using standardized design, and can be customized according to customer specific needs to meet personalized usage scenarios. ​

3. Interface design: the inlet and outlet water interfaces adopt left and right eccentric design, and the interface is a national standard threaded interface, which is convenient for customers to install pipelines and valves on site. ​

4. Liquid collection bag pressure stabilization design: the unique liquid collection bag design provides better liquid supply effect, adapts to the fluctuation of refrigerant in the cylinder, and enhances the operation stability of the unit. ​

5. Multi-channel sealing and leak prevention: the tube sheet tube hole adopts a multi-channel sealing groove design to reduce the risk of leakage between the tube sheet and the heat exchange tube. ​

6. Safety fusible plug protection: set up a "safety fusible plug" device, when the liquid temperature in the shell exceeds the set value, it will automatically melt and reduce the pressure to ensure the safety of the refrigeration system.​

7. Supporting installation accessories: standard compressor bracket, pressure gauge and oil separator bracket are provided to facilitate customer installation and use; drainage ports are provided at the lower ends of the front and rear end covers to facilitate drainage and prevent water accumulation in the tube from freezing and breaking the heat exchange tube due to low ambient temperature. ​

8. Secondary shot peening: After secondary shot peening, the cleanliness of the shell is ensured, and the paint is firmly attached. The overall appearance is beautiful, small in size, large in heat exchange capacity, and low in failure rate. ​
Dual-pass pressure test: All products have undergone shell and tube pressure tests and passed the pressure test, and the quality is guaranteed. ​

9. Wide application: KCWS series shell and tube water-cooled condensers have rich application scenarios and can be widely used in the refrigeration industry, cold storage projects, agriculture, food, restaurants, chemical industries, and can also be used with central air-conditioning host equipment.

02Specifications
K C W S - 020 / J B1 A
Design serial number: A, B, C..., can be omitted for the first design
Cylinder specifications: B—indicates small cylinder, B1—indicates large cylinder, C—indicates large cylinder
Series code 1: J—indicates series with liquid collection bag, omitted if no liquid collection bag is provided;
Cooling capacity (HP): In HP, it is expressed by three digits, such as 080 for 80HP, 150 for 150HP Cooling capacity (HP): In HP, it is expressed by three digits, such as 080 for 80HP, 150 for 150HP
Number of systems: S—single system; D—dual system; T—triple system
Coolant code: W—for ordinary water cooling (Water); S—for seawater (Sea)
Product code: C—shell and tube condenser; E—shell and tube evaporator;
Brand code: K—for Kaideli brand

Single system shell and tube water-cooled condenser

Model  HP Heat exchange capacity (KW) Overall dimensions and installation dimensions (mm) Liquid outlet/air inlet (mm) Water pipe N-1/N-2 Weight (kg)
A A1 B C D E N-3 N-5
KCWS-003/JBB 3 8.3 827 700 168 500 280 100 12 16 1-1/2" 44
KCWS-005/JBB 5 12.5 827 700 168 500 280 100 12 22 1-1/2" 46
KCWS-008/JBB 8 19 927 800 168 600 280 100 16 22 1-1/2" 52
KCWS-010/JBB 10 23.7 1127 1000 168 800 280 100 16 28 1-1/2" 60
KCWS-015/JBB 15 36.9 1245 1100 219 900 330 100 19 28 2" 93
KCWS-020/JBB 20 43.4 1245 1100 219 900 330 100 19 28 2" 96
KCWS-025/JBB 25 50.4 1305 1160 219 900 330 100 22 35 2" 101
KCWS-030/JBB 30 59.2 1645 1500 219 1100 330 100 28 35 2" 116
KCWS-040/JBB 40 88.8 1848 1700 219 1100 330 100 28 42 2" 126
KCWS-070/JBB 70 154.3 1848 1700 273 1100 380 100 46 54 2-1/2" 205
KCWS-080/JBB 80 176.9 2098 1950 273 1200 380 100 46 54 2-1/2" 230
KCWS-005/JB1B 5 13.3 1042 900 219 500 330 100 12 22 2" 58
KCWS-008/JB1B 8 19.7 1142 1000 219 650 330 100 16 22 2" 76
KCWS-010/JB1B 10 24.7 1142 1000 219 650 330 100 16 28 2" 78
KCWS-015/JB1B 15 36.9 1251 1100 273 900 380 100 19 28 2-1/2" 121
KCWS-020/JB1B 20 43 1361 1210 273 900 380 100 22 28 2-1/2" 124
KCWS-025/JB1B 25 50.3 1651 1500 273 1100 380 100 22 35 2-1/2" 142
KCWS-030/JB1B 30 59.2 1651 1500 273 1100 380 100 28 35 2-1/2" 146
KCWS-035/JB1B 35 71 1651 1500 273 1100 380 100 28 35 2-1/2" 151
KCWS-040/JB1B 40 88.7 1651 1500 273 1100 380 100 28 42 2-1/2" 160
KCWS-050/JB1B 50 100.6 1851 1700 273 1300 380 100 35 42 2-1/2" 176
KCWS-060/JB1B 60 130.7 1851 1700 273 1300 380 100 35 42 2-1/2" 190
Note: Fusible plug interface N-5: NPT3/8"

C series single system shell and tube water cooled condenser

Model  HP Heat exchange capacity (KW) Overall dimensions and installation dimensions (mm) Connection port diameter Φ
A A1 B C D E N-6/intake (mm) N-3/bleeding (mm) N-2/water inlet (inch) N-1/water outlet (mm) SV/Safety Valve (inch)
KCWS-070/JCA 70 154.4 2035 1700 325 1000 450 150 54 42 3 3 Rc3/8
KCWS-080/JCA 80 177.1 2285 1950 325 1200 450 150 54 42 3 3
KCWS-090/JCA 90 200.2 2285 1950 325 1200 450 150 54 42 3 3
KCWS-100/JCA 100 223.9 2436 2100 325 1300 450 200 54 42 4 4
KCWS-120/JCA 120 263.3 2636 2300 325 1500 450 200 54 42 4 4
KCWS-130/JCA 130 284.3 2813 2400 377 1400 500 250 67 54 4 4
KCWS-140/JCA 140 303.2 2813 2400 377 1400 500 250 67 54 4 4
KCWS-150/JCA 150 320.8 2913 2500 377 1500 500 250 67 54 4 4
KCWS-160/JCA 160 338.1 2913 2500 377 1500 500 250 67 54 4 4
KCWS-180/JCA 180 355.3 2913 2500 377 1500 500 250 76 54 5 5
KCWS-200/JCA 200 397.8 3013 2600 377 1600 500 250 76 54 5 5
Note: Pressure gauge port N-4: RC1/8"; Fusible plug port N-5: NPT3/8"; Safety valve is an optional accessory
