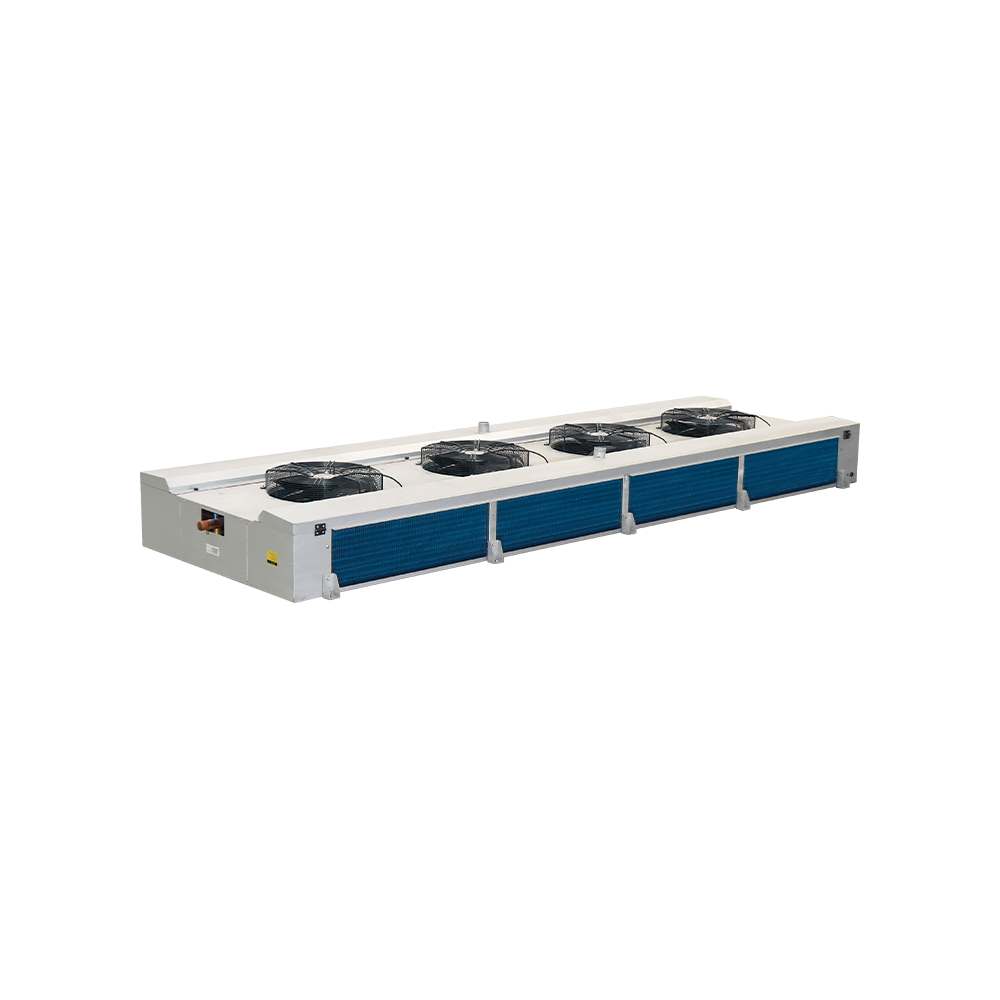

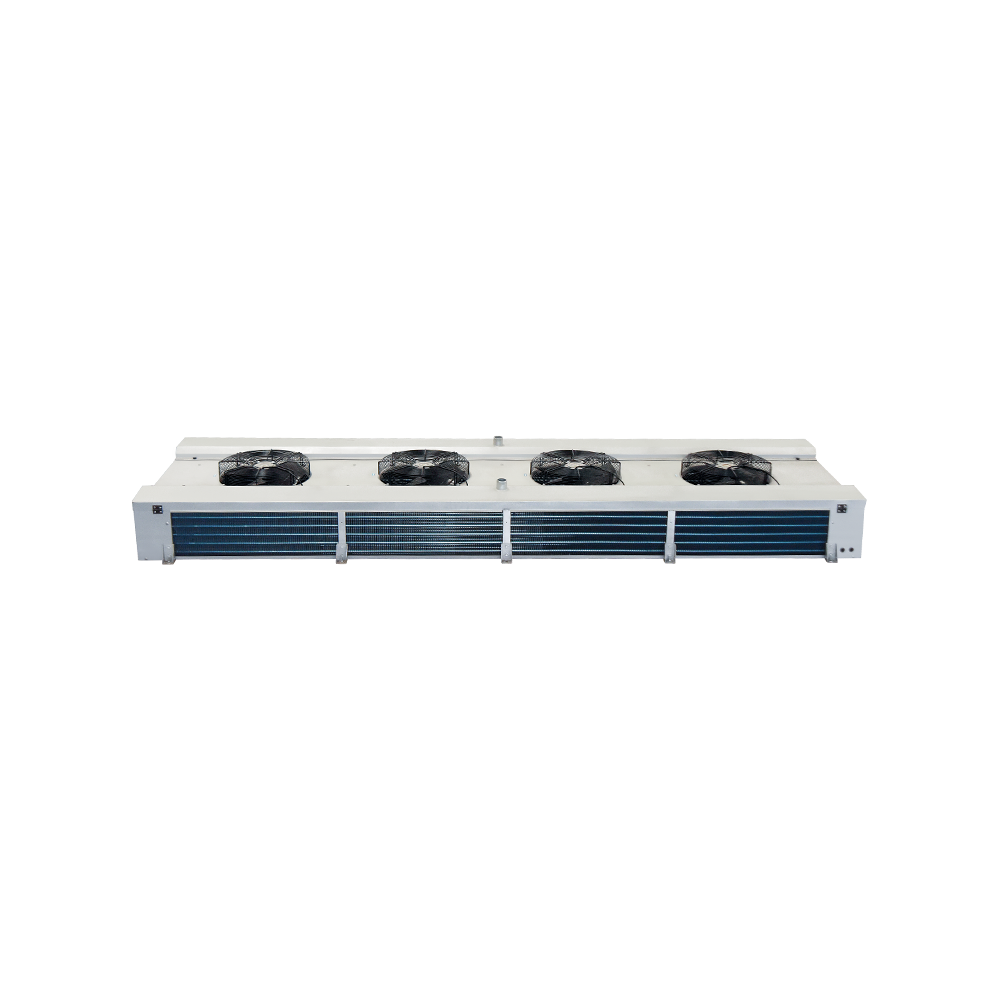

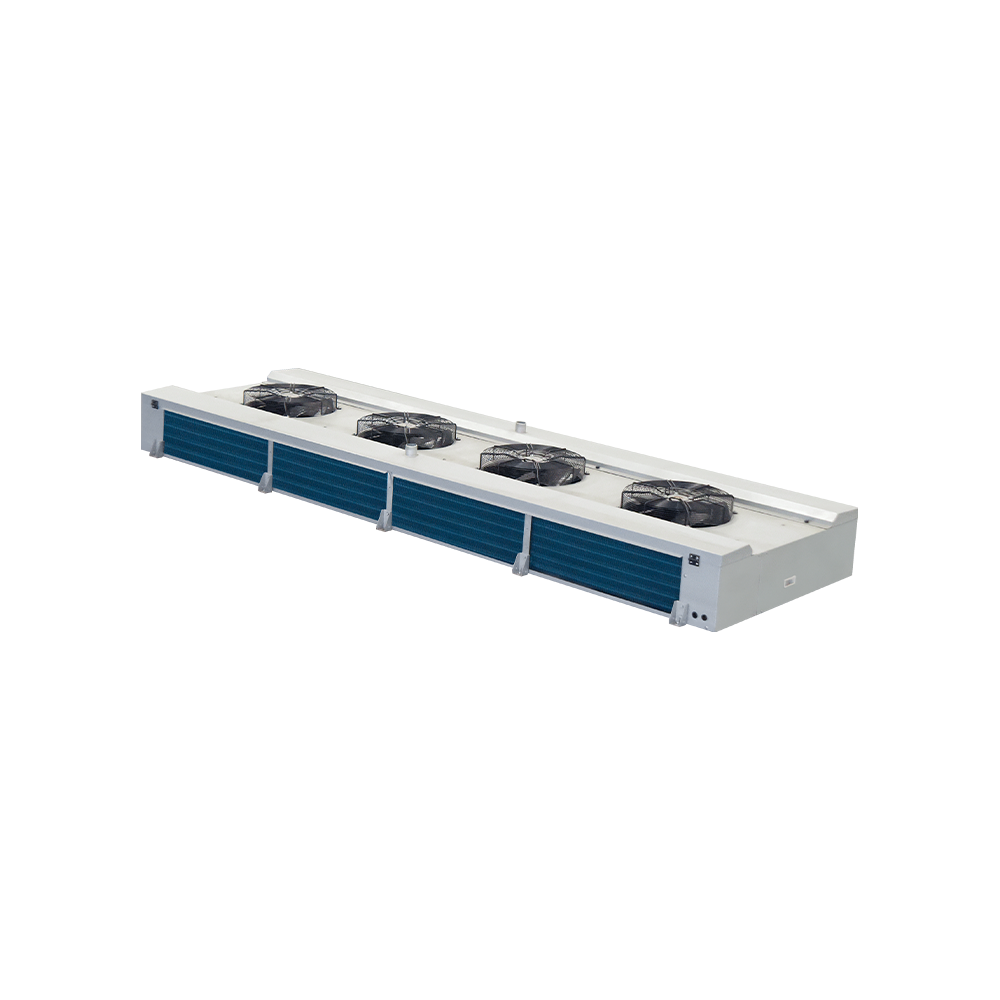

ESDL Series Direct Expansion Double-Side Blow Stainless Steel Tube Evaporator

ESDL series direct expansion Double-side blow stainless steel tube Evaporator is specially designed for harsh refrigeration environments. It uses 304 stainless steel material and dual air outlet structure to ensure efficient and uniform cooling. Its stainless steel coils are paired with hydrophilic aluminum foil fins, which have excellent heat exchange efficiency; the electric heating defrost system and double-layer drainage design ensure long-term and stable operation of the equipment. Suitable for food processing, medical cold chain, logistics and warehousing and other fields that require high hygiene and corrosion resistance.

CONTACT US
01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

Product Advantages
• Full 304 stainless steel structure, strong corrosion resistance and long service life
• Supports a variety of refrigerants (R404A/R507A/R22), strong adaptability
• Different fan specifications (φ400-φ630) and fin spacing (4/6/9mm) are available
• 52bar high-pressure design to adapt to harsh working conditions
• IP65 waterproof grade, safe and reliable
With its excellent durability and stable refrigeration performance, the ESDL series is ideal for improving the efficiency of cold chain systems!

01 Advantages

Product Advantages
• Full 304 stainless steel structure, strong corrosion resistance and long service life
• Supports a variety of refrigerants (R404A/R507A/R22), strong adaptability
• Different fan specifications (φ400-φ630) and fin spacing (4/6/9mm) are available
• 52bar high-pressure design to adapt to harsh working conditions
• IP65 waterproof grade, safe and reliable
With its excellent durability and stable refrigeration performance, the ESDL series is ideal for improving the efficiency of cold chain systems!

02Specifications
ESDL 40 1 / F D - E T
Voltage, T:3PH/380V/50hz
Defrost mode, E: electric heating, A: air
Pitch code, L: 4.0, D: 6.0, J: 9.0
Coil specification code
Number of fans
Fan diameter (cm)
Product Series (Double-Sided Direct Expansion)

Pitch 4.0mm

model Cooling capacity/R507A (KW) area Pipe capacity dm3 Air volume Range Refrigerant interface drain Weight kg
Tc= 0 Tc=10 import export
T0=-8 T0= 0 m2 m3/h m mm mm
ESDL401/DL-ET 3.6 5.5 34.6 5.8 3000 2×5 φ12 φ22 R1" 67
ESDL402/DL-ET 7.1 11.1 69.1 10.1 6000 2×7 φ12 φ22 R1" 105
ESDL403/DL-ET 10.7 16.6 103.7 14.4 9000 2×9 φ12 φ28 R1" 144
ESDL404/DL-ET 14.3 22.1 138.2 18.7 12000 2×11 φ16 φ28 R1" 182
ESDL451/DL-ET 5.3 8 46.1 7.2 4500 2×6 φ12 φ22 R1" 79
ESDL452/DL-ET 10.5 16.1 92.2 13 9000 2×8 φ12 φ28 R1" 130
ESDL453/DL-ET 15.8 24 138.2 18.7 13500 2×10 φ16 φ28 R1.5" 180
ESDL454/DL-ET 21.1 32.1 184.3 24.5 18000 2×12 φ22 φ35 R1.5" 231
ESDL501/DL-ET 6.7 10.2 57.6 8.7 6000 2×7 φ12 φ22 R1" 90
ESDL501/FL-ET 8.8 13.4 86.4 13 5400 2×6 φ12 φ28 R1" 112
ESDL502/DL-ET 13.4 20.4 115.2 15.8 12000 2×9 φ16 φ28 R1.5" 152
ESDL502/FL-ET 17.7 26.8 172.8 23.8 10800 2×8 φ16 φ28 R1.5" 190
ESDL503/DL-ET 20.1 30.5 172.8 23 18000 2×11 φ22 φ35 R1.5" 213
ESDL503/FL-ET 26.6 40.4 259.2 34.5 16200 2×10 φ28 φ35 R1.5" 267
ESDL504/DL-ET 26.8 40.7 230.4 30.2 24000 2×13 φ28 φ42 R1.5" 275
ESDL504/FL-ET 35.5 54 346.5 45.3 21600 2×12 φ28 φ42 R1.5" 344
ESDL631/FL-ET 14.6 22.1 138.2 20.2 9250 2×9 φ16 φ28 R1.5" 156
ESDL632/FL-ET 29.1 44.3 276.5 37.4 18500 2×12 φ28 φ42 R1.5" 270
ESDL633/FL-ET 43.7 66.3 414.7 54.6 27750 2×15 φ35 φ54 R1.5" 383
1) In the table, Tc is the storage temperature and T0 is the evaporation temperature. 2) The range is the air supply distance at 0.5 m/s at room temperature.

Pitch 6.0mm

model Cooling capacity/R507A (KW) area Pipe capacity dm3 Air volume Range Refrigerant interface drain Weight kg
Tc=0 Tc=-18 import export
T0=-8 T0=-25 m2 m3/h m mm mm
ESDL401/FD-ET 4.1 3.1 35.4 8.7 2800 2×5 φ12 φ22 R1" 79
ESDL402/FD-ET 8.2 6.2 70.8 15.1 5600 2×7 φ12 φ28 R1" 123
ESDL403/FD-ET 12.3 9.3 106.3 21.6 8400 2×9 φ22 φ35 R1" 169
ESDL404/FD-ET 16.4 12.3 141.7 28 11200 2×11 φ22 φ35 R1" 215
ESDL451/FD-ET 6.1 4.5 47.2 10.8 4250 2×6 φ12 φ28 R1" 92
ESDL452/FD-ET 12.2 9.1 94.5 19.5 8500 2×8 φ22 φ35 R1" 150
ESDL453/FD-ET 18.2 13.7 141.7 28 12750 2×10 φ28 φ42 R1.5" 210
ESDL454/FD-ET 24.4 18.3 188.9 36.7 17000 2×12 φ28 φ42 R1.5" 267
ESDL501/FD-ET 7.4 5.5 59 13 5750 2×6 φ12 φ28 R1" 106
ESDL502/FD-ET 14.7 11 118.1 23.8 11500 2×8 φ22 φ35 R1.5" 177
ESDL503/FD-ET 22.1 16.6 177.1 34.5 17250 2×10 φ28 φ35 R1.5" 248
ESDL504/FD-ET 29.5 22 236.2 45.3 23000 2×12 φ28 φ42 R1.5" 319
ESDL631/FD-ET 12.6 9.5 94.5 20.2 9630 2×9 φ16 φ28 R1.5" 146
ESDL631/HD-ET 14.5 10.8 126 26.9 9000 2×8 φ16 φ28 R1.5" 172
ESDL632/FD-ET 25.2 18.8 188.9 37.4 19260 2×12 φ28 φ42 R1.5" 250
ESDL632/HD-ET 28.9 21.7 251.9 49.9 18000 2×11 φ28 φ42 R1.5" 296
ESDL633/FD-ET 37.8 28.3 283.4 54.6 28890 2×15 φ35 φ54 R1.5" 353
ESDL633/HD-ET 43.3 32.4 377.9 72.8 27000 2×14 φ35 φ54 R1.5" 420
1) In the table, Tc is the storage temperature and T0 is the evaporation temperature. 2) The range is the air supply distance at 0.5 m/s at room temperature.

Pitch 9.0mm

model Cooling capacity/R507A (KW) area Pipe capacity dm3 Air volume Range Refrigerant interface drain Weight kg
Tc=0 Tc=-25 import export
T0=-8 T0=-31 m2 m3/h m mm mm
ESDL401/FJ-ET 3.5 2.1 24.2 8.7 3000 2×5 φ12 φ22 R1" 79
ESDL402/FJ-ET 7 4.2 48.4 15.1 6000 2×7 φ12 φ28 R1" 125
ESDL403/FJ-ET 10.5 6.3 72.6 21.6 9000 2×9 φ22 φ35 R1" 172
ESDL404/FJ-ET 14 8.5 96.8 28 12000 2×11 φ22 φ35 R1" 218
ESDL451/FJ-ET 5 3 32.3 10.8 4500 2×6 φ12 φ28 R1" 93
ESDL452/FJ-ET 10 6 64.5 19.5 9000 2×8 φ22 φ35 R1" 152
ESDL453/FJ-ET 15 9 96.8 28 13500 2×10 φ28 φ42 R1.5" 213
ESDL454/FJ-ET 20.1 12.2 129 36.7 18000 2×12 φ28 φ42 R1.5" 272
ESDL501/FJ-ET 6.2 3.7 40.3 13 6000 2×6 φ12 φ28 R1" 107
ESDL502/FJ-ET 12.5 7.5 80.6 23.8 12000 2×8 φ22 φ35 R1.5" 180
ESDL503/FJ-ET 18.7 11.3 121 34.5 18000 2×10 φ28 φ35 R1.5" 252
ESDL504/FJ-ET 25 15.2 161.3 45.3 24000 2×12 φ28 φ42 R1.5" 325
ESDL631/FJ-ET 10.3 6.2 64.5 20.2 9950 2×9 φ16 φ28 R1.5" 149
ESDL631/HJ-ET 12.2 7.3 86 26.9 9300 2×8 φ16 φ28 R1.5" 175
ESDL632/FJ-ET 20.6 12.4 129 37.4 19900 2×12 φ28 φ42 R1.5" 254
ESDL632/HJ-ET 24.4 14.7 172 49.9 18600 2×11 φ28 φ42 R1.5" 302
ESDL633/FJ-ET 30.9 18.7 193.5 54.6 29850 2×15 φ35 φ54 R1.5" 360
ESDL633/HJ-ET 36.7 22.2 258 72.8 27900 2×14 φ35 φ54 R1.5" 428
1) In the table, Tc is the storage temperature and T0 is the evaporation temperature. 2) The range is the air supply distance at 0.5 m/s at room temperature.

Electrical parameter table

Electrical parameter table fan motor Defrost power (KW)
Voltage V Power W Current A Speed r/min Coil water tray total
ESDL401/D* 380 205 0.51 1380 4×0.6 2×0.6 3.6
ESDL401/F* 380 205 0.51 1380 4×0.6 4×0.6 4.8
ESDL402/D* 380 410 1.02 1380 4×1.1 2×1.1 6.6
ESDL402/F* 380 410 1.02 1380 4×1.1 4×1.1 8.8
ESDL403/D* 380 615 1.53 1380 4×1.6 2×1.6 9.6
ESDL403/F* 380 615 1.53 1380 4×1.6 4×1.6 12.8
ESDL404/D* 380 820 2.04 1380 4×2.0 2×2.0 12
ESDL404/F* 380 820 2.04 1380 4×2.0 4×2.0 16
ESDL451/D* 380 370 0.75 1380 4×0.7 2×0.7 4.2
ESDL451/F* 380 370 0.75 1380 4×0.7 4×0.7 5.6
ESDL452/D* 380 740 1.5 1380 4×1.4 2×1.4 8.4
ESDL452/F* 380 740 1.5 1380 4×1.4 4×1.4 11.2
ESDL453/D* 380 1110 2.25 1380 4×2.0 2×2.0 12
ESDL453/F* 380 1110 2.25 1380 4×2.0 4×2.0 16
ESDL454/D* 380 1480 3 1380 4×2.8 2×2.8 16.8
ESDL454/F* 380 1480 3 1380 4×2.8 4×2.8 22.2
ESDL501/D* 380 500 0.95 1380 4×0.9 2×0.9 5.4
ESDL501/F* 380 500 0.95 1380 4×0.9 4×0.9 7.2
ESDL502/D* 380 1000 1.9 1380 4×1.7 2×1.7 10.2
ESDL502/F* 380 1000 1.9 1380 4×1.7 4×1.7 13.6
ESDL503/D* 380 1500 2.85 1380 4×2.6 2×2.6 15.6
ESDL503/F* 380 1500 2.85 1380 4×2.6 4×2.6 20.8
ESDL504/D* 380 2000 3.8 1380 4×3.0 2×3.0 18
ESDL504/F* 380 2000 3.8 1380 4×3.0 4×3.0 24
ESDL631/F* 380 800 1.6 1320 6×1.1 4×1.1 11
ESDL631/H* 380 800 1.6 1320 8×1.1 4×1.1 13.2
ESDL632/F* 380 1600 3.2 1320 6×2.0 4×2.0 20
ESDL632/H* 380 1600 3.2 1320 8×2.0 4×2.0 24
ESDL633/F* 380 2400 4.8 1320 6×3.0 4×3.0 30
ESDL633/H* 380 2400 4.8 1320 8×3.0 4×3.0 36

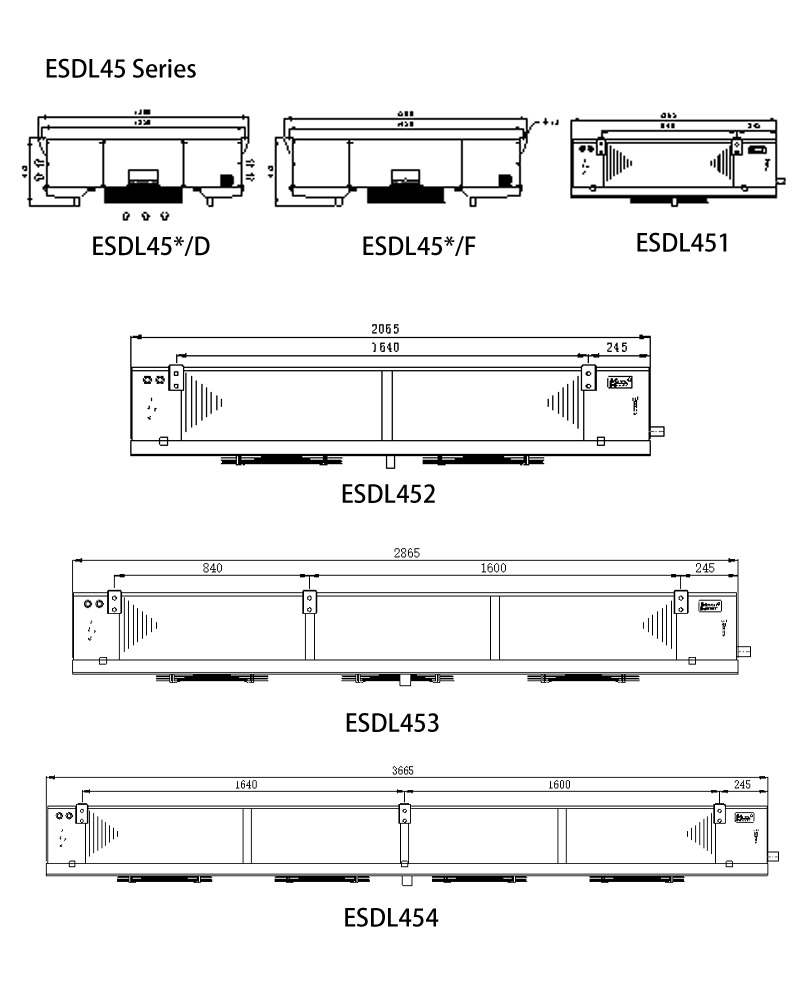

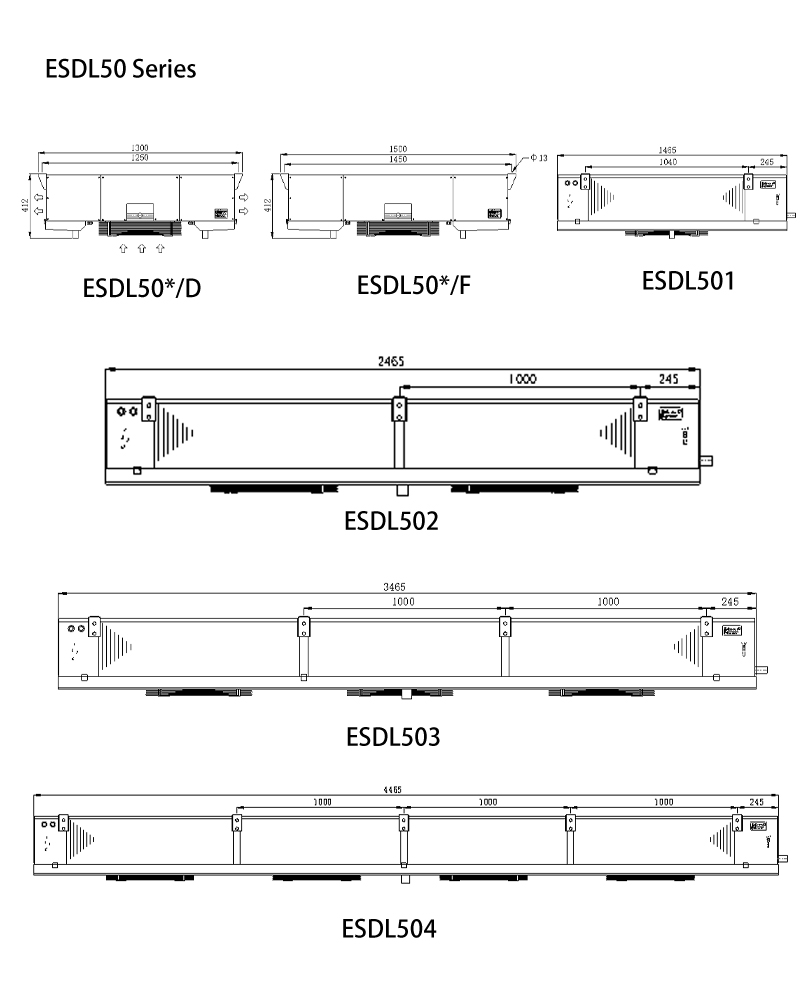

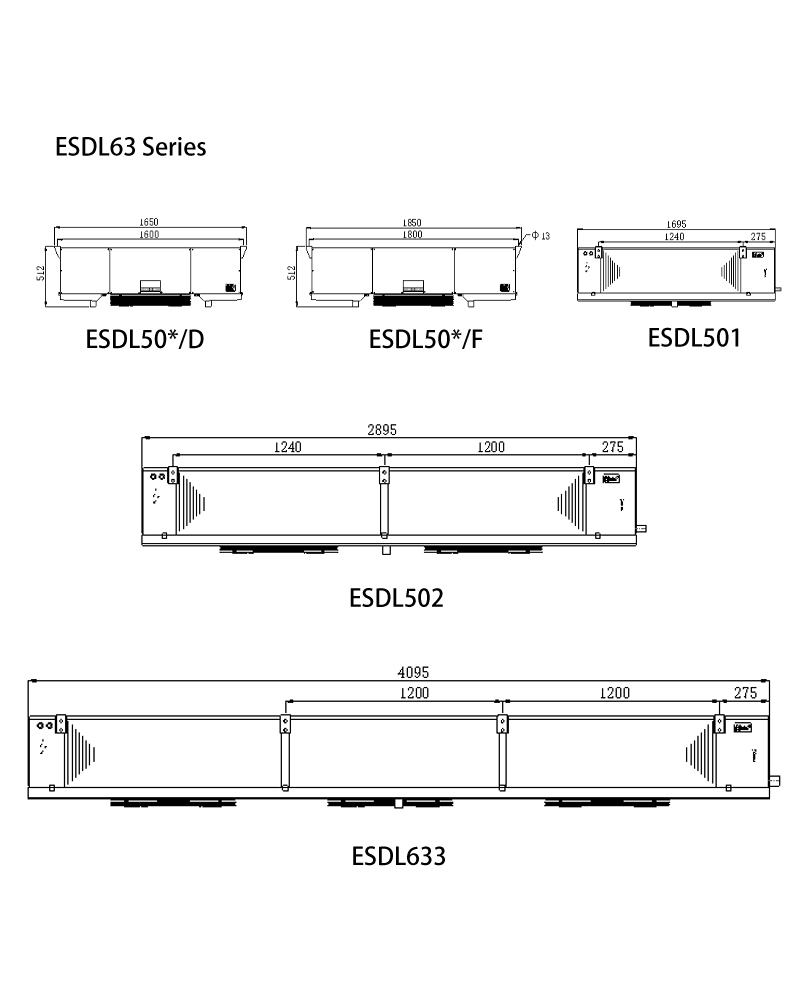

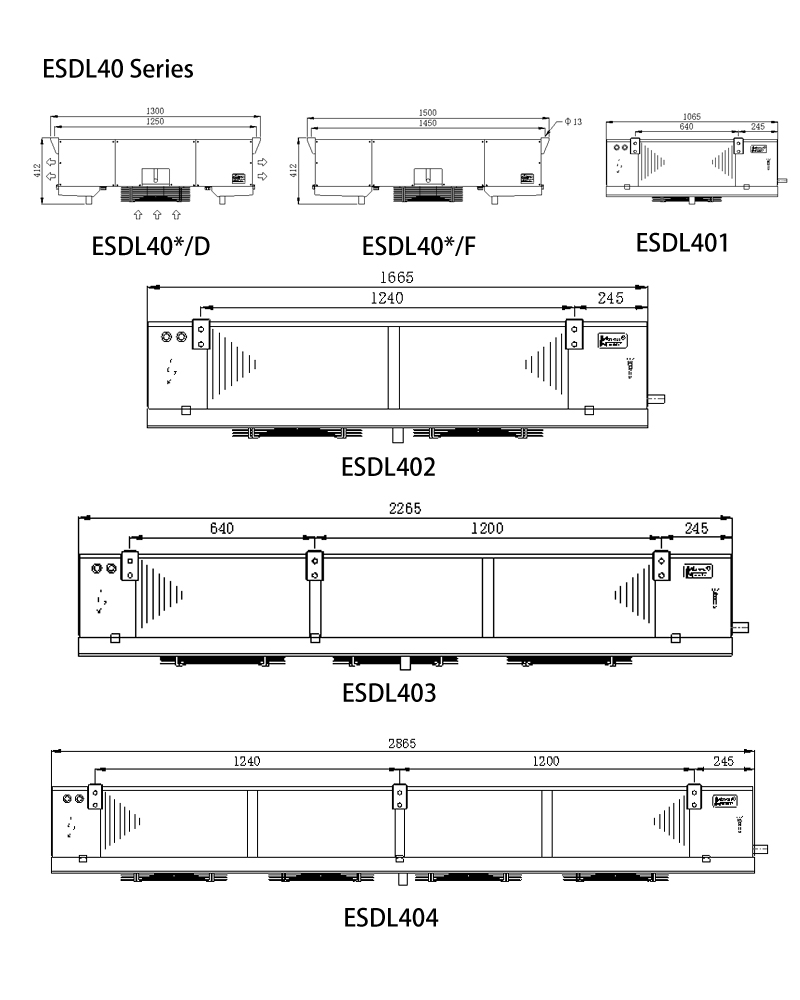

03Dimensions
  • 04Unit Configuration
    part Configuration part Configuration
    shell 304 stainless steel fins Hydrophilic aluminum foil (blue)
    316 stainless steel Plain aluminum foil
    Galvanized steel with plastic spraying 304 stainless steel sheet**
    motor Glossy stainless steel outer rotor 316 stainless steel sheet**
    EBM outer rotor (non-stainless steel) Defrost electro-thermal
    Coil 304 stainless steel Air
    316 stainless steel wind deflector
    ●: Standard configuration; ○: Optional. *: Stainless steel fins are used, the heat exchange rate is much smaller, please consult the company's technical department for details
