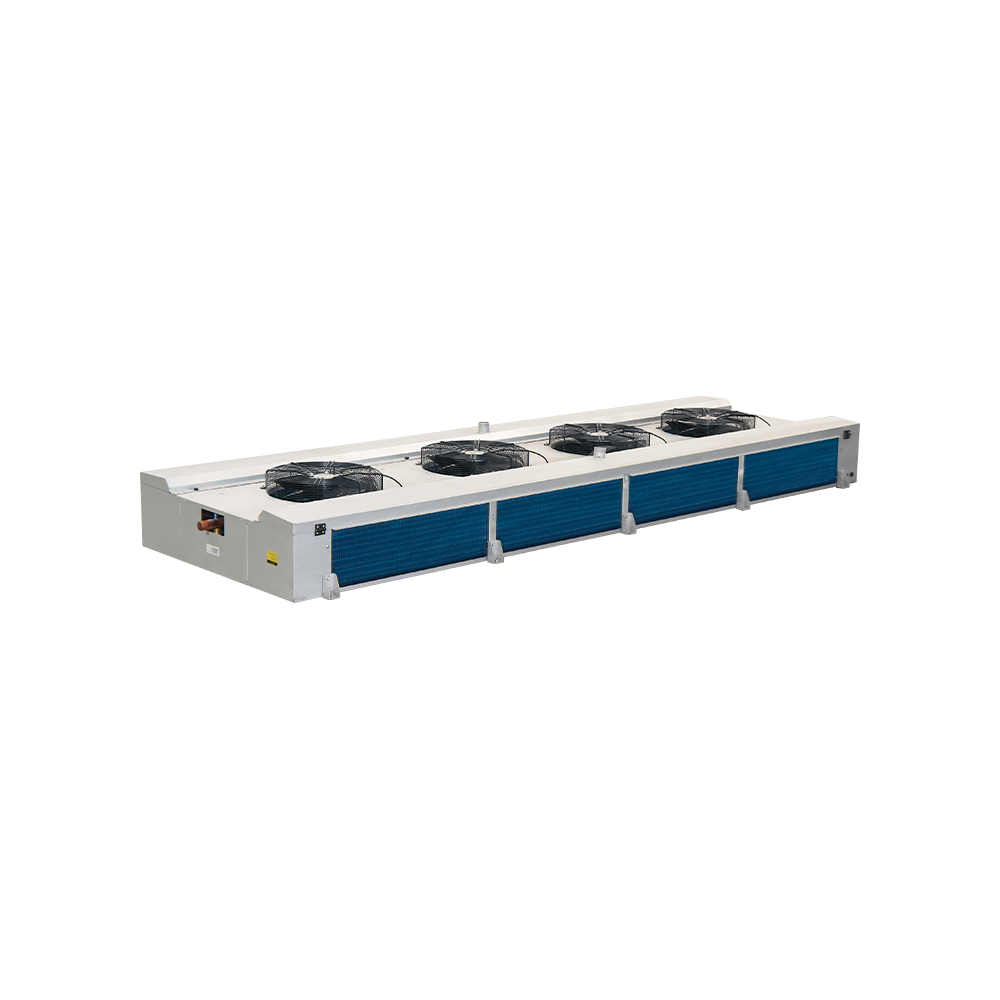

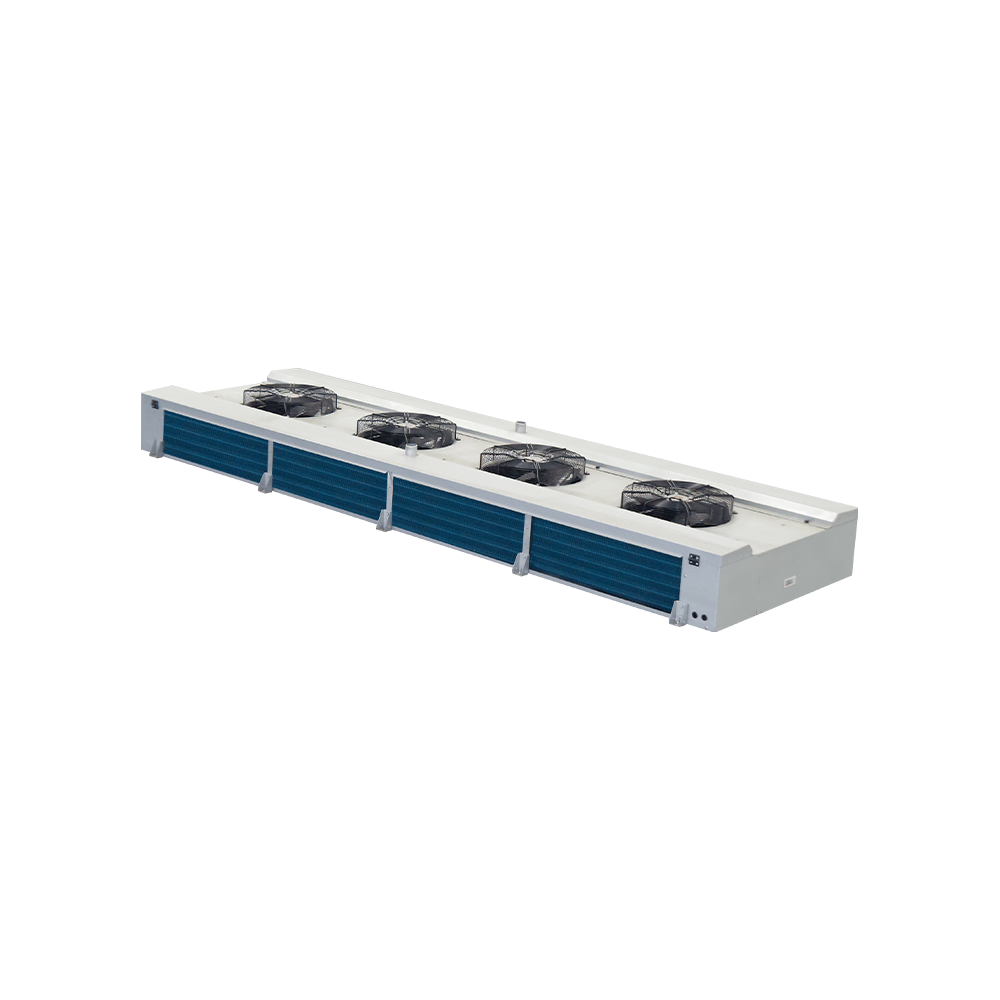

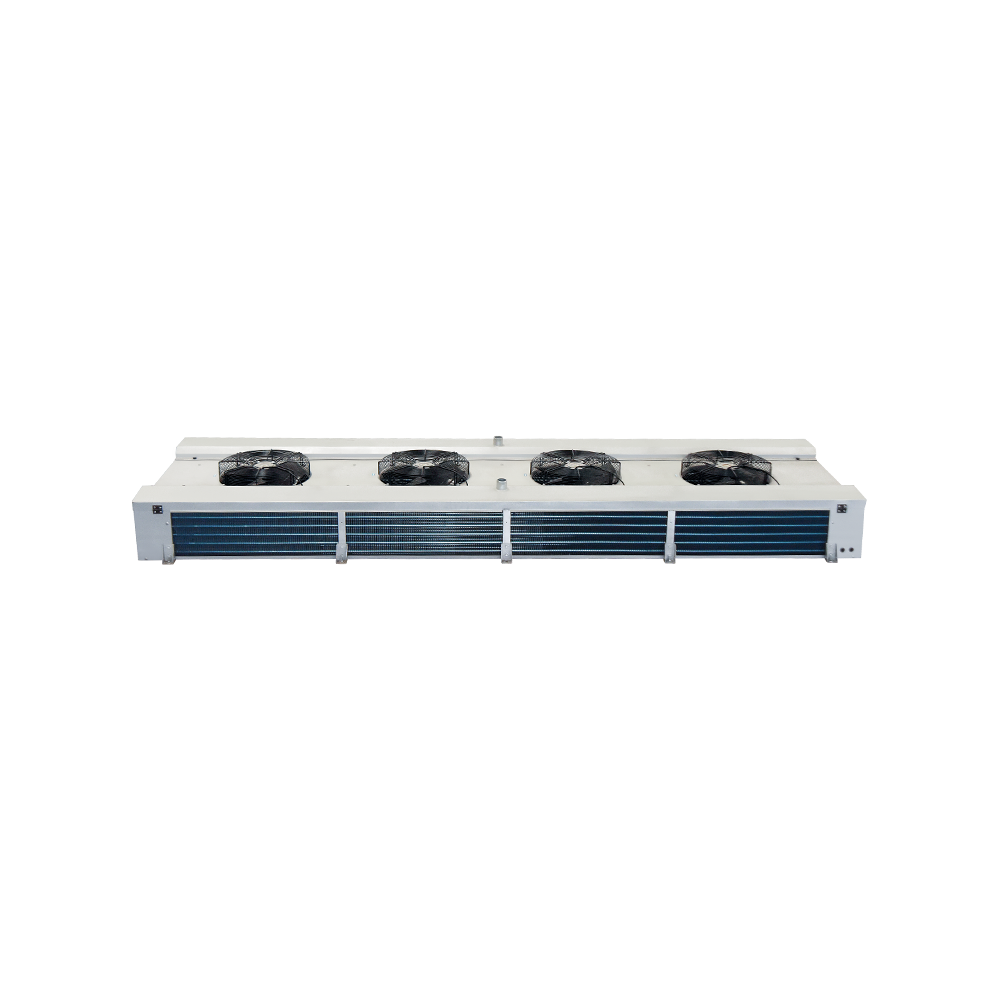

ESDP Series Pump Supply Double-Side Blow Evaporator

ESDP series pump supply double-side blow evaporator, adopts a 304 stainless steel pipe evaporator, with downward air inlet and both sides of the air outlet structure, with a maximum working pressure of 52 bar, and is adapted to a barrel pump liquid supply fluorine system and a subcritical CO₂ system, and has technical characteristics such as low temperature corrosion resistance, high heat transfer efficiency, and stable operation.

CONTACT US
01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

Key Features Explanation​
1. Structural design optimization
The outer shell adopts 304 stainless steel plate, and the outer water tray is a hinged edge-angle structure to achieve no dead angle drainage; the inner water tray is an aluminum plate sink type, which can directly divert condensate and defrost water, which has both maintenance convenience and drainage efficiency.​

2. Efficient heat transfer components
The evaporator coil is φ15mm 304 stainless steel pipe, and the square arrangement design increases the heat transfer area, reduces the heat transfer temperature difference (≤2℃), while reducing the dry consumption rate of food and delaying the frosting speed of the fins.​

3. Diverse adaptation systems
Hydrophilic aluminum foil corrugated fins are available in 4.0mm/6.0mm/9.0mm pitch selection, adapting to different temperature and humidity conditions; stainless steel outer rotor fans cover φ400-630mm specifications to meet diverse air volume requirements.

4. Reliable operation guarantee
Electric heating defrost is standard, and stainless steel heating pipes are all arranged in the coil and internal water tray, with defrost efficiency ≥95%; IP65-grade waterproof junction box and independent electrical circuit design improve operational stability in low temperature and high humidity environments.​

5. Widely compatible with refrigerant​
Supports a variety of refrigerants such as R404A, R507A, R744 (CO₂), R22, etc., and is adapted to mainstream refrigeration system architecture.

01 Advantages

Key Features Explanation​
1. Structural design optimization
The outer shell adopts 304 stainless steel plate, and the outer water tray is a hinged edge-angle structure to achieve no dead angle drainage; the inner water tray is an aluminum plate sink type, which can directly divert condensate and defrost water, which has both maintenance convenience and drainage efficiency.​

2. Efficient heat transfer components
The evaporator coil is φ15mm 304 stainless steel pipe, and the square arrangement design increases the heat transfer area, reduces the heat transfer temperature difference (≤2℃), while reducing the dry consumption rate of food and delaying the frosting speed of the fins.​

3. Diverse adaptation systems
Hydrophilic aluminum foil corrugated fins are available in 4.0mm/6.0mm/9.0mm pitch selection, adapting to different temperature and humidity conditions; stainless steel outer rotor fans cover φ400-630mm specifications to meet diverse air volume requirements.

4. Reliable operation guarantee
Electric heating defrost is standard, and stainless steel heating pipes are all arranged in the coil and internal water tray, with defrost efficiency ≥95%; IP65-grade waterproof junction box and independent electrical circuit design improve operational stability in low temperature and high humidity environments.​

5. Widely compatible with refrigerant​
Supports a variety of refrigerants such as R404A, R507A, R744 (CO₂), R22, etc., and is adapted to mainstream refrigeration system architecture.

02Specifications
ESDP 40 1 / F D - E T
Voltage, T:3PH/380V/50hz
Defrost mode, E: electric heating, A: air
Pitch code, L: 4.0, D: 6.0, J: 9.0
Coil specification code
Number of fans
Fan diameter (cm)
Product Series (Double-sided air pump liquid supply type)

Pitch 4.0mm (for R507A pump liquid supply system)

model Cooling capacity/R507A (KW) area Pipe capacity dm3 Air volume Range Refrigerant interface drain Weight kg
Tc= 0 Tc=10 import export
T0=-8 T0= 0 m2 m3/h m mm mm
ESDP401/DL-ET 4 6.2 34.6 5.8 3000 2×5 φ22 φ28 R1" 67
ESDP402/DL-ET 8 12.4 69.1 10.1 6000 2×7 φ22 φ28 R1" 105
ESDP403/DL-ET 12 18.6 103.7 14.4 9000 2×9 φ28 φ35 R1" 144
ESDP404/DL-ET 16 24.8 138.2 18.7 12000 2×11 φ35 φ42 R1" 182
ESDP451/DL-ET 5.9 9 46.1 7.2 4500 2×6 φ22 φ28 R1" 79
ESDP452/DL-ET 11.8 18 92.2 13 9000 2×8 φ28 φ35 R1" 130
ESDP453/DL-ET 17.7 26.9 138.2 18.7 13500 2×10 φ28 φ35 R1.5" 180
ESDP454/DL-ET 23.6 35.9 184.3 24.5 18000 2×12 φ35 φ42 R1.5" 231
ESDP501/DL-ET 7.5 11.4 57.6 8.7 6000 2×7 φ22 φ28 R1" 90
ESDP501/FL-ET 9.9 15 86.4 13 5400 2×6 φ28 φ35 R1" 112
ESDP502/DL-ET 15 22.8 115.2 15.8 12000 2×9 φ28 φ35 R1.5" 152
ESDP502/FL-ET 19.8 30.1 172.8 23.8 10800 2×8 φ35 φ42 R1.5" 190
ESDP503/DL-ET 22.5 34.2 172.8 23 18000 2×11 φ35 φ42 R1.5" 213
ESDP503/FL-ET 29.8 45.3 259.2 34.5 16200 2×10 φ35 φ42 R1.5" 267
ESDP504/DL-ET 30 45.6 230.4 30.2 24000 2×13 φ35 φ42 R1.5" 275
ESDP504/FL-ET 39.8 60.5 346.5 45.3 21600 2×12 φ35 φ54 R1.5" 344
ESDP631/FL-ET 16.3 24.8 138.2 20.2 9250 2×9 φ28 φ35 R1.5" 156
ESDP632/FL-ET 32.6 49.6 276.5 37.4 18500 2×12 φ35 φ54 R1.5" 270
ESDP633/FL-ET 48.9 74.3 414.7 54.6 27750 2×15 φ42 φ63 R1.5" 383

Pitch 6.0mm (for CO2 and R507A pump liquid supply system)

model Cooling capacity/R744 (KW) Cooling capacity/R507A (KW) area Pipe capacity dm3 Air volume Range Refrigerant interface drain Weight kg
Tc=0 Tc=-18 Tc=0 Tc=-18 import export
T0=-8 T0=-25 T0=-8 T0=-25 m2 m3/h m mm mm
ESDP401/FD-ET 5 3.8 4.6 3.5 35.4 8.7 2800 2×5 φ22 φ28 R1" 79
ESDP402/FD-ET 10 7.5 9.2 6.9 70.8 15.1 5600 2×7 φ22 φ28 R1" 123
ESDP403/FD-ET 15 11.3 13.8 10.4 106.3 21.6 8400 2×9 φ28 φ35 R1" 169
ESDP404/FD-ET 20 15 18.4 13.8 141.7 28 11200 2×11 φ35 φ42 R1" 215
ESDP451/FD-ET 7.4 5.6 6.8 5.1 47.2 10.8 4250 2×6 φ22 φ28 R1" 92
ESDP452/FD-ET 14.9 11.2 13.7 10.3 94.5 19.5 8500 2×8 φ28 φ35 R1" 150
ESDP453/FD-ET 22.3 16.8 20.5 15.4 141.7 28 12750 2×10 φ35 φ42 R1.5" 210
ESDP454/FD-ET 29.9 22.5 27.4 20.6 188.9 36.7 17000 2×12 φ35 φ42 R1.5" 267
ESDP501/FD-ET 9 6.8 8.3 6.2 59 13 5750 2×6 φ28 φ35 R1" 106
ESDP502/FD-ET 18 13.5 16.5 12.4 118.1 23.8 11500 2×8 φ35 φ42 R1.5" 177
ESDP503/FD-ET 27 20.3 24.8 18.6 177.1 34.5 17250 2×10 φ35 φ42 R1.5" 248
ESDP504/FD-ET 36.1 27 33.1 24.8 236.2 45.3 23000 2×12 φ35 φ54 R1.5" 319
ESDP631/FD-ET 15.5 11.7 14.2 10.7 94.5 20.2 9630 2×9 φ28 φ35 R1.5" 146
ESDP631/HD-ET 17.8 13.3 16.3 12.2 126 26.9 9000 2×8 φ28 φ35 R1.5" 172
ESDP632/FD-ET 30.8 23.1 28.3 21.2 188.9 37.4 19260 2×12 φ35 φ54 R1.5" 250
ESDP632/HD-ET 35.4 26.6 32.5 24.4 251.9 49.9 18000 2×11 φ35 φ54 R1.5" 296
ESDP633/FD-ET 46.3 34.8 42.5 31.9 283.4 54.6 28890 2×15 φ42 φ63 R1.5" 353
ESDP633/HD-ET 53.1 39.8 48.7 36.5 377.9 72.8 27000 2×14 φ42 φ63 R1.5" 420
1) Cooling capacity calibration, pumping ratio 3.0. 2) Tc in the table is the storage temperature, and T0 is the evaporating temperature. 3) Range is the air supply distance at 0.5 m/s at room temperature.

Pitch 9.0mm (for CO2 and R507A pump liquid supply system)

model Cooling capacity/R744 (KW) Cooling capacity/R507A (KW) area Pipe capacity dm3 Air volume Range Refrigerant interface drain Weight kg
Tc=0 Tc=-25 Tc=0 Tc=-25 import export
T0=-8 T0=-31 T0=-8 T0=-31 m2 m3/h m mm mm
ESDP401/FJ-ET 4.3 2.6 3.9 2.4 24.2 8.7 3000 2×5 φ22 φ28 R1" 79
ESDP402/FJ-ET 8.6 5.2 7.9 4.8 48.4 15.1 6000 2×7 φ22 φ28 R1" 125
ESDP403/FJ-ET 12.9 7.7 11.8 7.1 72.6 21.6 9000 2×9 φ28 φ35 R1" 172
ESDP404/FJ-ET 17.2 10.5 15.8 9.6 96.8 28 12000 2×11 φ35 φ42 R1" 218
ESDP451/FJ-ET 6.2 3.7 5.7 3.4 32.3 10.8 4500 2×6 φ22 φ28 R1" 93
ESDP452/FJ-ET 12.3 7.4 11.3 6.8 64.5 19.5 9000 2×8 φ28 φ35 R1" 152
ESDP453/FJ-ET 18.4 11.1 16.9 10.2 96.8 28 13500 2×10 φ35 φ42 R1.5" 213
ESDP454/FJ-ET 24.6 14.9 22.6 13.7 129 36.7 18000 2×12 φ35 φ42 R1.5" 272
ESDP501/FJ-ET 7.6 4.6 7 4.2 40.3 13 6000 2×6 φ28 φ35 R1" 107
ESDP502/FJ-ET 15.4 9.3 14.1 8.5 80.6 23.8 12000 2×8 φ35 φ42 R1.5" 180
ESDP503/FJ-ET 23 14 21.1 12.8 121 34.5 18000 2×10 φ35 φ42 R1.5" 252
ESDP504/FJ-ET 30.7 18.6 28.2 17.1 161.3 45.3 24000 2×12 φ35 φ54 R1.5" 325
ESDP631/FJ-ET 12.6 7.6 11.6 7 64.5 20.2 9950 2×9 φ28 φ35 R1.5" 149
ESDP631/HJ-ET 15 9 13.8 8.3 86 26.9 9300 2×8 φ28 φ35 R1.5" 175
ESDP632/FJ-ET 25.3 15.3 23.2 14 129 37.4 19900 2×12 φ35 φ54 R1.5" 254
ESDP632/HJ-ET 30 18.1 27.5 16.6 172 49.9 18600 2×11 φ35 φ54 R1.5" 302
ESDP633/FJ-ET 37.9 37.9 34.8 21.1 193.5 54.6 29850 2×15 φ42 φ63 R1.5" 360
ESDP633/HJ-ET 45 27.3 41.3 25 258 72.8 27900 2×14 φ42 φ63 R1.5" 428
1) Cooling capacity calibration, pumping ratio 3.0. 2) Tc in the table is the storage temperature, and T0 is the evaporating temperature. 3) Range is the air supply distance at 0.5 m/s at room temperature.

Electrical parameter table

Electrical parameter table fan motor Defrost power (KW)
Voltage V Power W Current A Speed r/min Coil water tray total
ESDP401/D* 380 205 0.51 1380 4×0.6 2×0.6 3.6
ESDP401/F* 380 205 0.51 1380 4×0.6 4×0.6 4.8
ESDP402/D* 380 410 1.02 1380 4×1.1 2×1.1 6.6
ESDP402/F* 380 410 1.02 1380 4×1.1 4×1.1 8.8
ESDP403/D* 380 615 1.53 1380 4×1.6 2×1.6 9.6
ESDP403/F* 380 615 1.53 1380 4×1.6 4×1.6 12.8
ESDP404/D* 380 820 2.04 1380 4×2.0 2×2.0 12
ESDP404/F* 380 820 2.04 1380 4×2.0 4×2.0 16
ESDP451/D* 380 370 0.75 1380 4×0.7 2×0.7 4.2
ESDP451/F* 380 370 0.75 1380 4×0.7 4×0.7 5.6
ESDP452/D* 380 740 1.5 1380 4×1.4 2×1.4 8.4
ESDP452/F* 380 740 1.5 1380 4×1.4 4×1.4 11.2
ESDP453/D* 380 1110 2.25 1380 4×2.0 2×2.0 12
ESDP453/F* 380 1110 2.25 1380 4×2.0 4×2.0 16
ESDP454/D* 380 1480 3 1380 4×2.8 2×2.8 16.8
ESDP454/F* 380 1480 3 1380 4×2.8 4×2.8 22.2
ESDP501/D* 380 500 0.95 1380 4×0.9 2×0.9 5.4
ESDP501/F* 380 500 0.95 1380 4×0.9 4×0.9 7.2
ESDP502/D* 380 1000 1.9 1380 4×1.7 2×1.7 10.2
ESDP502/F* 380 1000 1.9 1380 4×1.7 4×1.7 13.6
ESDP503/D* 380 1500 2.85 1380 4×2.6 2×2.6 15.6
ESDP503/F* 380 1500 2.85 1380 4×2.6 4×2.6 20.8
ESDP504/D* 380 2000 3.8 1380 4×3.0 2×3.0 18
ESDP504/F* 380 2000 3.8 1380 4×3.0 4×3.0 24
ESDP631/F* 380 800 1.6 1320 6×1.1 4×1.1 11
ESDP631/H* 380 800 1.6 1320 8×1.1 4×1.1 13.2
ESDP632/F* 380 1600 3.2 1320 6×2.0 4×2.0 20
ESDP632/H* 380 1600 3.2 1320 8×2.0 4×2.0 24
ESDP633/F* 380 2400 4.8 1320 6×3.0 4×3.0 30
ESDP633/H* 380 2400 4.8 1320 8×3.0 4×3.0 36

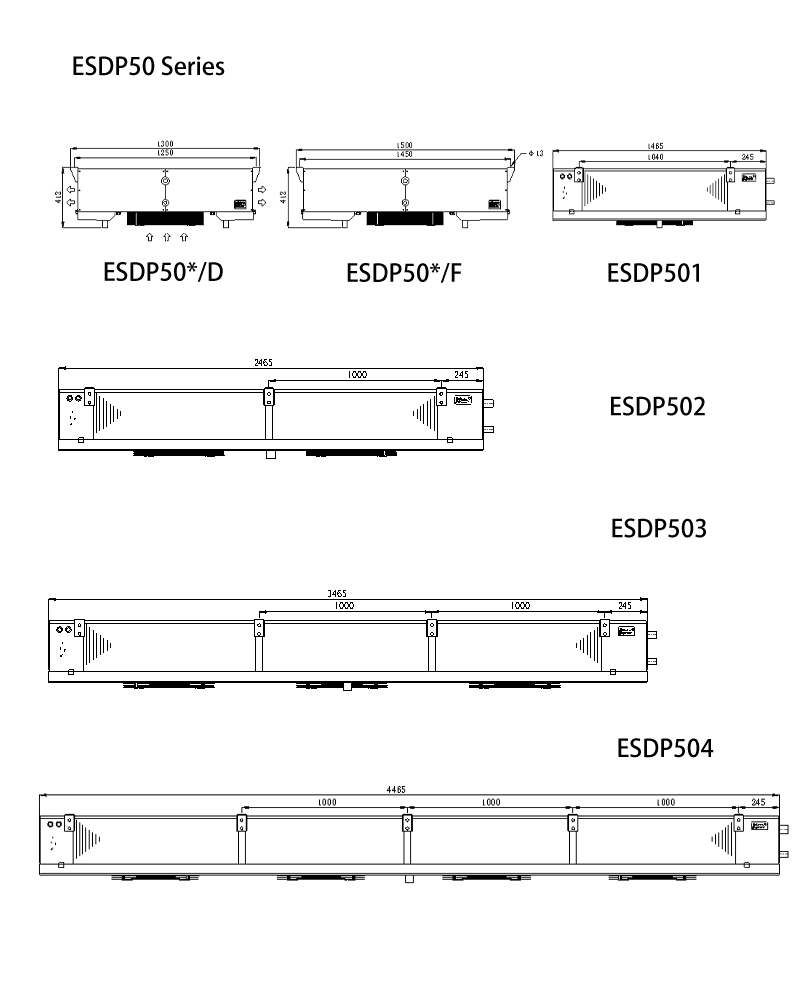

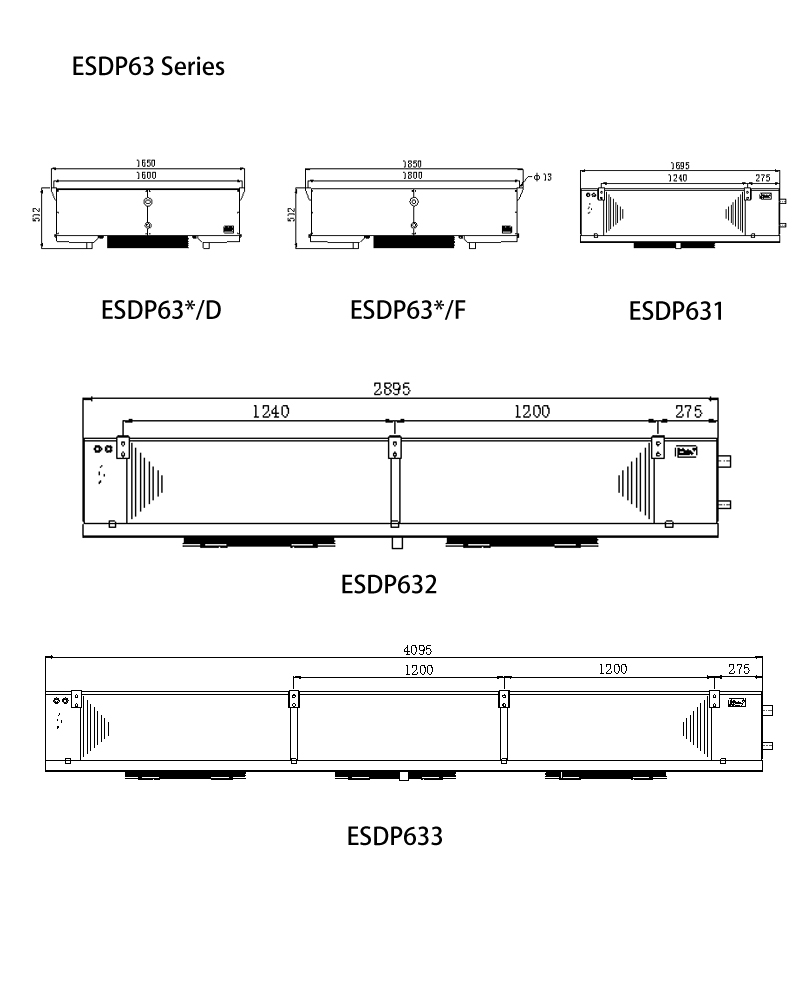

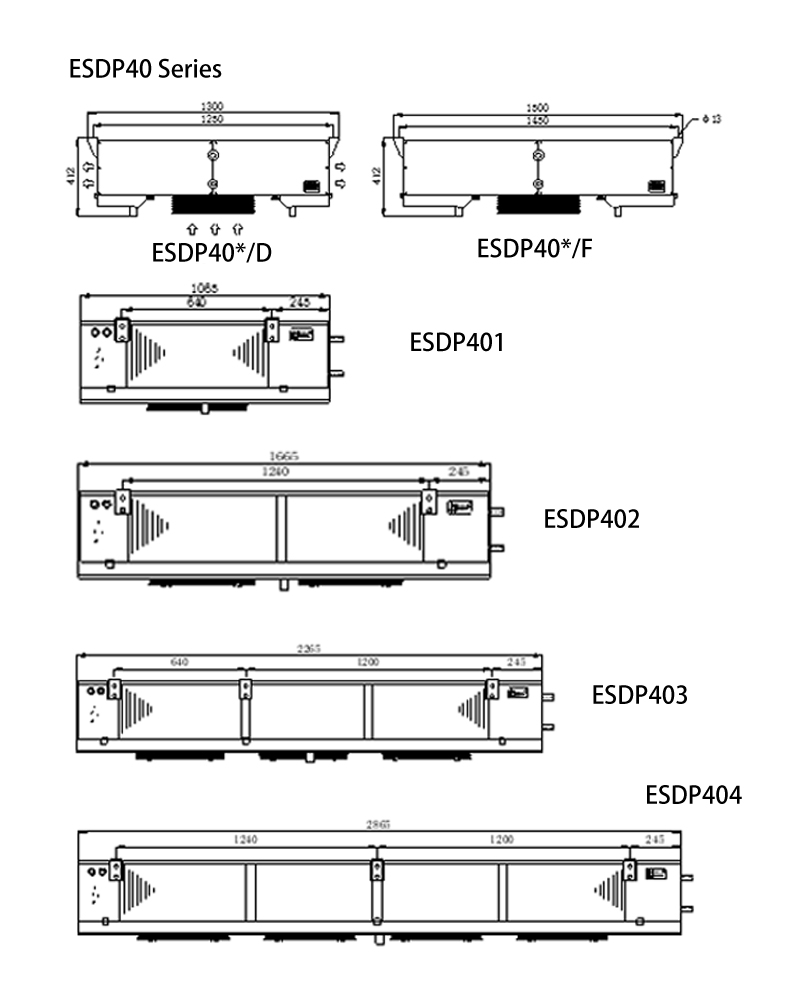

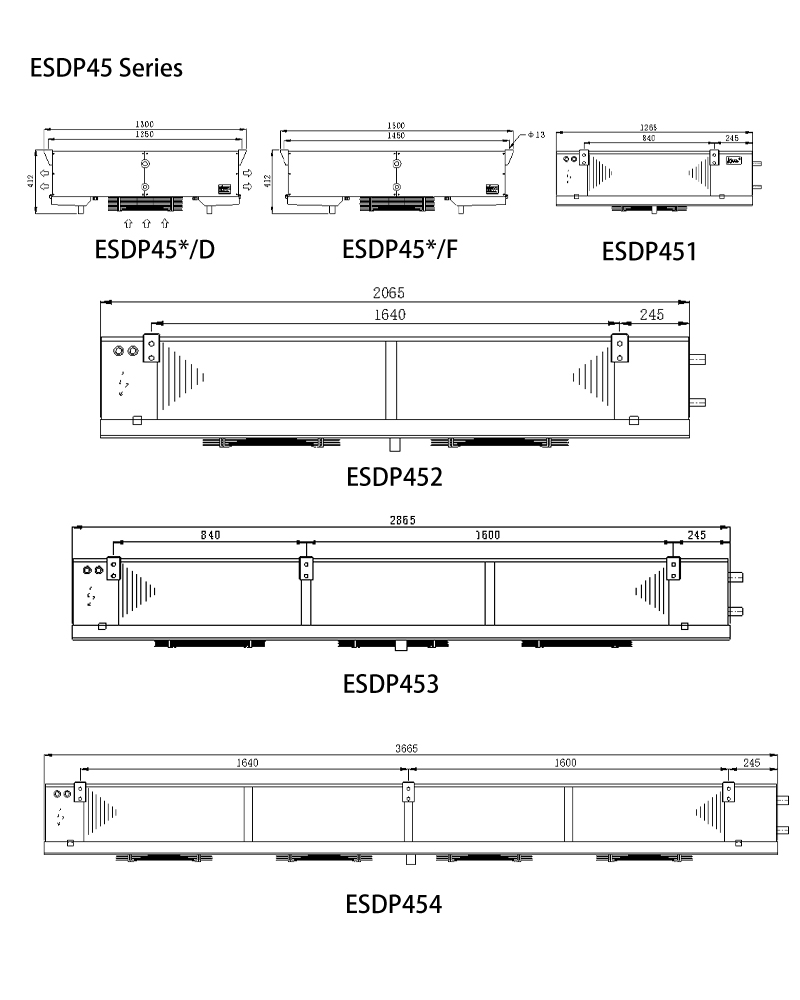

03Dimensions
  • 04Unit Configuration
    part Configuration part Configuration
    shell 304 stainless steel fins Hydrophilic aluminum foil (blue)
    316 stainless steel Plain aluminum foil
    Galvanized steel with plastic spraying 304 stainless steel sheet**
    motor Glossy stainless steel outer rotor 316 stainless steel sheet**
    EBM outer rotor (non-stainless steel) Defrost electro-thermal
    Coil 304 stainless steel Air
    316 stainless steel wind deflector
    ●: Standard configuration; ○: Optional. *: Stainless steel fins are used, the heat exchange rate is much smaller, please consult the company's technical department for details
